Vehicle Zoning

Vehicle Zoning:

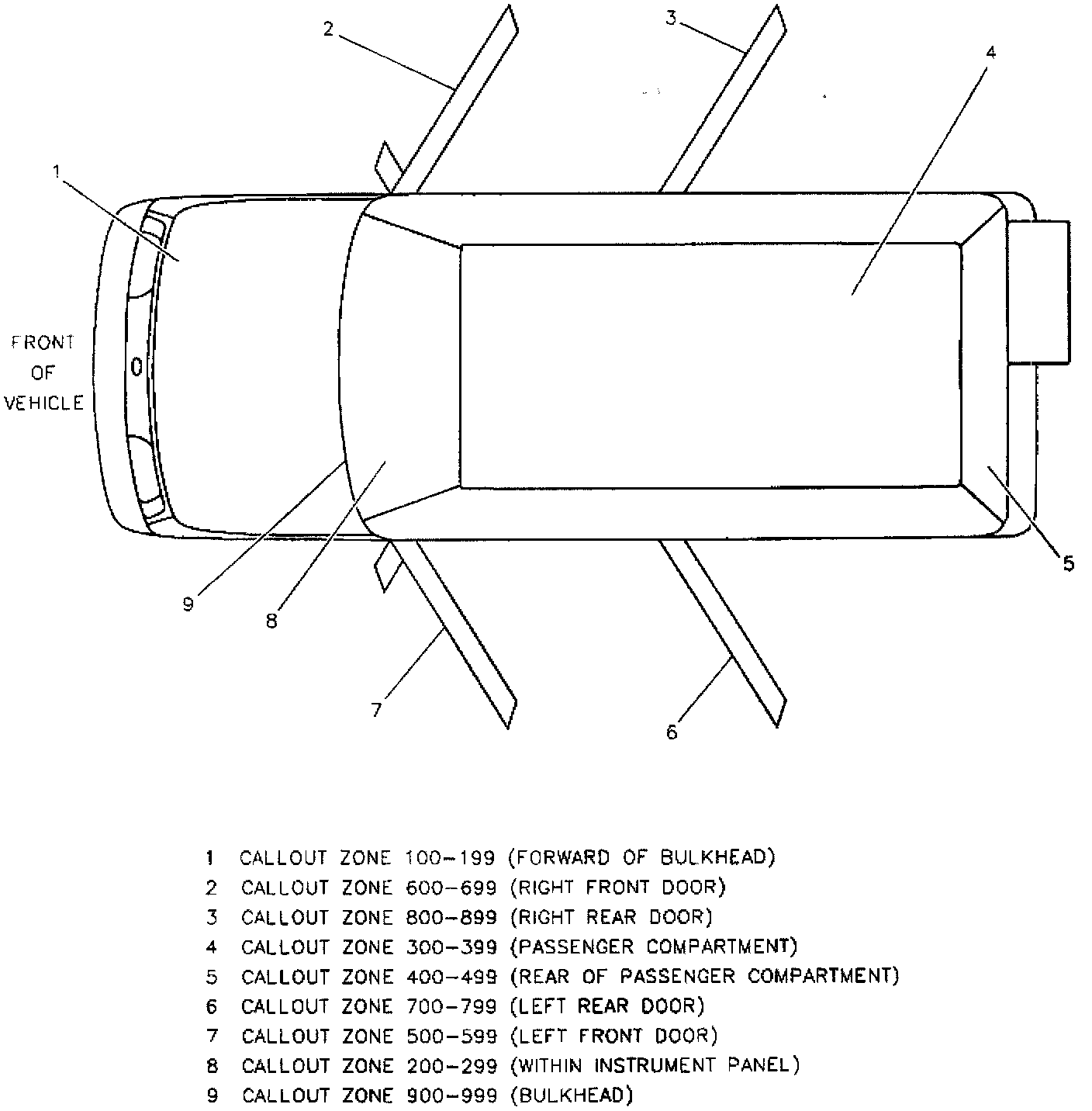

All connectors, grounds, splices and grommets are labeled with numbers which correspond to specific areas of the vehicle. These numbers will help you locate a connector, ground, splice or grommet in the vehicle. For example, connector C605 will be located somewhere in the right front door. For further information regarding these locations and labels, refer to the "Vehicle Zoning Callout Chart".
