Home
>>
Chevrolet
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Auto Lever Control (ALC) Compressor Relay
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

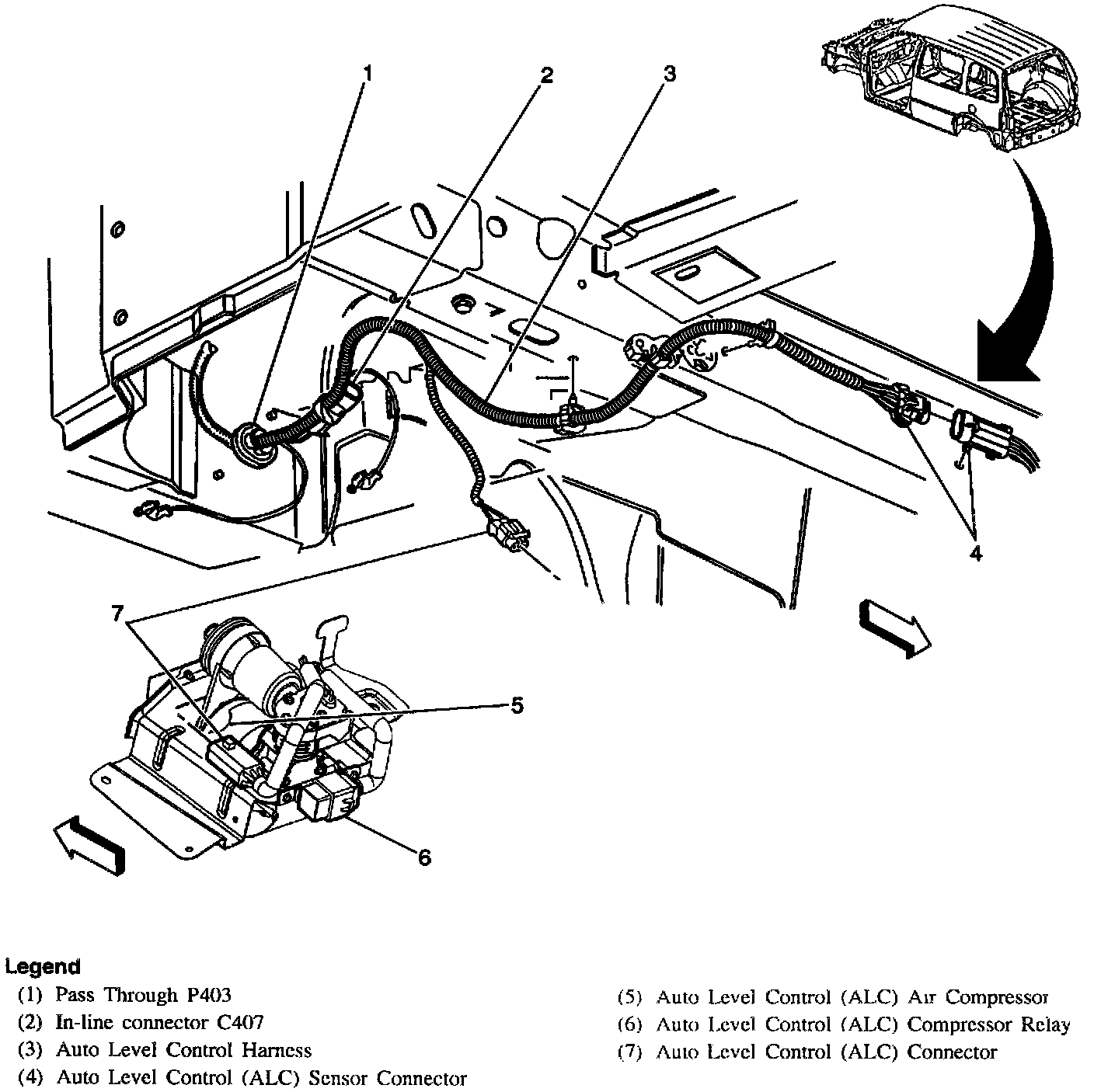

Auto Lever Control (ALC) Compressor Relay
Below Vehicle, Rear Of LR Wheelhouse:
