Cylinder Block Components

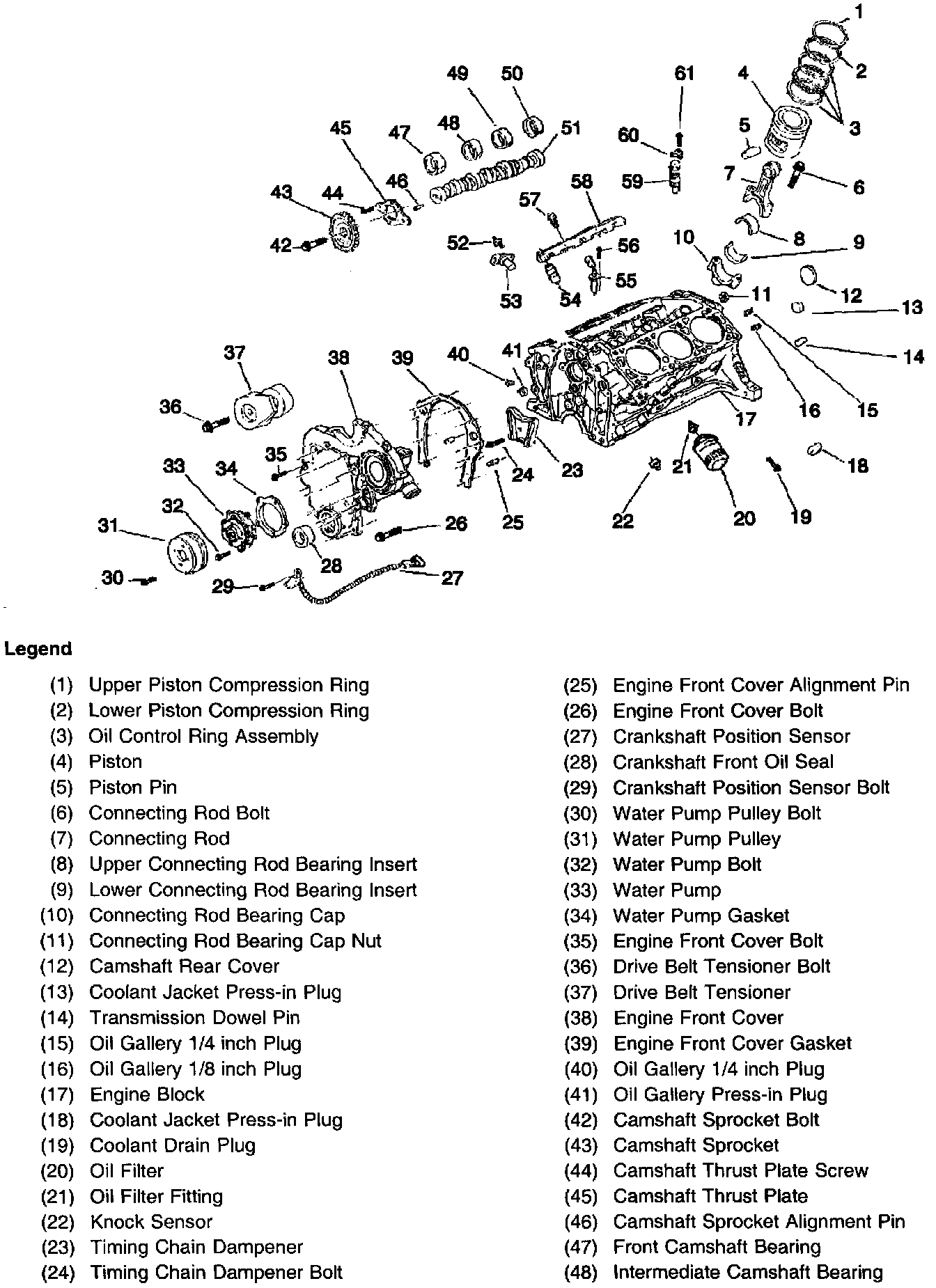

Engine Block And Components, Part 1 Of 2:
Engine Block And Components, Part 2 Of 2:
