Upper Manifold Components

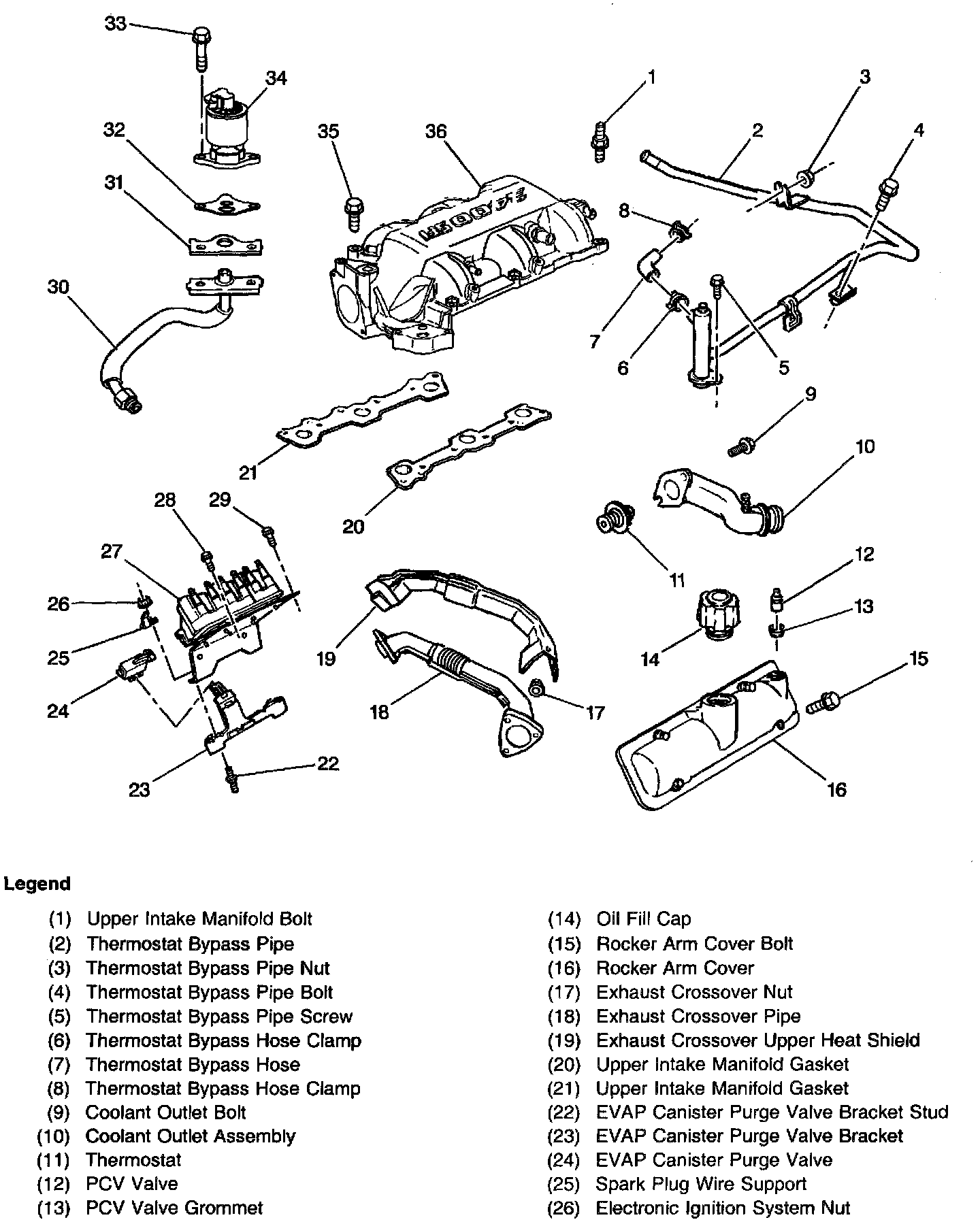

Upper Intake Manifold And Components, Part 1 Of 2:



Upper Intake Manifold And Components, Part 2 Of 2:
