Auxiliary Video Module (AVM)

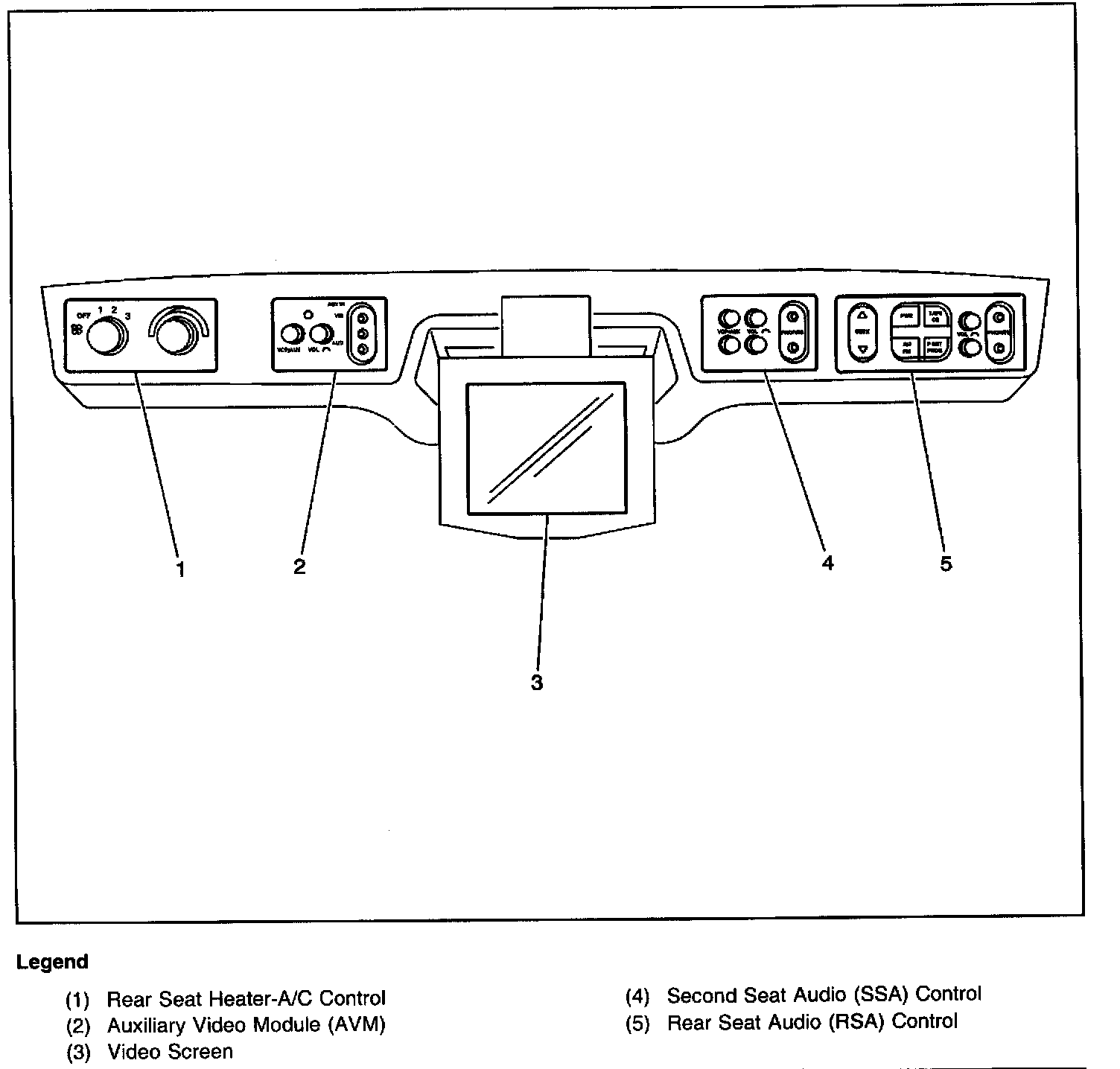

Roof Rear Overhead Console: U42:

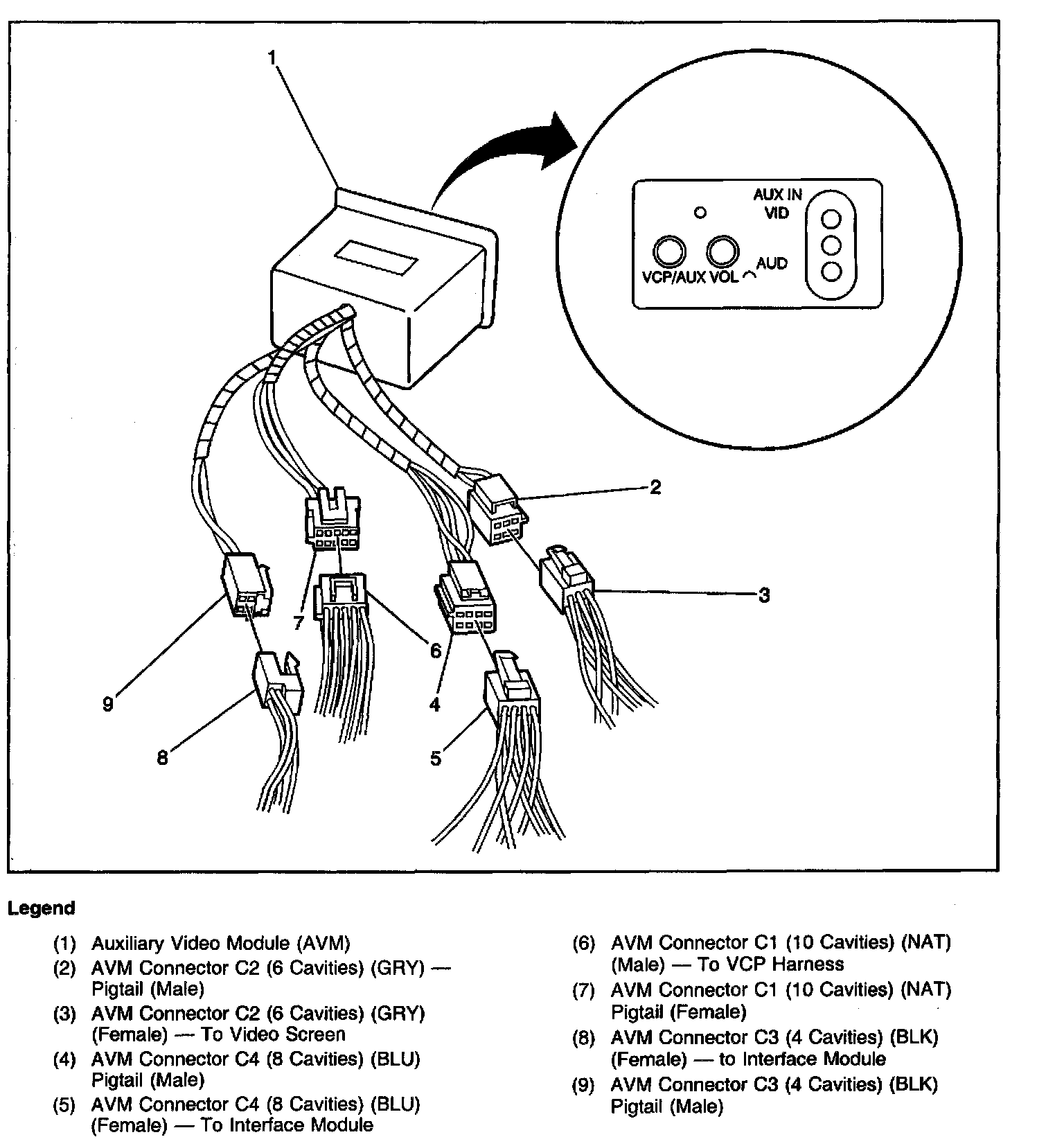

Auxiliary Video Module: AVM:






Overhead console, Left side of video screen.
