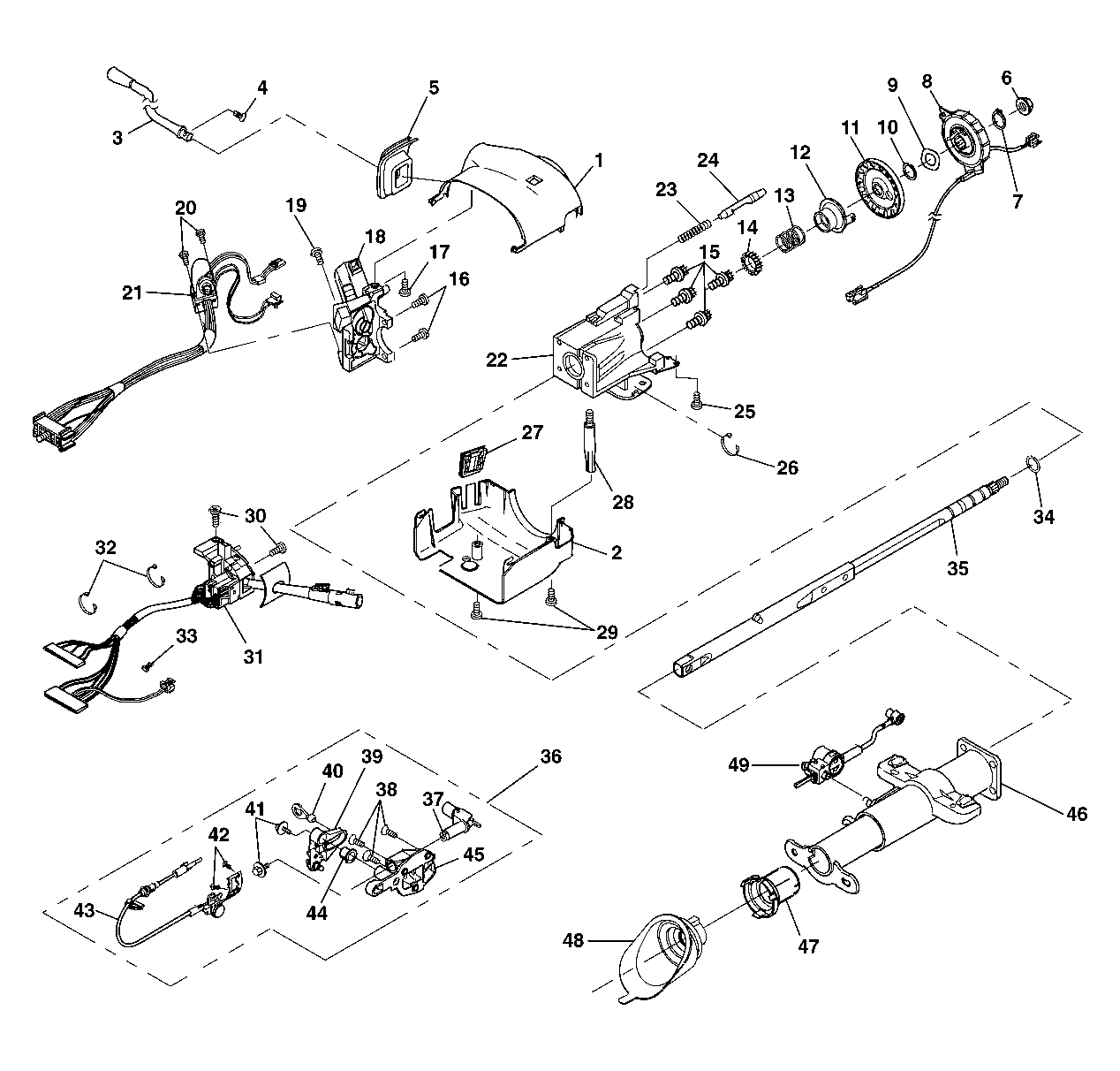

Steering Column Disassembled View
Steering Column Disassembled View Callouts
| 01 | Upper Trim Cover |
| 02 | Lower Trim Cover |
| 03 | Shift Lever Assembly |
| 04 | Shift Lever Screw |
| 05 | Shift Lever Seal |
| 06 | Flanged Prevailing Torque Nut |
| 07 | Retaining Ring |
| 08 | SIR Coil |
| 09 | Wave Washer |
| 10 | Bearing Retainer |
| 11 | Shaft Lock Shield Assembly |
| 12 | Turn Signal Cancel Cam Assembly |
| 13 | Upper Bearing Spring |
| 14 | Thrust Washer |
| 15 | TORX® Head Screws |
| 16 | Pan Head Tapping Screws |
| 17 | TORX® Head Screw |
| 18 | Ignition Lock Cylinder Case |
| 19 | Pan Head Tapping Screw |
| 20 | Tapping Screws |
| 21 | Ignition Switch Assembly |
| 22 | Steering Column Housing Assembly |
| 23 | Lock Bolt Spring |
| 24 | Lock Bolt Assembly |
| 25 | TORX® Head Screw |
| 26 | Wire Harness Strap |
| 27 | Trim Cover Protector |
| 28 | Trim Cover Mounting Stud |
| 29 | Pan Head Tapping Screws |
| 30 | Pan Head Tapping Screws |
| 31 | Turn Signal And Multifunction Switch Assembly |
| 32 | Wire Harness Straps |
| 33 | Axial Position Assurance Connector |
| 34 | Bearing Retainer |
| 35 | Steering Shaft Assembly |
| 36 | Linear Shift Assembly |
| 37 | Shift Lever Clevis |
| 38 | Flat Head 6-Lobed Socket Tapping Screws |
| 39 | Cable Shift Cam Assembly |
| 40 | Ball and Actuator Assembly |
| 41 | Hex Flange Head Bolts |
| 42 | Oval Head 6-Lobed Socket Tapping Screws |
| 43 | Park Lock Cable Assembly |
| 44 | Cam Bushing |
| 45 | Gear Shift Lever Assembly Support Bracket |
| 46 | Steering Column Jacket Assembly |
| 47 | Adapter and Bearing Assembly |
| 48 | Boot Seal |
| 49 | Automatic Transmission Shift Lock Control |
