Manual Transmission/Transaxle

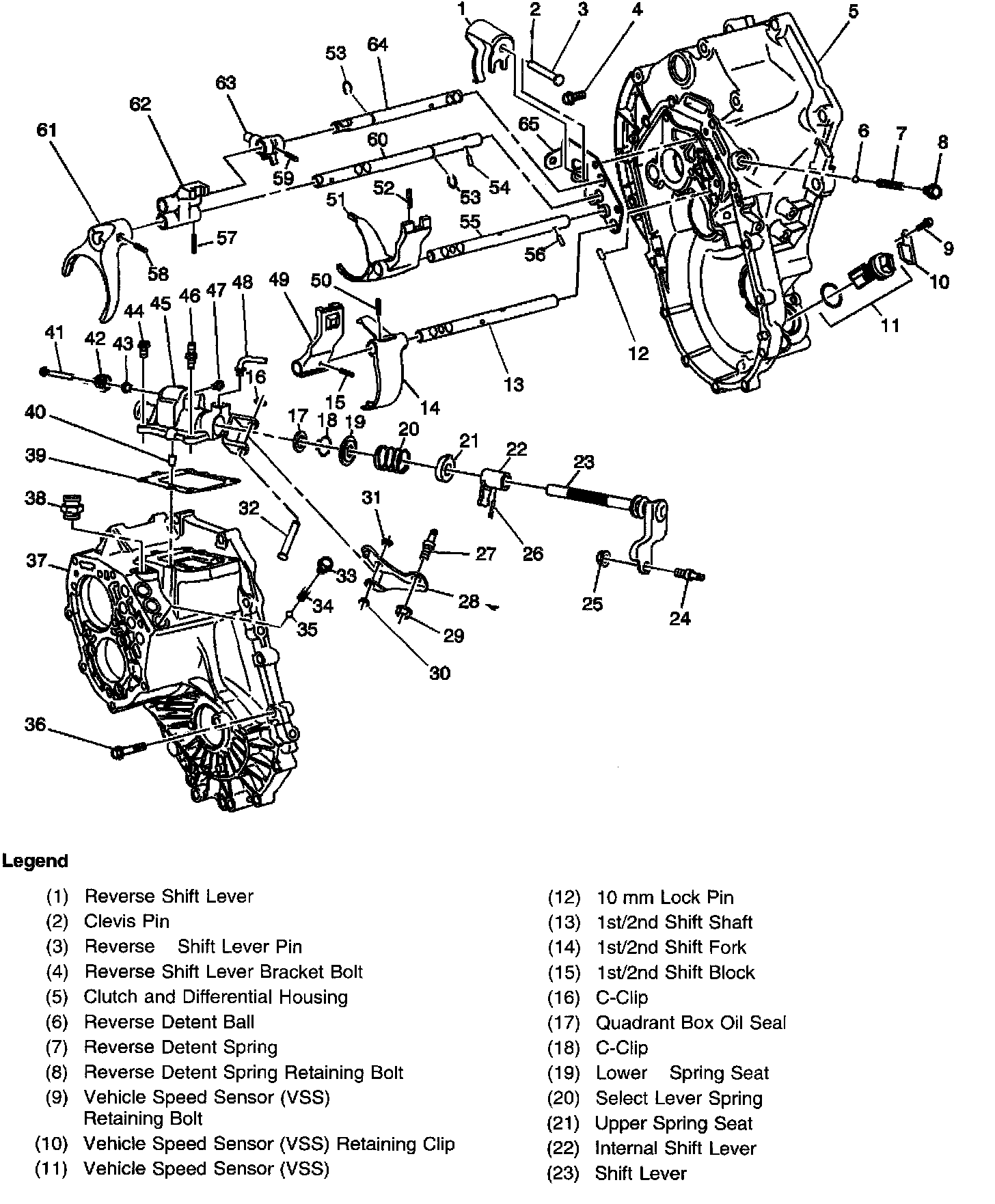

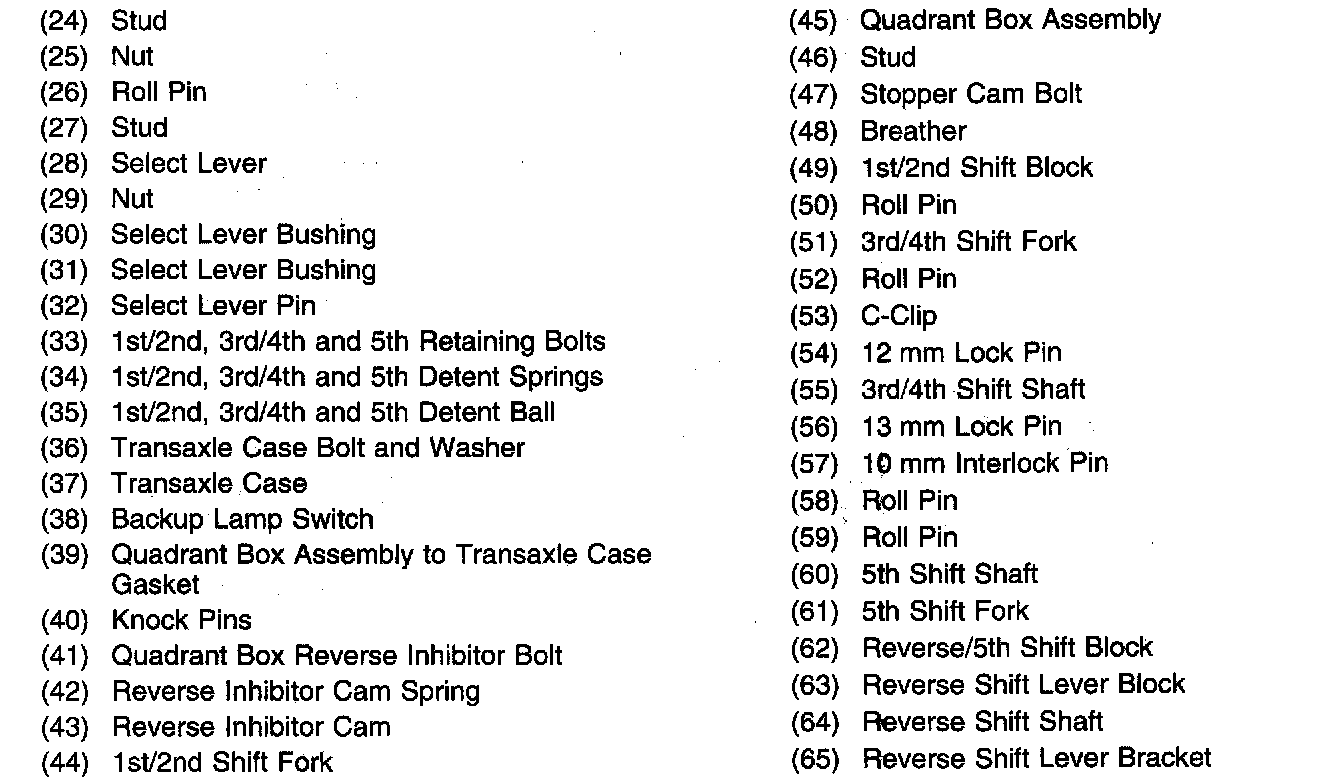

Manual Transaxle Case Components

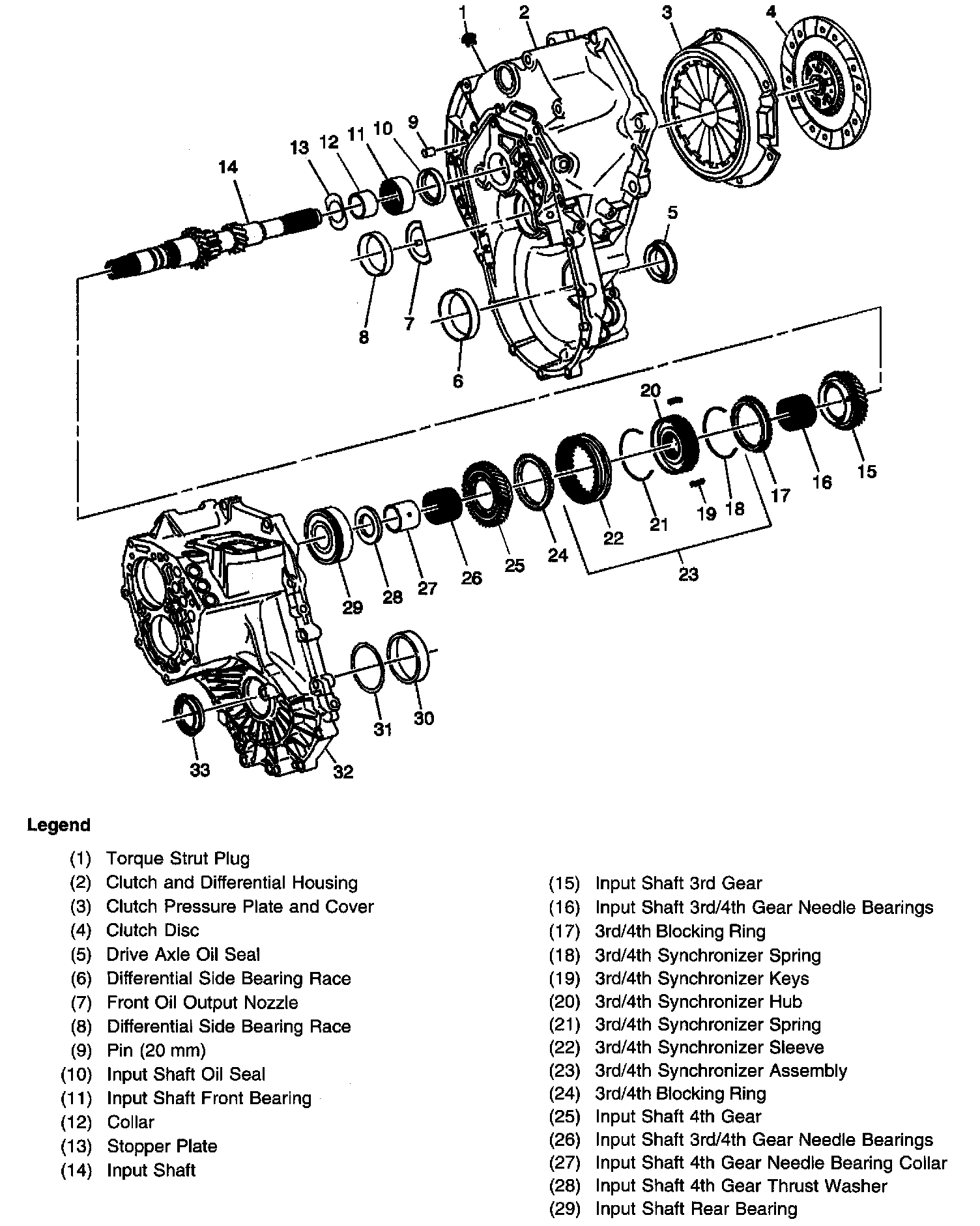

Transmission Internal Components (1 of 3)

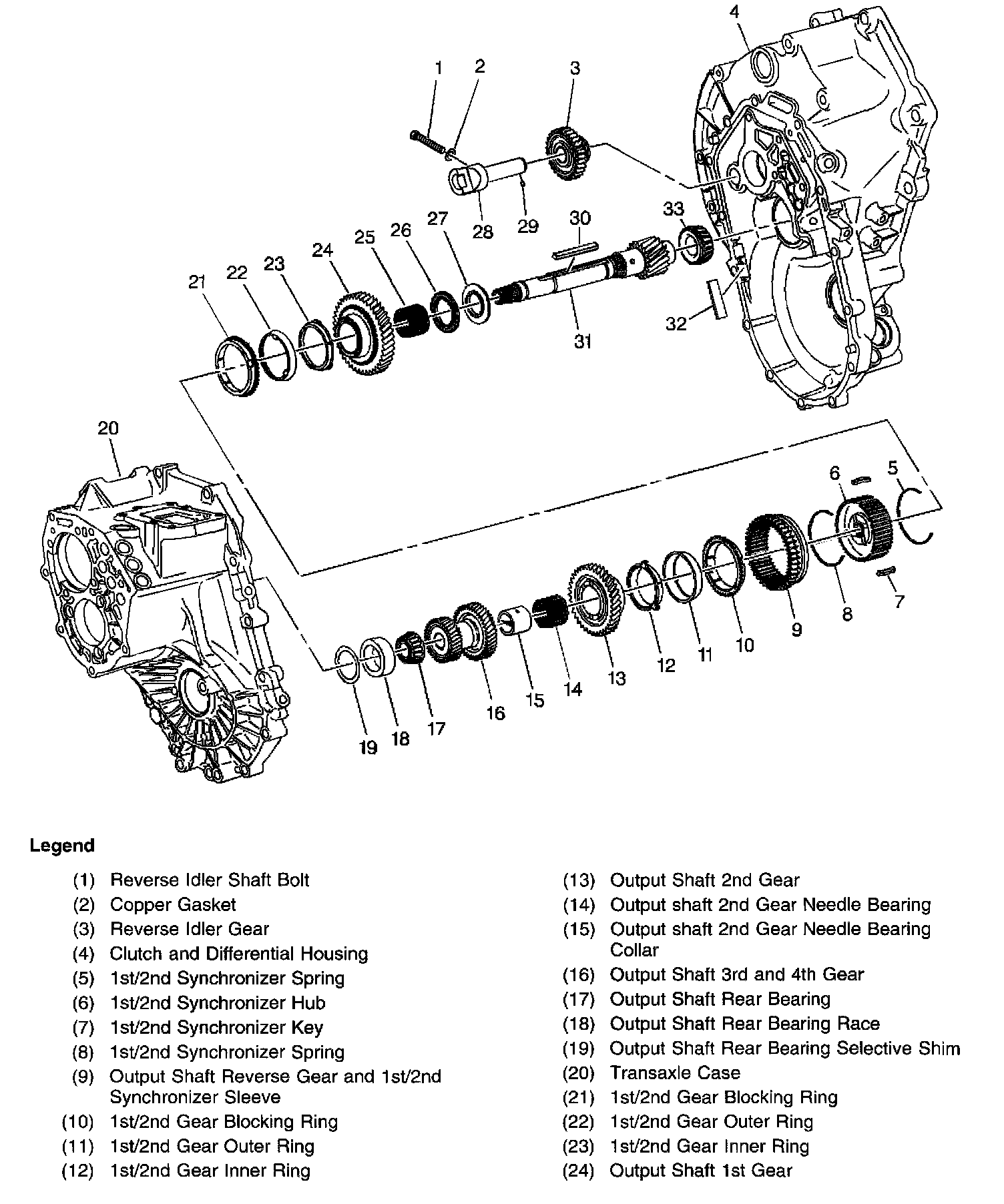

Transmission Internal Components (2 of 3)

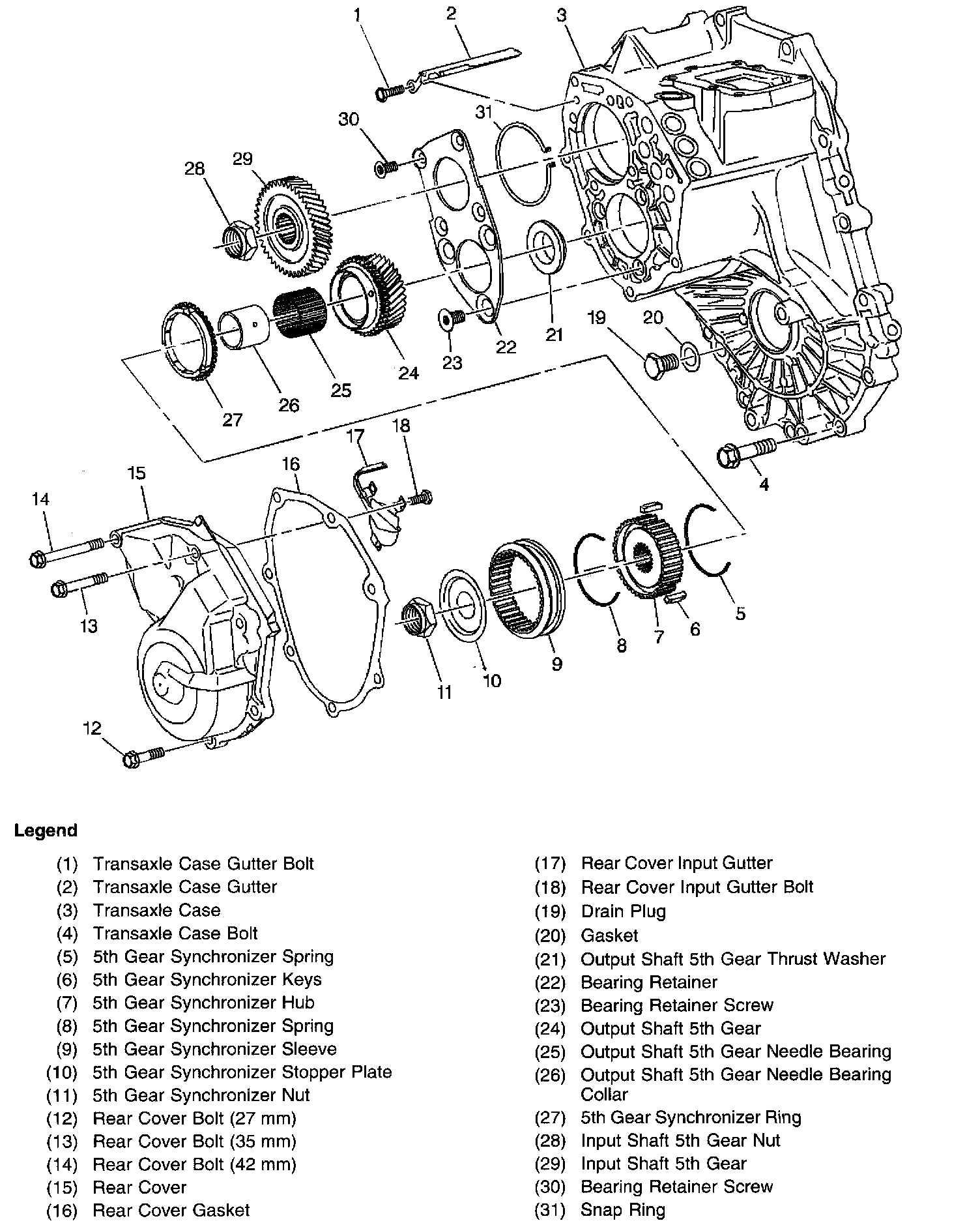

Transmission Internal Components (3 of 3)

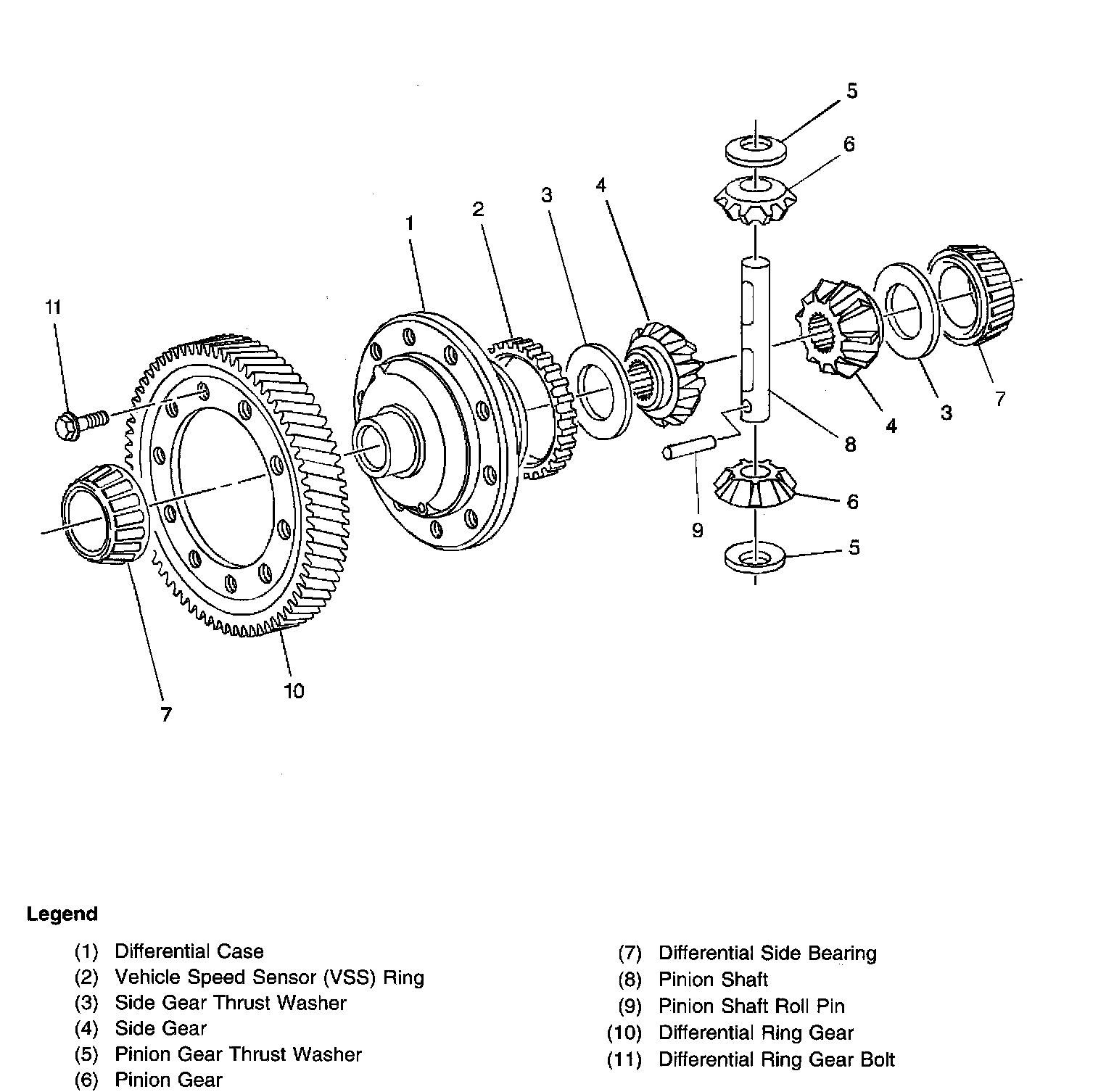

Differential Assembly Components
