Coolant Temperature Sensor/Switch (For Computer): Locations

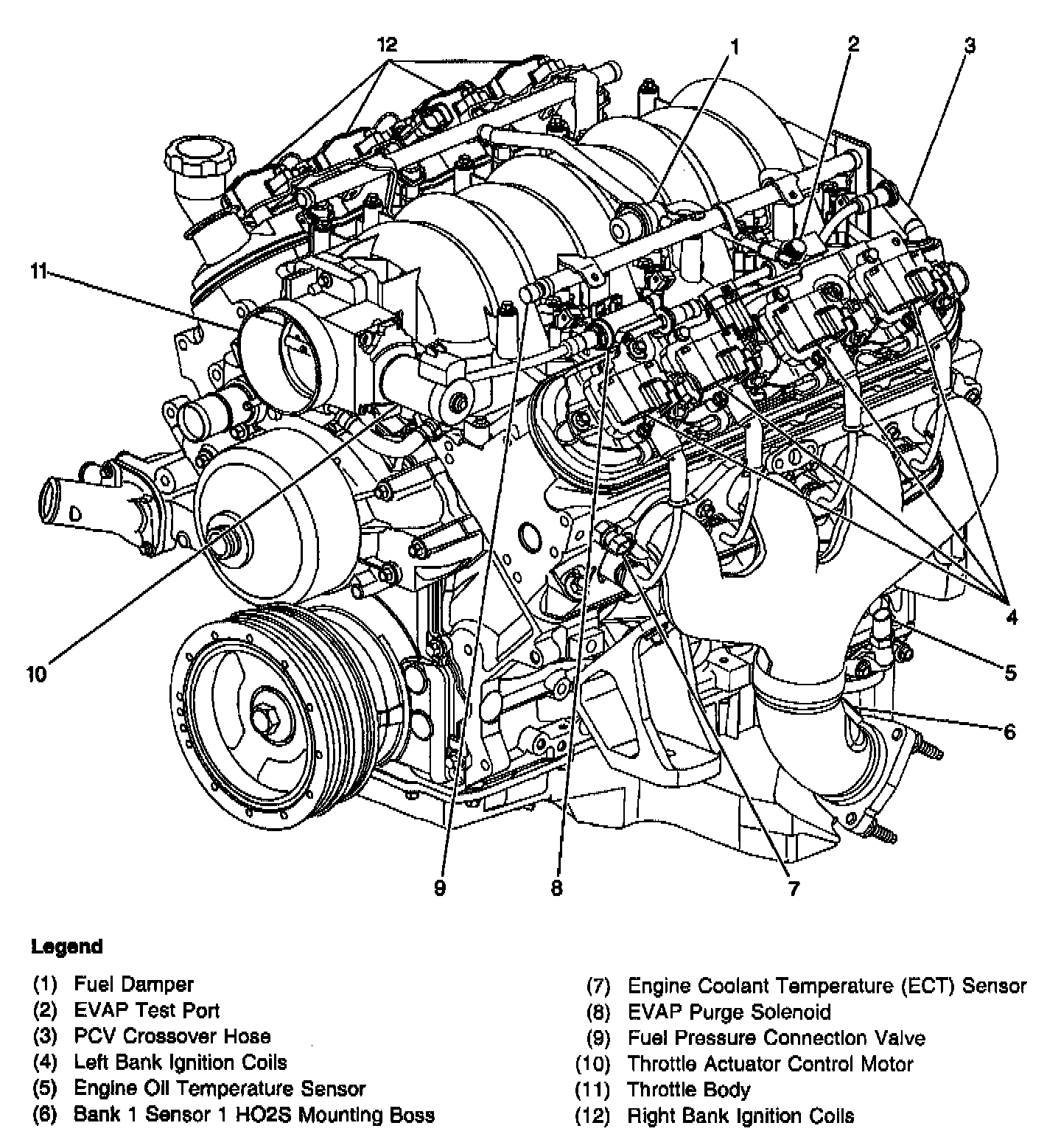

Full Engine View Left Side:




Front LH side of the engine below the generator
