Main Relay (Computer/Fuel System): Locations

Instrument Panel:

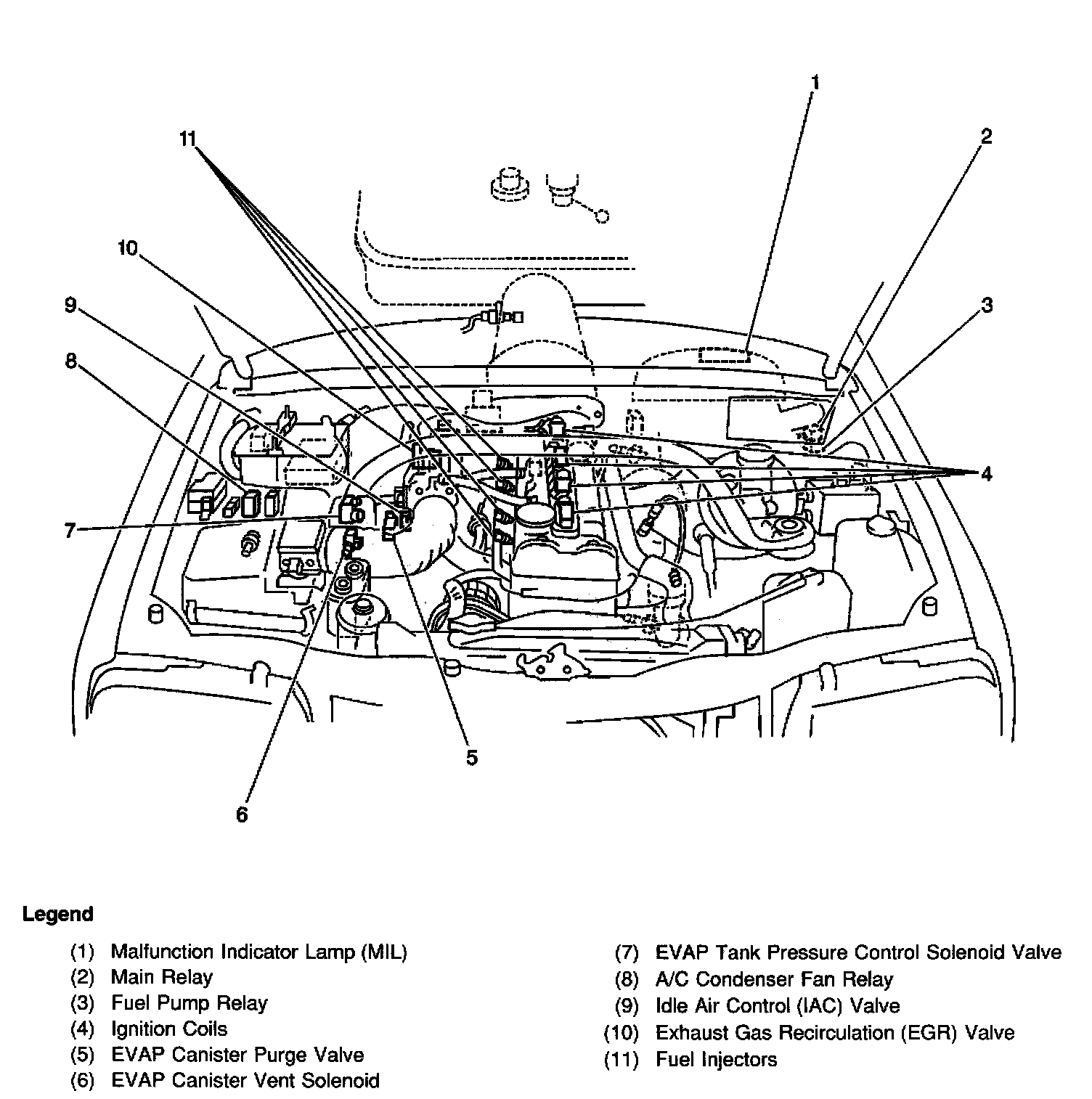

PCM Controlled Devices:

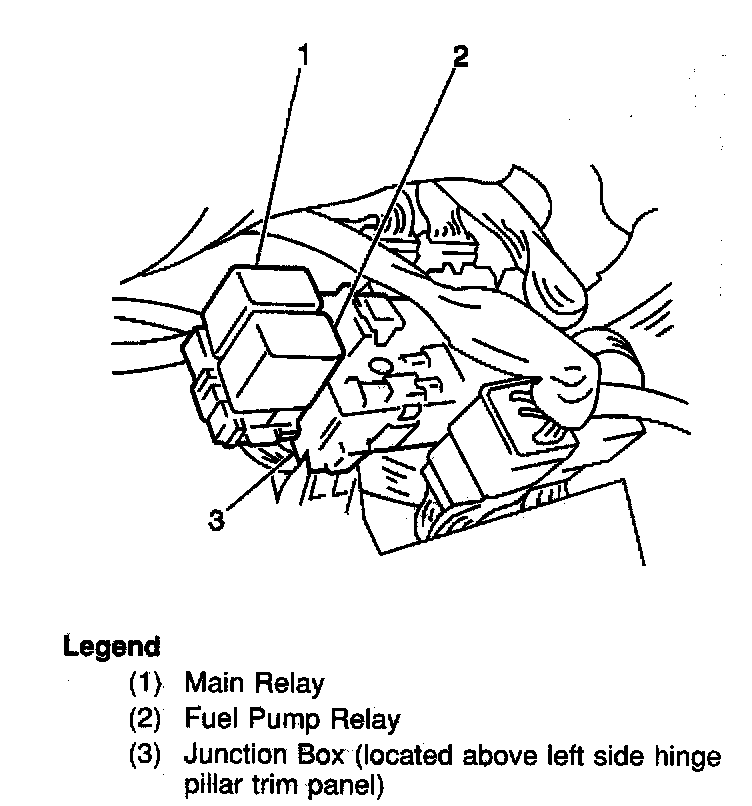

Main Relay And Fuel Pump Relay:

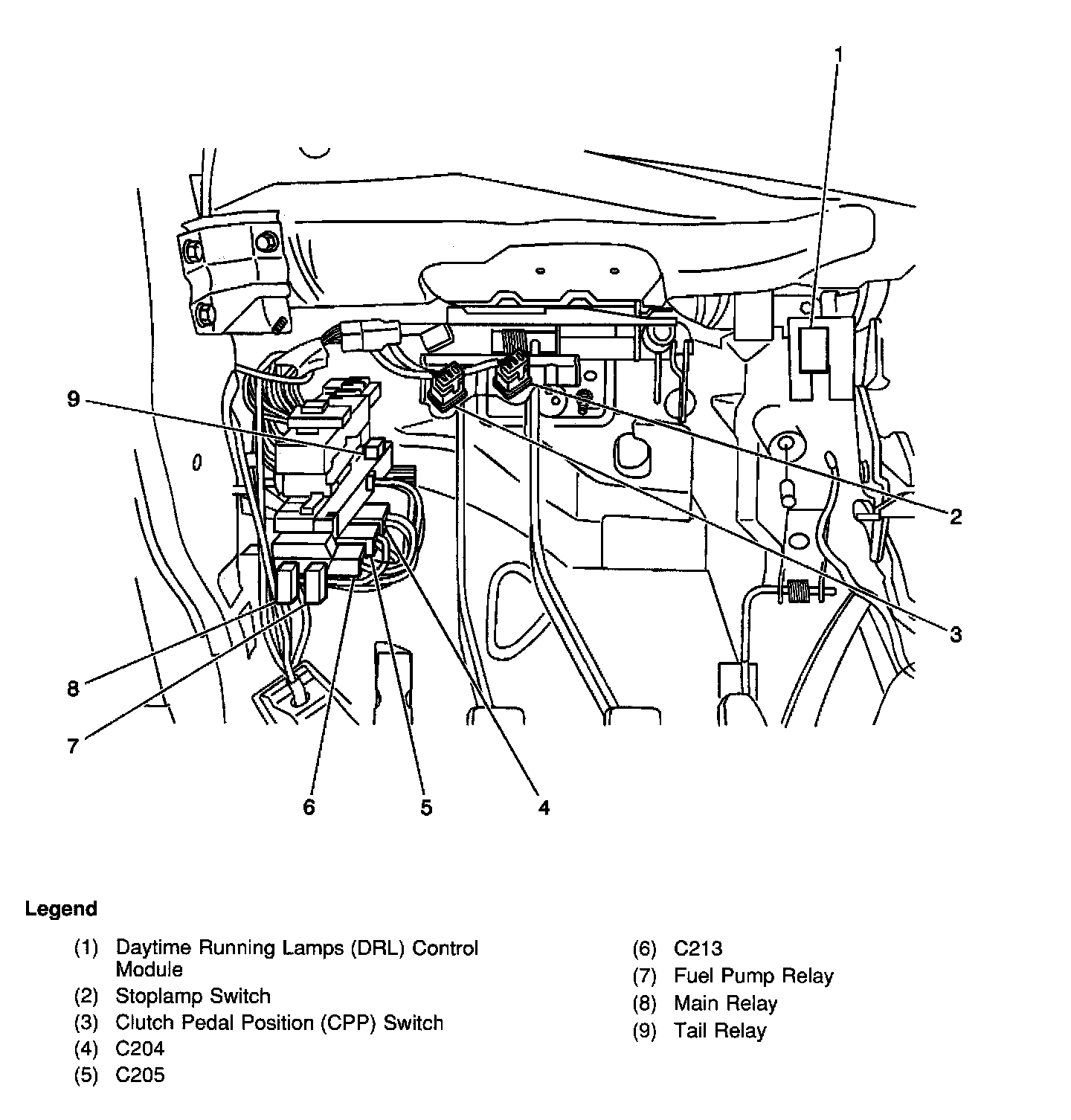

Left Cowl (M/T):

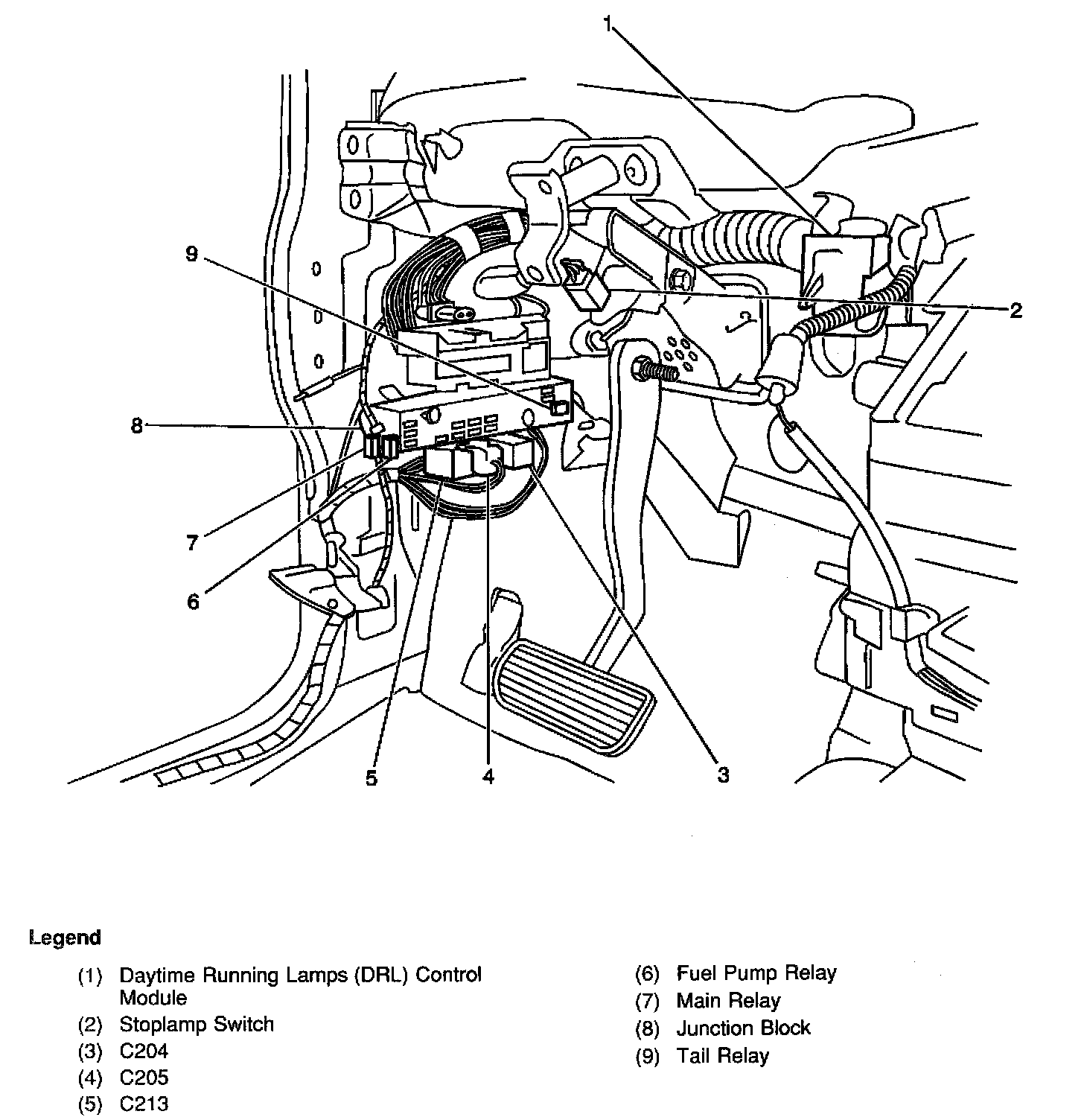

Left Cowl (A/T):

Left front side of the junction block

Left side of the instrument panel above the junction block

Left side of the instrument panel attached to the junction block on the left side
