DR Actuator CTRL Module CONN C3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DR Actuator CTRL Module CONN C3

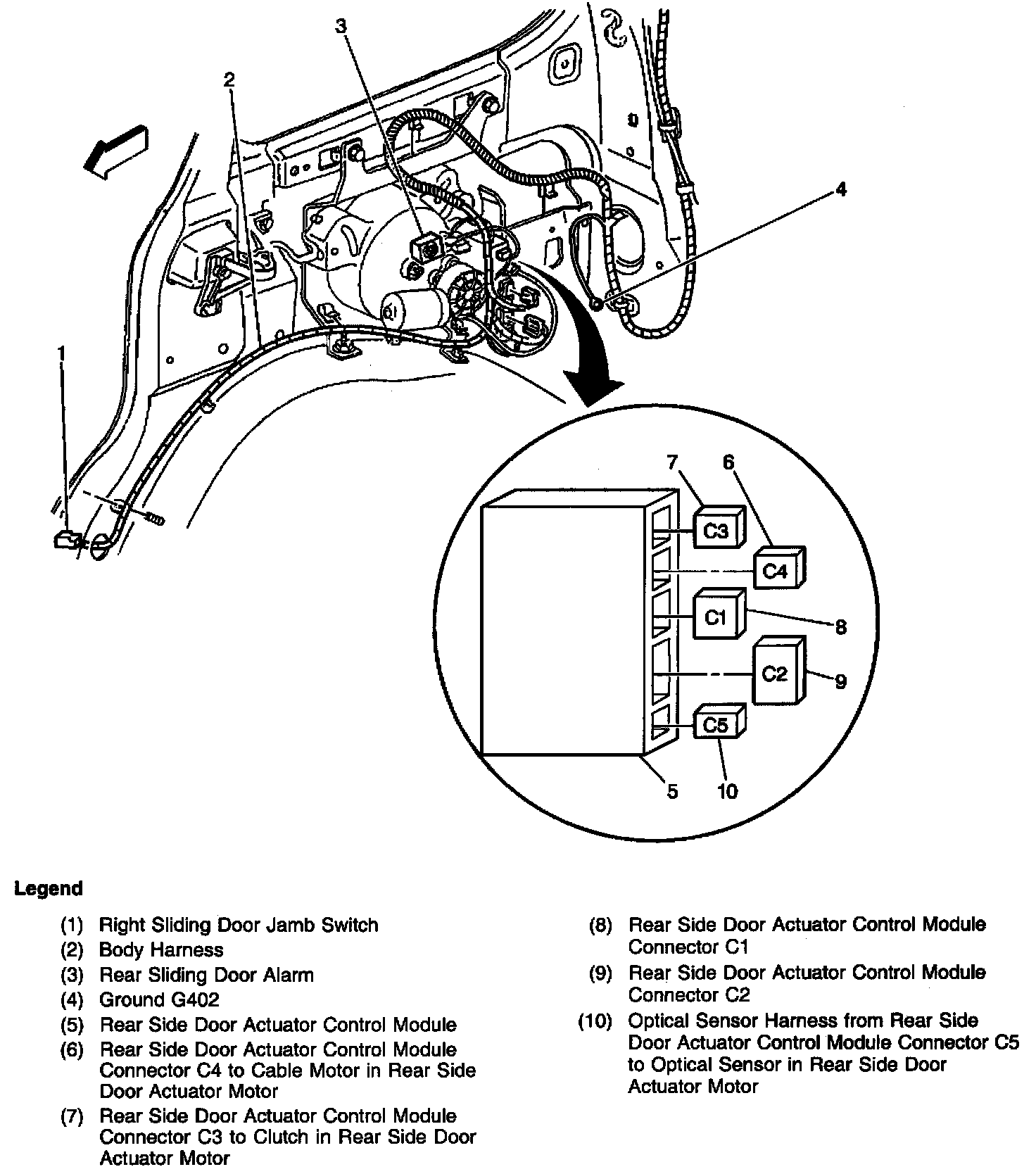

Right Quarter Panel (Rear Side Door Actuator Motor):
