Throttle Position Sensor: Locations

Engine Composite View 3400:

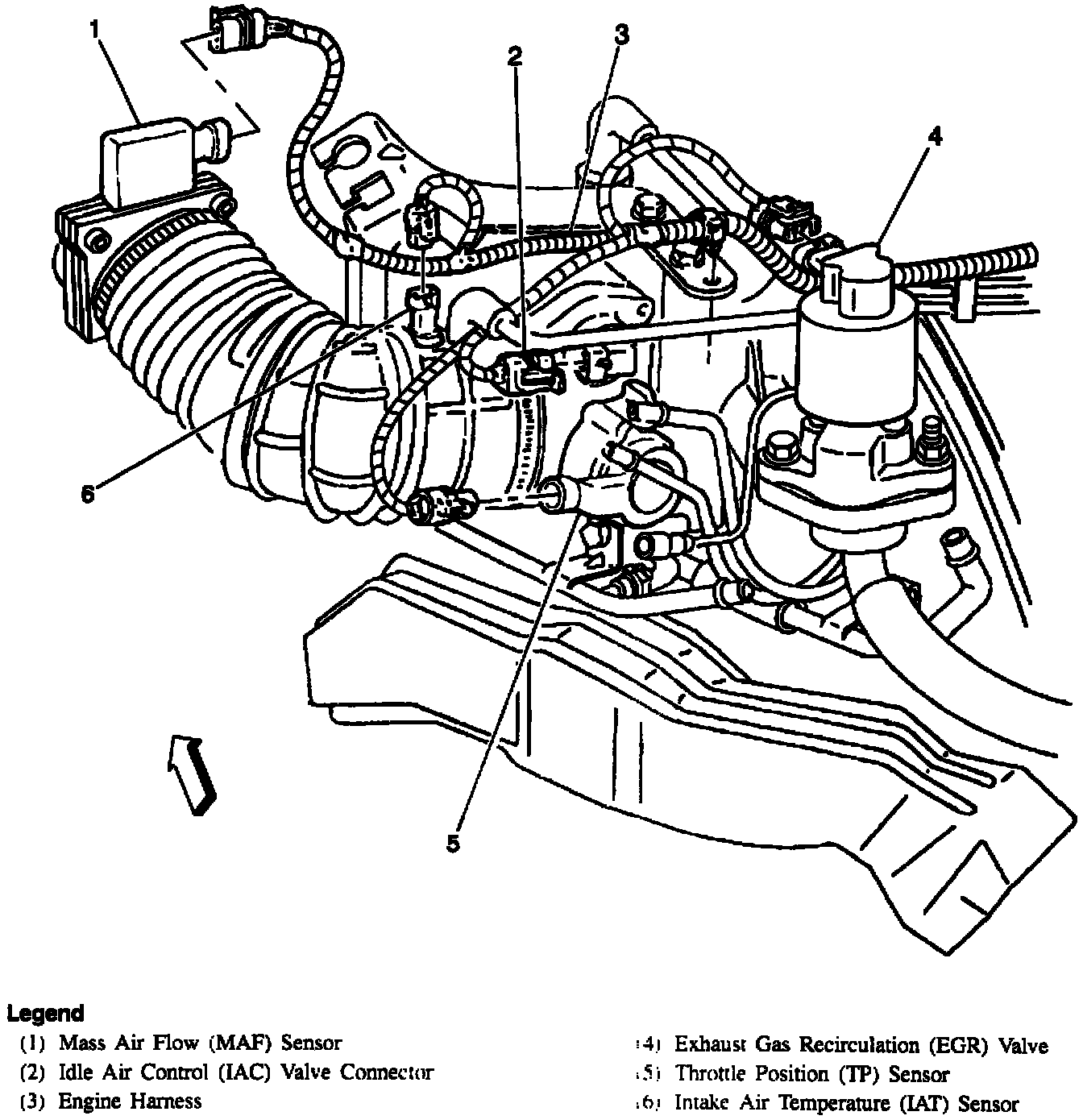

IAC, EGR Valves, TP, IAT, MAF Sensors:

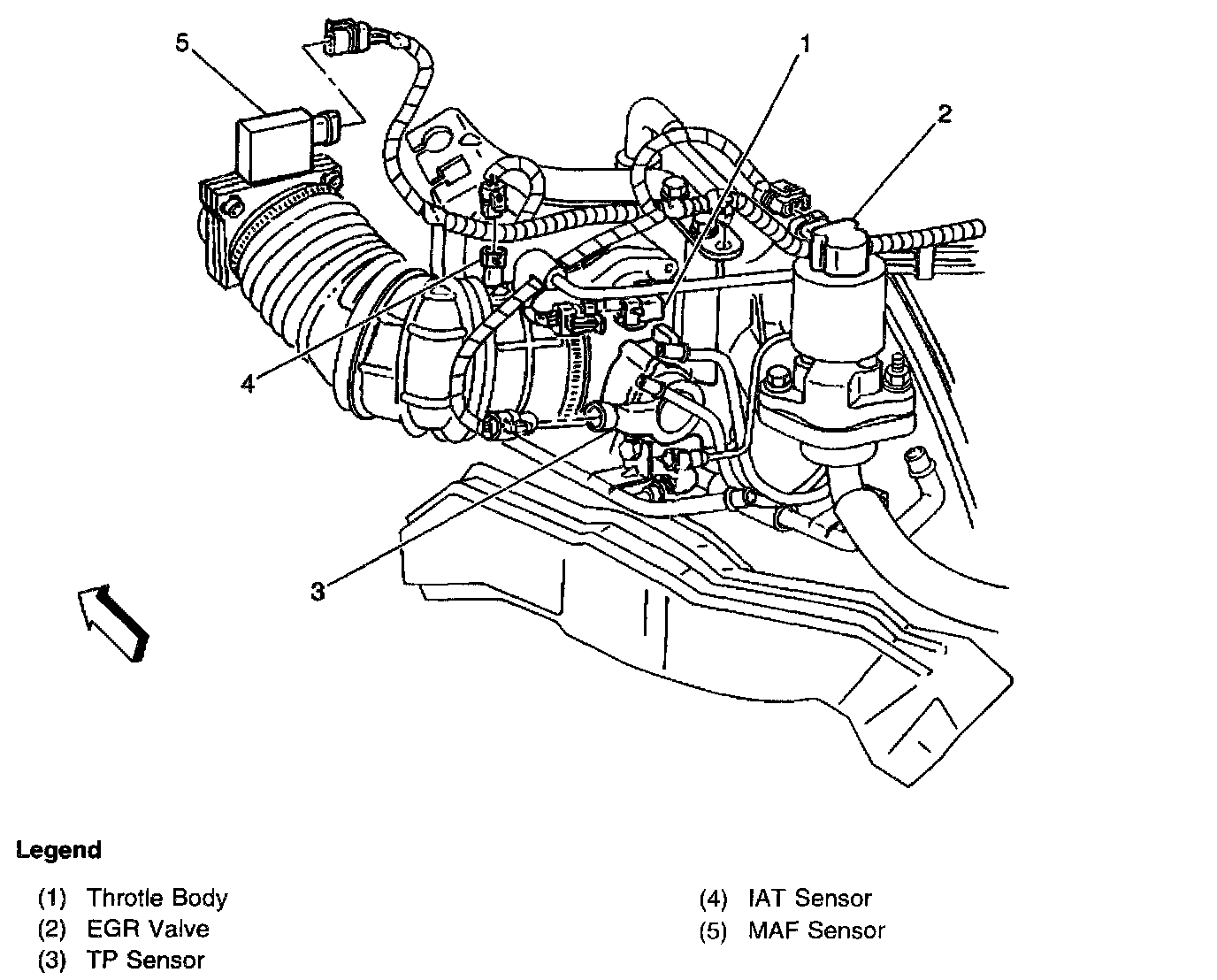

Top, Front LH Side Of Engine:





Top of the engine, on the throttle assembly
