Removal Procedure

WARNING: This page is about a different car, the 2001 GMC Safari and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove parking brake assembly. See Figure . Remove lower dash panel. See Figure .

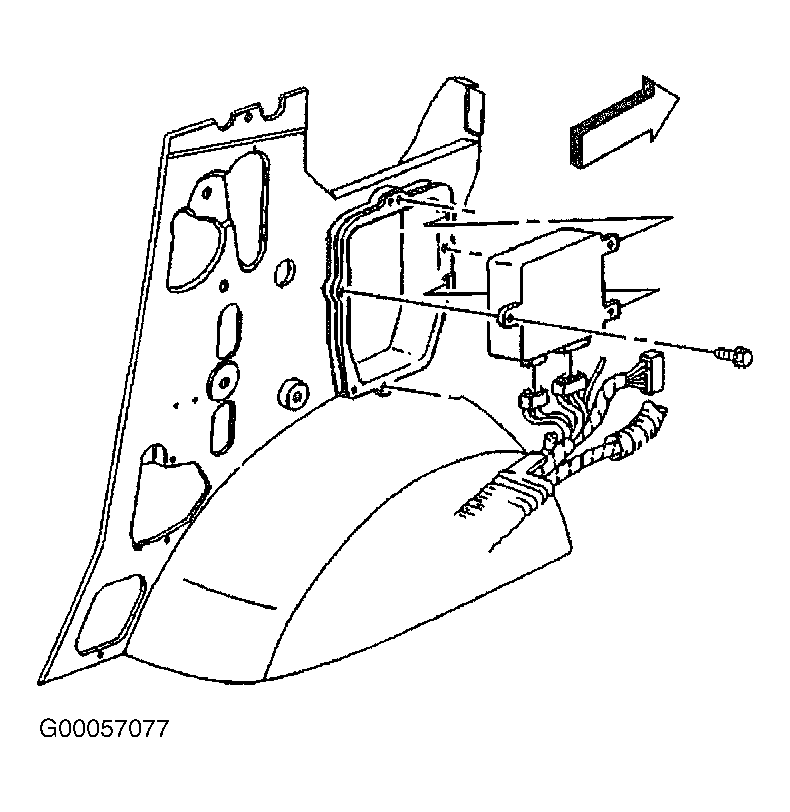

  2. Remove electrical connectors from control module. Remove mounting screws for control module. Remove control module from mounting bracket. See Figure .
