Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector.

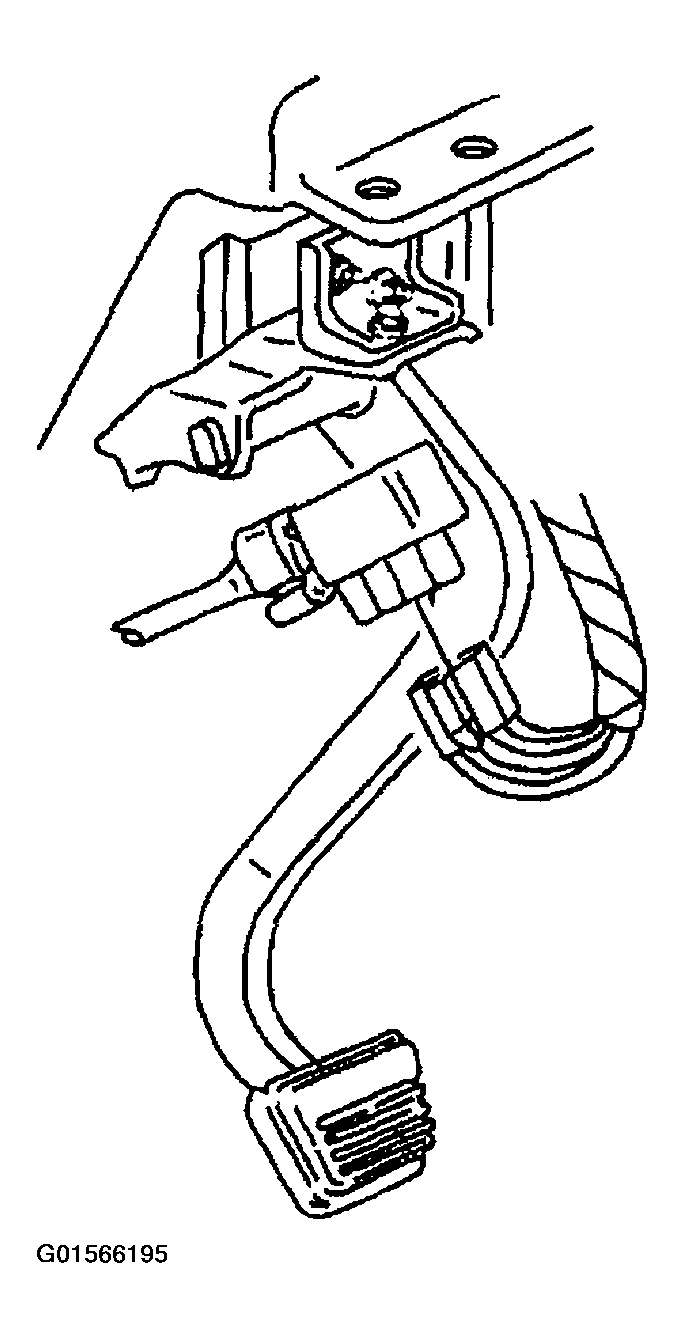

Fig 1: Installing Electric Connectors
Courtesy of GENERAL MOTORS CORP.
Install the switch (2) and pushrod (4) onto the brake pedal (1) pin.
Install the retainer (3) onto the brake pedal (1) pin.
Connect the battery negative cable.

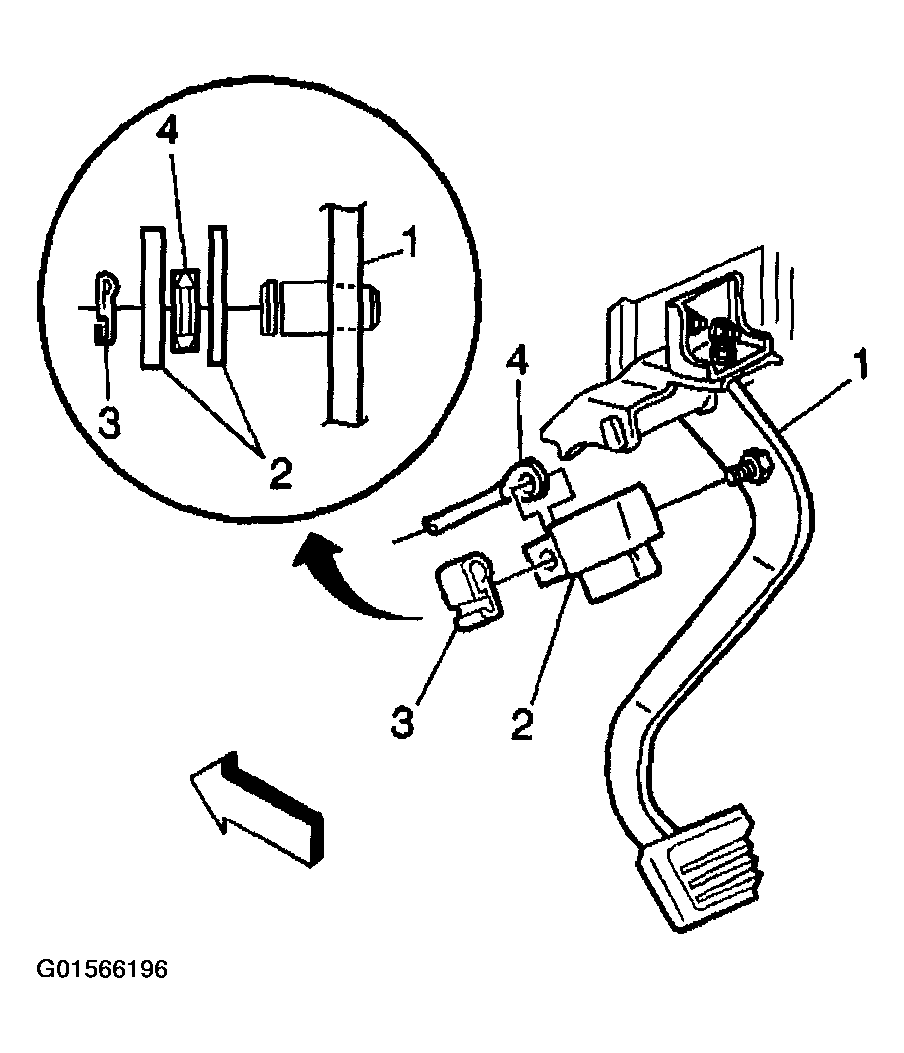

Fig 2: Installing Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.
