Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Align the fasteners on the remote compact disc player with the slots in the instrument panel extension.
  3. Slide the remote compact disc player into place until the fasteners are fully seated.
  4. Install the instrument panel extension trim plate. Refer to INSTRUMENT PANEL (I/P) EXTENSION TRIM PLATE REPLACEMENT in Instrument Panel, Gages, and Console.

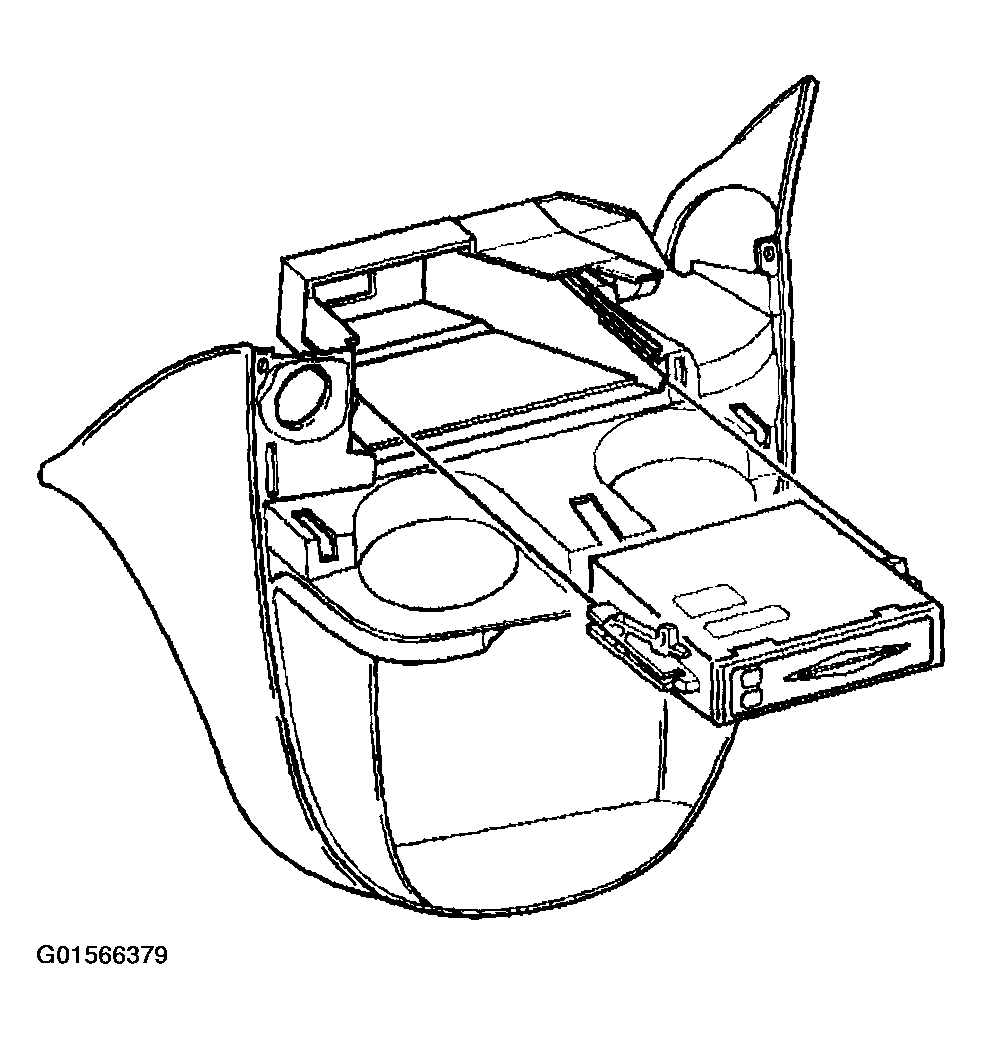

    Fig 1: Installing Remote Compact Disc Player
    G01566379Courtesy of GENERAL MOTORS CORP.
