Body Control Module Component Views
WARNING:
This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

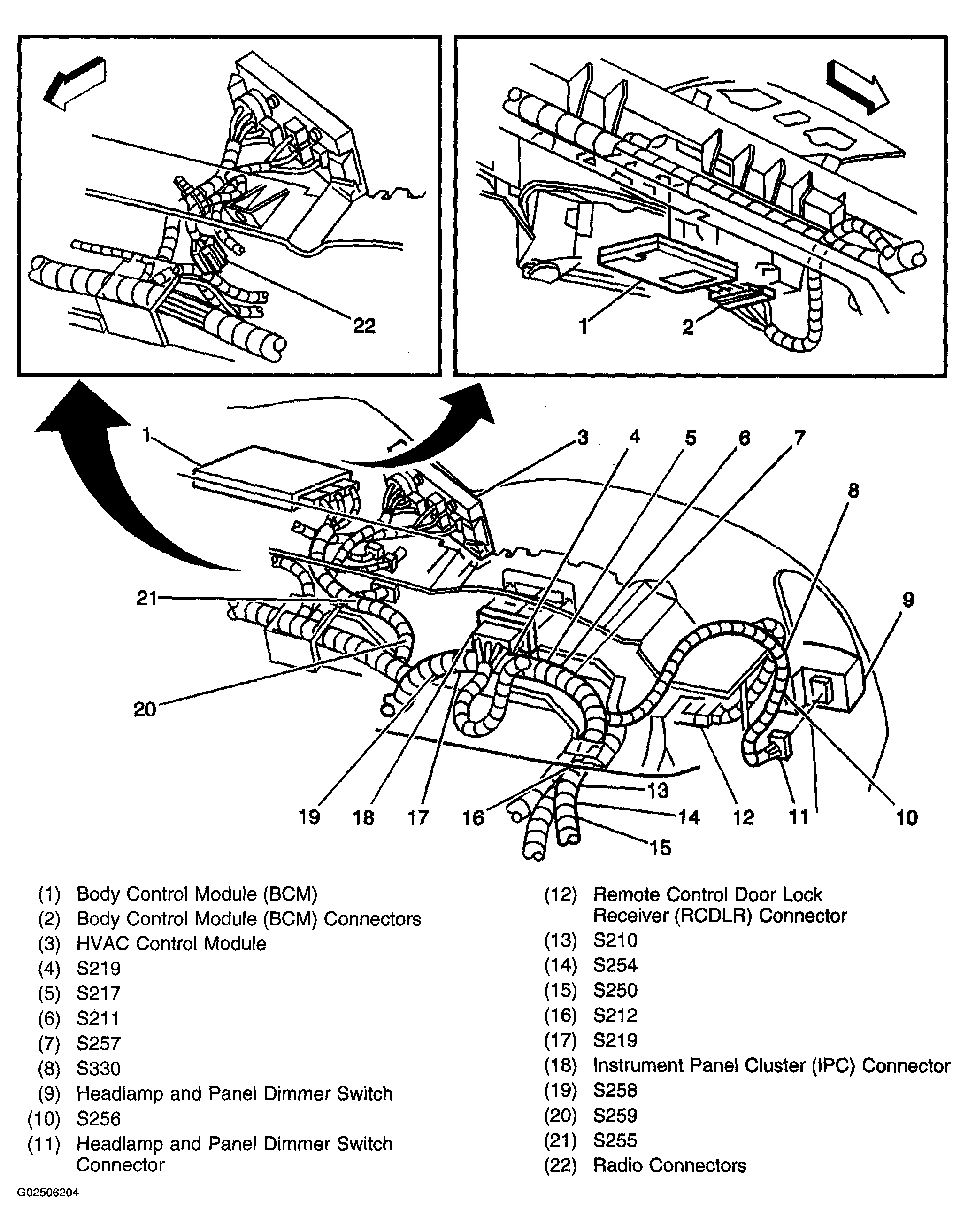

Fig 1: Locating Body Control Module
Courtesy of GENERAL MOTORS CORP.

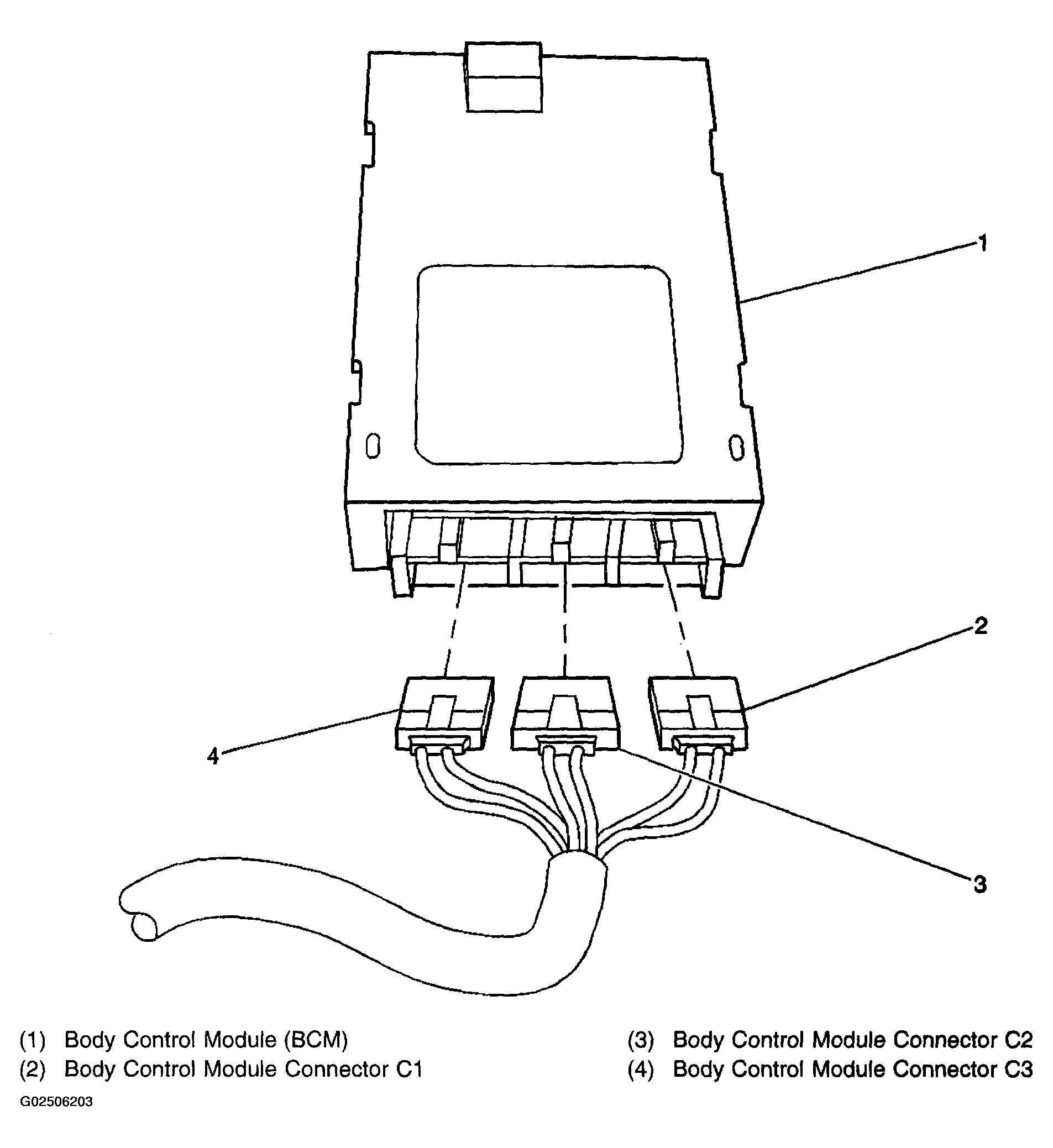

Fig 2: Locating Instrument Cluster Wiring
Courtesy of GENERAL MOTORS CORP.
