Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the remote keyless entry antenna to the vehicle.
  2. Install the remote keyless entry antenna (1) to the carrier.

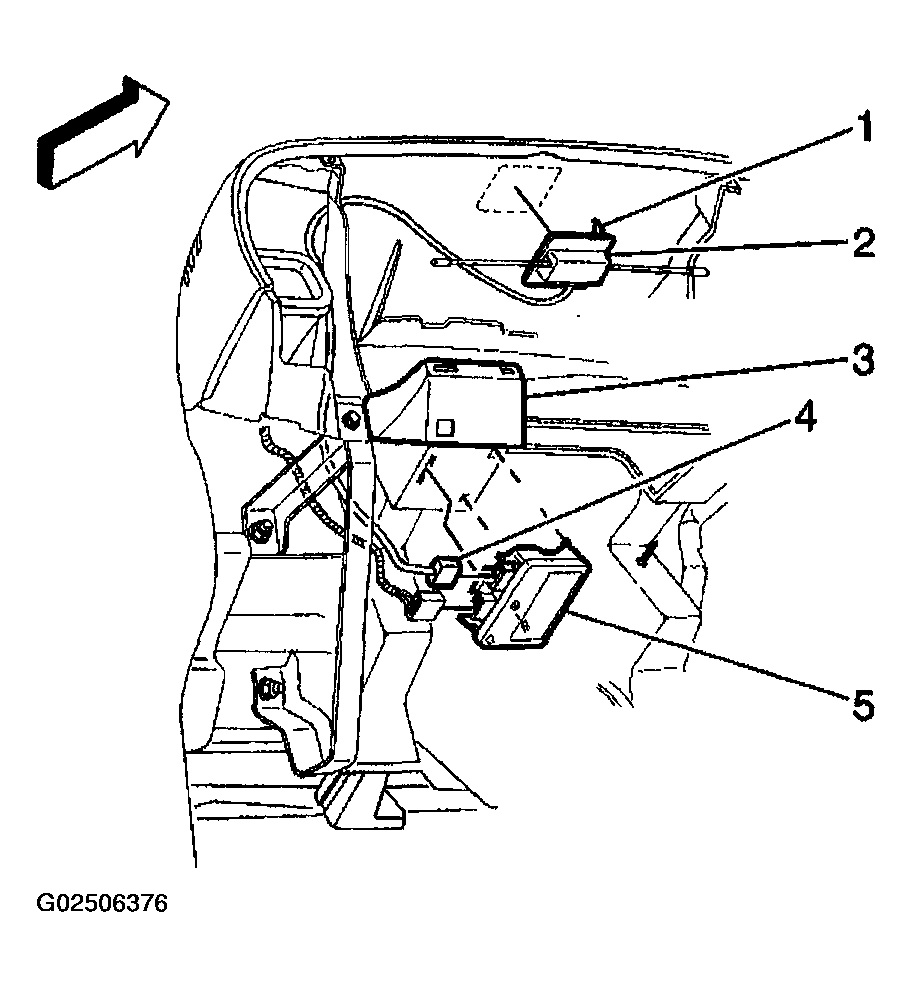

    3. Fig 1: Removing & Installing Keyless Entry Antenna
    G02506376Courtesy of GENERAL MOTORS CORP.
  3. Connect the remote keyless entry antenna (1) to the receiver (2).
  4. Install the instrument panel cluster. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER in Instrument Panel, Gages & Console.
  5. Install the instrument panel cluster trim plate.
  6. Reprogram the transmitter. Refer to Transmitter Programming .
  7. Verify that the system operates properly.

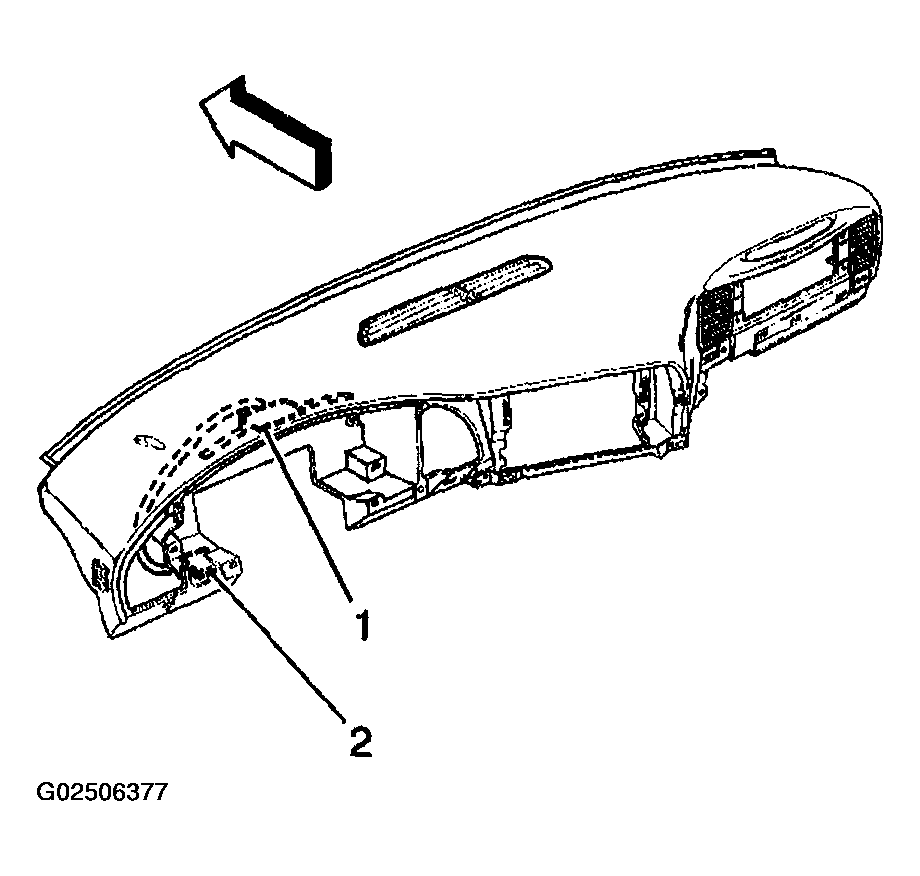

    8. Fig 2: Locating Remote Keyless Entry Antenna Connection At Receiver
    G02506377Courtesy of GENERAL MOTORS CORP.
