Entertainment Component Views

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

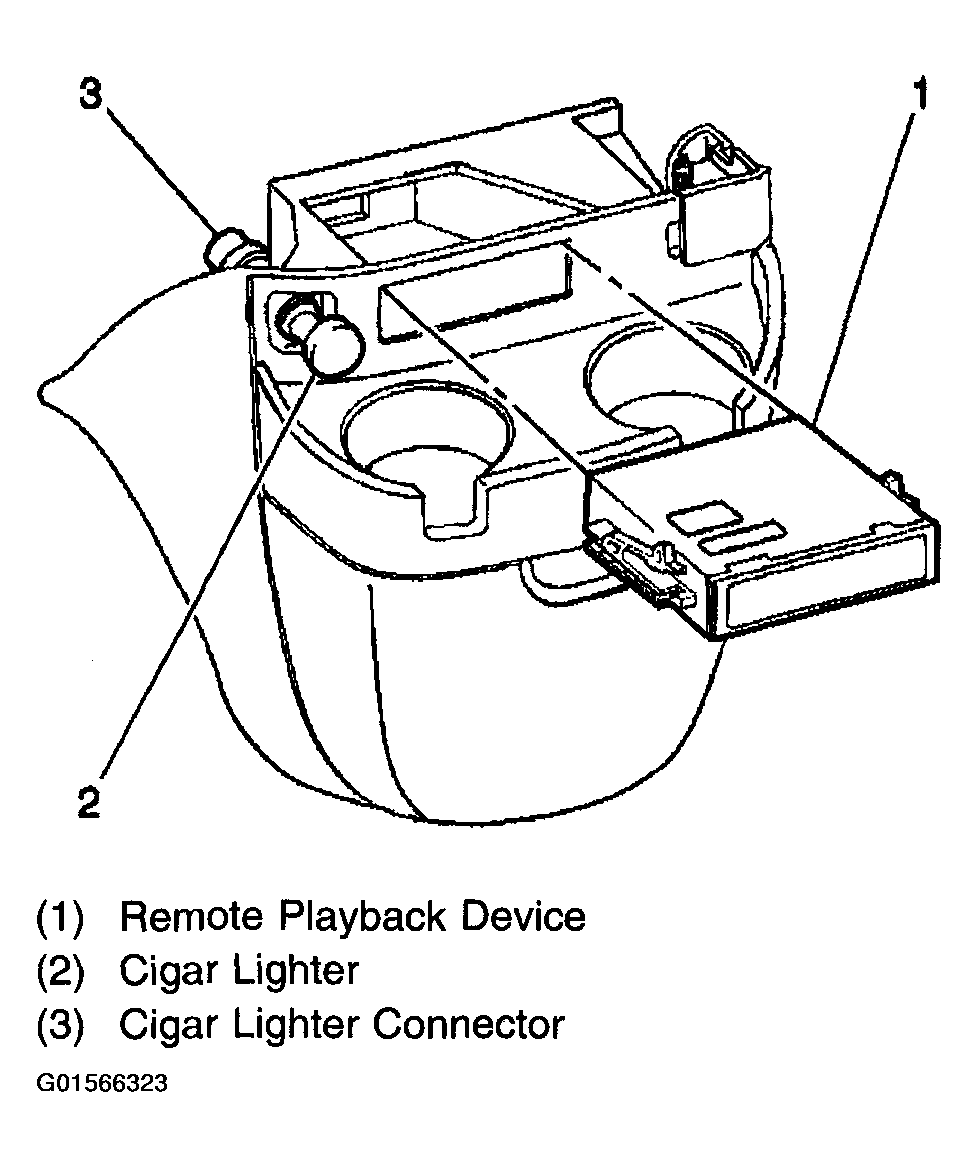

Fig 1: Identifying Components In Center Console
G01566323Courtesy of GENERAL MOTORS CORP.

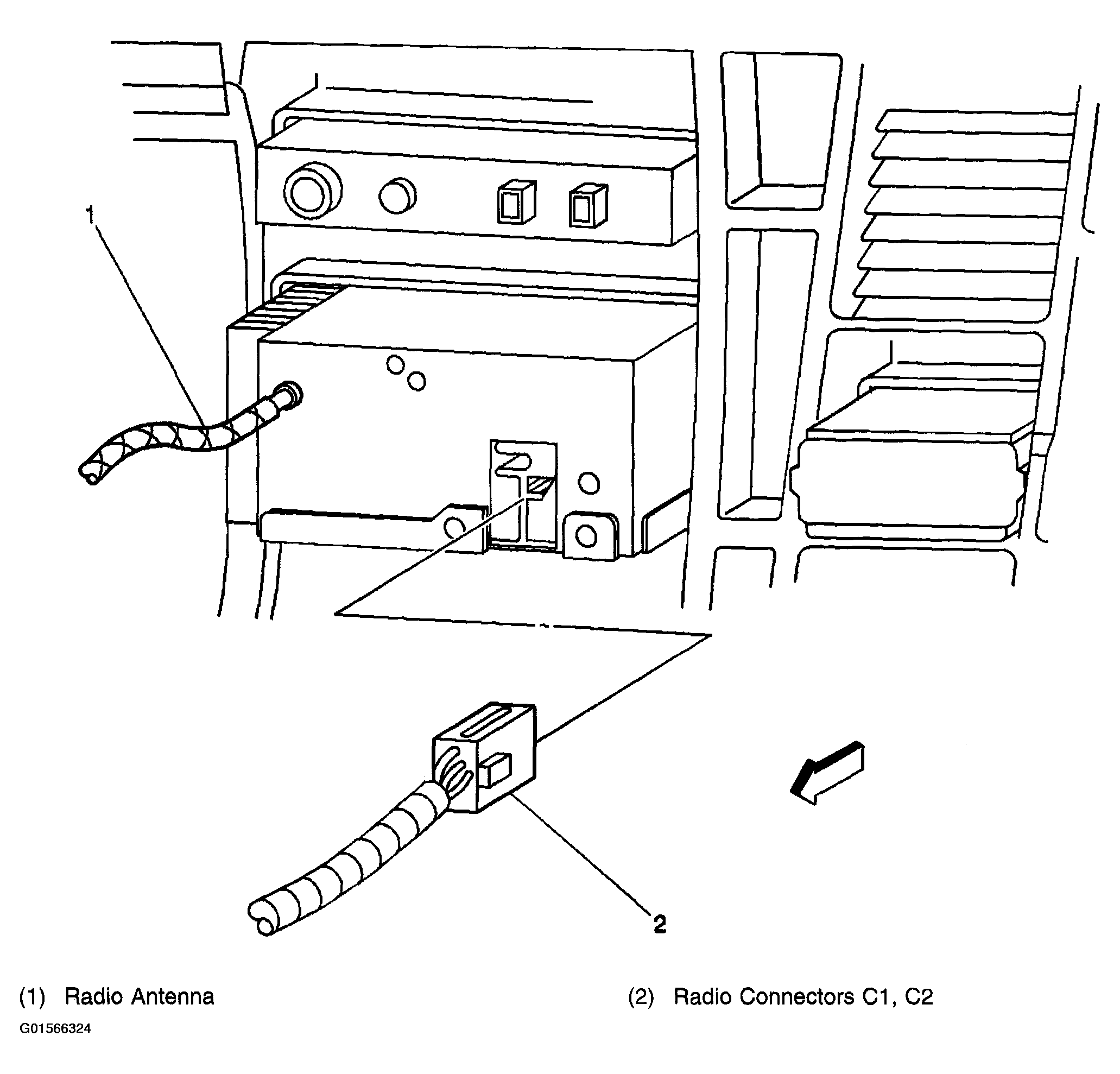

Fig 2: Base Radio - Rear Component View
G01566324Courtesy of GENERAL MOTORS CORP.

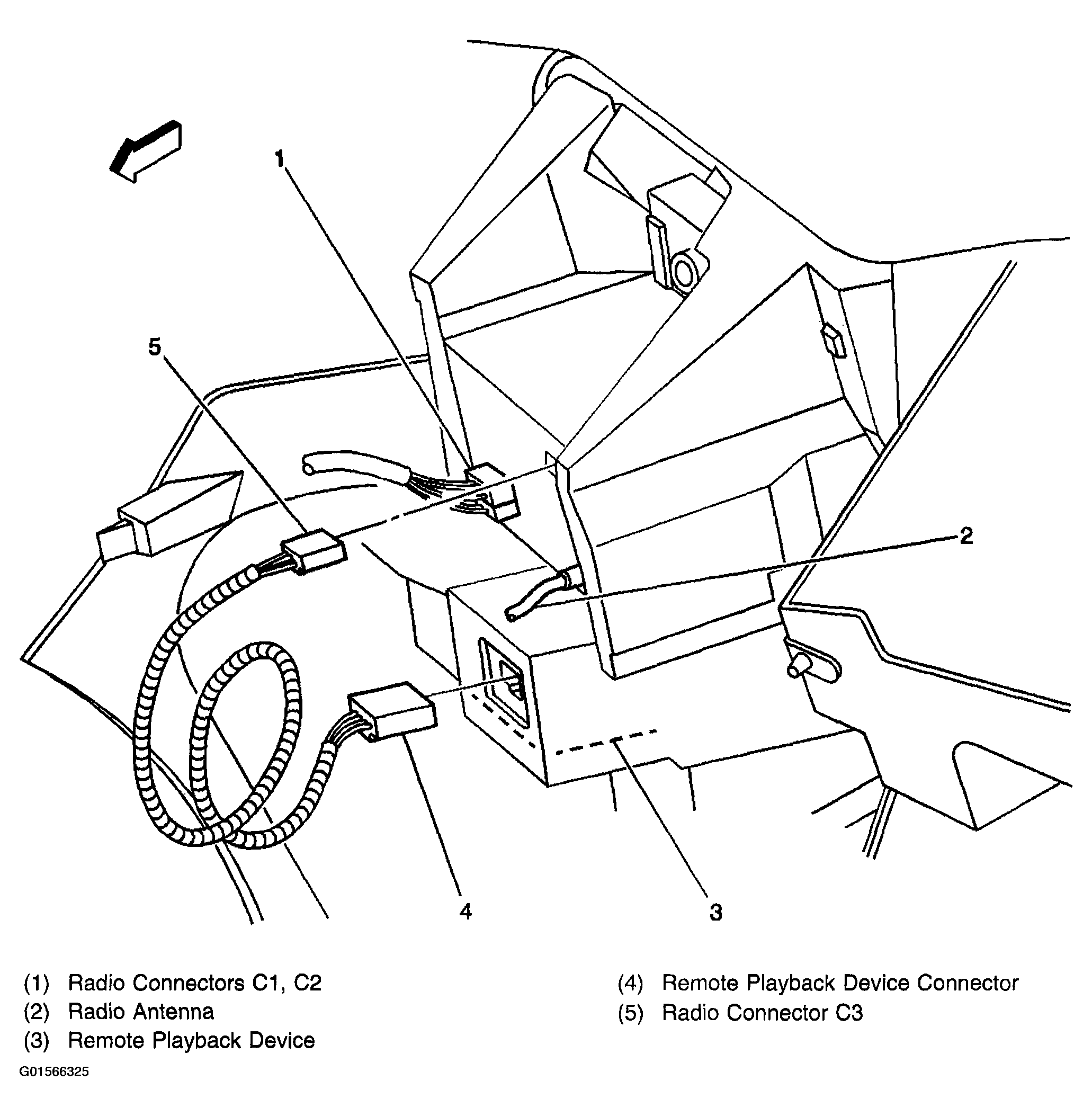

Fig 3: Identifying Radio Connectors (Premium Radio)
G01566325Courtesy of GENERAL MOTORS CORP.

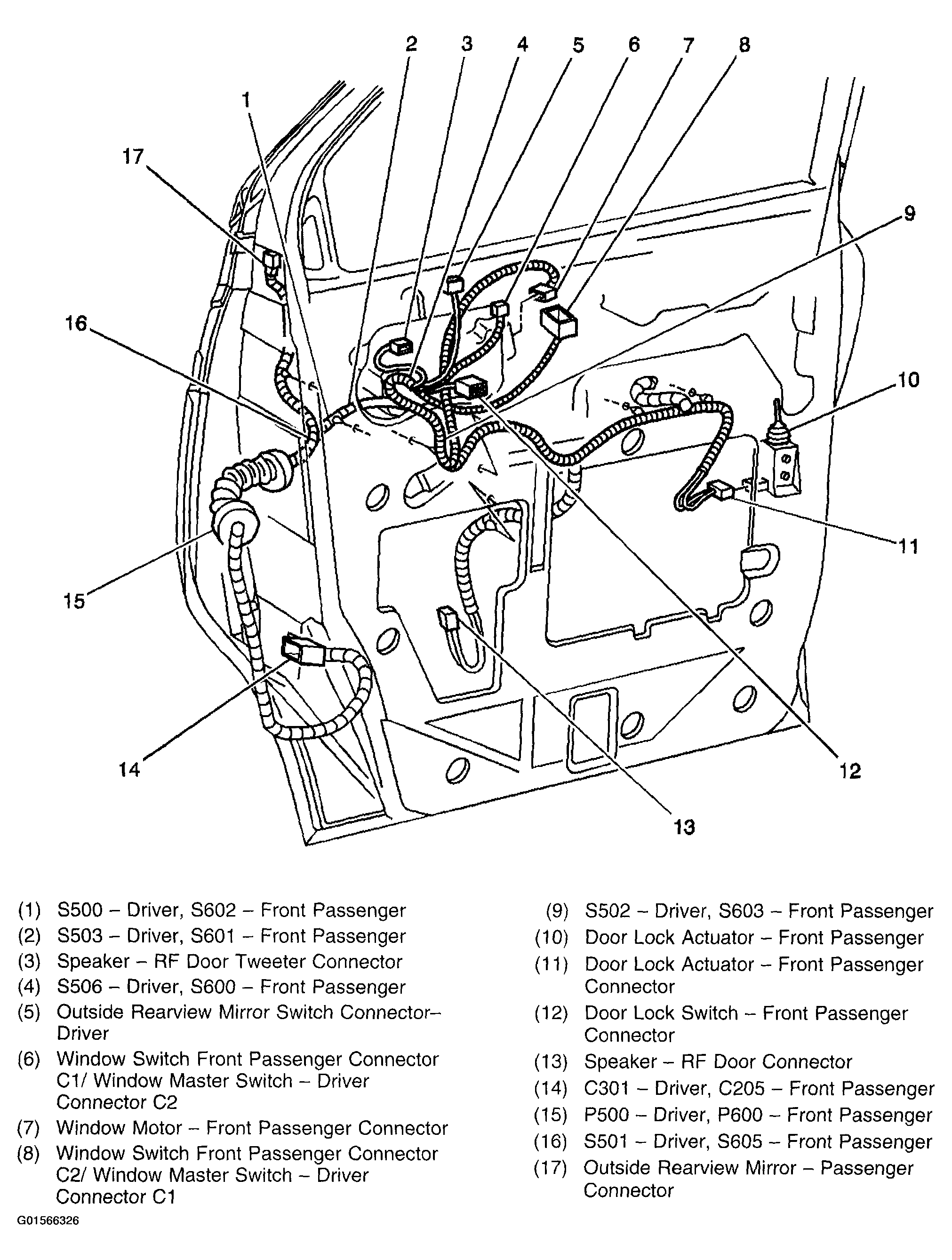

Fig 4: Front Door Wiring (Front Passenger Shown, Driver Opposite)
G01566326Courtesy of GENERAL MOTORS CORP.

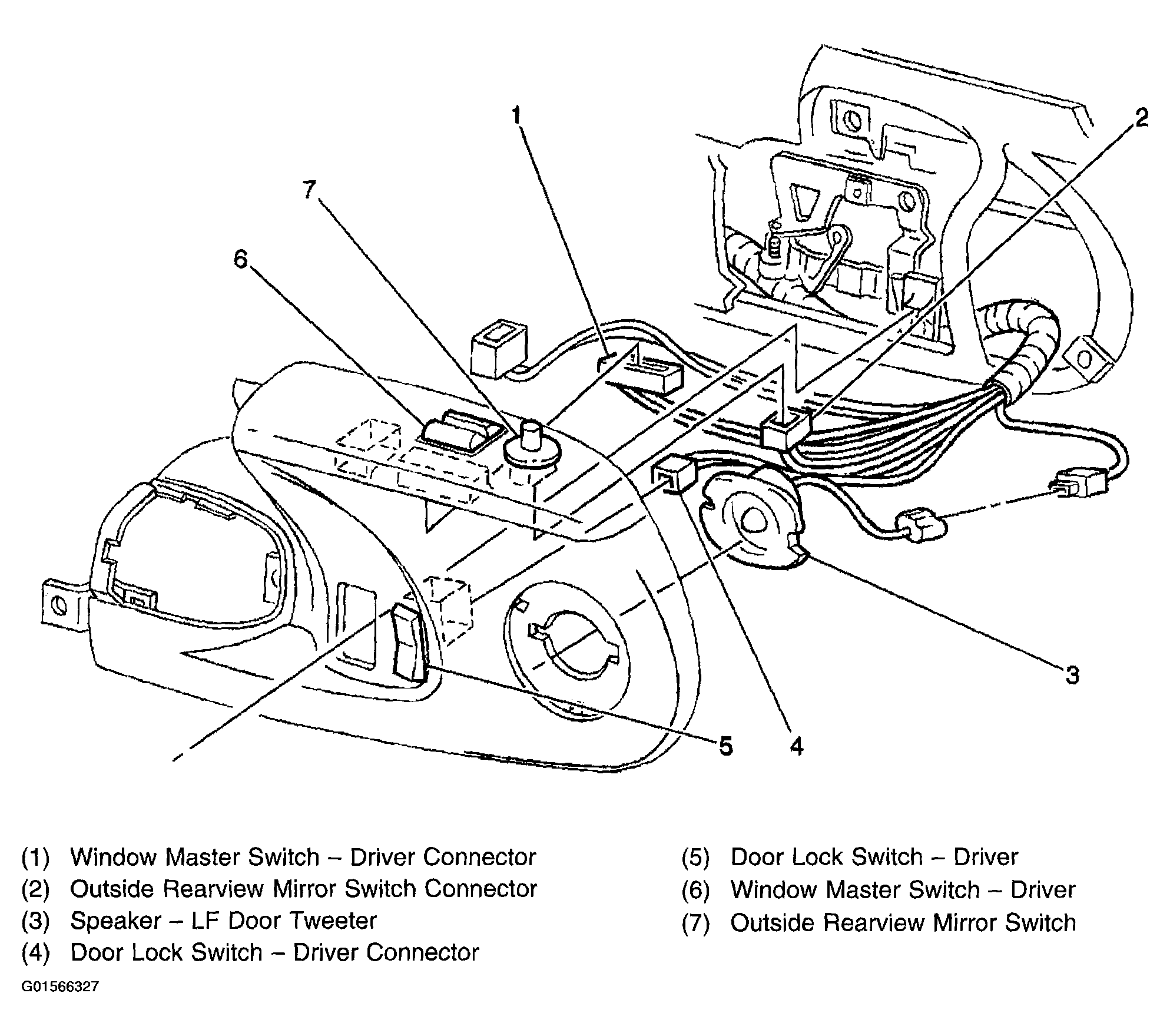

Fig 5: Door Control Switches - Driver
G01566327Courtesy of GENERAL MOTORS CORP.

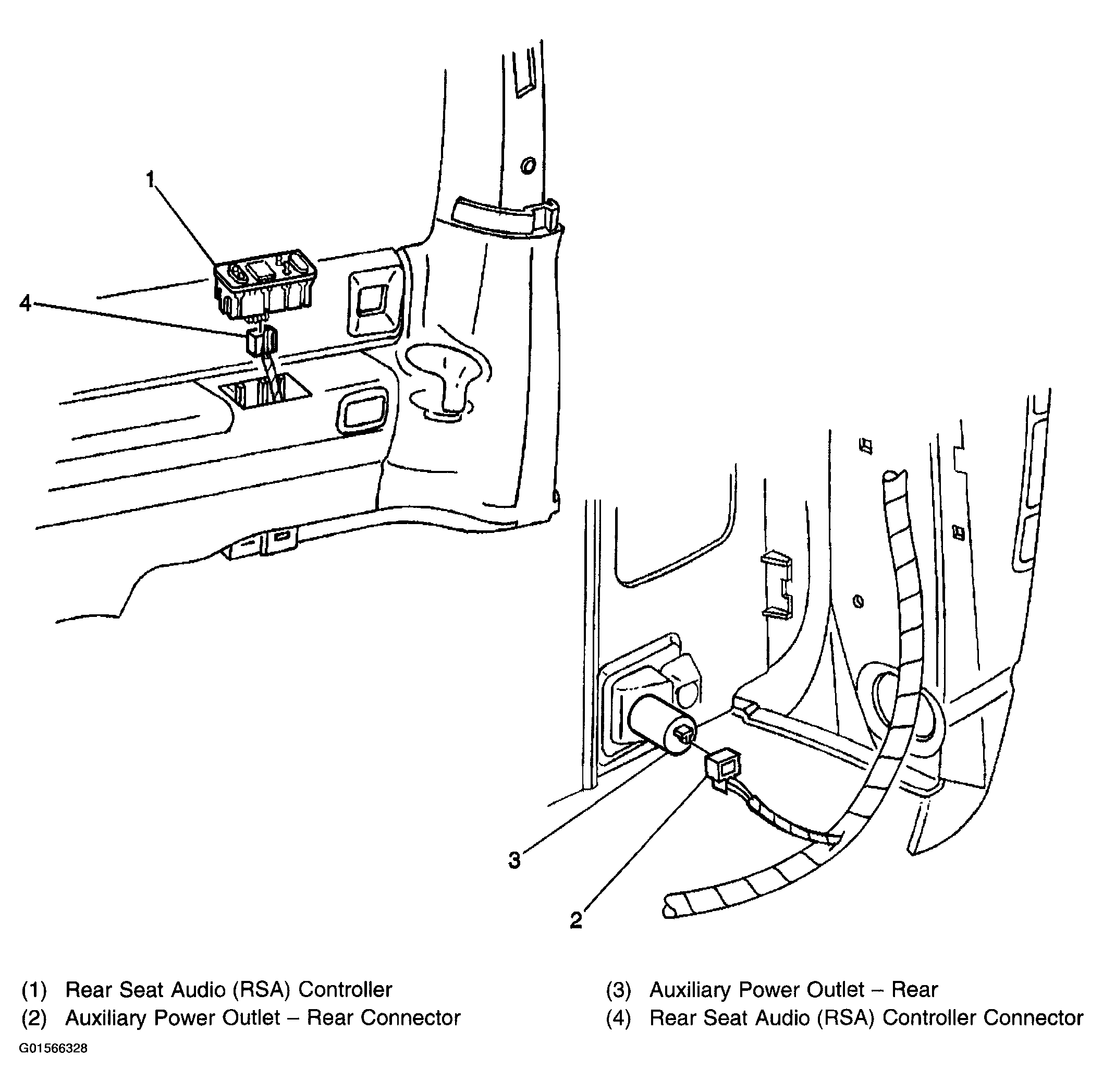

Fig 6: RSA Controller/Auxiliary Power Outlet - Rear Wiring
G01566328Courtesy of GENERAL MOTORS CORP.

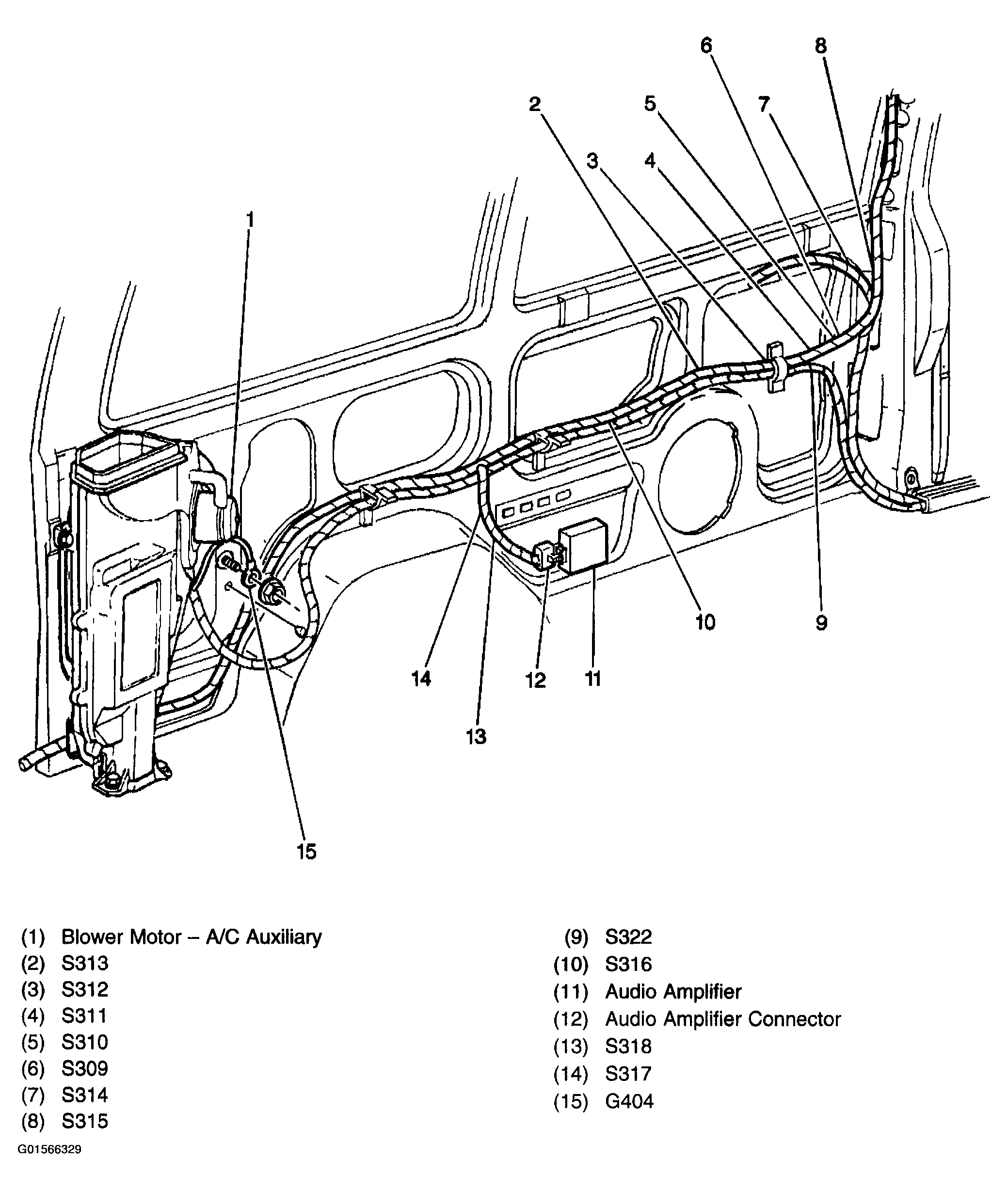

Fig 7: Left Rear Body Harness
G01566329Courtesy of GENERAL MOTORS CORP.

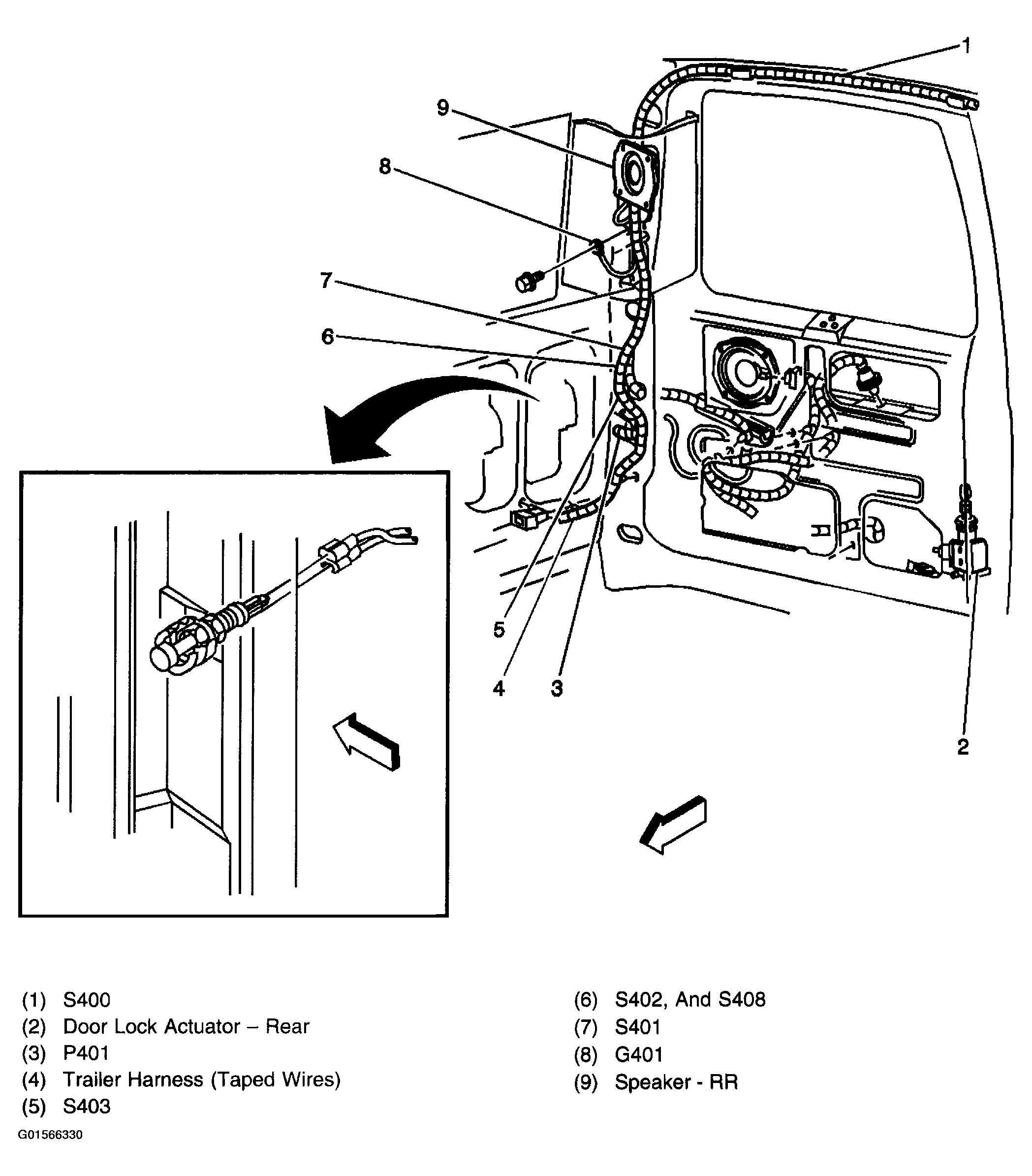

Fig 8: Right D Pillar Wiring
G01566330Courtesy of GENERAL MOTORS CORP.

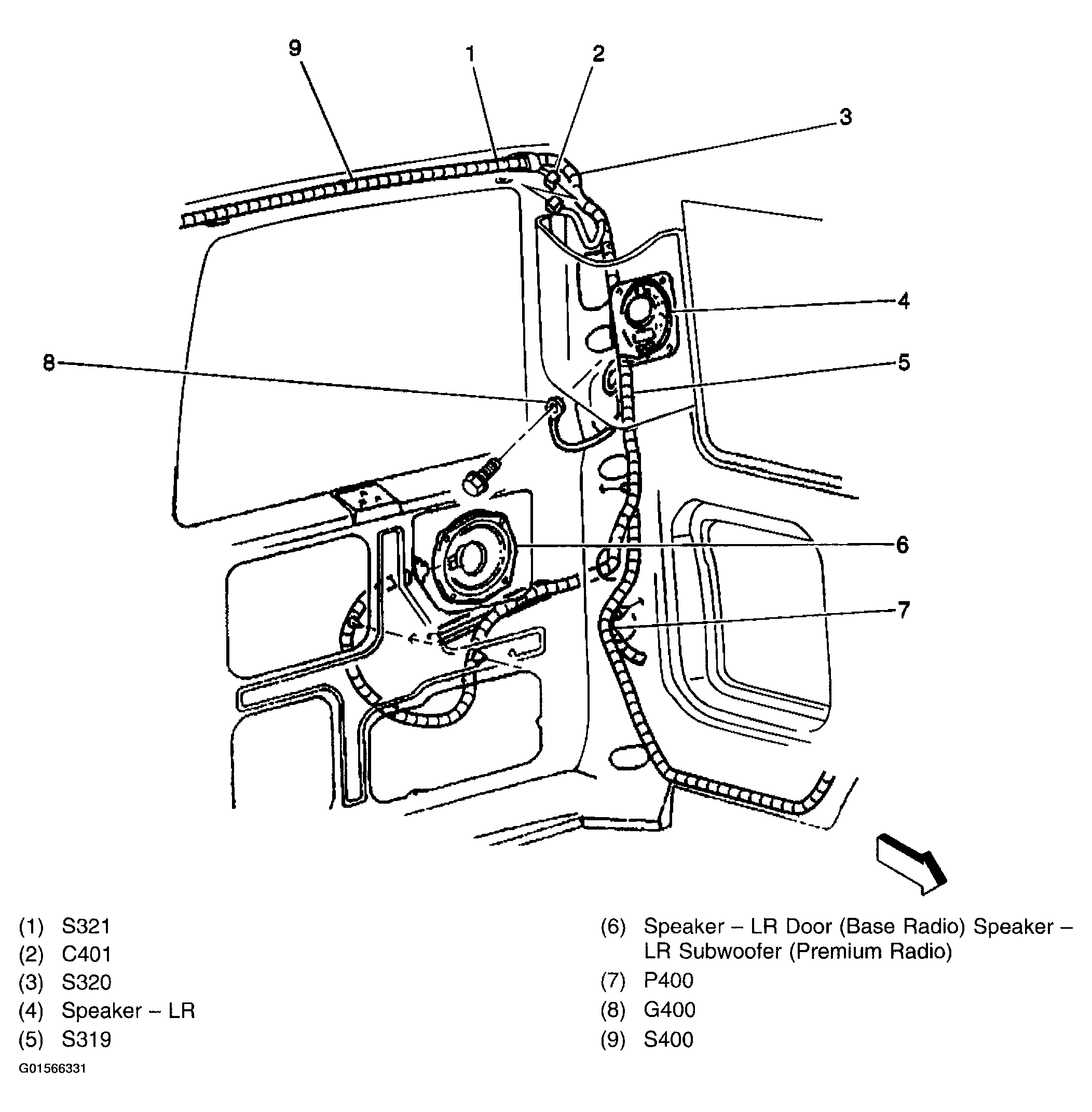

Fig 9: Left D Pillar Wiring
G01566331Courtesy of GENERAL MOTORS CORP.

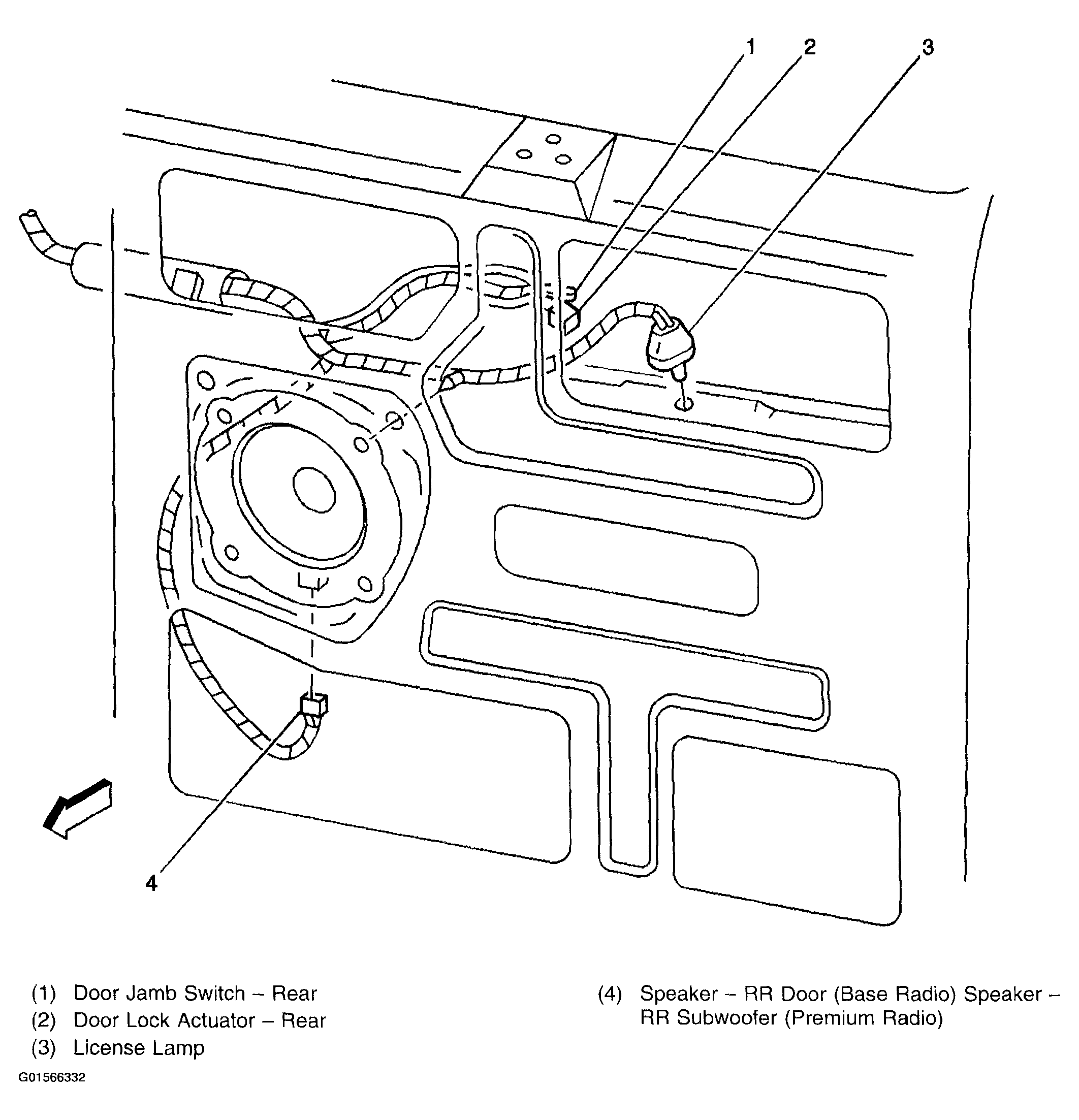

Fig 10: RR Door Components
G01566332Courtesy of GENERAL MOTORS CORP.
