Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the remote keyless entry antenna to the vehicle.
  2. Install the remote keyless entry antenna (1) to the carrier.

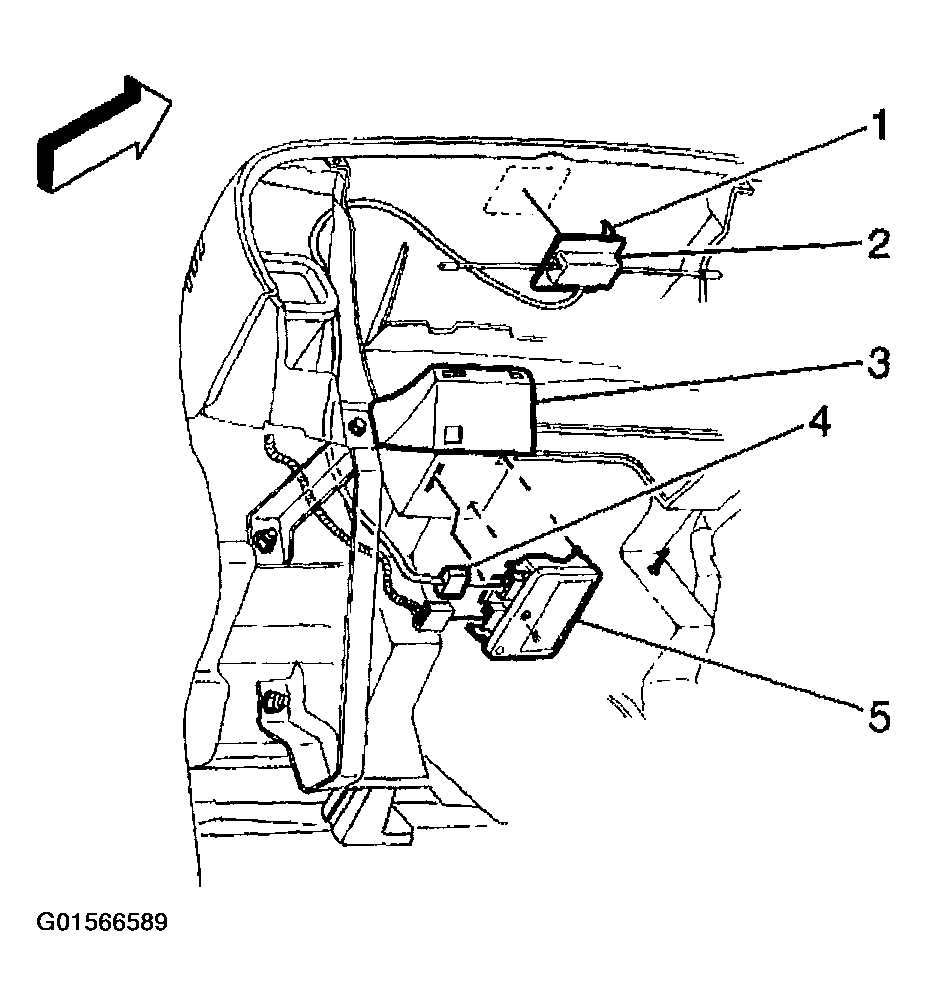

    Fig 1: Installing Remote Keyless Entry Antenna To Carrier
    G01566589Courtesy of GENERAL MOTORS CORP.
  3. Connect the remote keyless entry antenna (1) to the receiver (2).
  4. Install the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages, and Console.
  5. Install the instrument panel cluster trim plate.
  6. Reprogram the transmitter. Refer to TRANSMITTER PROGRAMMING .
  7. Verify that the system operates properly.

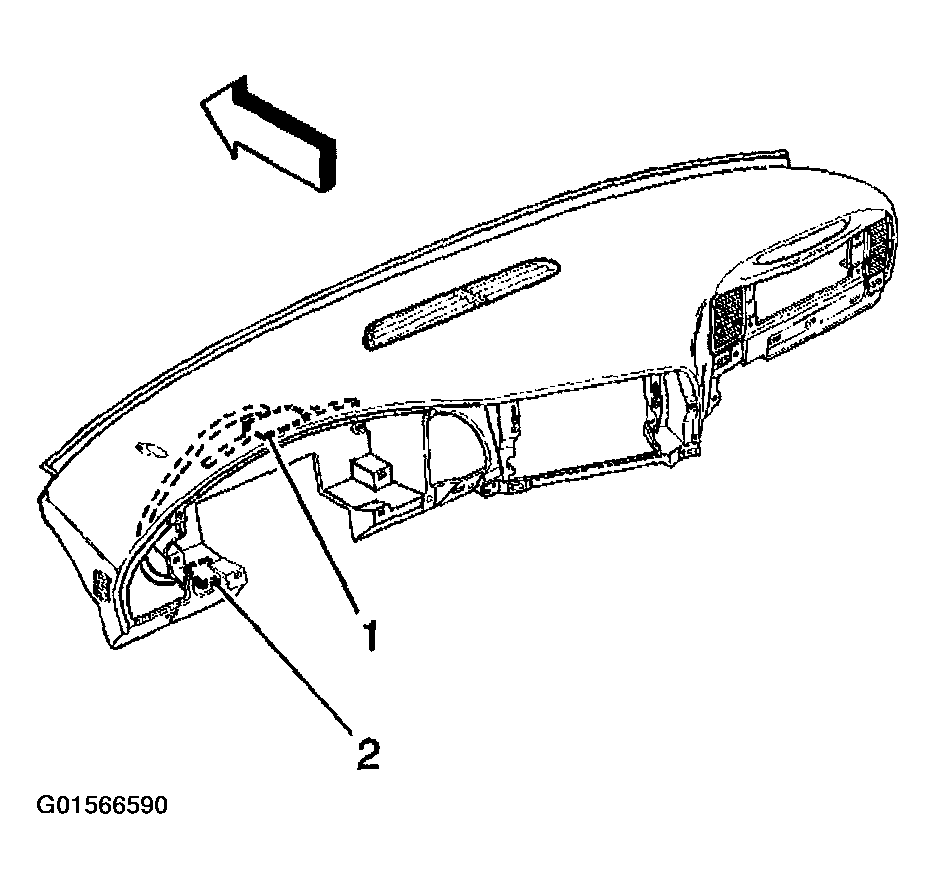

    Fig 2: Connecting Remote Keyless Entry Antenna To Receiver
    G01566590Courtesy of GENERAL MOTORS CORP.
