Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  2. Disconnect the remote keyless entry antenna (2) from the receiver (5).
  3. Disconnect the remote keyless entry electrical connector (4) from the receiver (5).
  4. Remove the remote keyless entry module screws from the bracket (3).
  5. Remove the remote keyless entry module from the carrier.

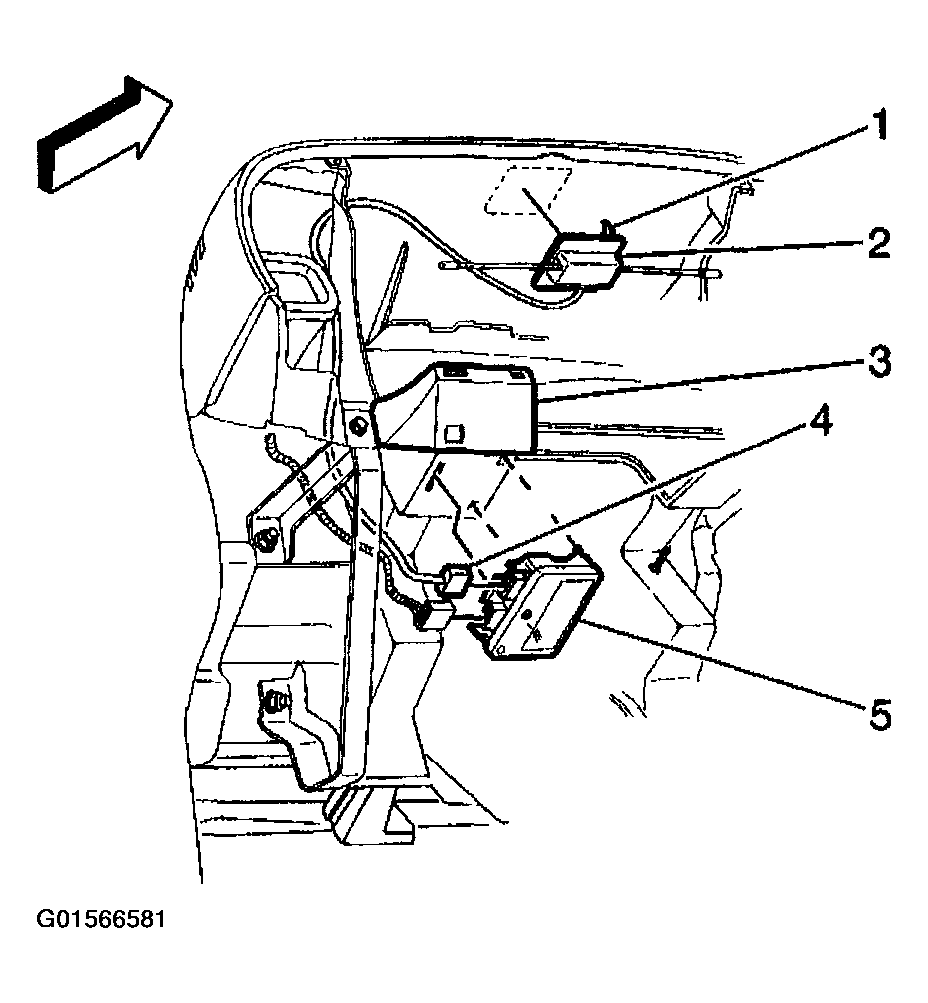

    Fig 1: Locating Remote Keyless Entry Components
    G01566581Courtesy of GENERAL MOTORS CORP.
