Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Insert a small coin between the 2 halves of the transmitter case at the slot provided near the key ring hole.
Twist the coin in order to open the case.
Open the transmitter case.

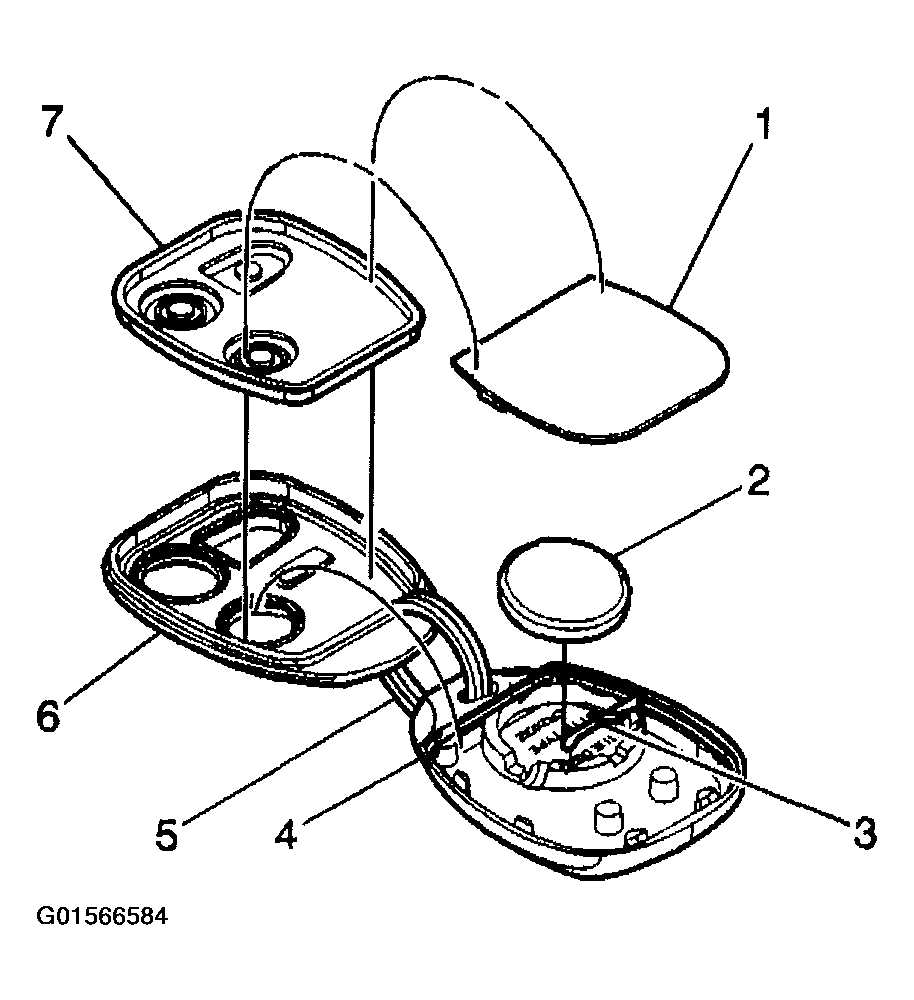

Fig 1: Opening Transmitter Case
Courtesy of GENERAL MOTORS CORP.
Remove the battery (2).

Fig 2: Removing Transmitter Battery
Courtesy of GENERAL MOTORS CORP.
