Air Flow Meter/Sensor: Locations

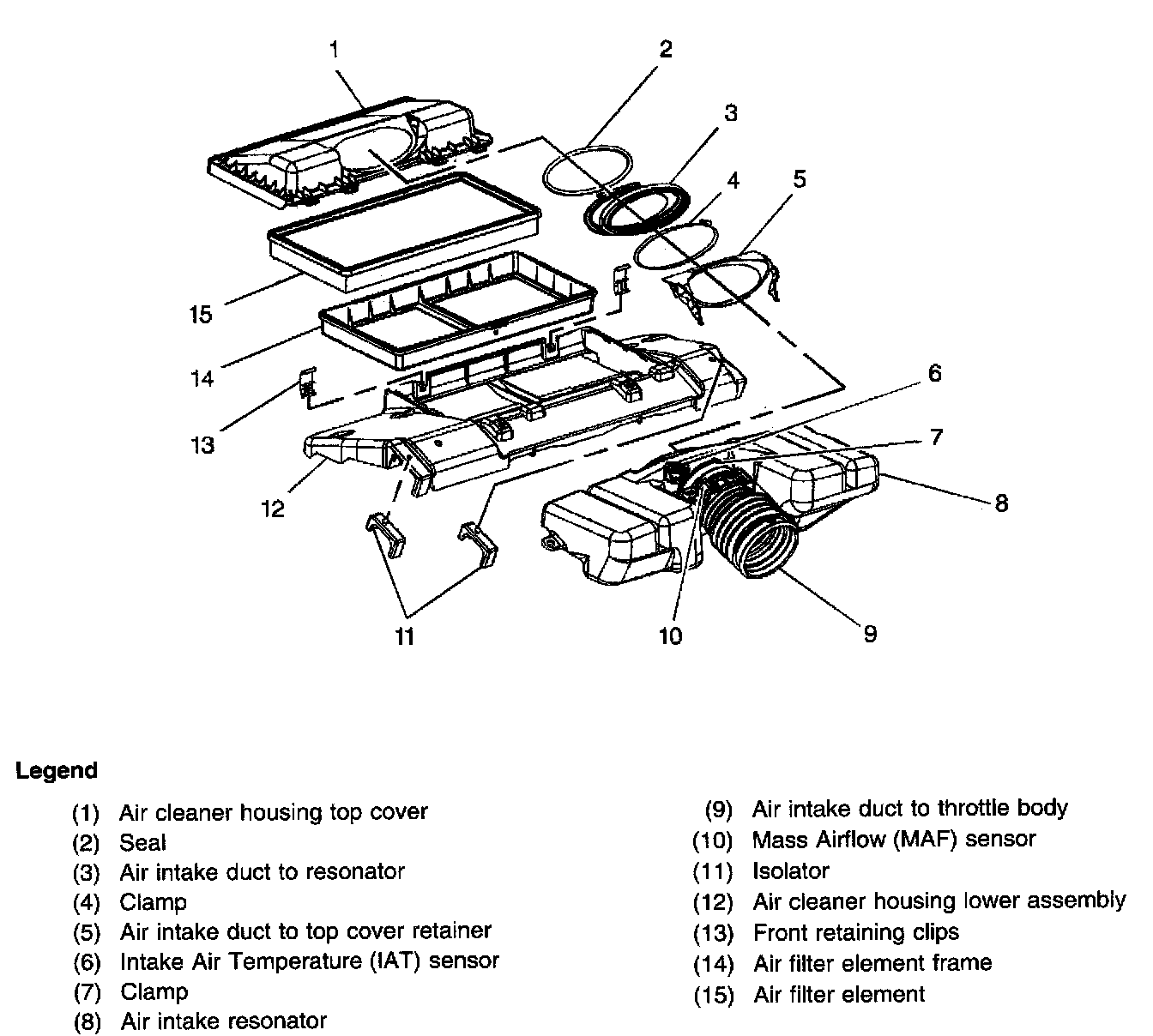

Locations View:
Locations View:

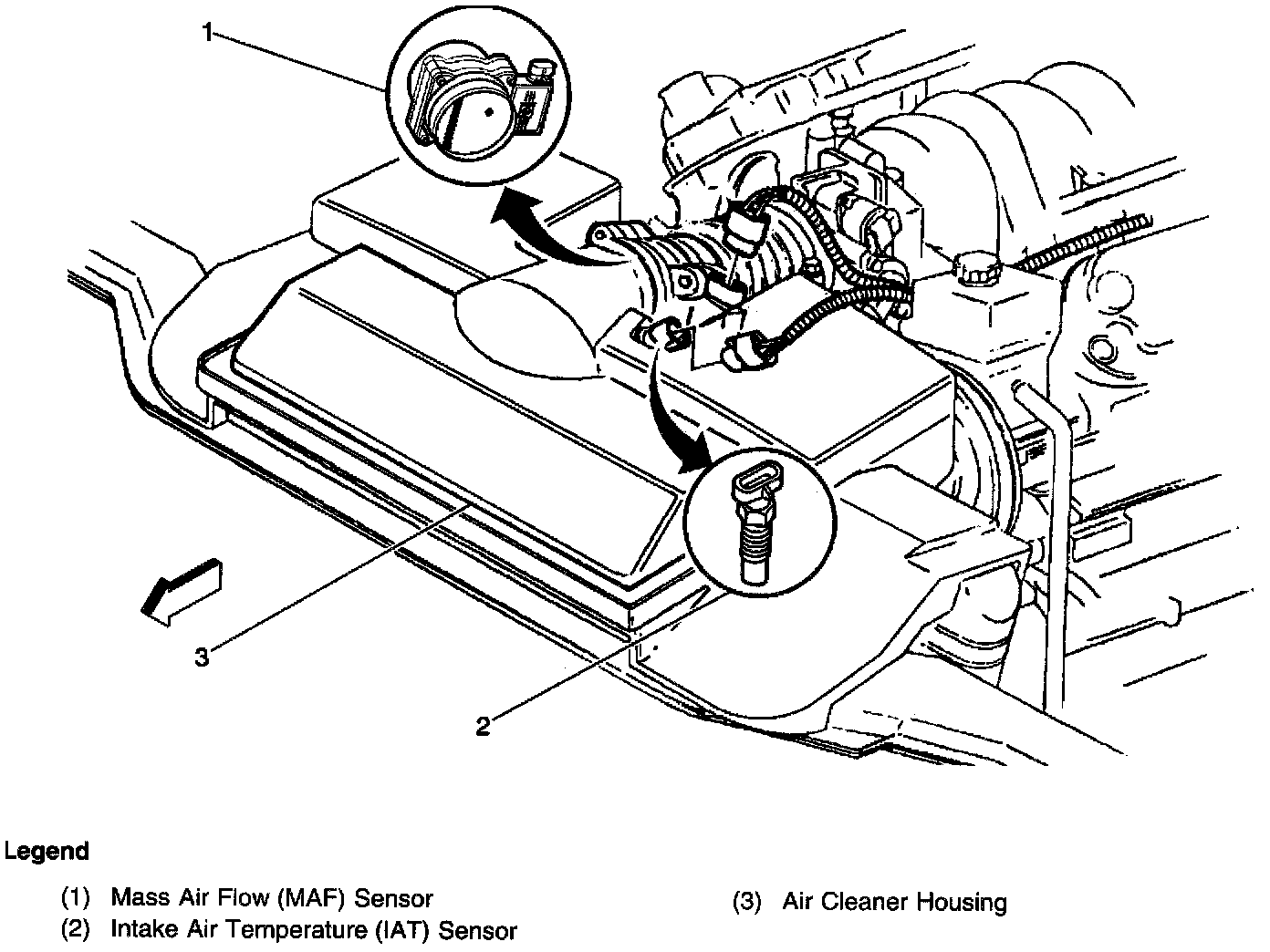

Mounted on the air duct, in front of the intake manifold
