Cruise Control Module, Switch Assembly and PCM
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cruise Control Module, Switch Assembly and PCM

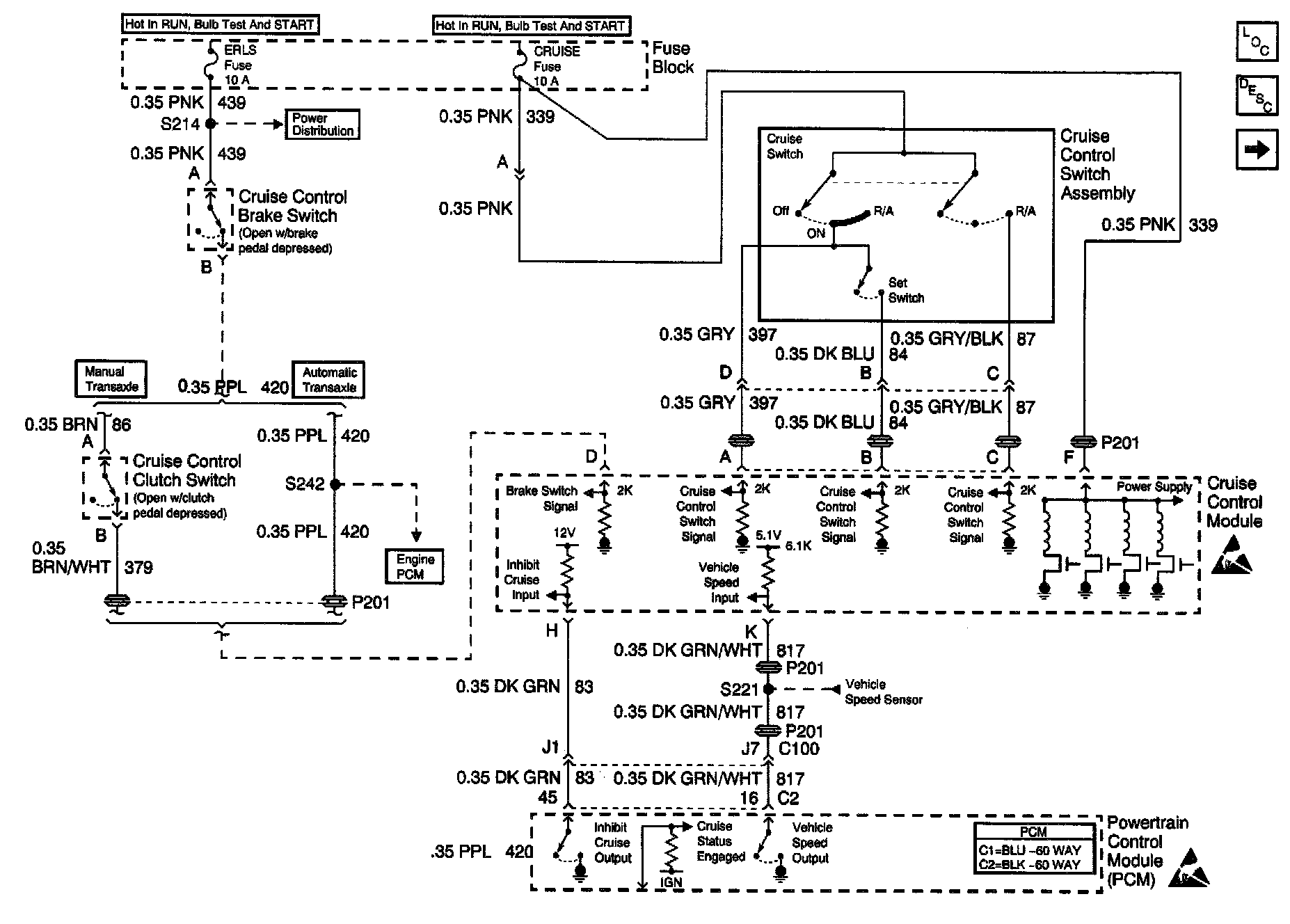

Cruise Control Schematics: Cruise Control Module, Switch Assembly and PCM:
