Cooling System Component Views
WARNING:
This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

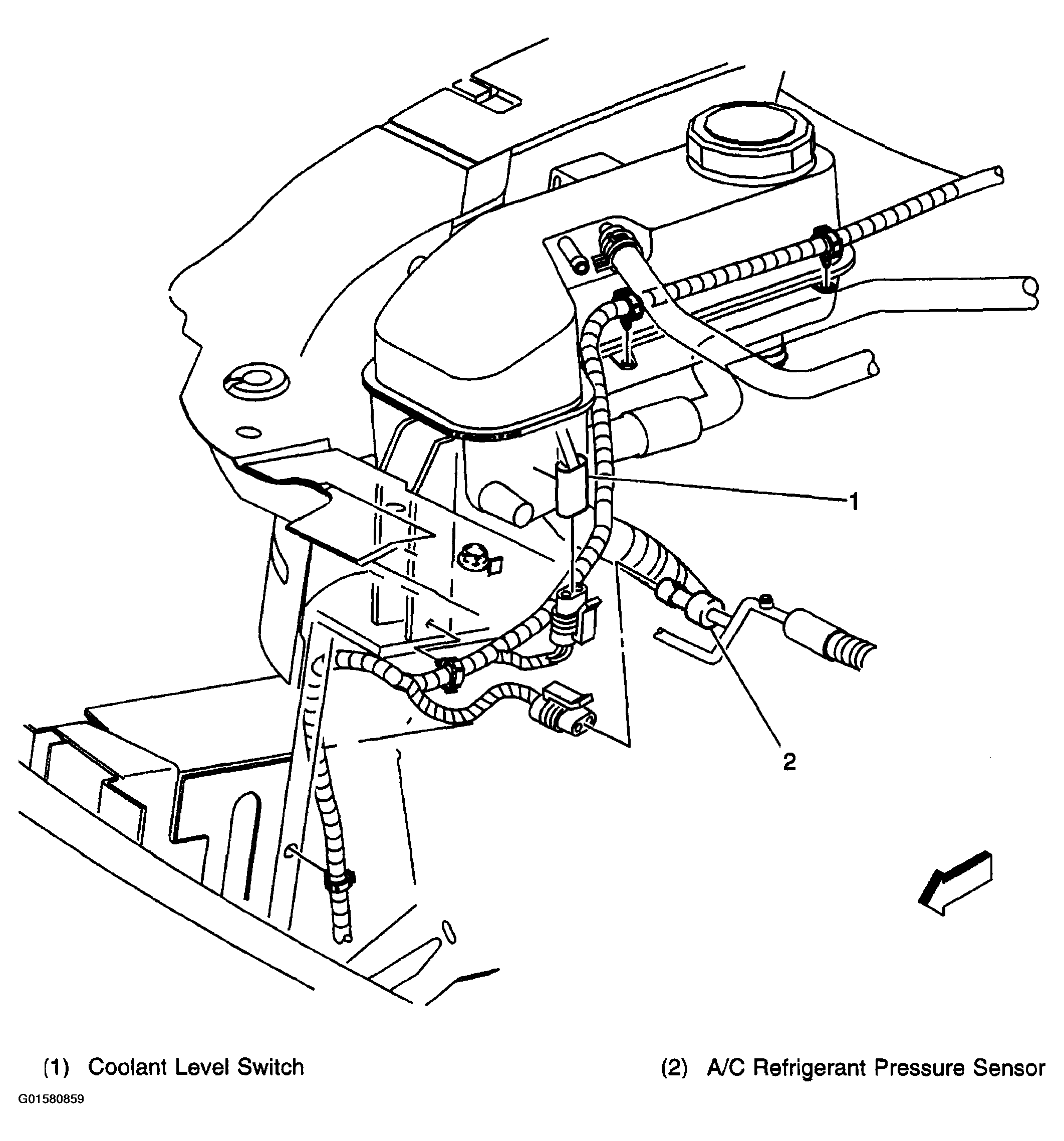

Fig 1: Identifying A/C Refrigerant Pressure Sensor
Courtesy of GENERAL MOTORS CORP.

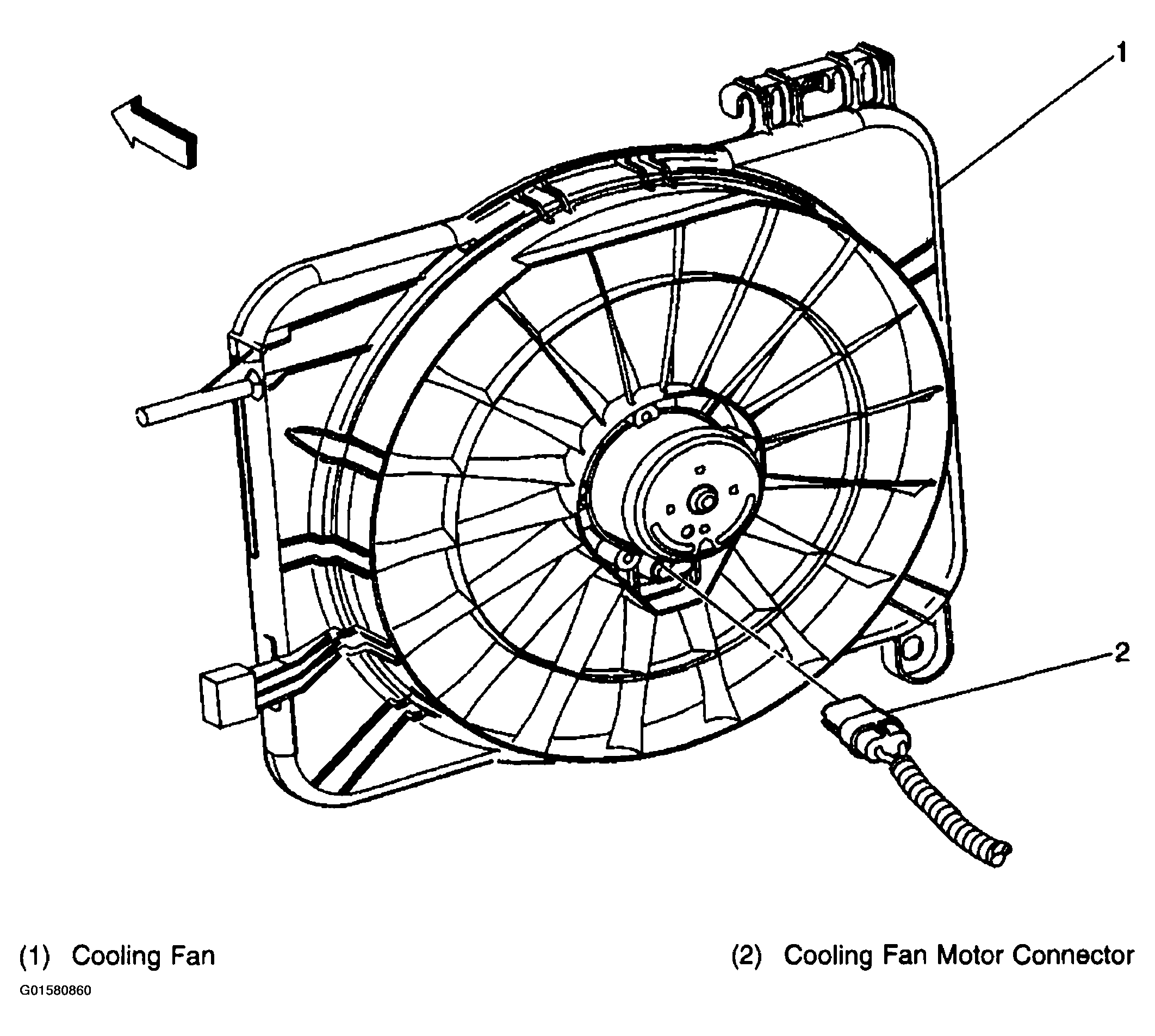

Fig 2: Identifying Cooling Fan
Courtesy of GENERAL MOTORS CORP.
