Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

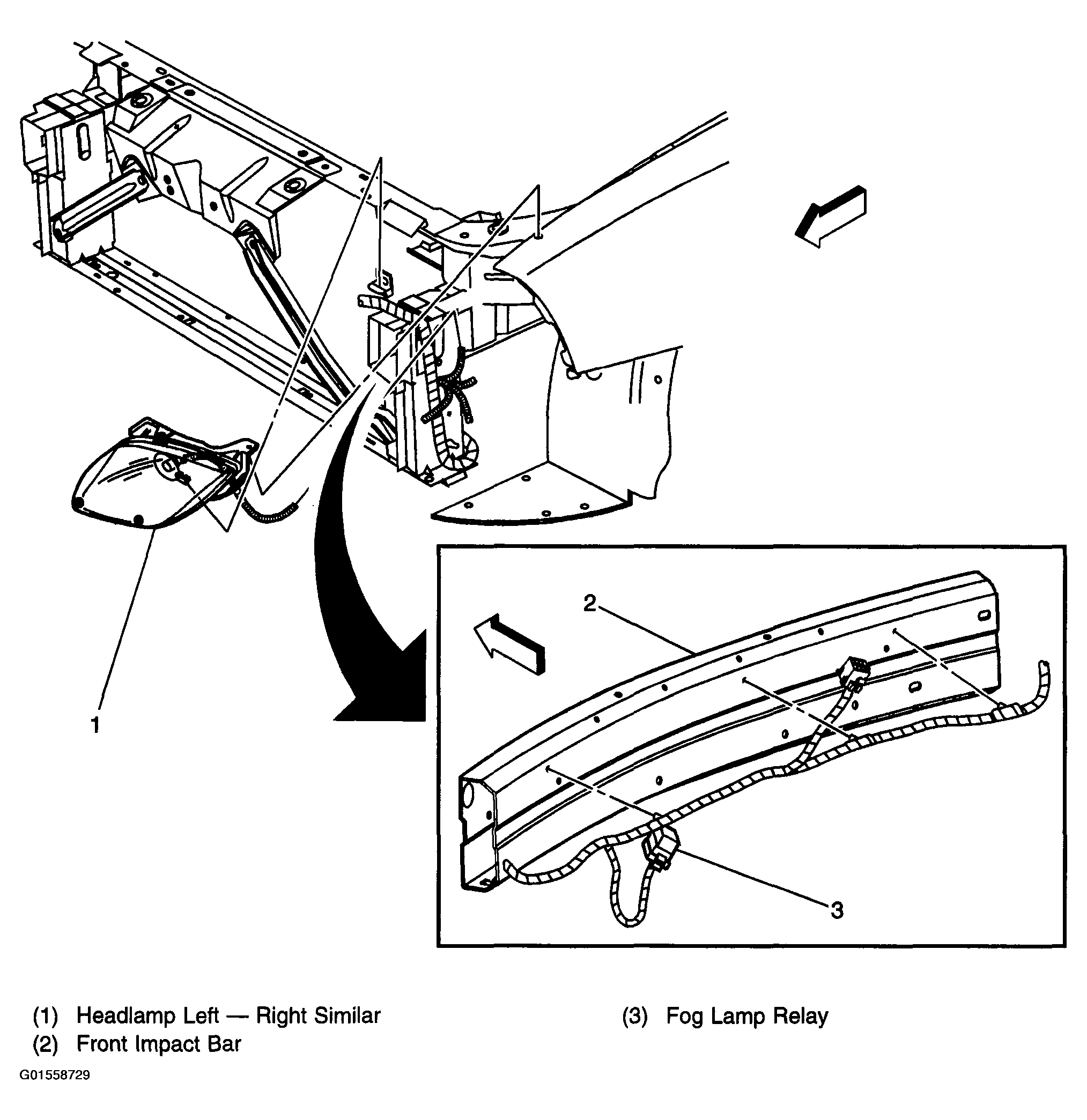

Fig 1: Locating Left Headlamp And Fog Lamp Relay

Courtesy of GENERAL MOTORS CORP.

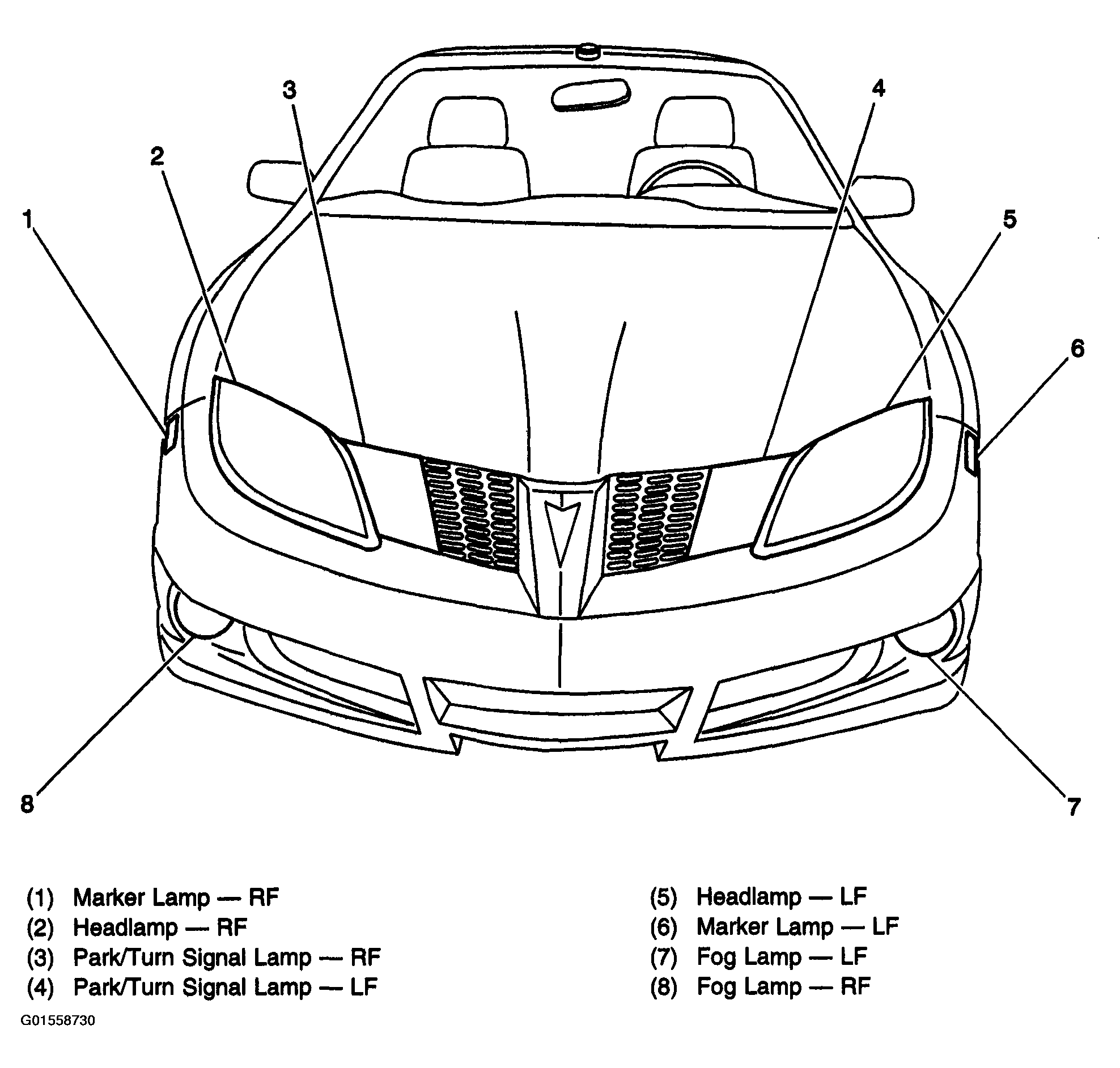

Fig 2: Identifying Front Lamps Pontiac

Courtesy of GENERAL MOTORS CORP.

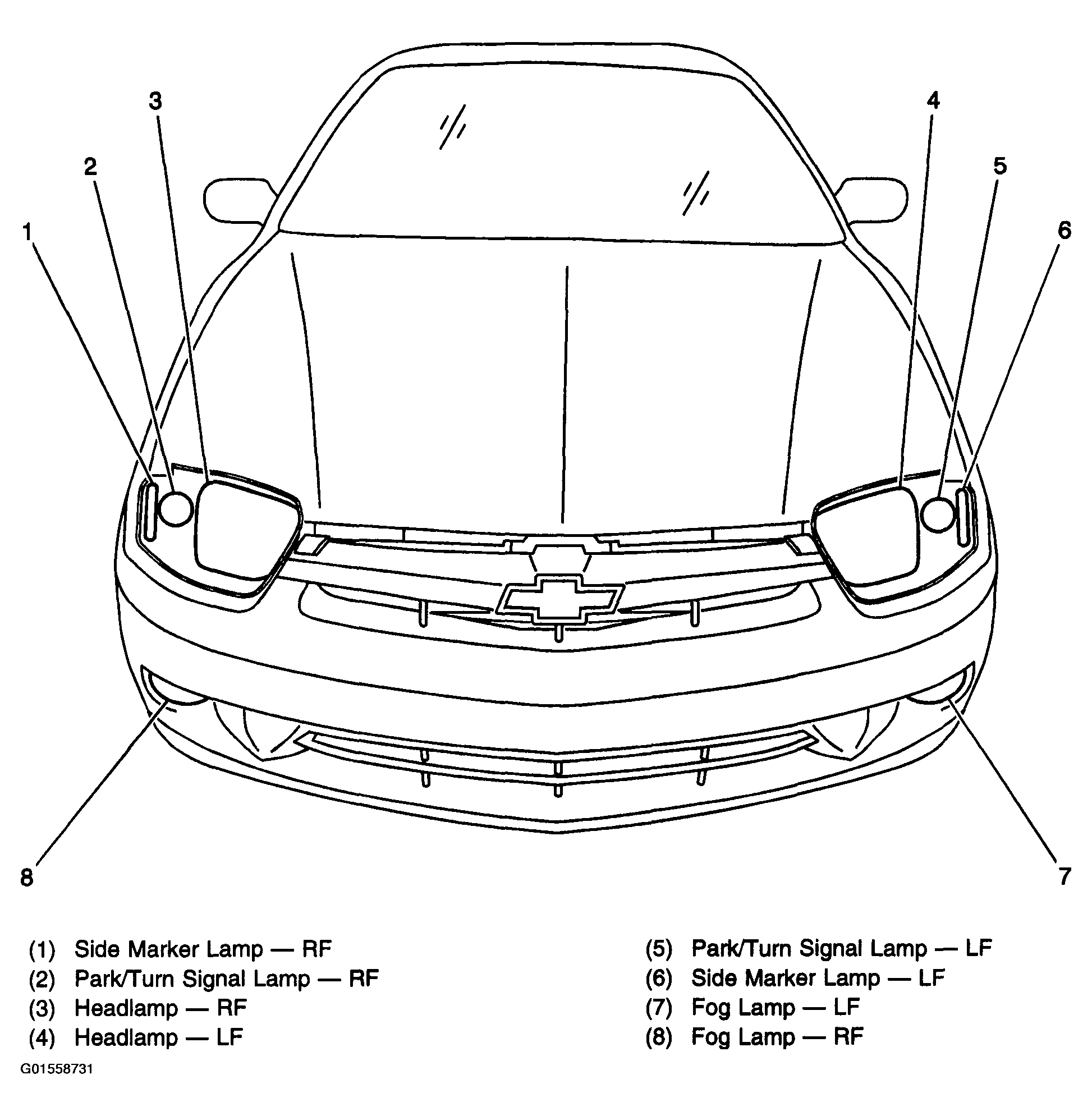

Fig 3: Identifying Front Lamps Cavalier

Courtesy of GENERAL MOTORS CORP.

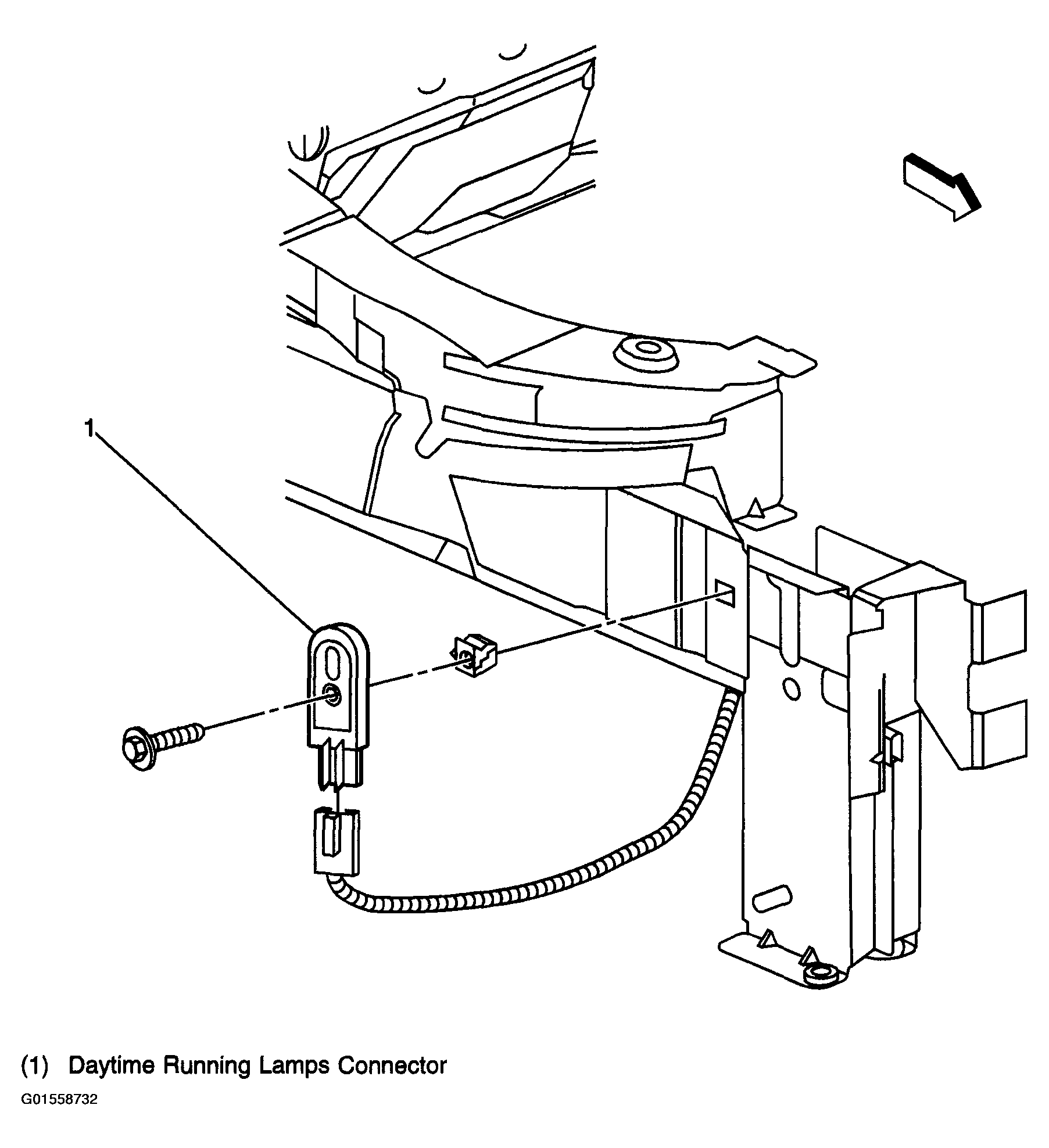

Fig 4: Locating Daytime Running Lamps Connector

Courtesy of GENERAL MOTORS CORP.

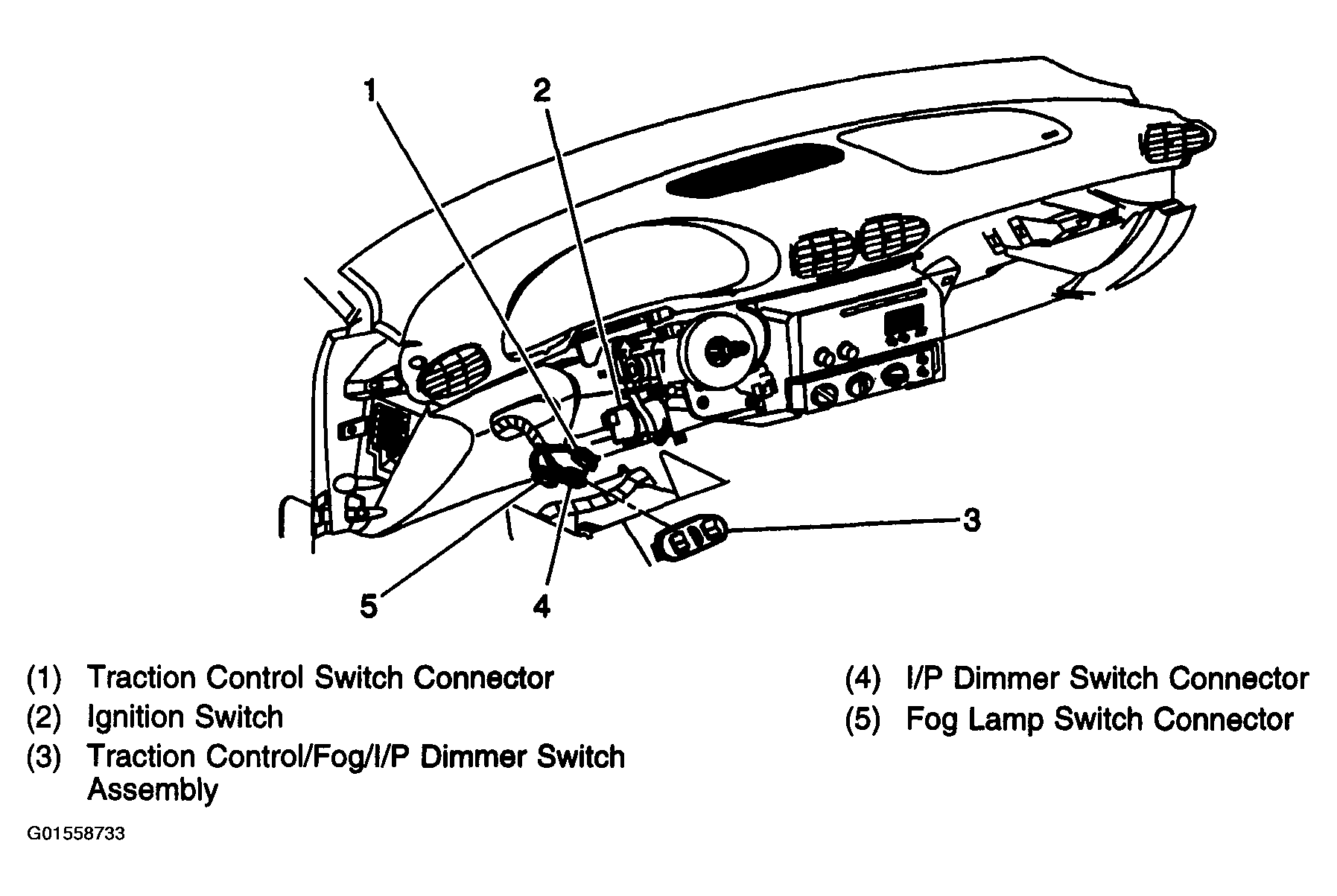

Fig 5: Locating Traction Control, Fog, I/P Dimmer Switch Assembly

Courtesy of GENERAL MOTORS CORP.

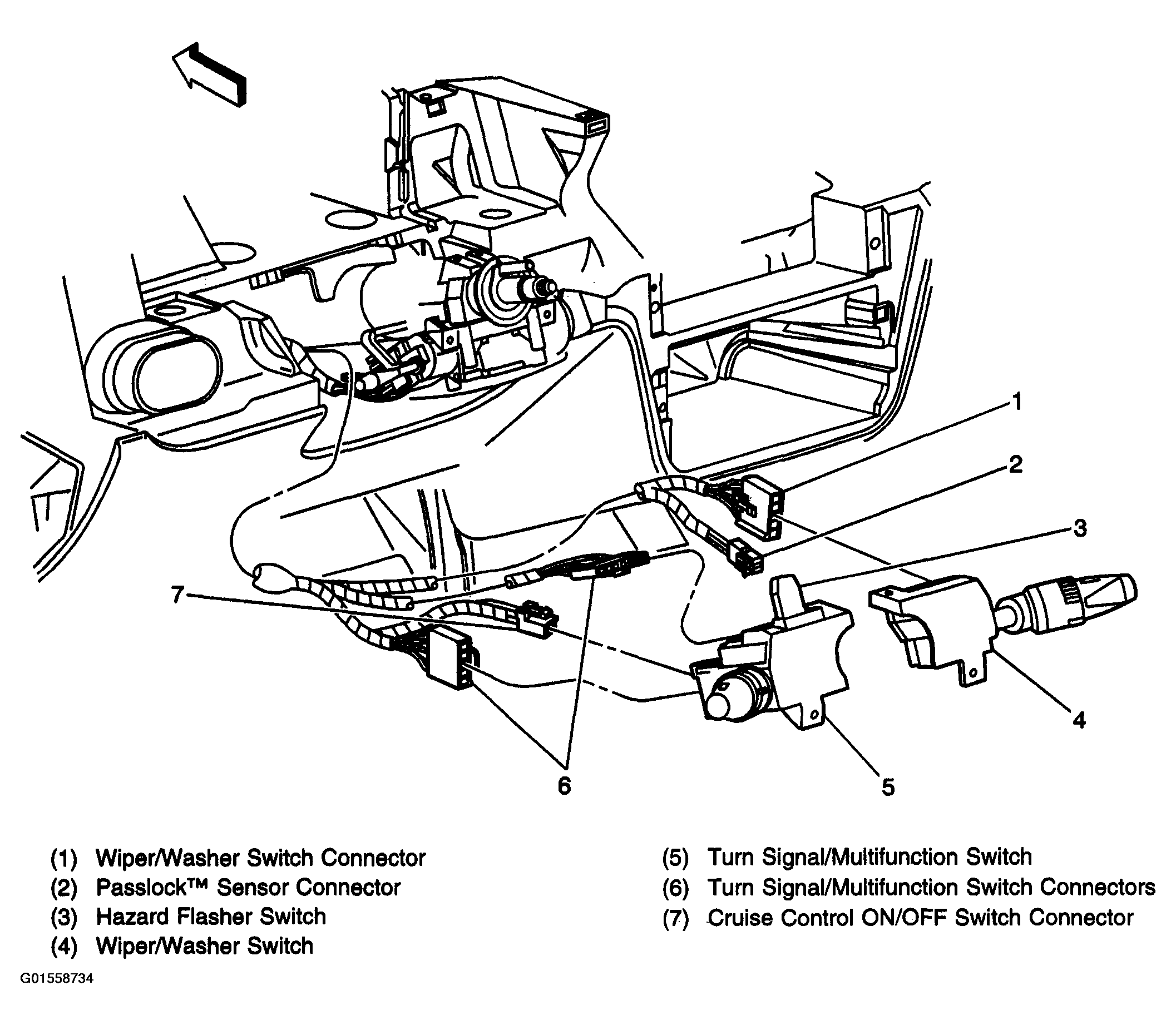

Fig 6: Locating Wiper/Washer Switch And Turn Signal/Multifunction Switch

Courtesy of GENERAL MOTORS CORP.

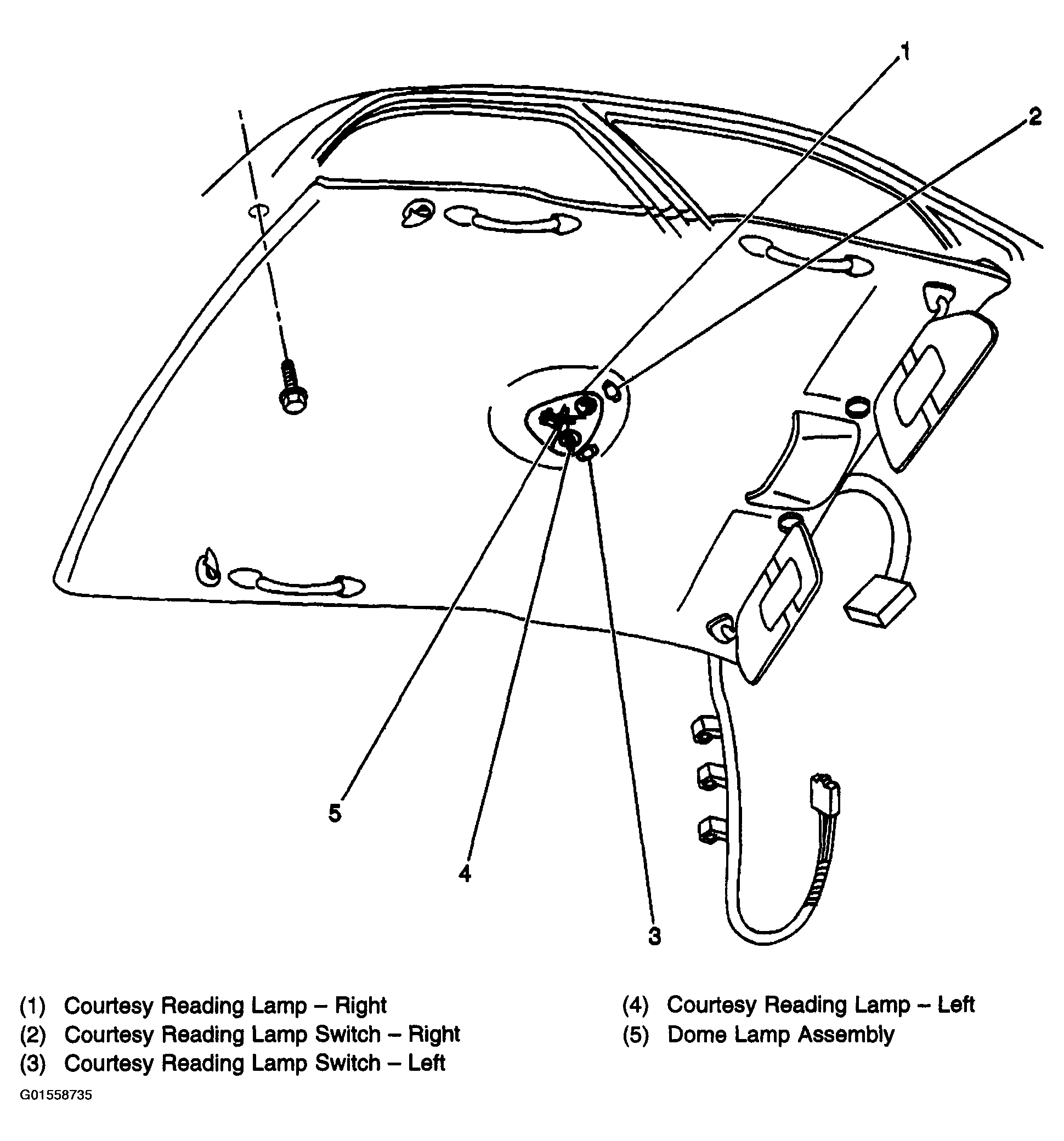

Fig 7: Locating Courtesy Reading Lamps

Courtesy of GENERAL MOTORS CORP.

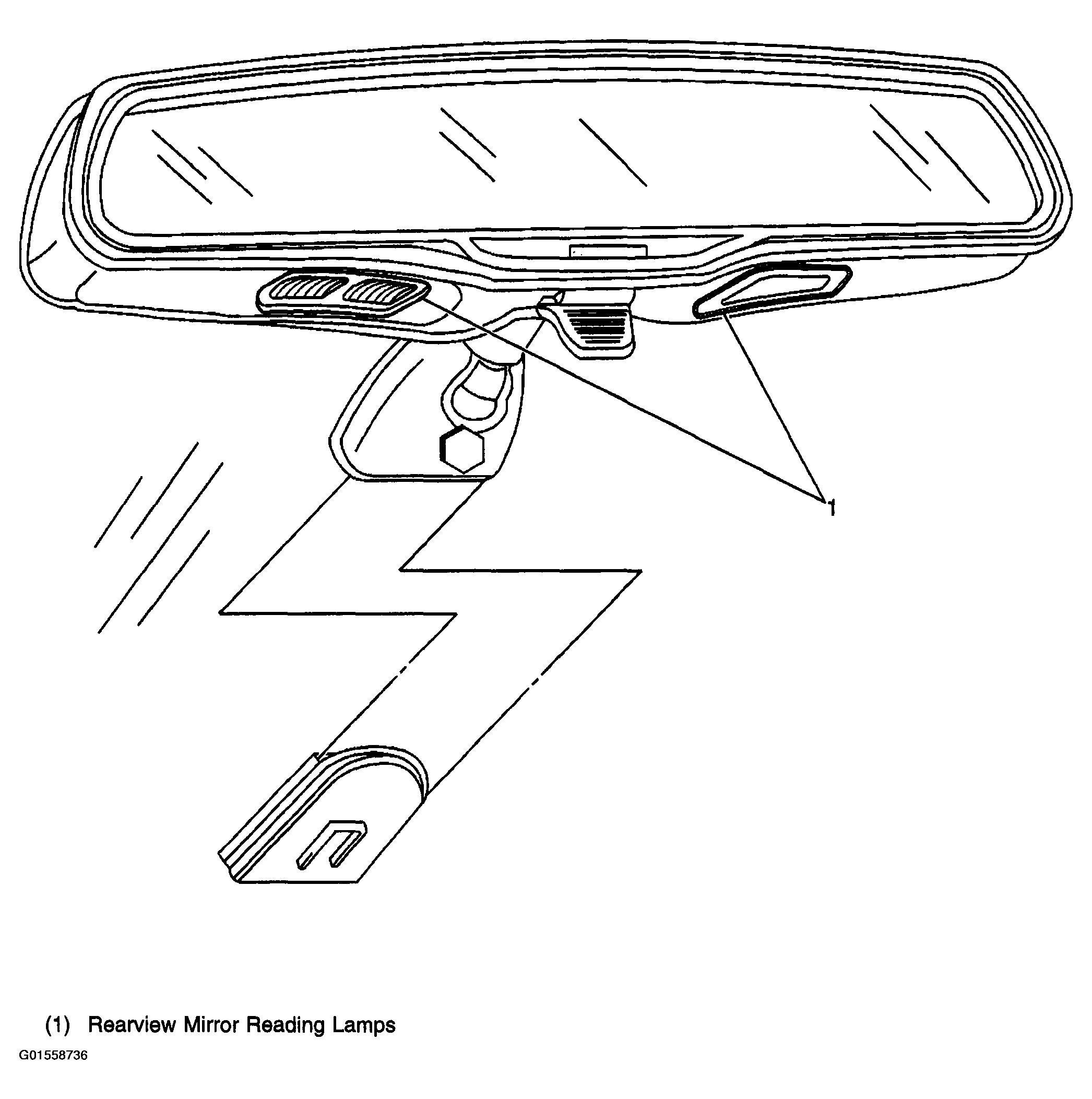

Fig 8: Locating Rearview Mirror Lamps

Courtesy of GENERAL MOTORS CORP.

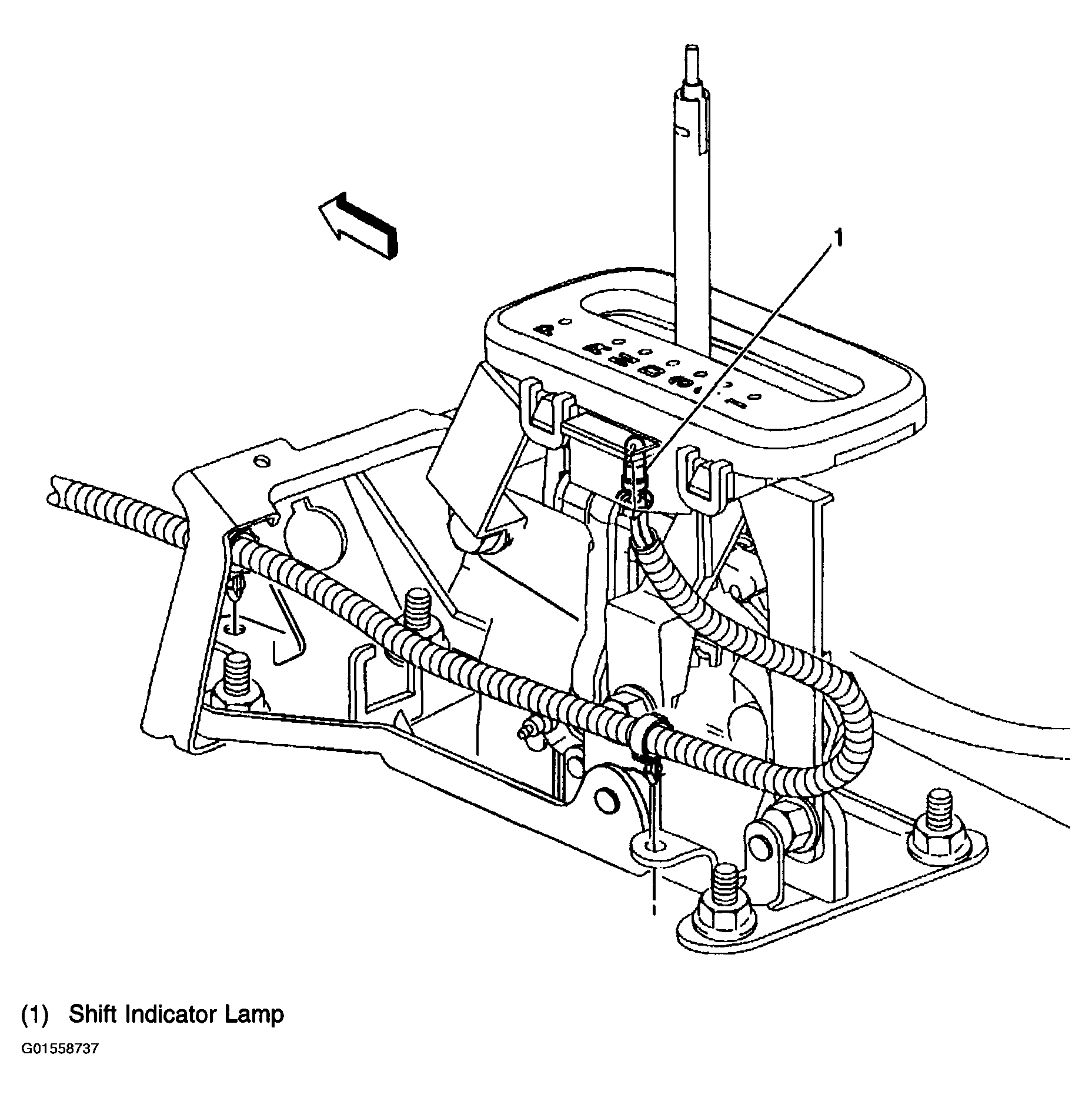

Fig 9: Locating Shift Indicator Lamp

Courtesy of GENERAL MOTORS CORP.

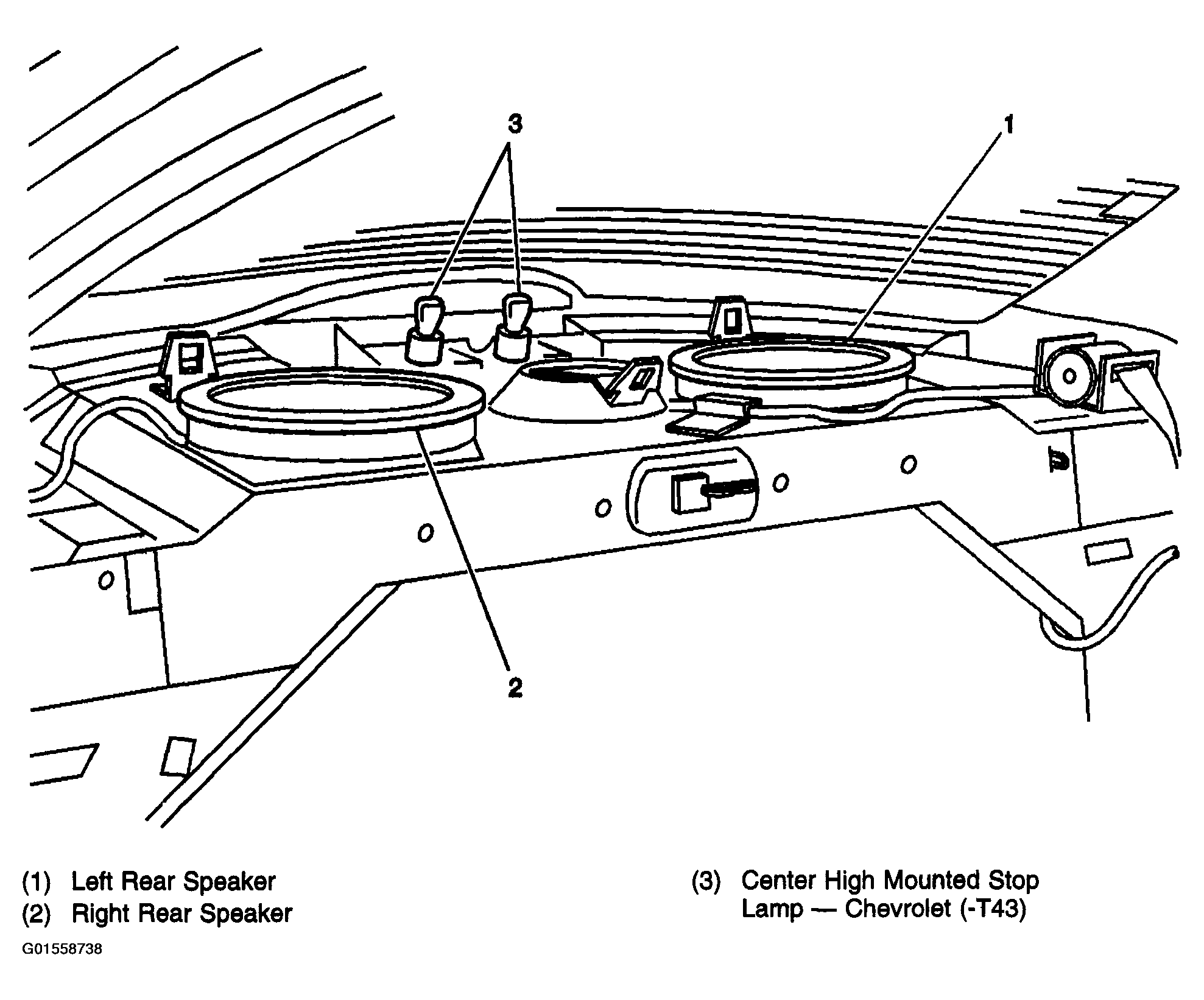

Fig 10: Locating Rear Package Shelf - Speakers And CHMSL

Courtesy of GENERAL MOTORS CORP.

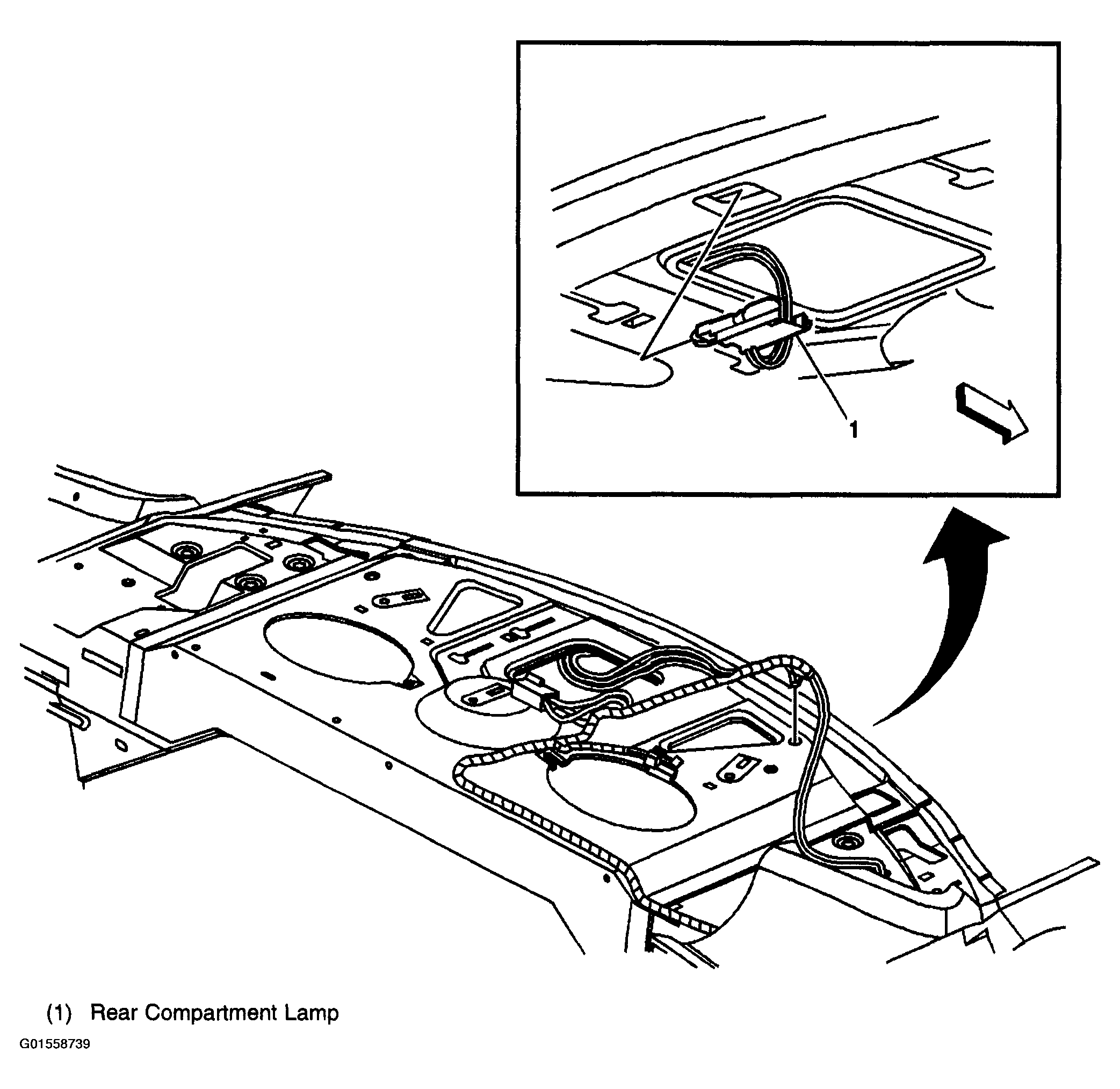

Fig 11: Locating Rear Compartment Lamp

Courtesy of GENERAL MOTORS CORP.

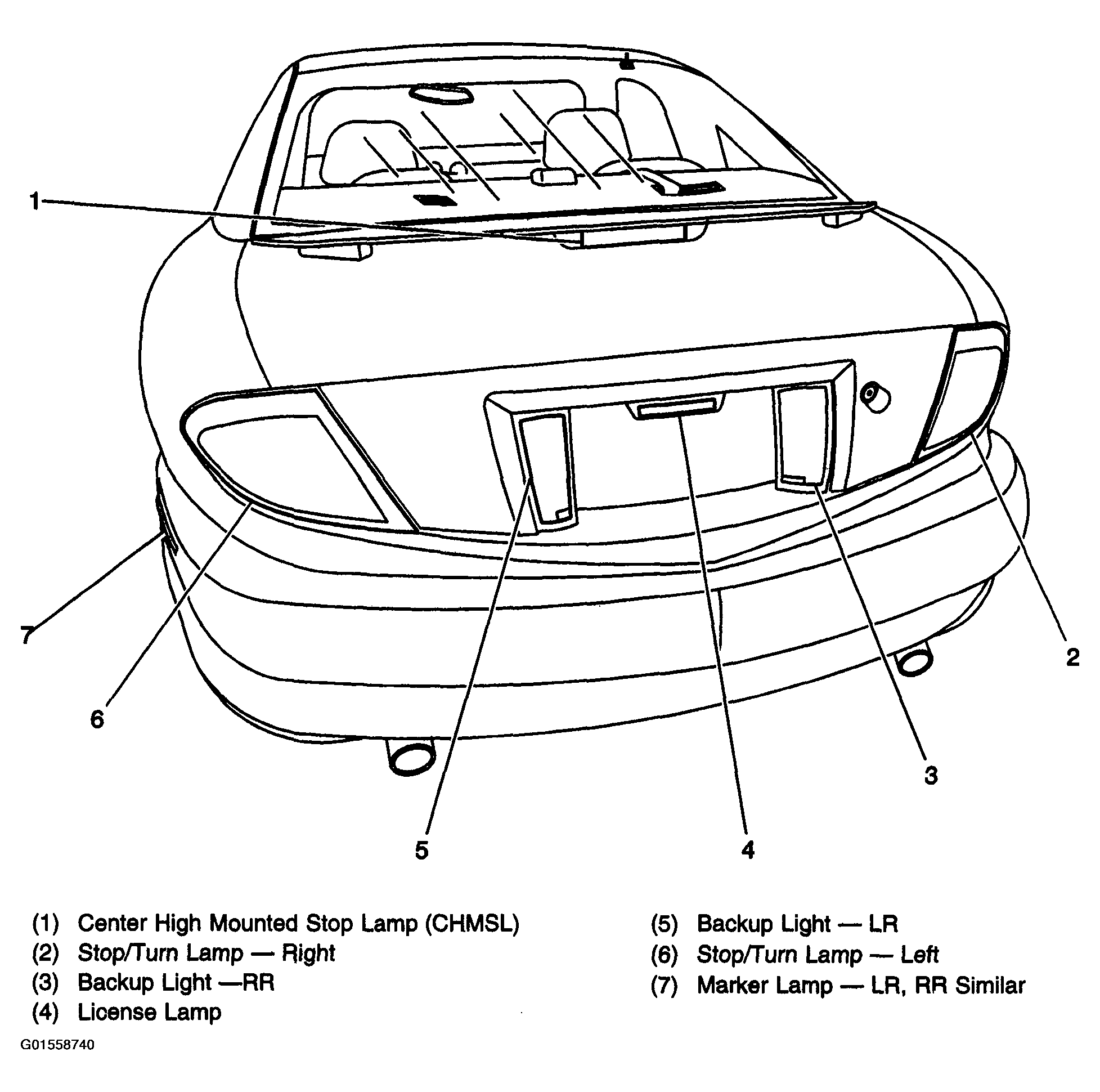

Fig 12: Identifying Rear Lamps Pontiac

Courtesy of GENERAL MOTORS CORP.

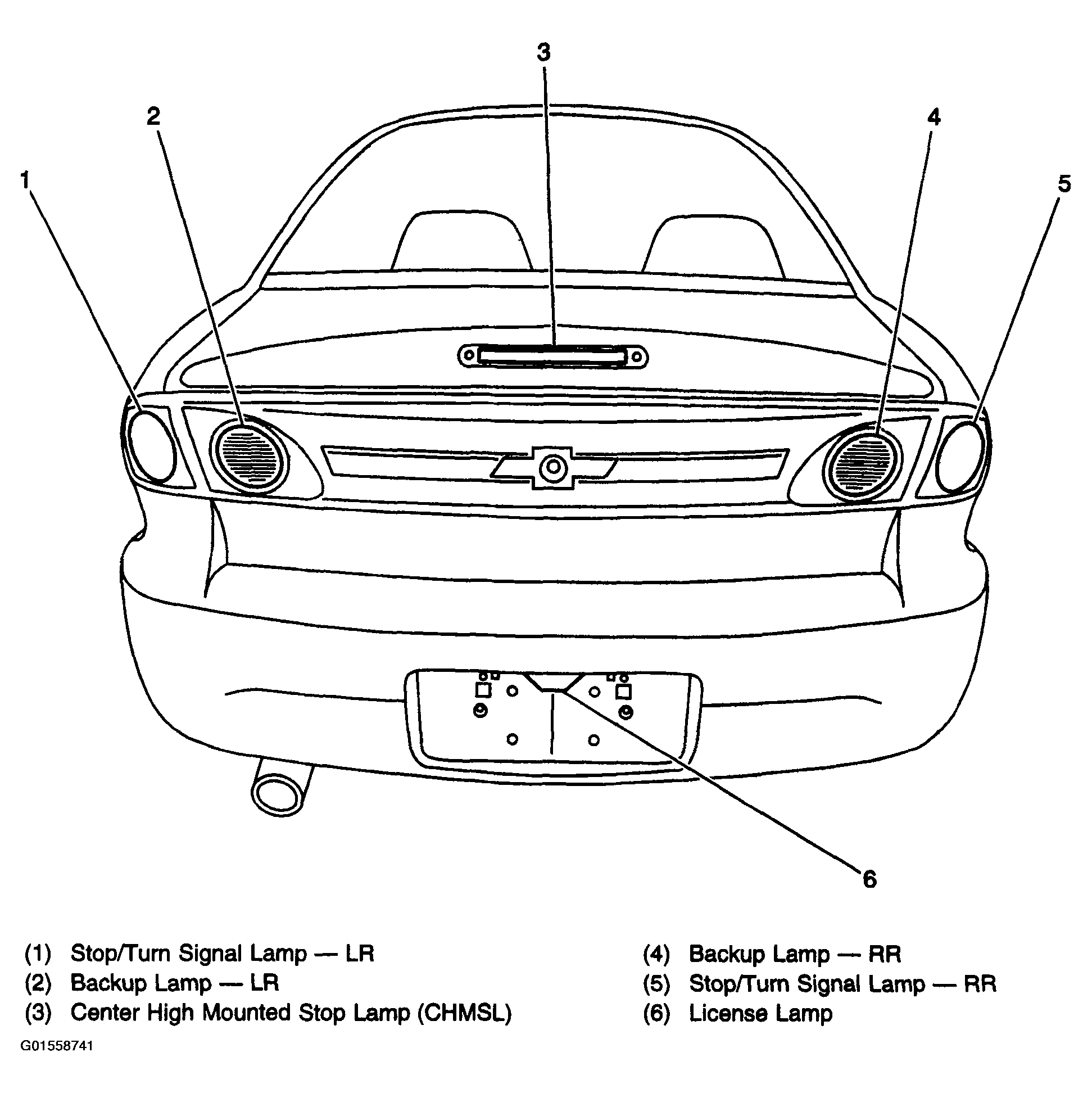

Fig 13: Identifying Rear Lamps Cavalier

Courtesy of GENERAL MOTORS CORP.
