Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

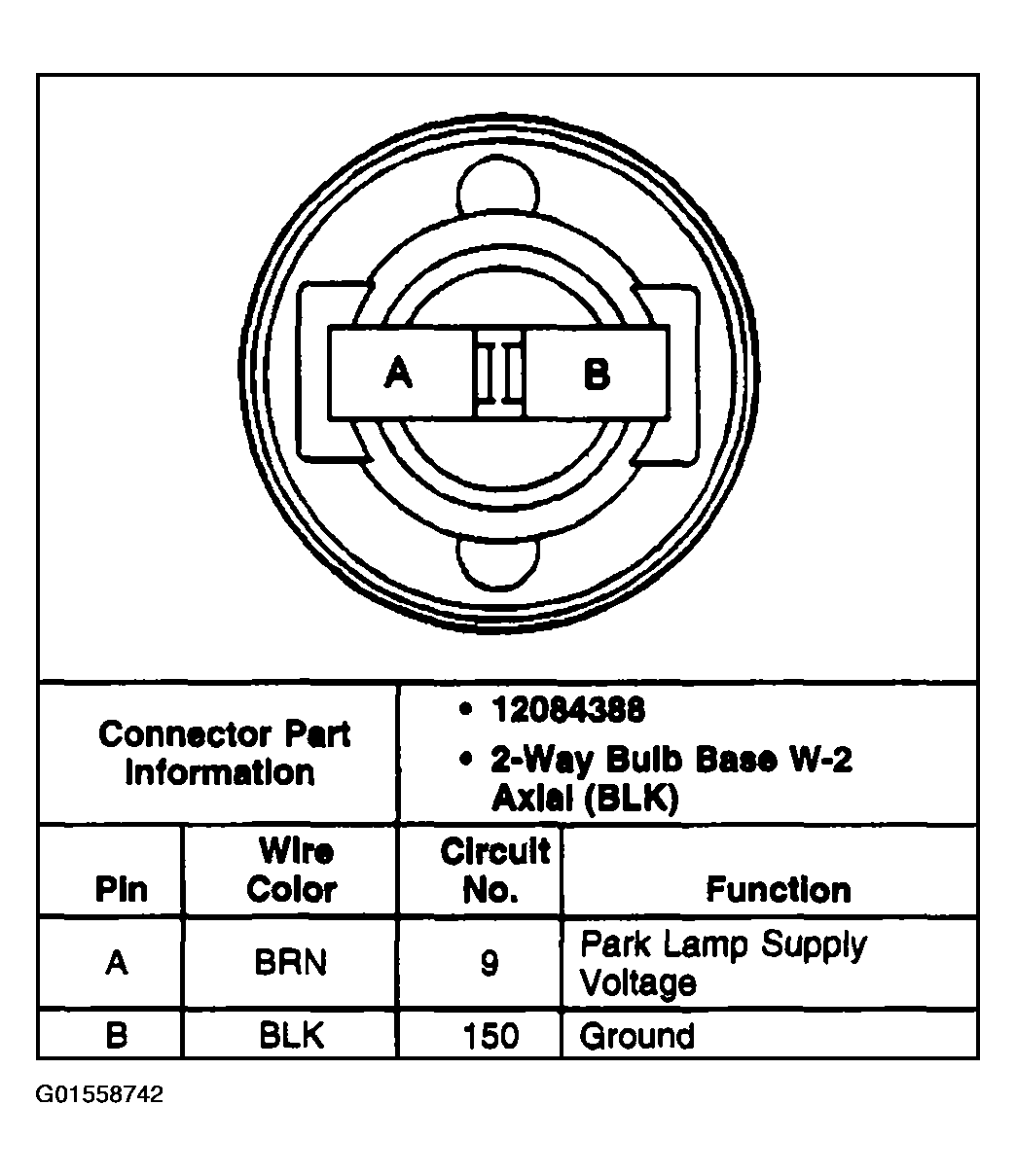

Fig 1: Identifying Lighting Systems Connector End Views - Applique Lamps, Rear (Pontiac)

G01558742

Courtesy of GENERAL MOTORS CORP.

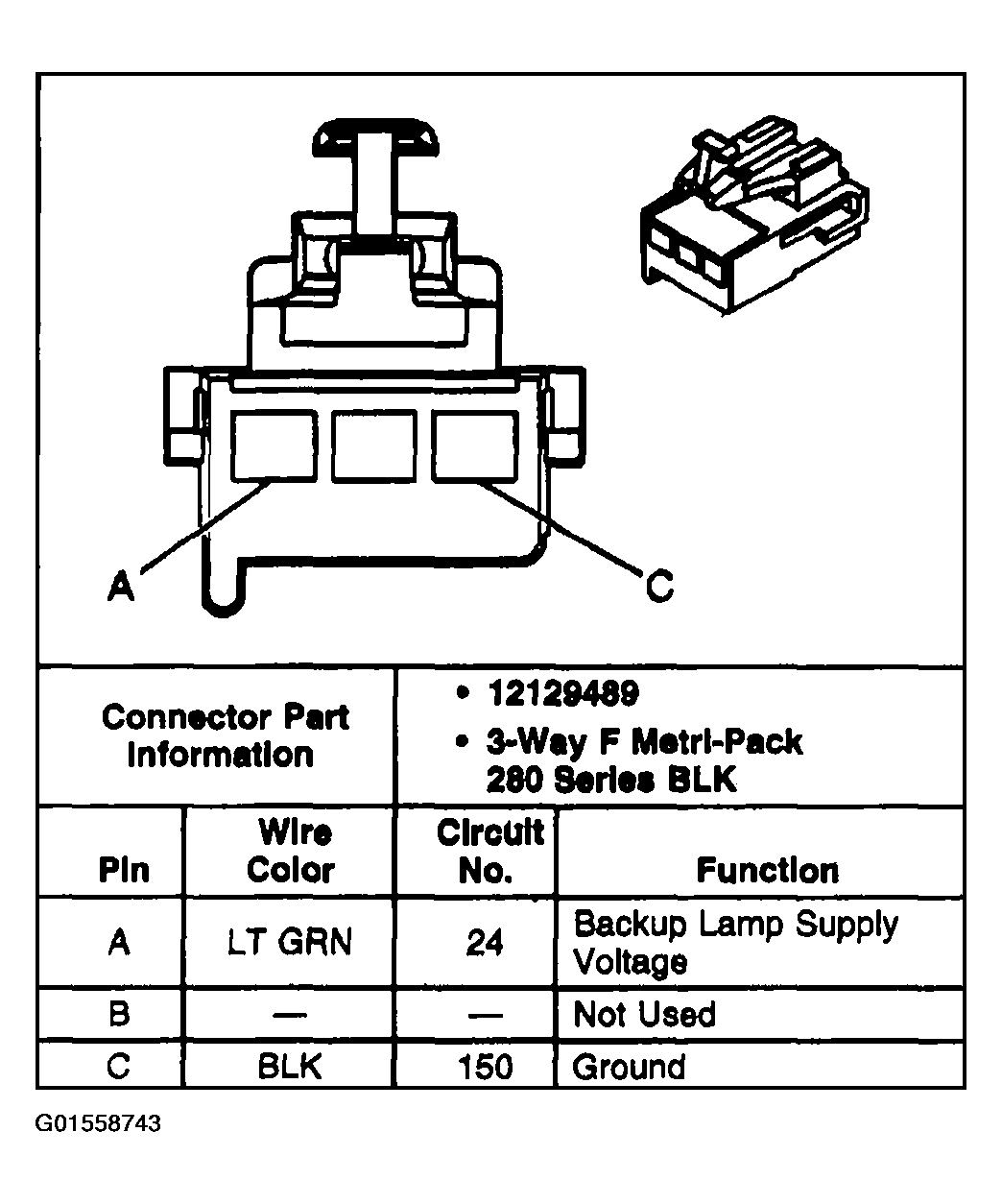

Fig 2: Identifying Lighting Systems Connector End Views - Backup Lamp (Left)

G01558743

Courtesy of GENERAL MOTORS CORP.

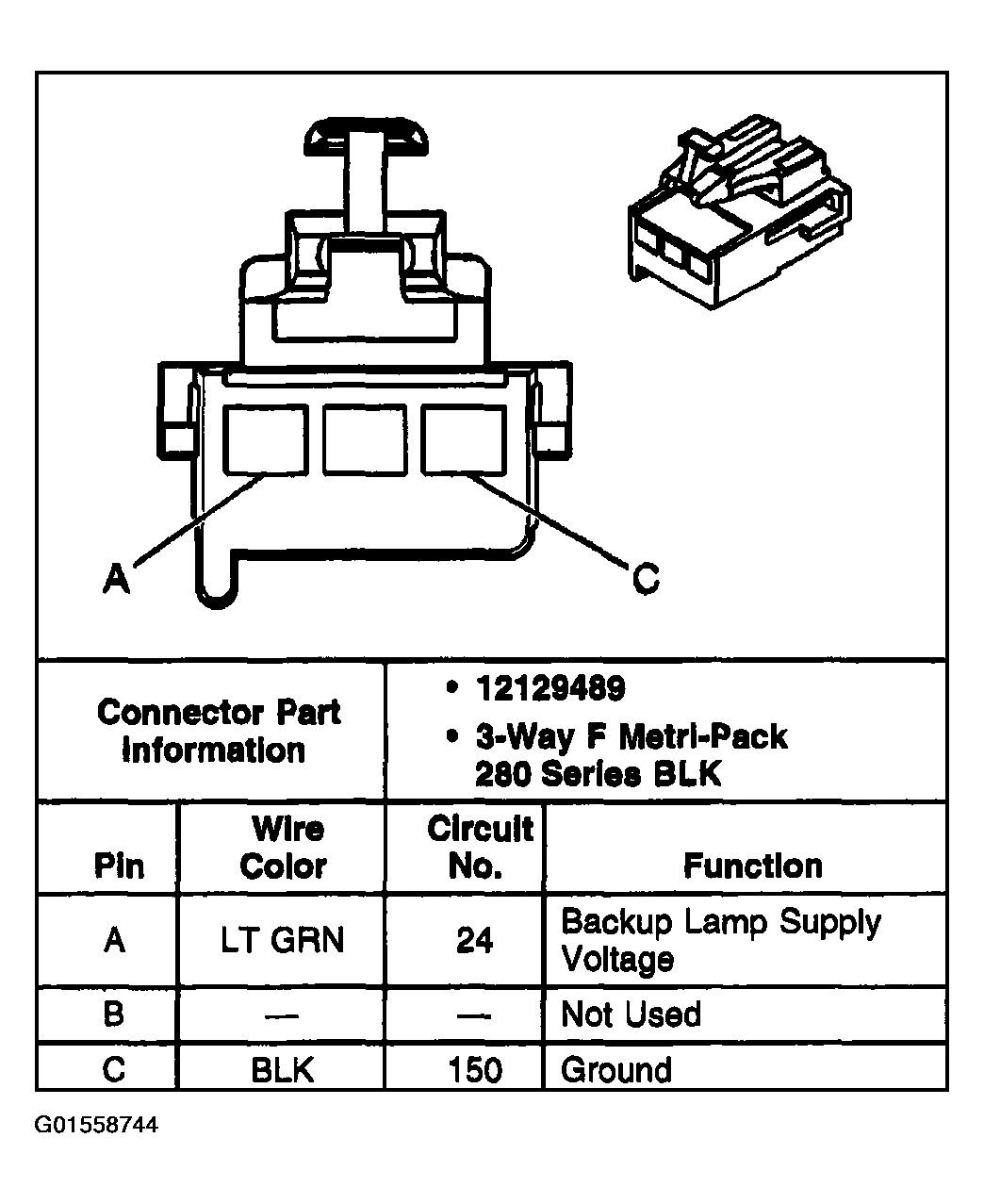

Fig 3: Identifying Lighting Systems Connector End Views - Backup Lamp (Right)

G01558744

Courtesy of GENERAL MOTORS CORP.

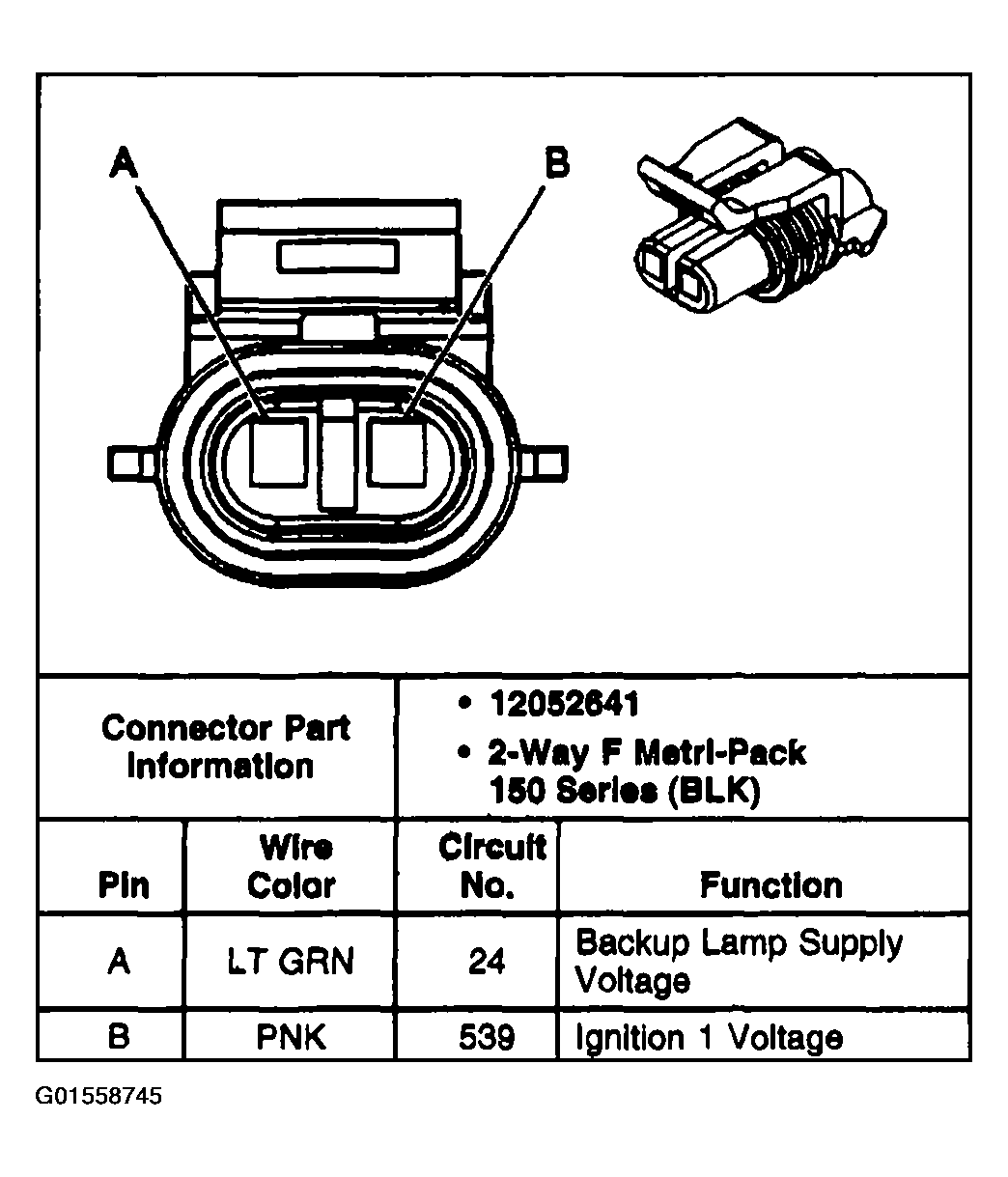

Fig 4: Identifying Lighting Systems Connector End Views - Backup Lamp Switch

G01558745

Courtesy of GENERAL MOTORS CORP.

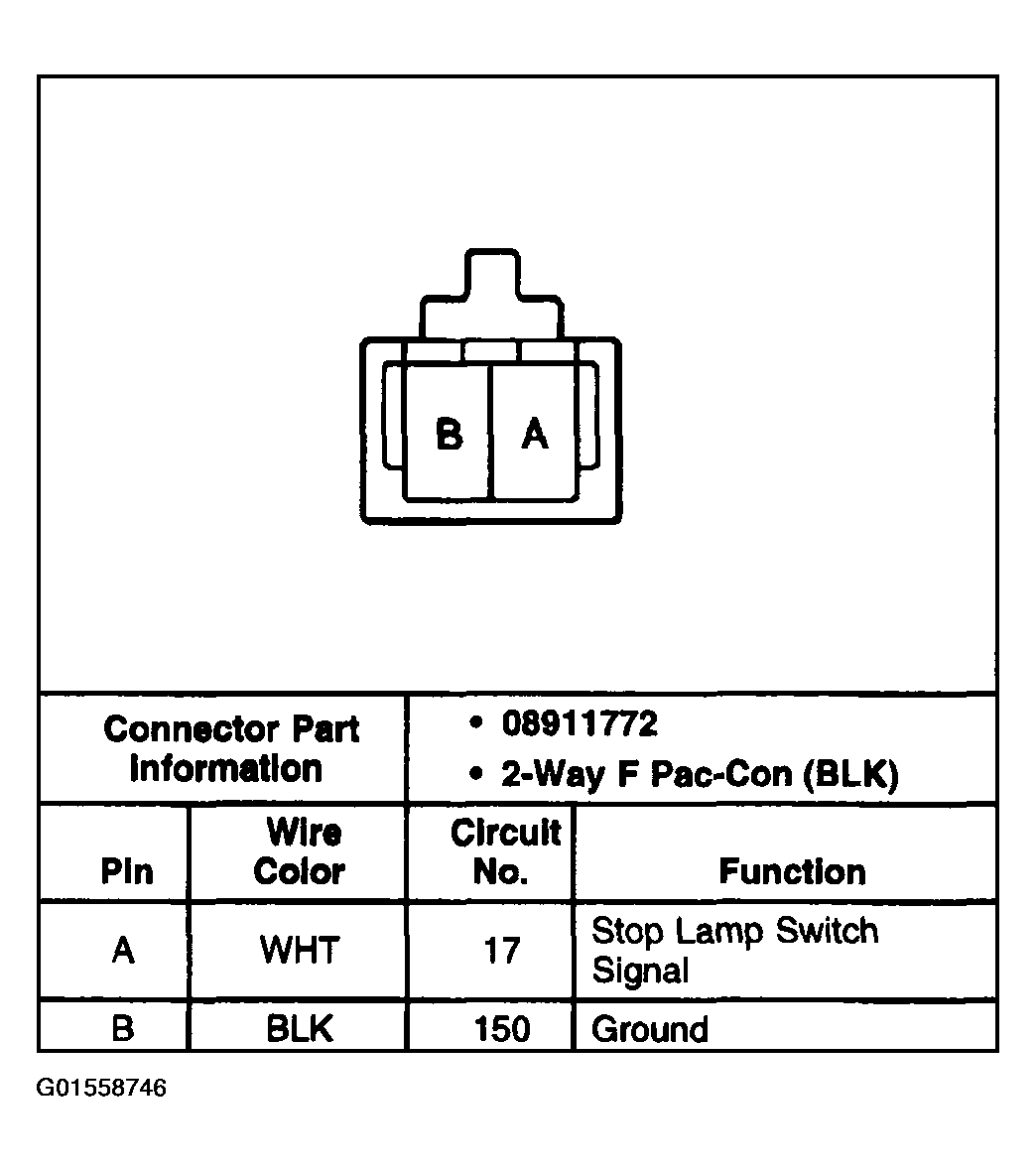

Fig 5: Identifying Lighting Systems Connector End Views - Center High Mounted Stop Lamp (CHMSL) Bulbs

G01558746

Courtesy of GENERAL MOTORS CORP.

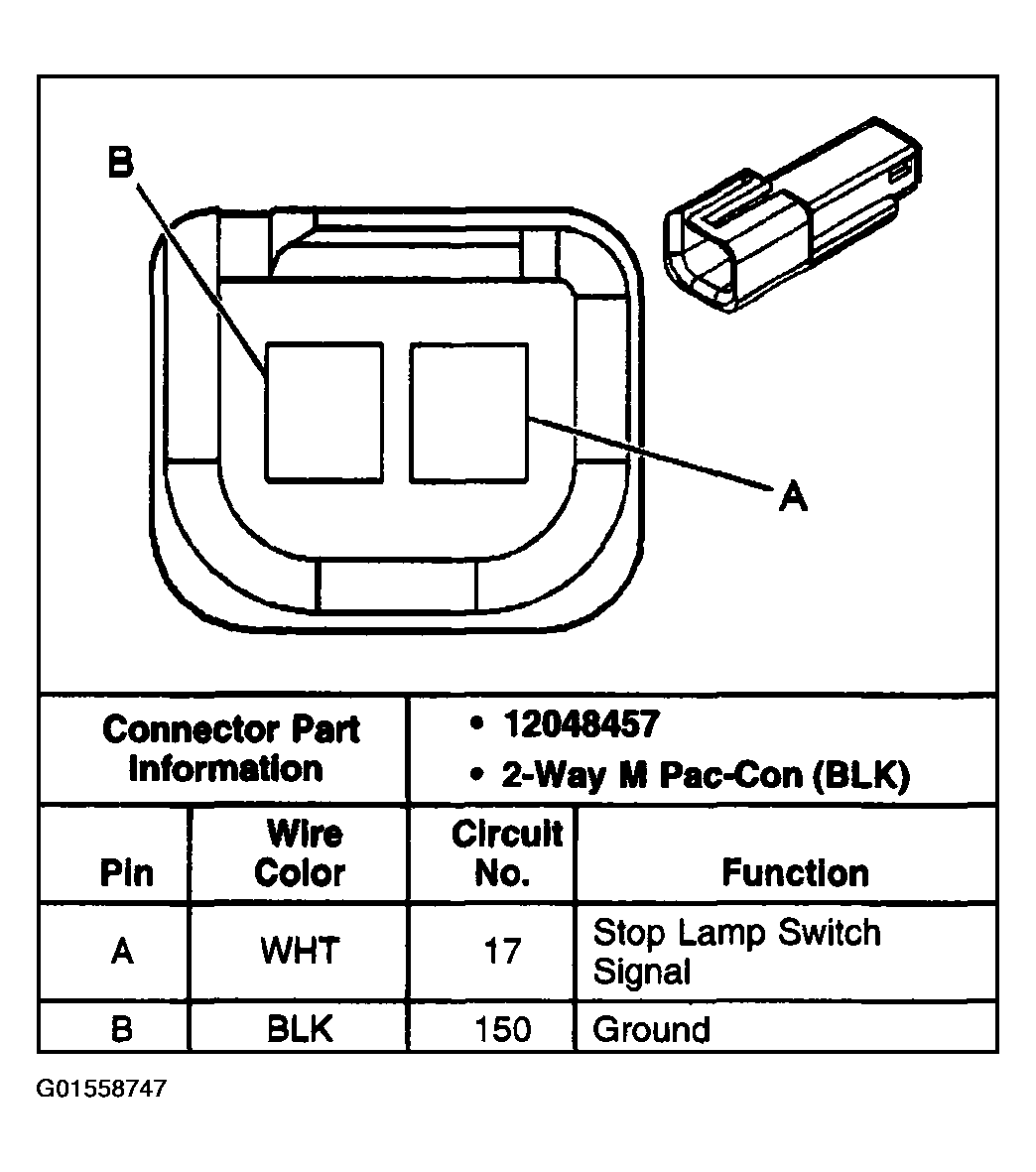

Fig 6: Identifying Lighting Systems Connector End Views - Center High Mounted Stop Lamp (CHMSL) Assembly

G01558747

Courtesy of GENERAL MOTORS CORP.

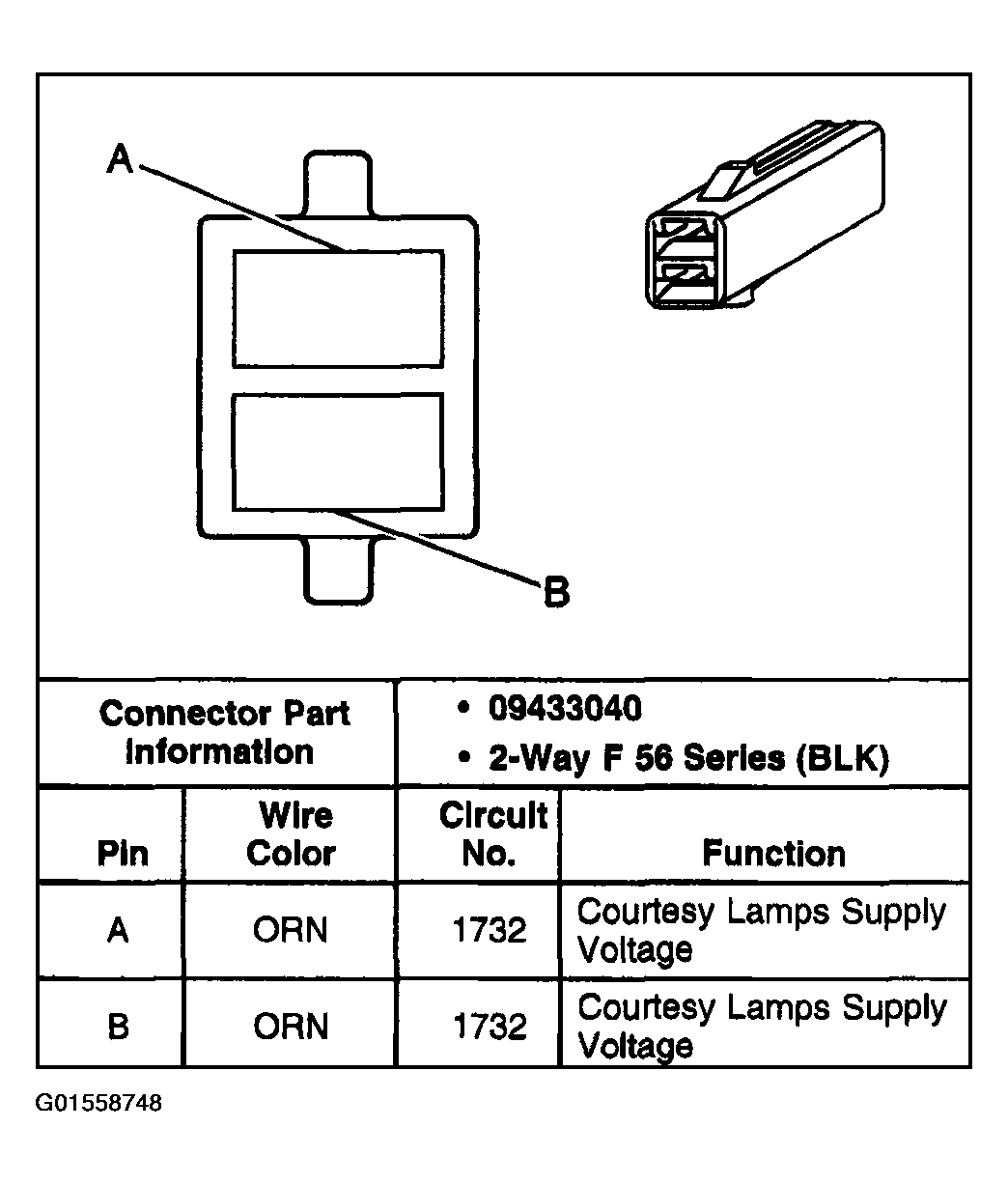

Fig 7: Identifying Lighting Systems Connector End Views - Courtesy Reading Lamps

G01558748

Courtesy of GENERAL MOTORS CORP.

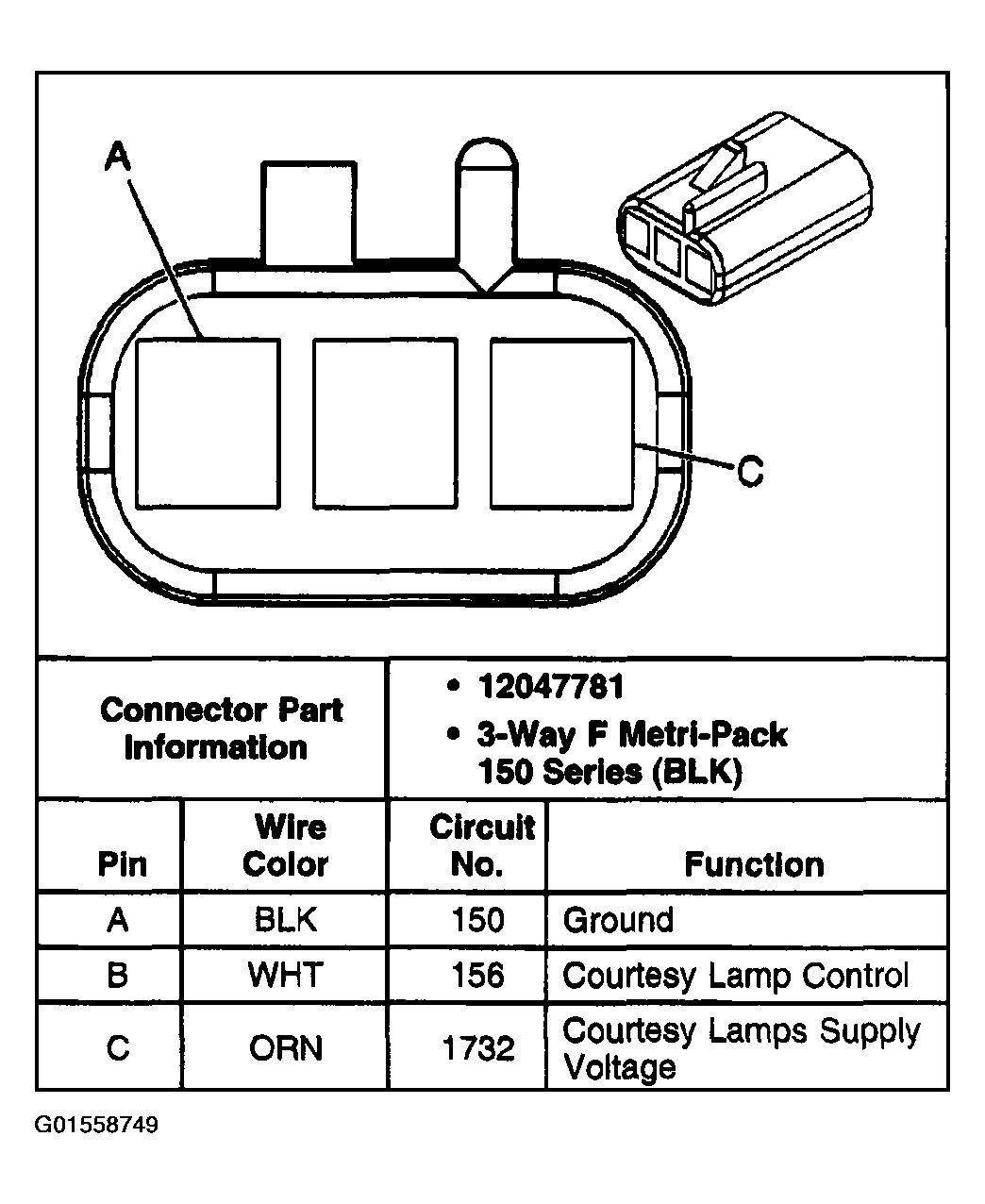

Fig 8: Identifying Lighting Systems Connector End Views - Courtesy Reading Lamp Switches

G01558749

Courtesy of GENERAL MOTORS CORP.

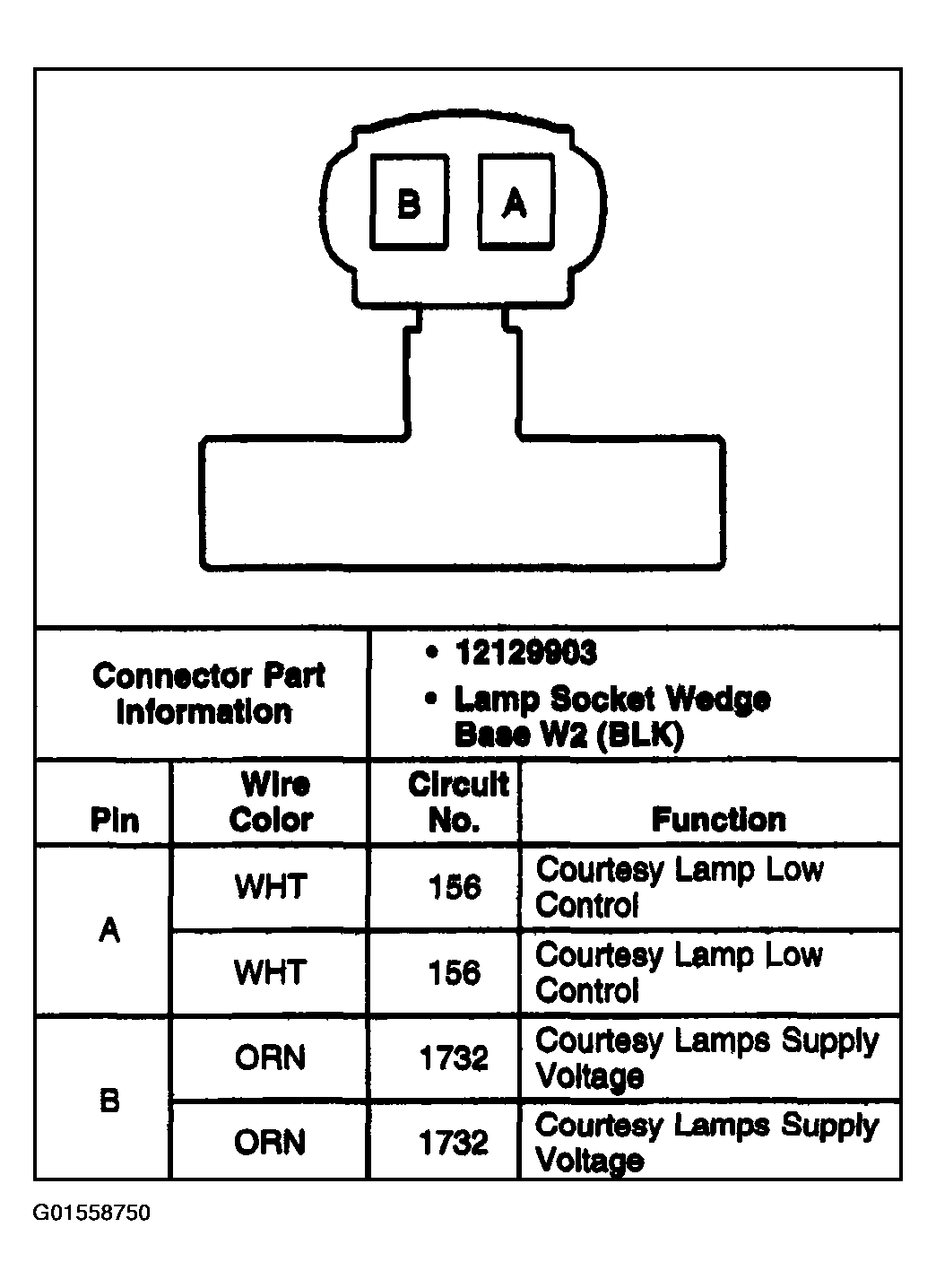

Fig 9: Identifying Lighting Systems Connector End Views - Dome Lamp

G01558750

Courtesy of GENERAL MOTORS CORP.

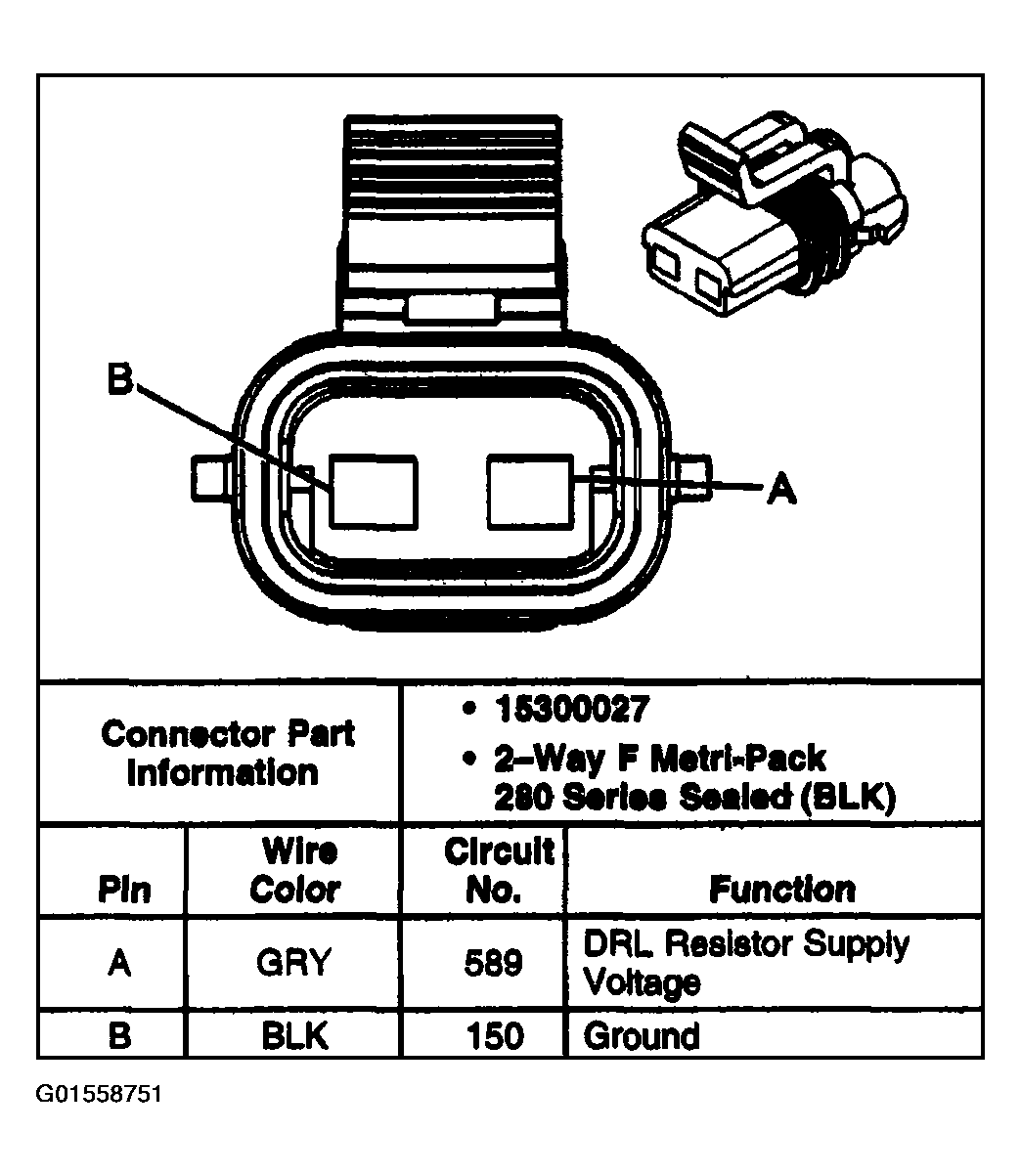

Fig 10: Identifying Lighting Systems Connector End Views - Daytime Running Lamps (DRL) Resistor

G01558751

Courtesy of GENERAL MOTORS CORP.

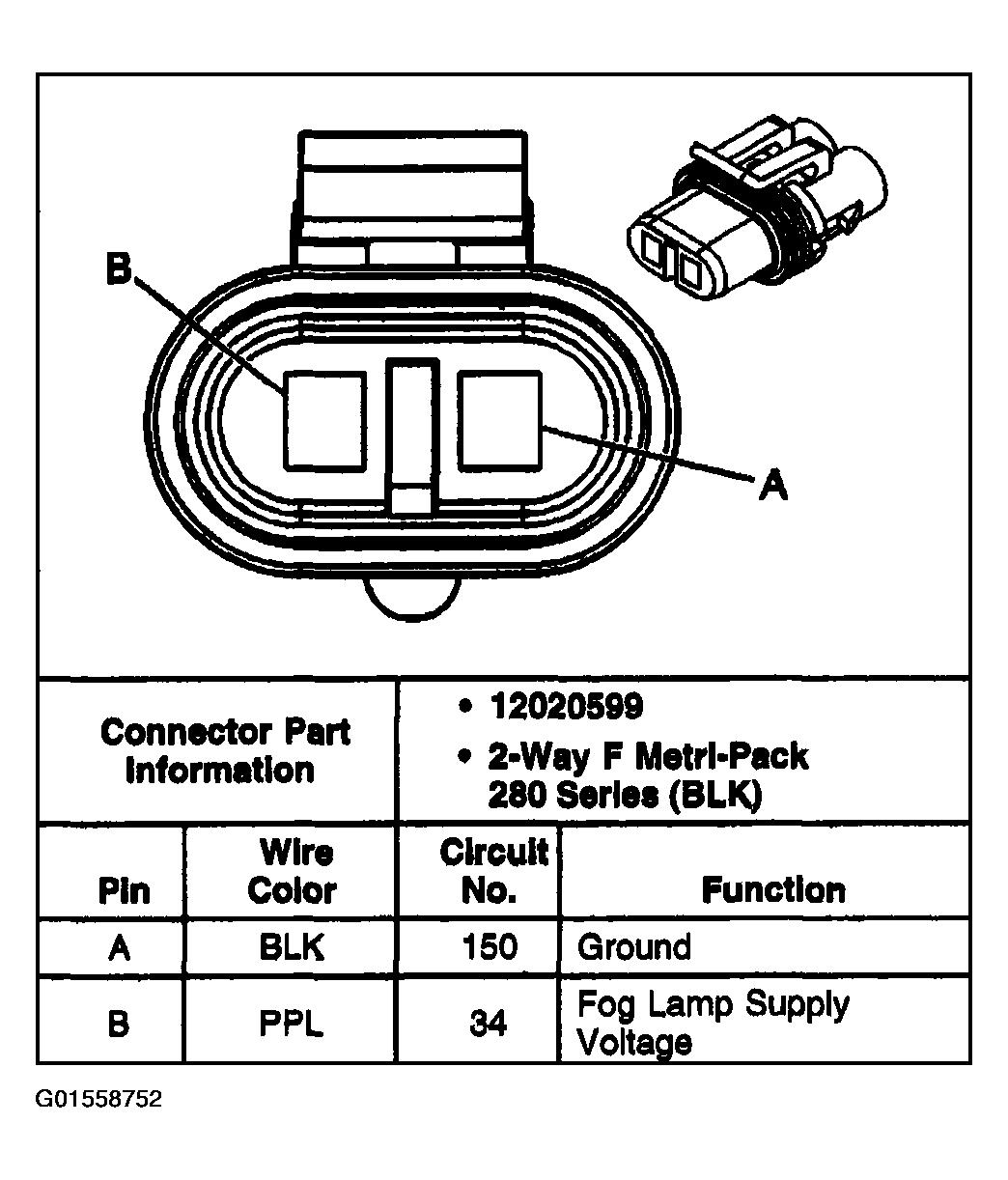

Fig 11: Identifying Lighting Systems Connector End Views - Fog Lamp (LF)

G01558752

Courtesy of GENERAL MOTORS CORP.

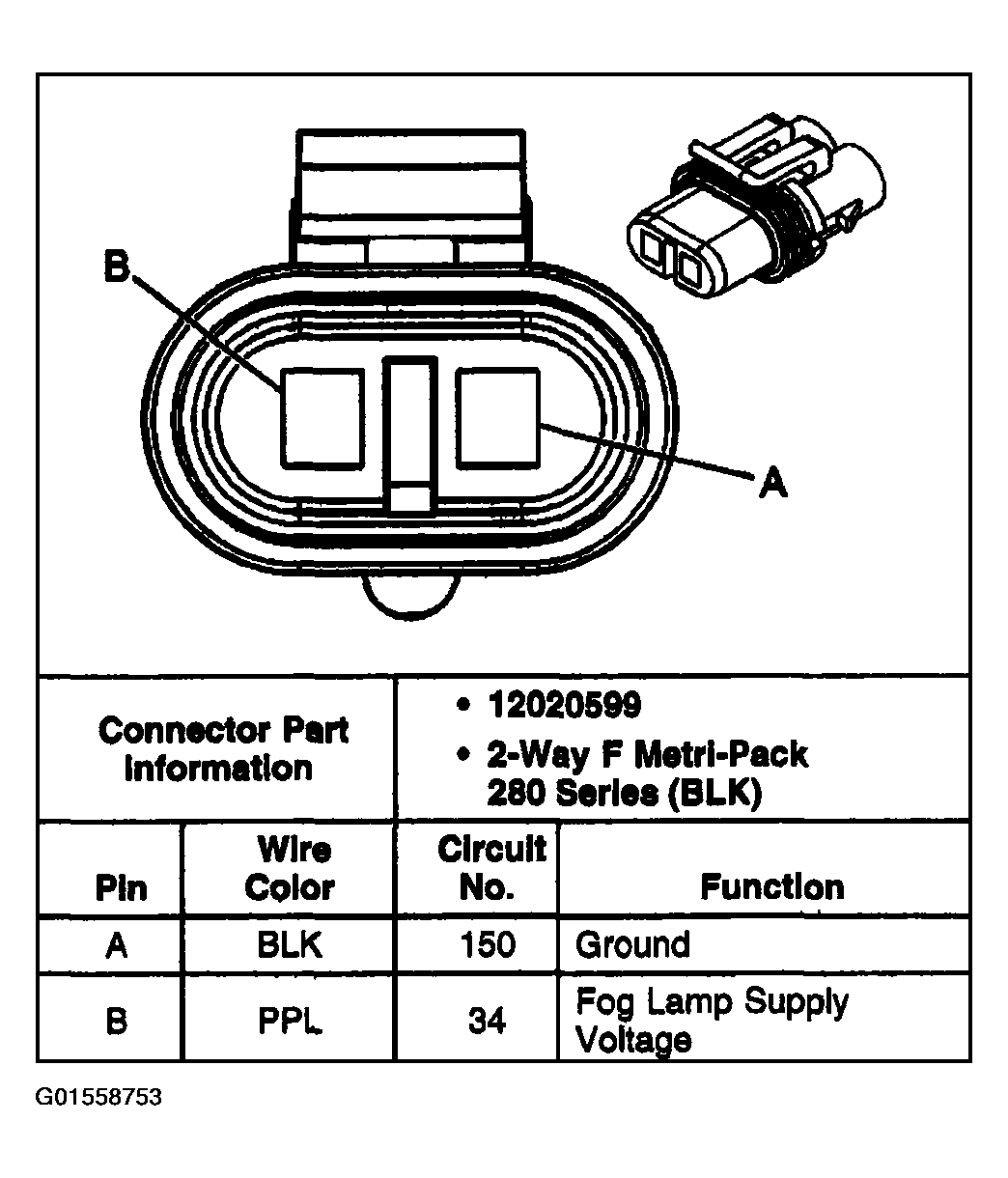

Fig 12: Identifying Lighting Systems Connector End Views - Fog Lamp (RF)

G01558753

Courtesy of GENERAL MOTORS CORP.

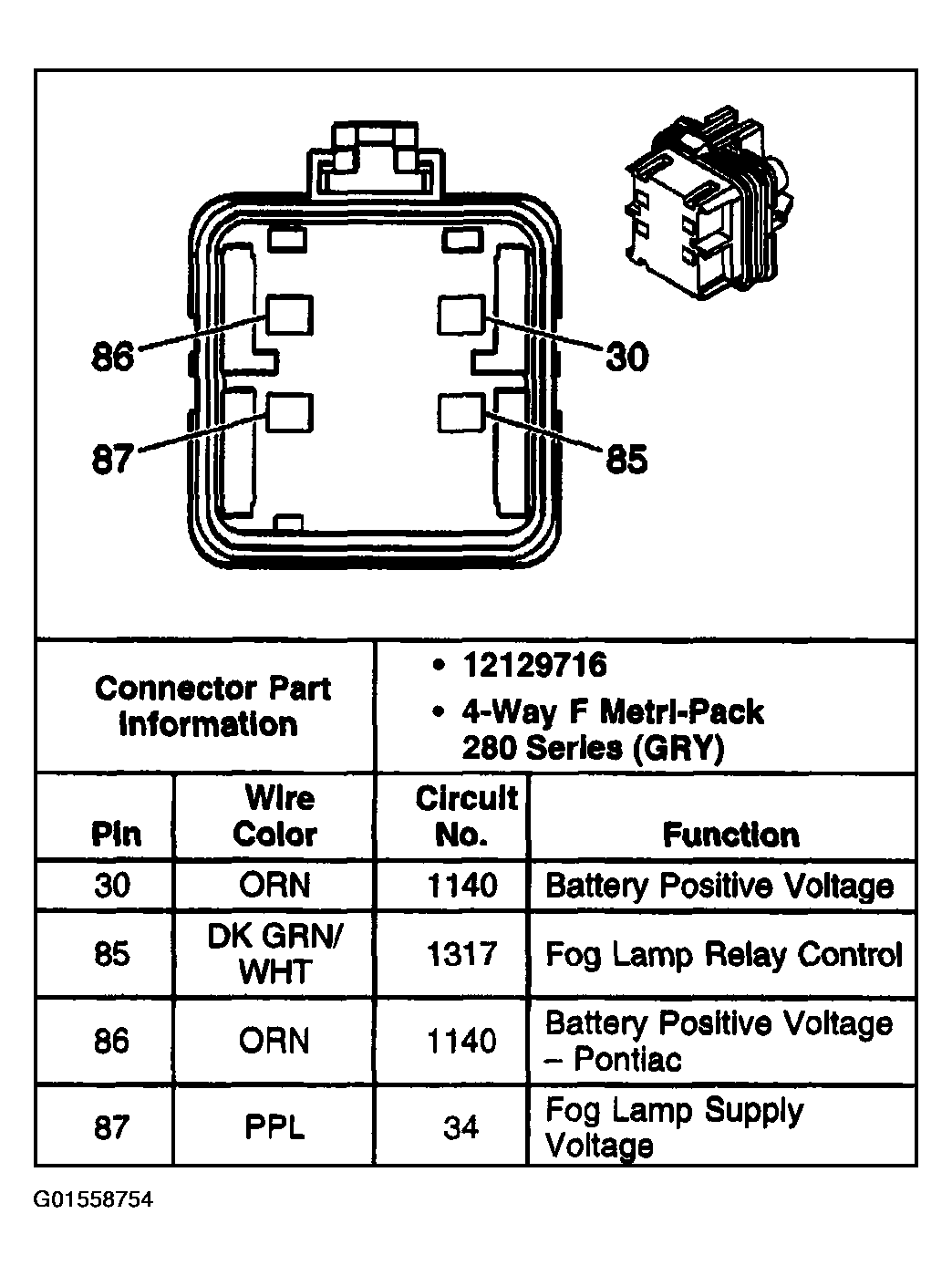

Fig 13: Identifying Lighting Systems Connector End Views - Fog Lamp Relay

G01558754

Courtesy of GENERAL MOTORS CORP.

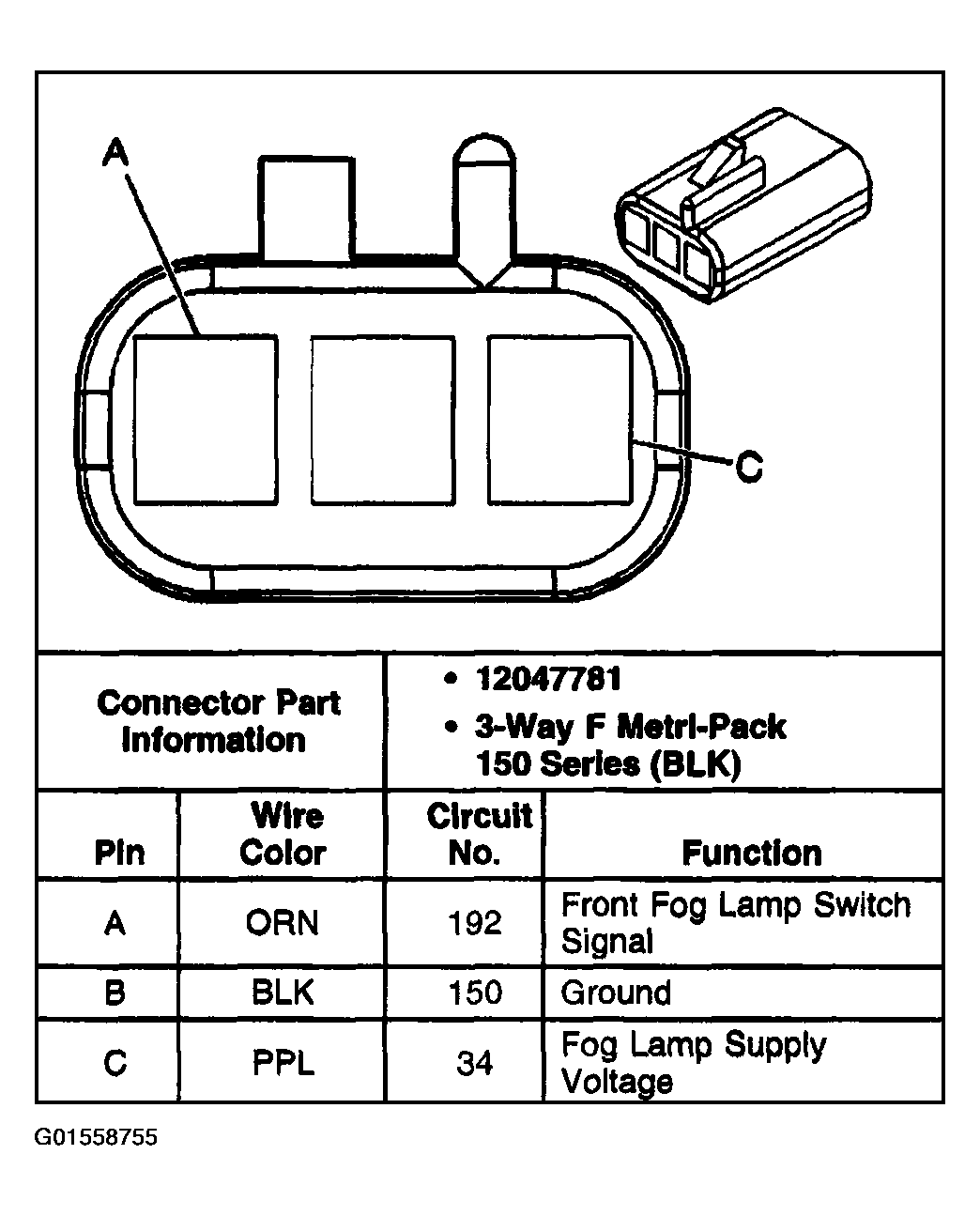

Fig 14: Identifying Lighting Systems Connector End Views - Fog Lamp Switch

G01558755

Courtesy of GENERAL MOTORS CORP.

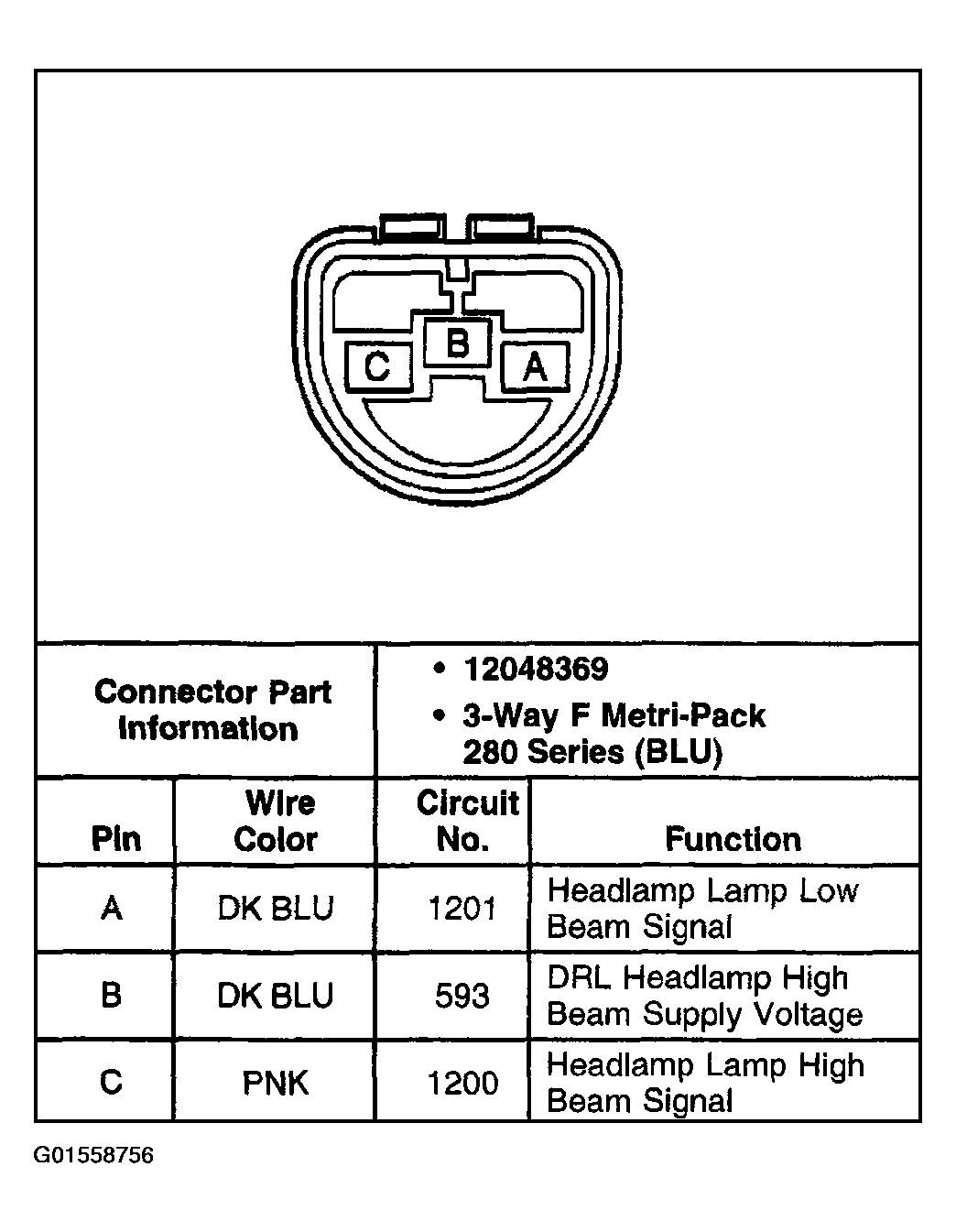

Fig 15: Identifying Lighting Systems Connector End Views - Left Headlamp (Chevrolet)

G01558756

Courtesy of GENERAL MOTORS CORP.

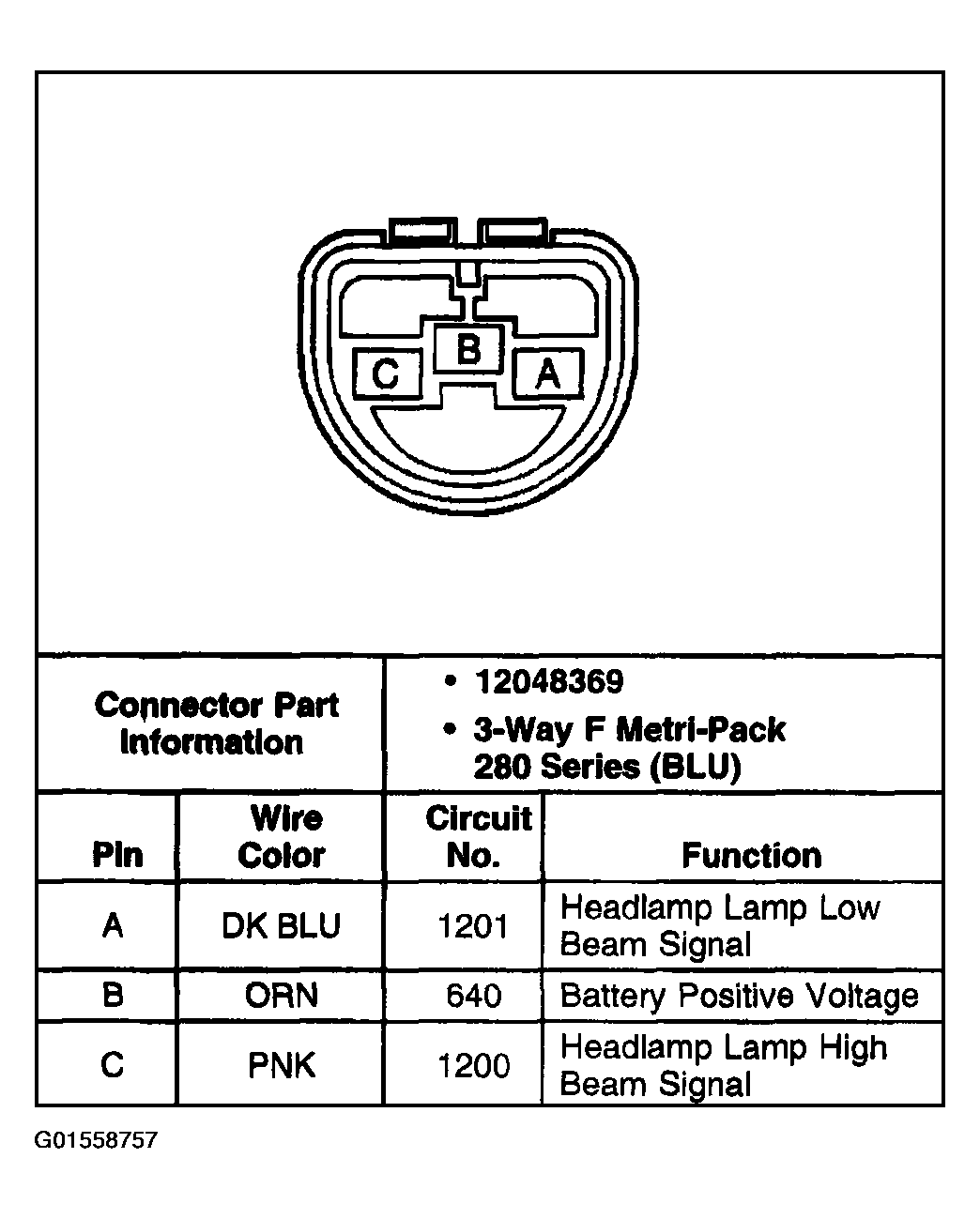

Fig 16: Identifying Lighting Systems Connector End Views - Right Headlamp (Chevrolet)

G01558757

Courtesy of GENERAL MOTORS CORP.

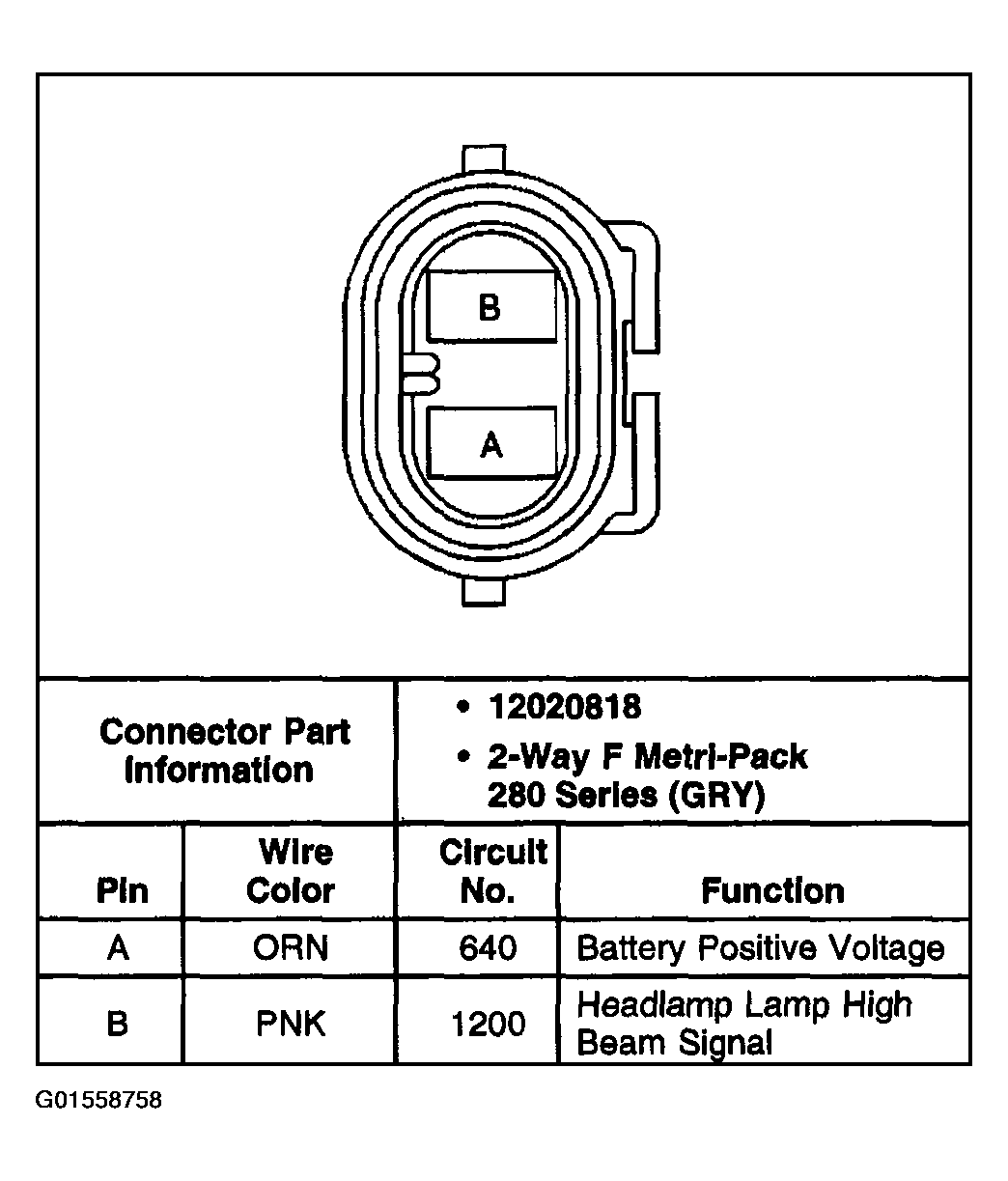

Fig 17: Identifying Lighting Systems Connector End Views - Headlamp - Right High Beam (Pontiac)

G01558758

Courtesy of GENERAL MOTORS CORP.

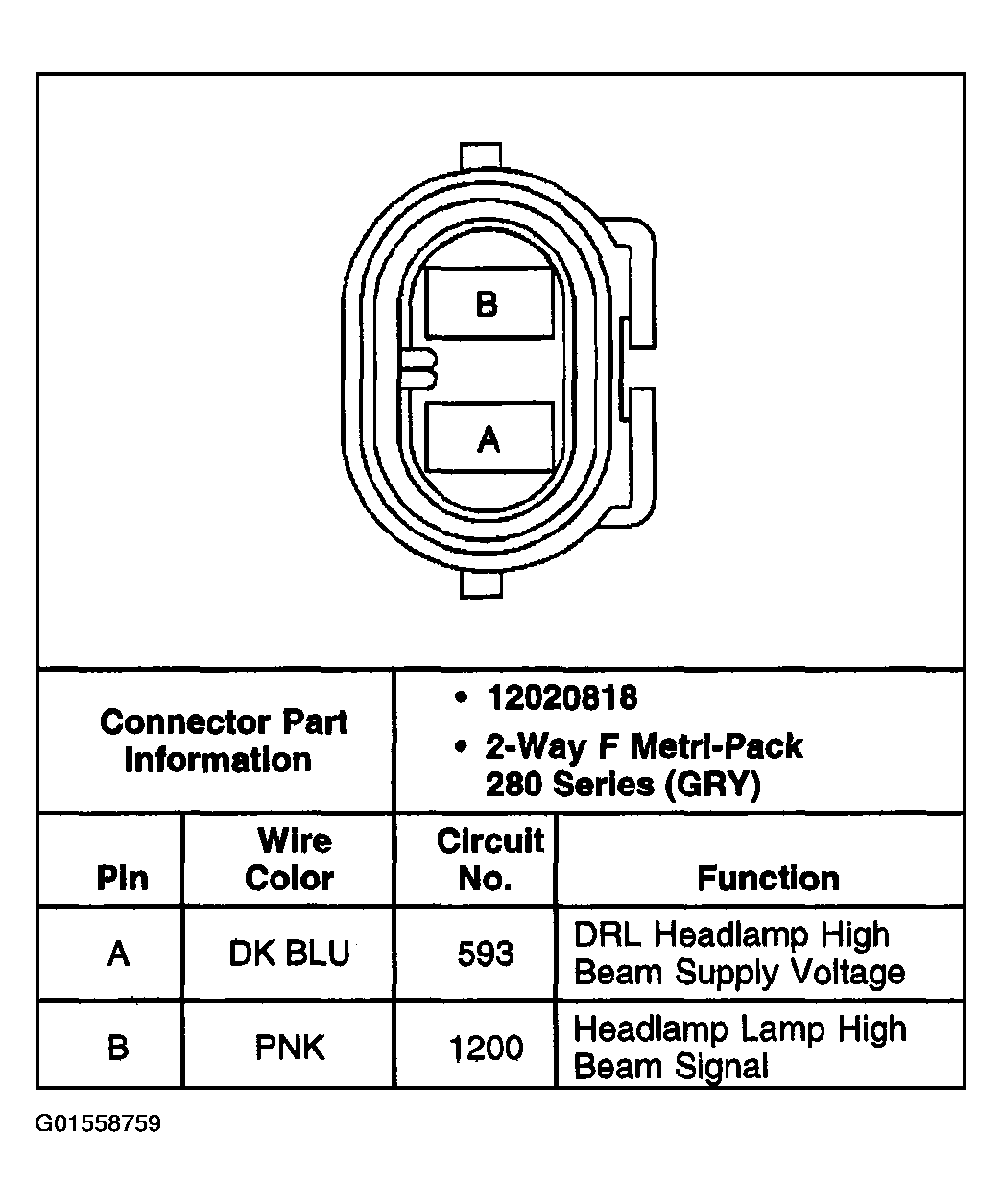

Fig 18: Identifying Lighting Systems Connector End Views - Headlamp - Left High Beam (Pontiac)

G01558759

Courtesy of GENERAL MOTORS CORP.

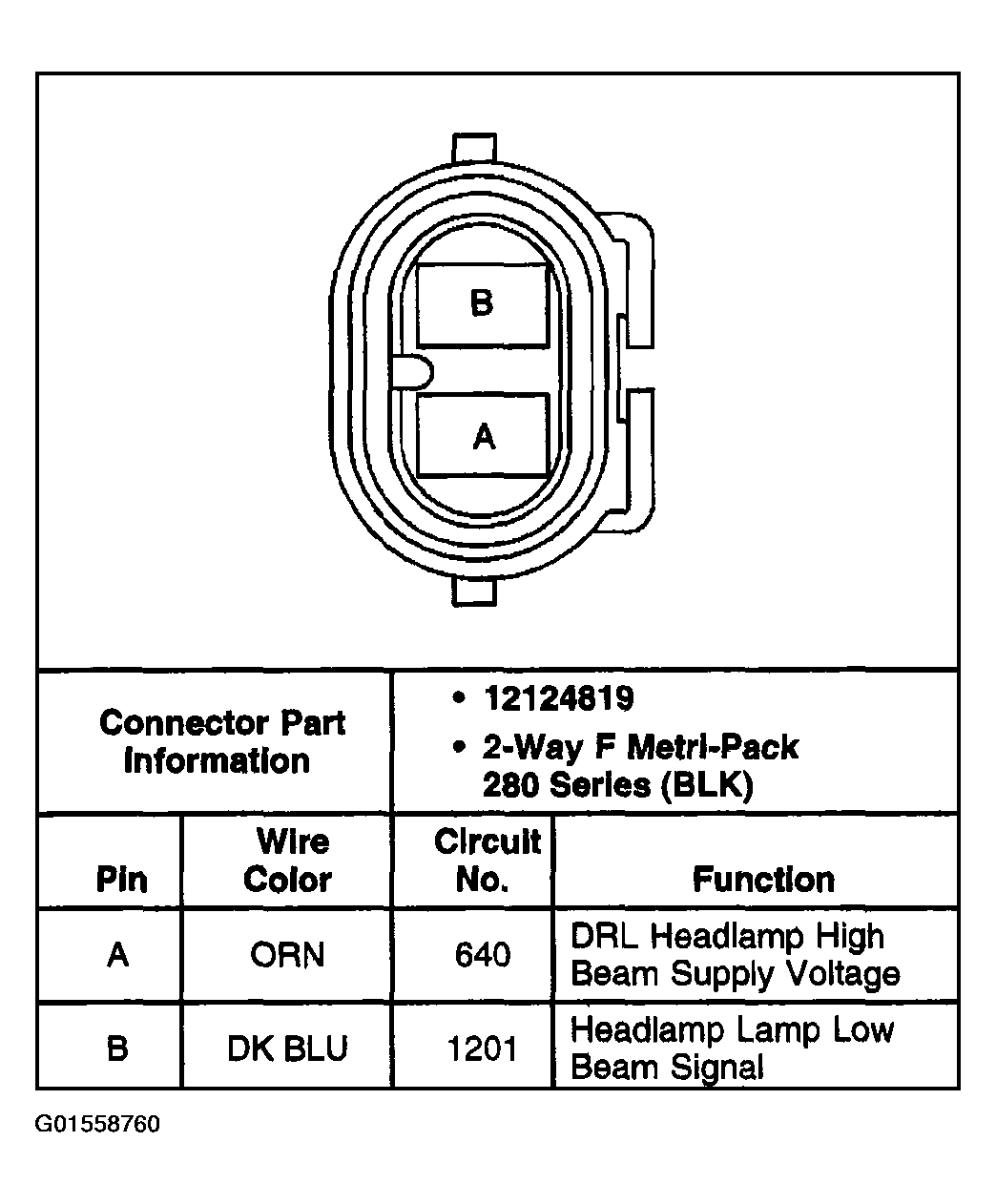

Fig 19: Identifying Lighting Systems Connector End Views - Headlamp - Right Low Beam (Pontiac)

G01558760

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Lighting Systems Connector End Views - Headlamp - Left Low Beam (Pontiac)

G01558761

Courtesy of GENERAL MOTORS CORP.

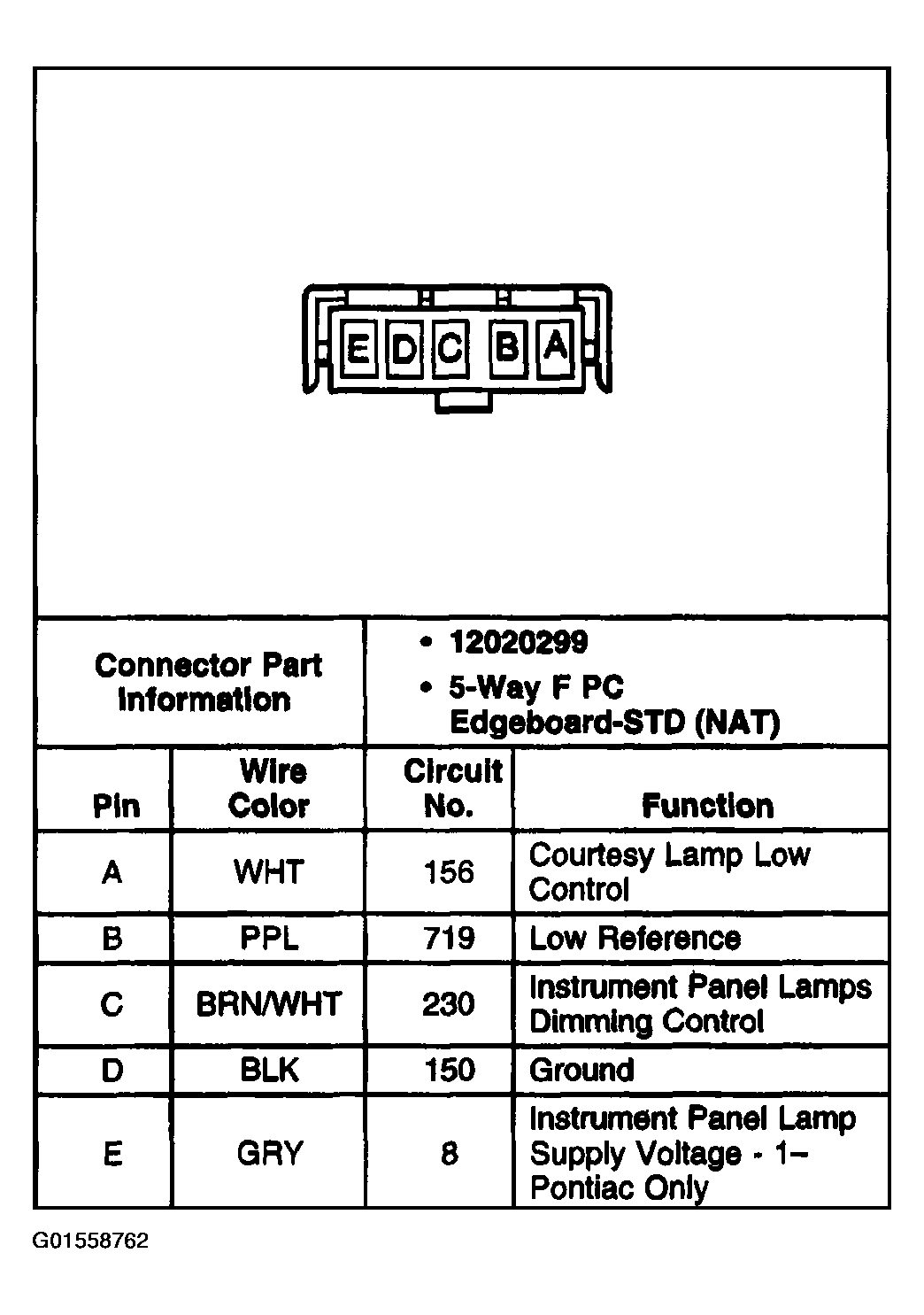

Fig 21: Identifying Lighting Systems Connector End Views - I/P Dimmer Switch

G01558762

Courtesy of GENERAL MOTORS CORP.

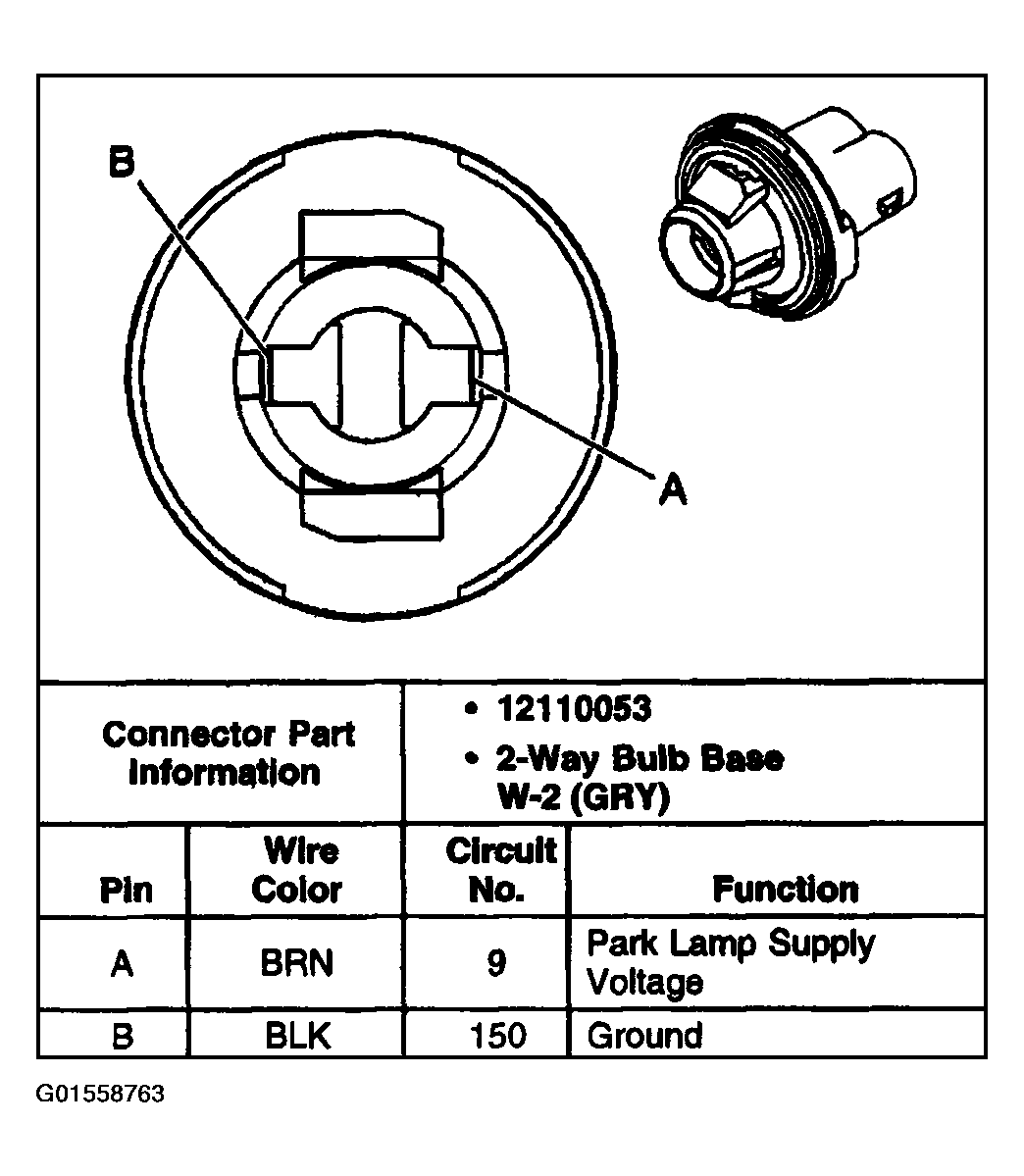

Fig 22: Identifying Lighting Systems Connector End Views - License Lamp (Chevrolet, Pontiac Sedan)

G01558763

Courtesy of GENERAL MOTORS CORP.

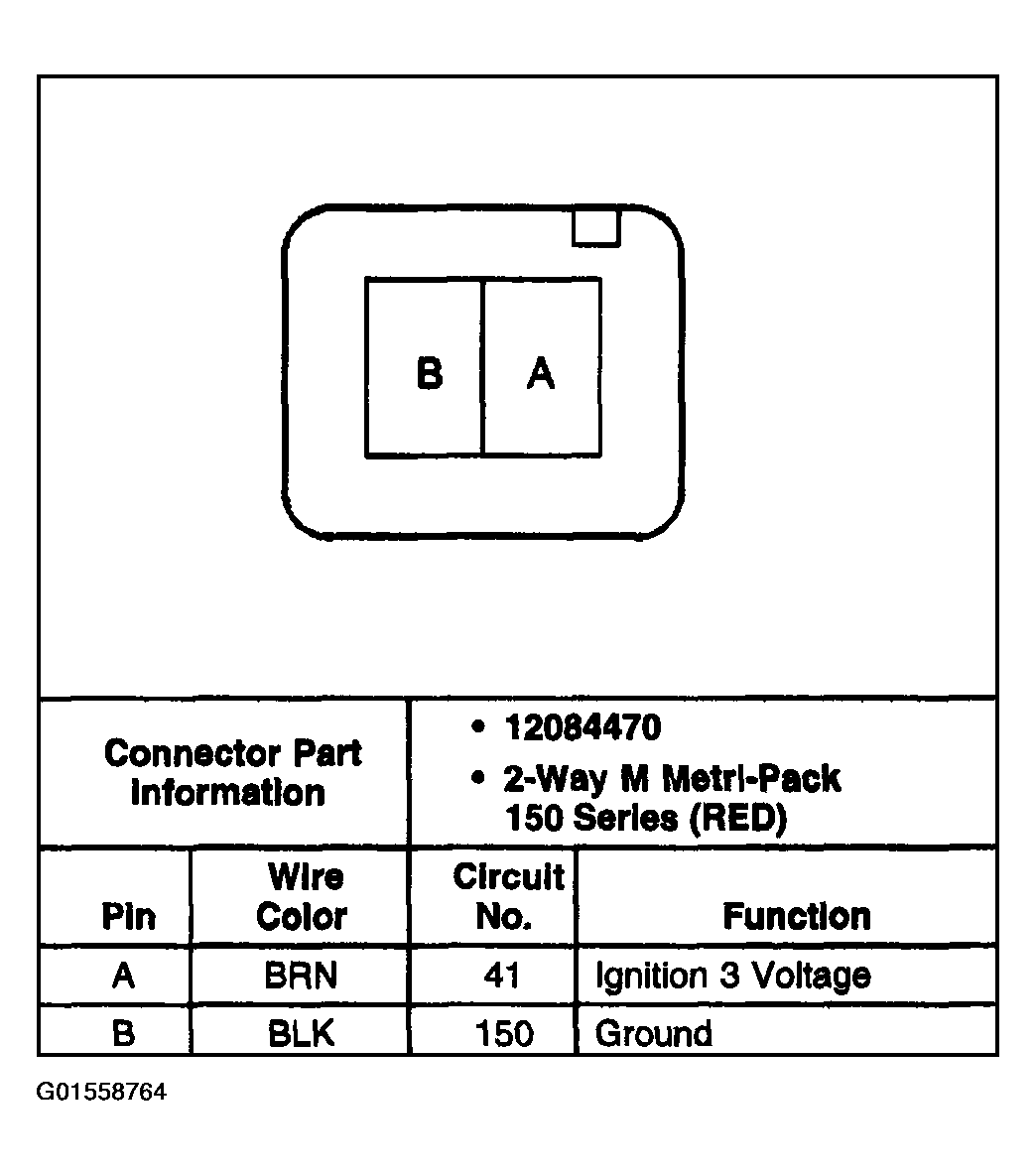

Fig 23: Identifying Lighting Systems Connector End Views - License Lamp - Pontiac Coupe

G01558764

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying Lighting Systems Connector End Views - Marker Lamp - LF

G01558765

Courtesy of GENERAL MOTORS CORP.

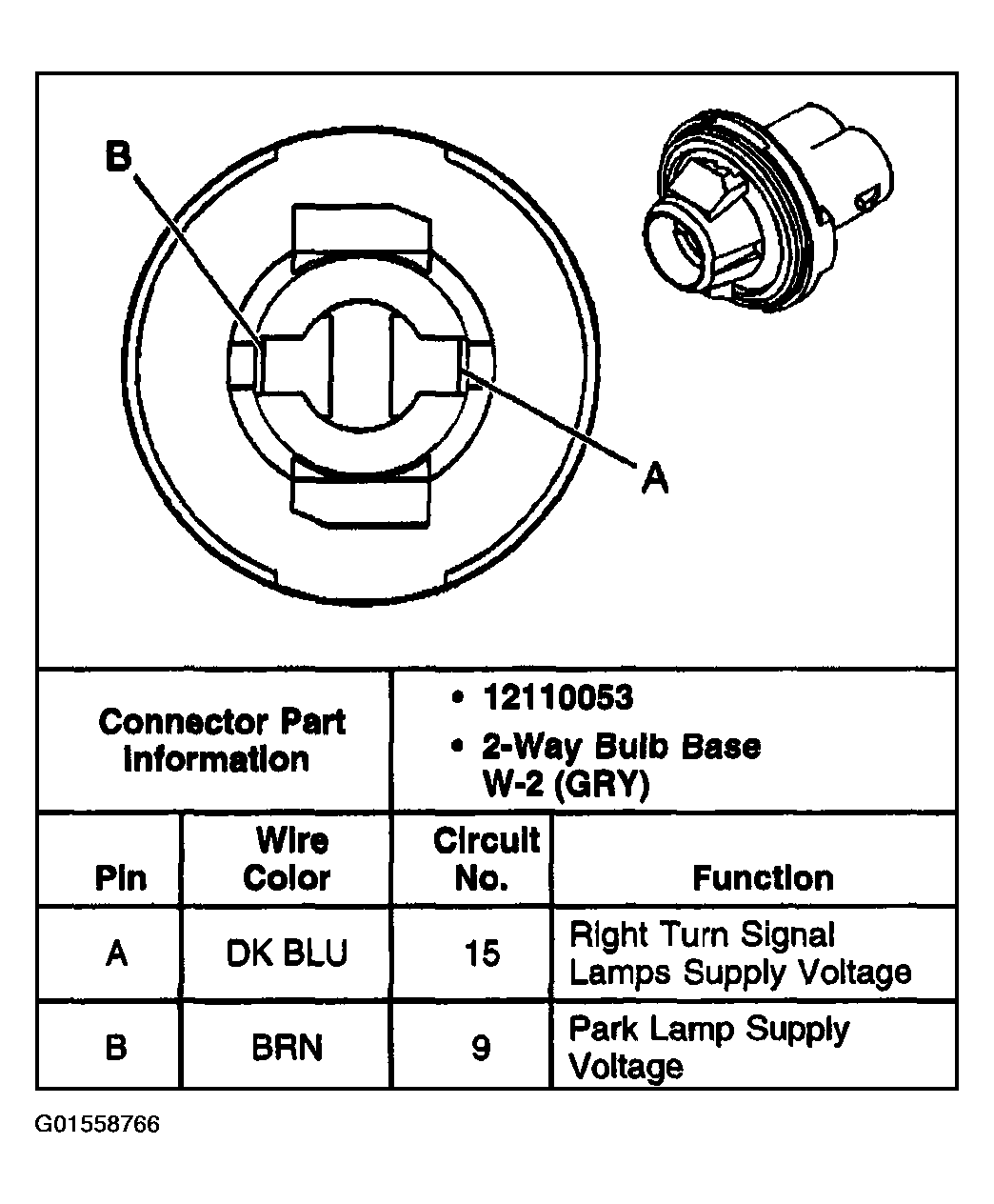

Fig 25: Identifying Lighting Systems Connector End Views - Marker Lamp - RF

G01558766

Courtesy of GENERAL MOTORS CORP.

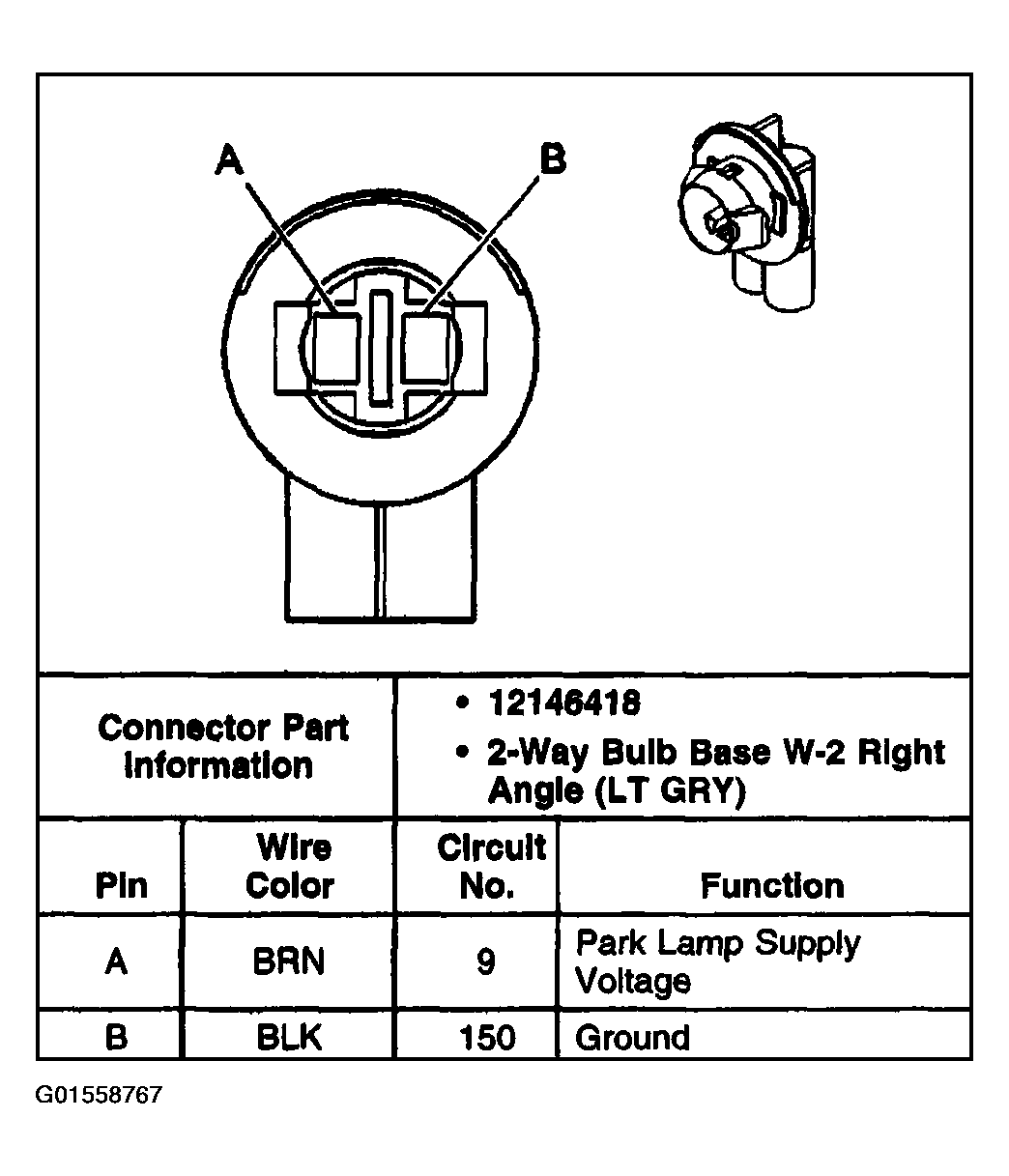

Fig 26: Identifying Lighting Systems Connector End Views - Marker Lamps - Rear - Pontiac Coupe

G01558767

Courtesy of GENERAL MOTORS CORP.

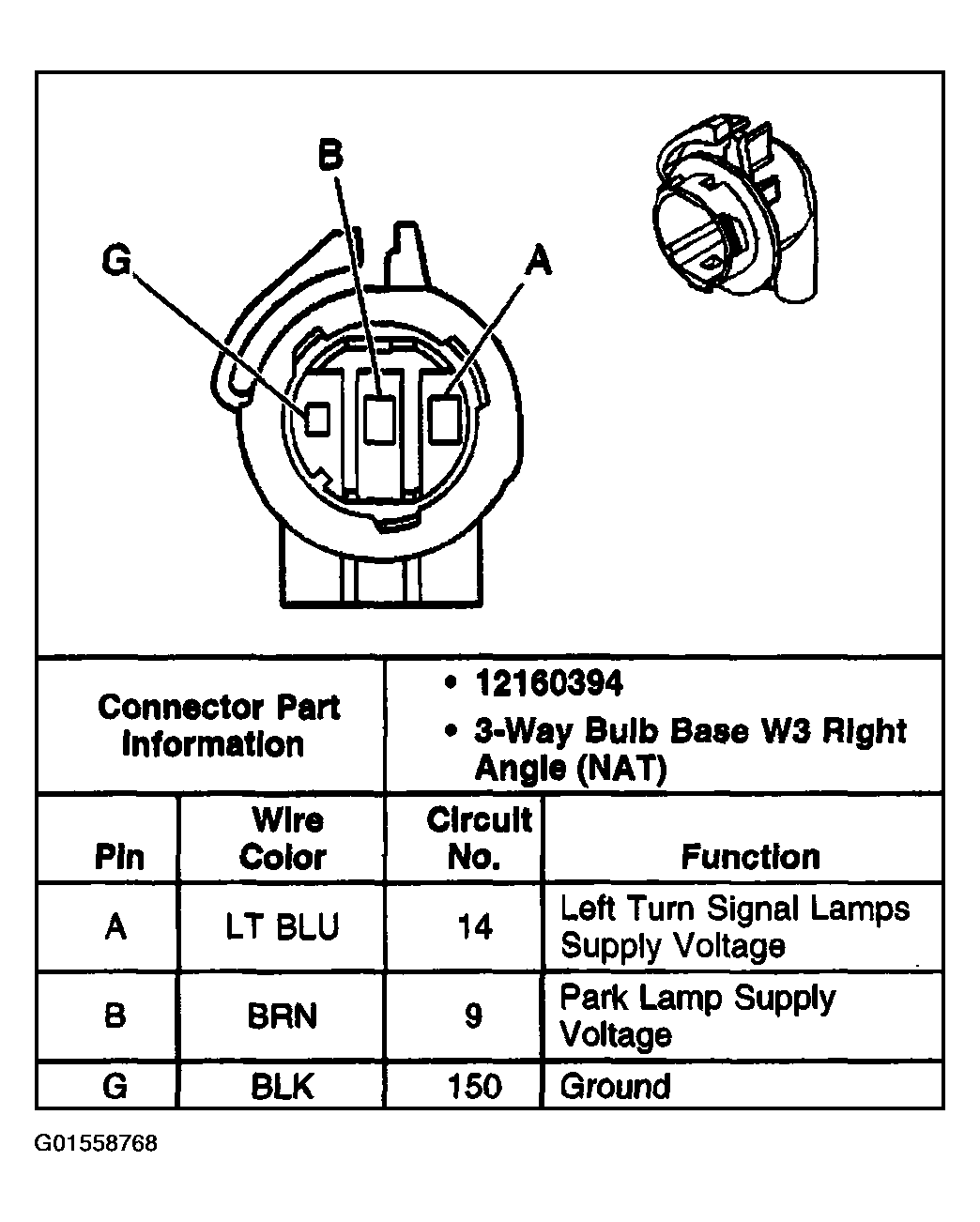

Fig 27: Identifying Lighting Systems Connector End Views - Park/Turn Signal Lamp - LF

G01558768

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying Lighting Systems Connector End Views - Park/Turn Signal Lamp - RF

G01558769

Courtesy of GENERAL MOTORS CORP.

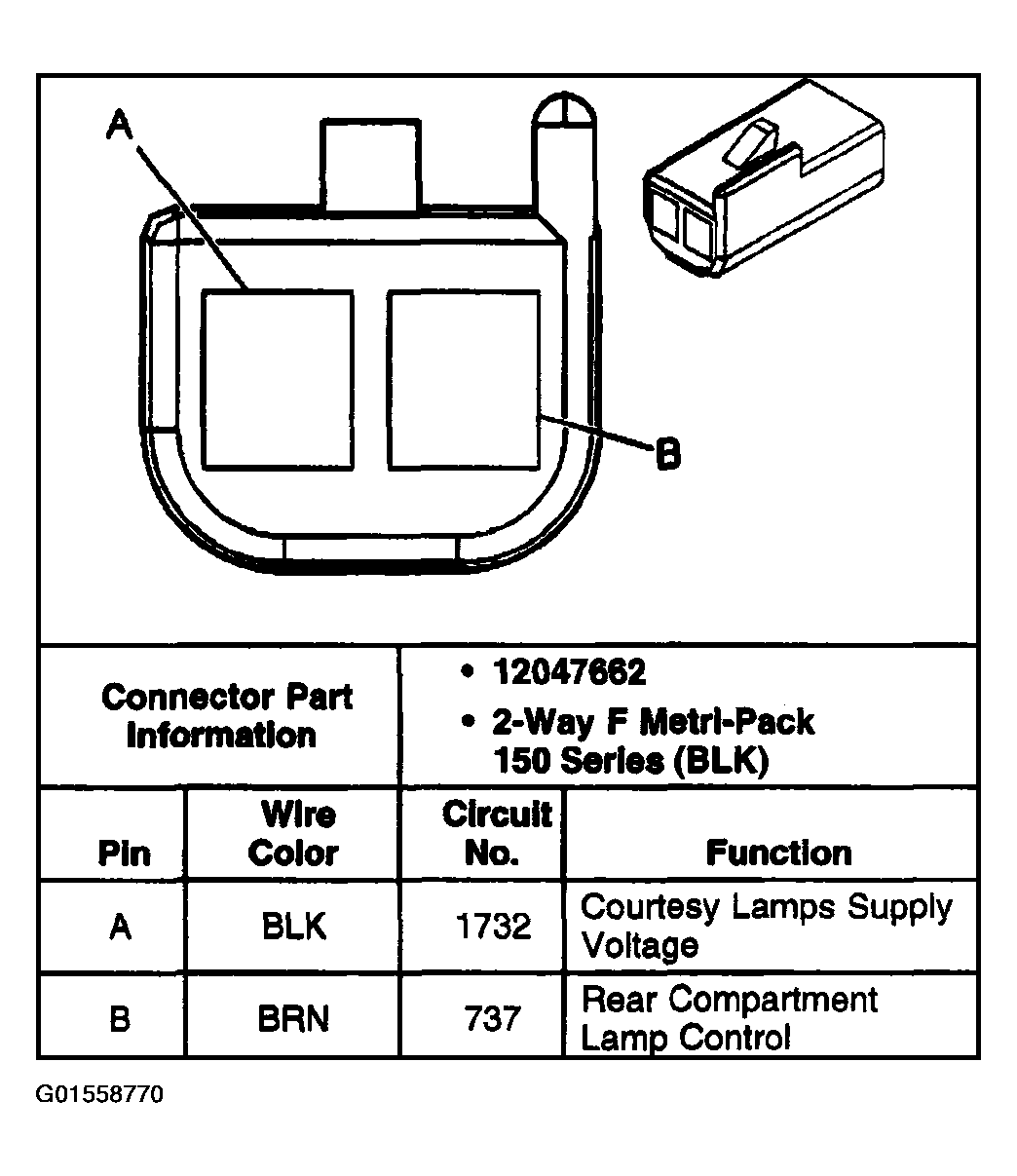

Fig 29: Identifying Lighting Systems Connector End Views - Rear Compartment Lamp

G01558770

Courtesy of GENERAL MOTORS CORP.

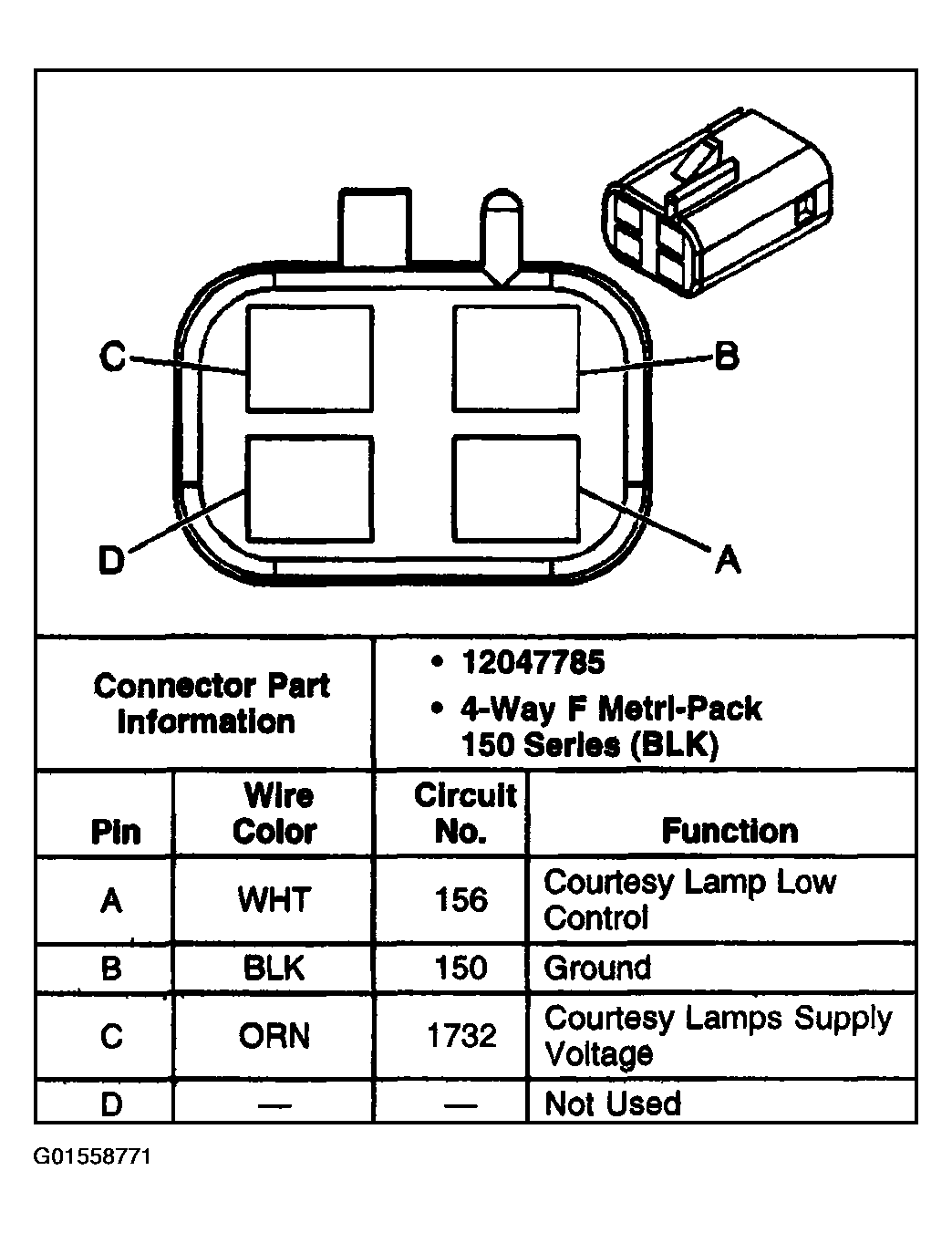

Fig 30: Identifying Lighting Systems Connector End Views - Rear View Mirror Reading Lamps

G01558771

Courtesy of GENERAL MOTORS CORP.

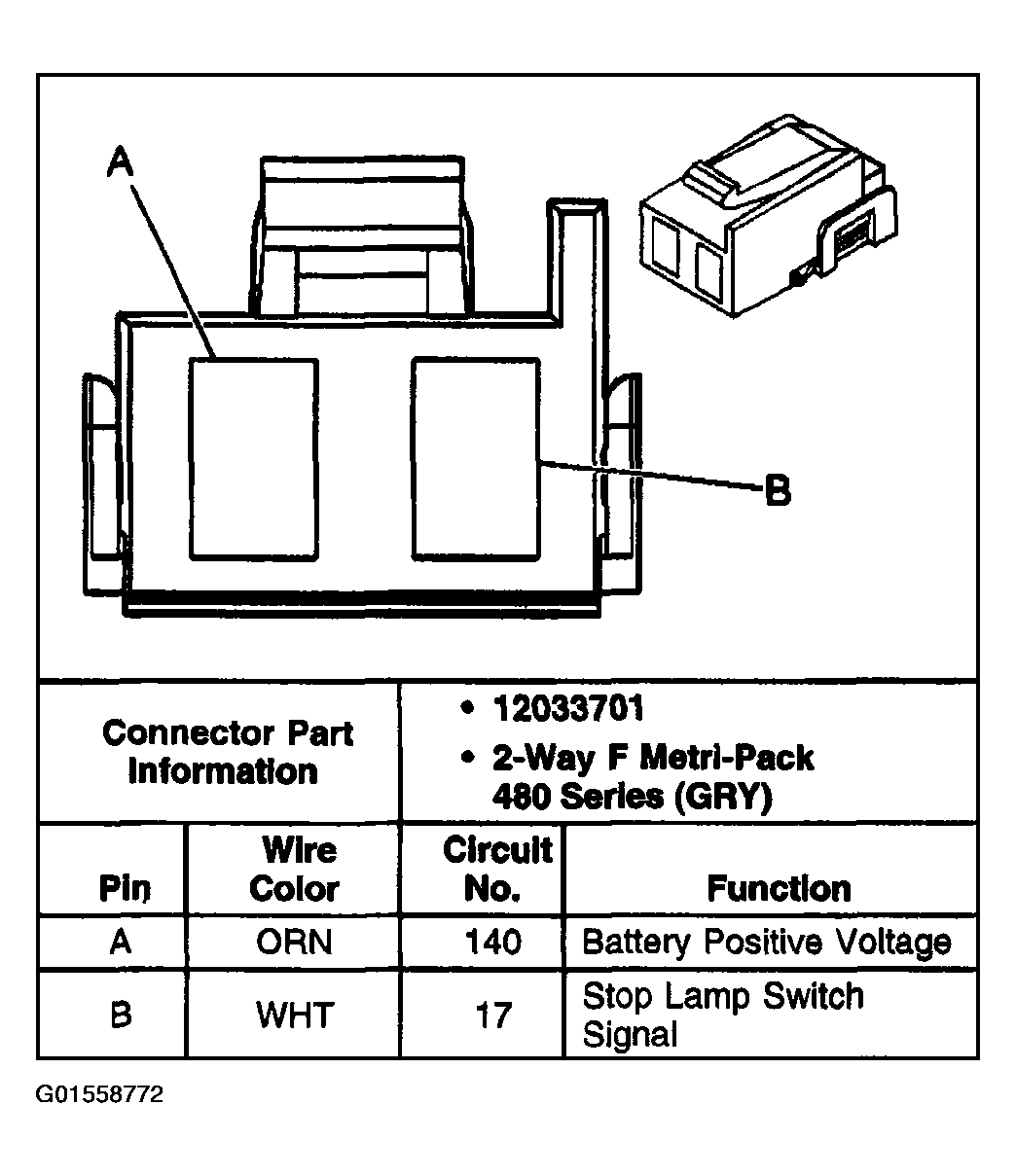

Fig 31: Identifying Lighting Systems Connector End Views - Stop Lamp Switch C1

G01558772

Courtesy of GENERAL MOTORS CORP.

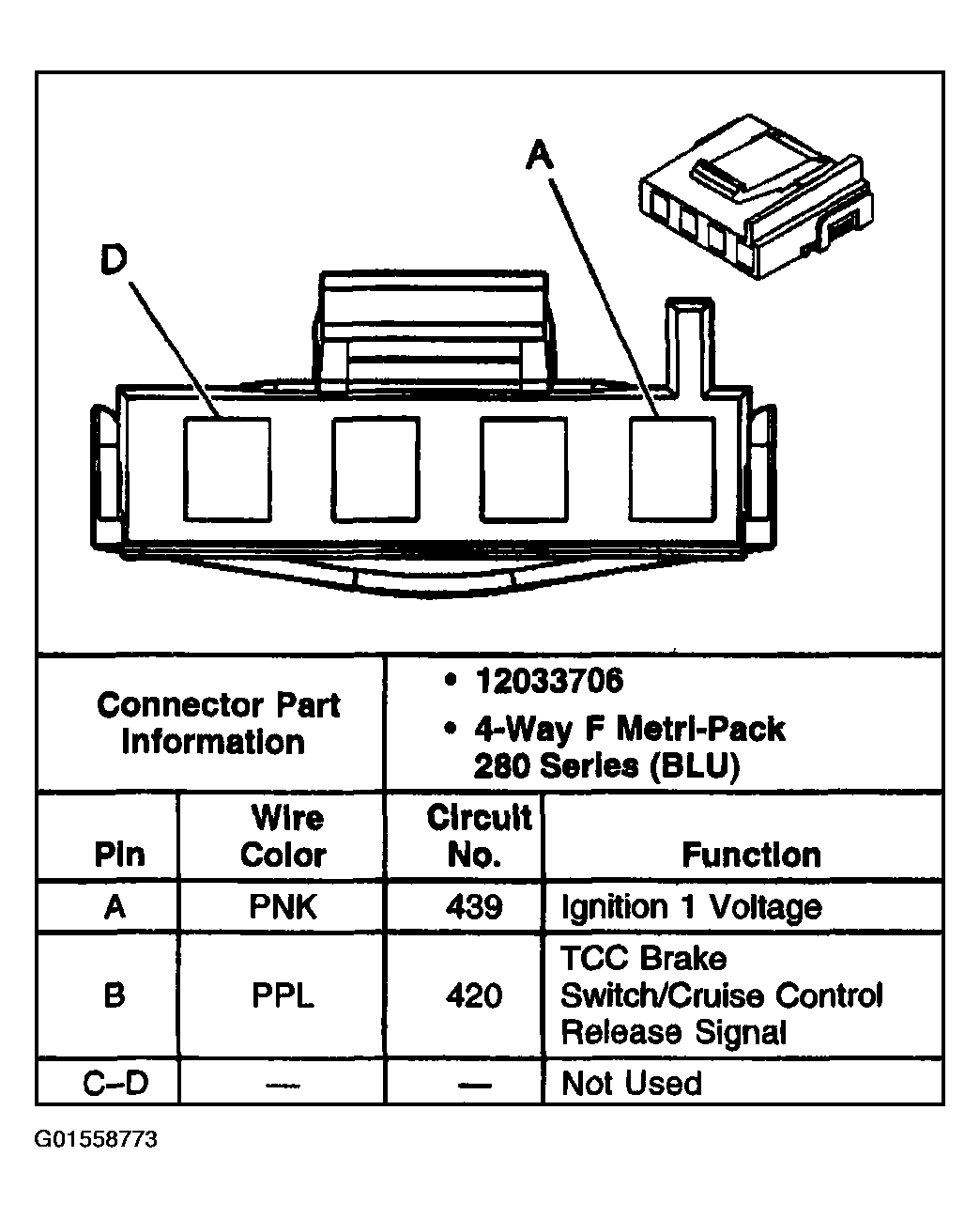

Fig 32: Identifying Lighting Systems Connector End Views - Stop Lamp Switch C2

G01558773

Courtesy of GENERAL MOTORS CORP.

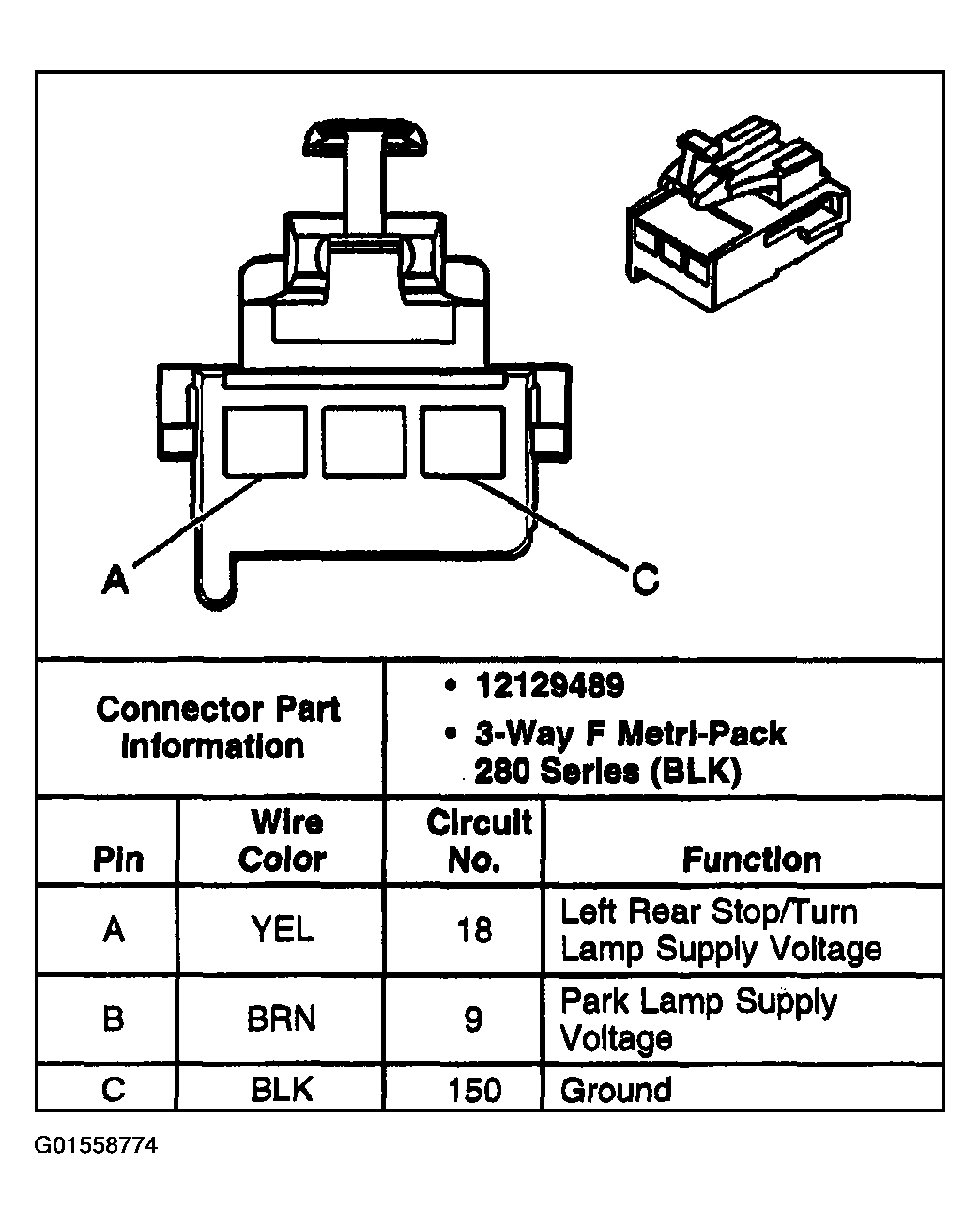

Fig 33: Identifying Lighting Systems Connector End Views - Stop/Turn Lamp - Left

G01558774

Courtesy of GENERAL MOTORS CORP.

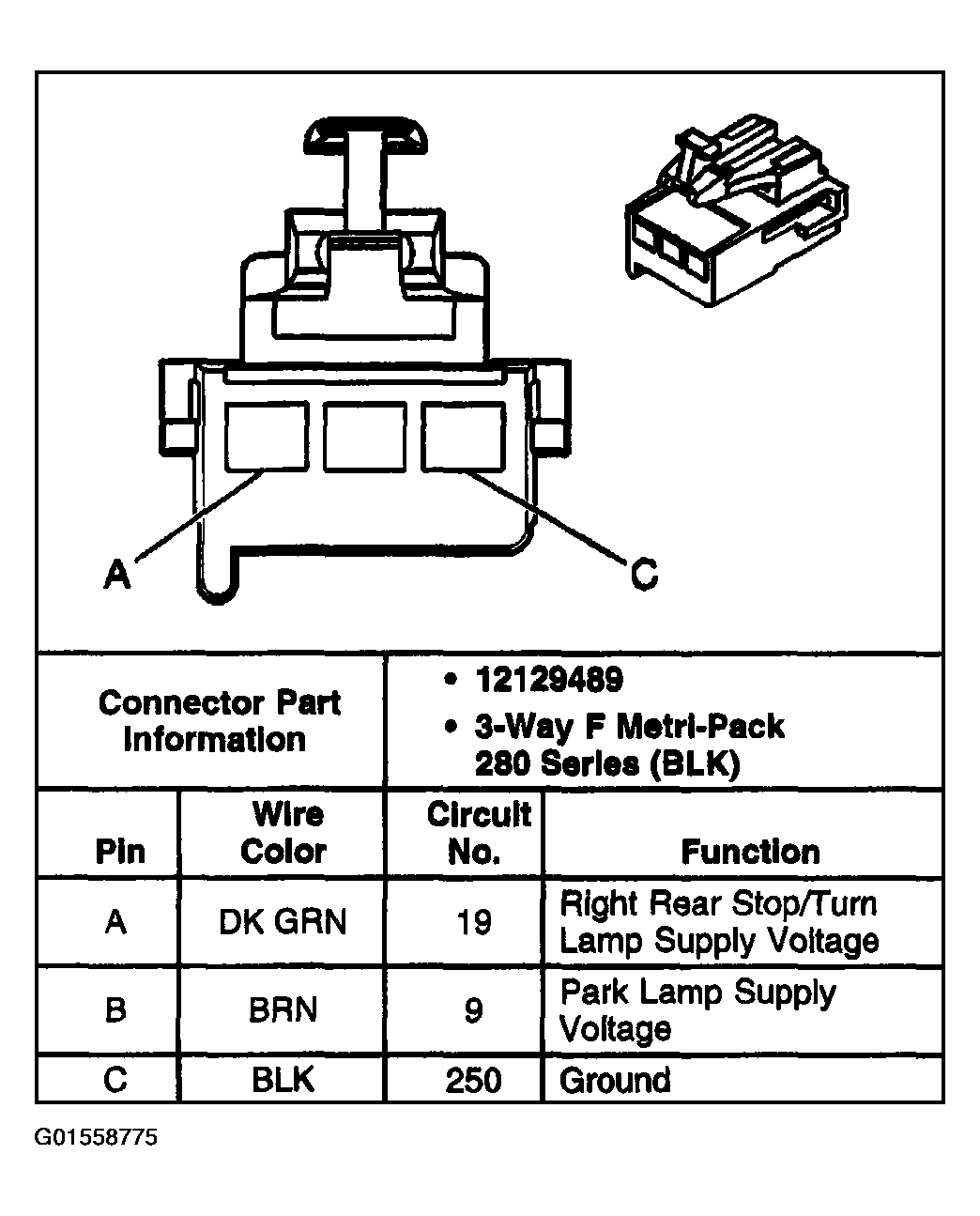

Fig 34: Identifying Lighting Systems Connector End Views - Stop/Turn Lamp - Right

G01558775

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying Lighting Systems Connector End Views - Shift Indicator Lamp

G01558776

Courtesy of GENERAL MOTORS CORP.

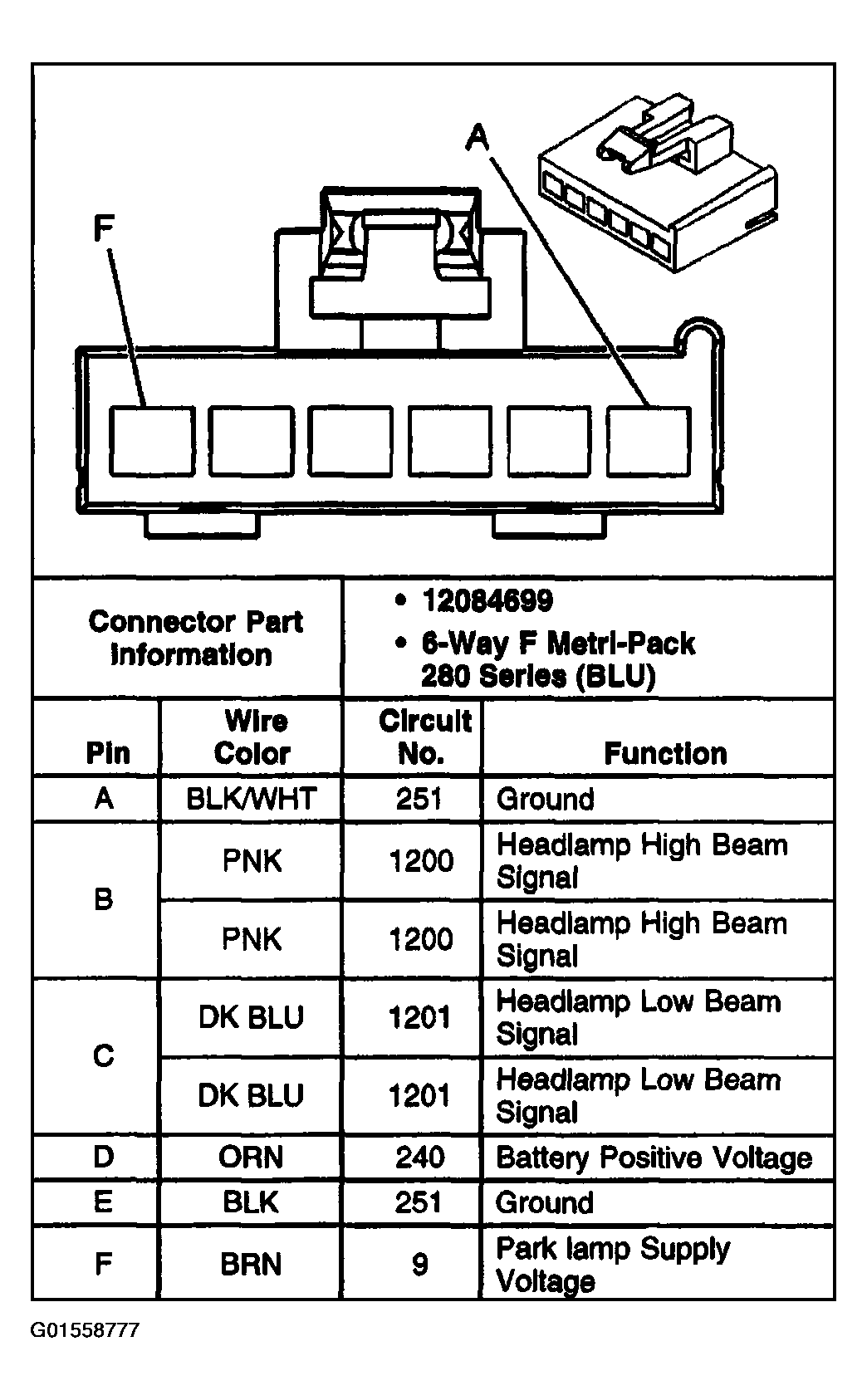

Fig 36: Identifying Lighting Systems Connector End Views - Turn Signal Multifunction Switch C1

G01558777

Courtesy of GENERAL MOTORS CORP.

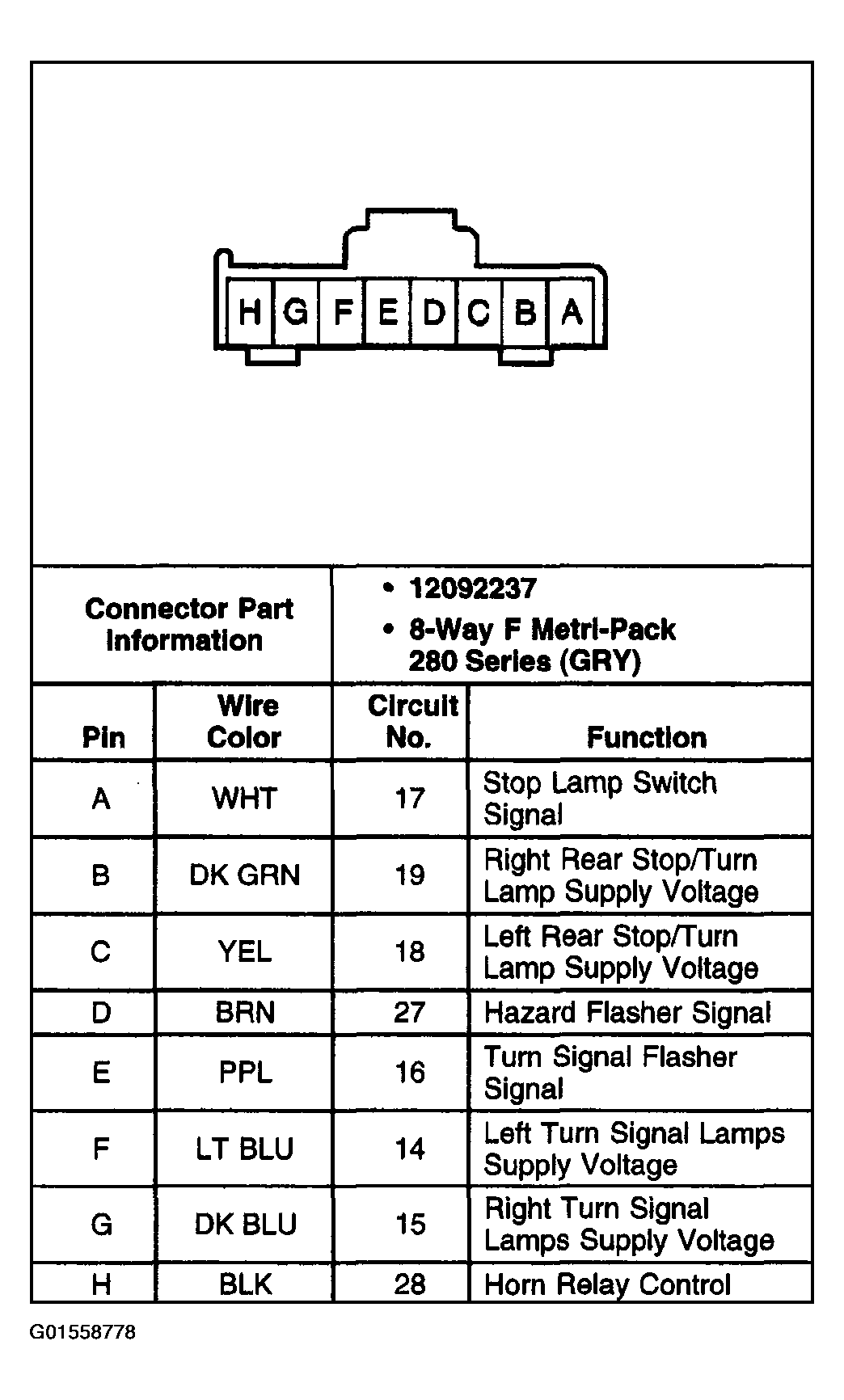

Fig 37: Identifying Lighting Systems Connector End Views - Turn Signal Multifunction Switch C2

G01558778

Courtesy of GENERAL MOTORS CORP.

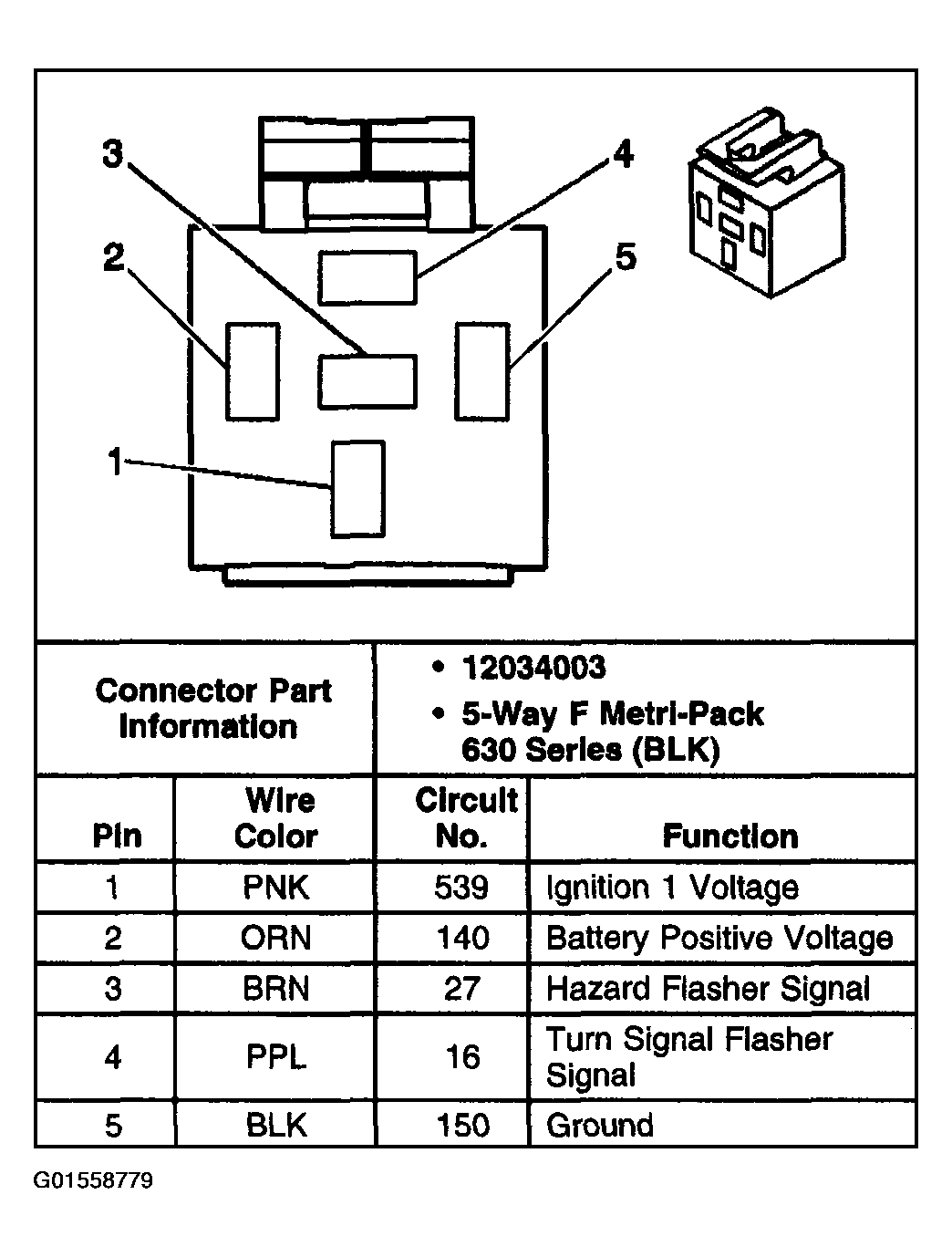

Fig 38: Identifying Lighting Systems Connector End Views - Turn Signal/Hazard Flasher Module

G01558779

Courtesy of GENERAL MOTORS CORP.
