Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

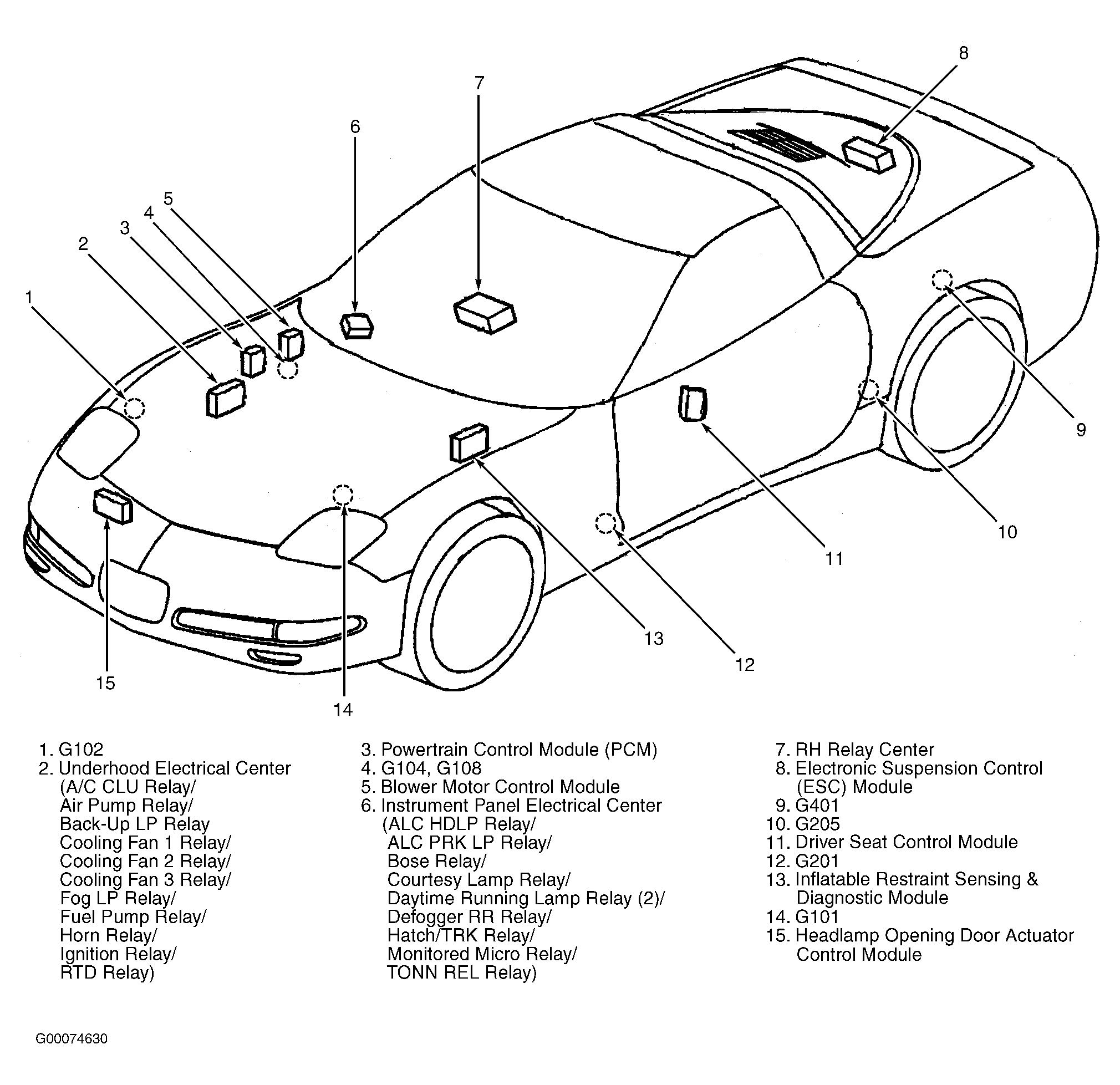

| Instrument Panel Electrical Center | In right front footwell, mounted to toe board. See Figure . |
| LH Relay Center | Under center of left seat. |
| RH Relay Center | Under center of right seat. See Figure . |
| Underhood Electrical Center | On right rear of engine compartment. See Figure . |
