Adjustment Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right console closeout panel.

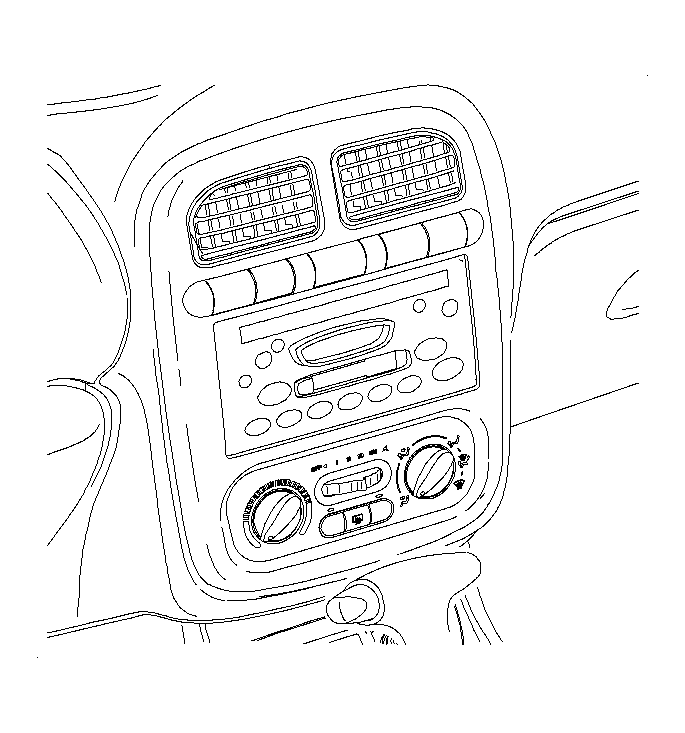

    2. Fig 1: View Of Air Conditioning System Control Panel
    GM892734Courtesy of GENERAL MOTORS CORP.
  2. Place the temperature control knob in the full cold position.
  3. Rotate the temperature door lever fully forward and press the cable housing into the retaining clip.
  4. Cycle the HVAC control assembly temperature lever from full cold to full hot to verify proper operation.
  5. Install the right console closeout panel.
