Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Remove the passenger side front floor kick up panel cover to access the instrument panel (IP) electrical center.

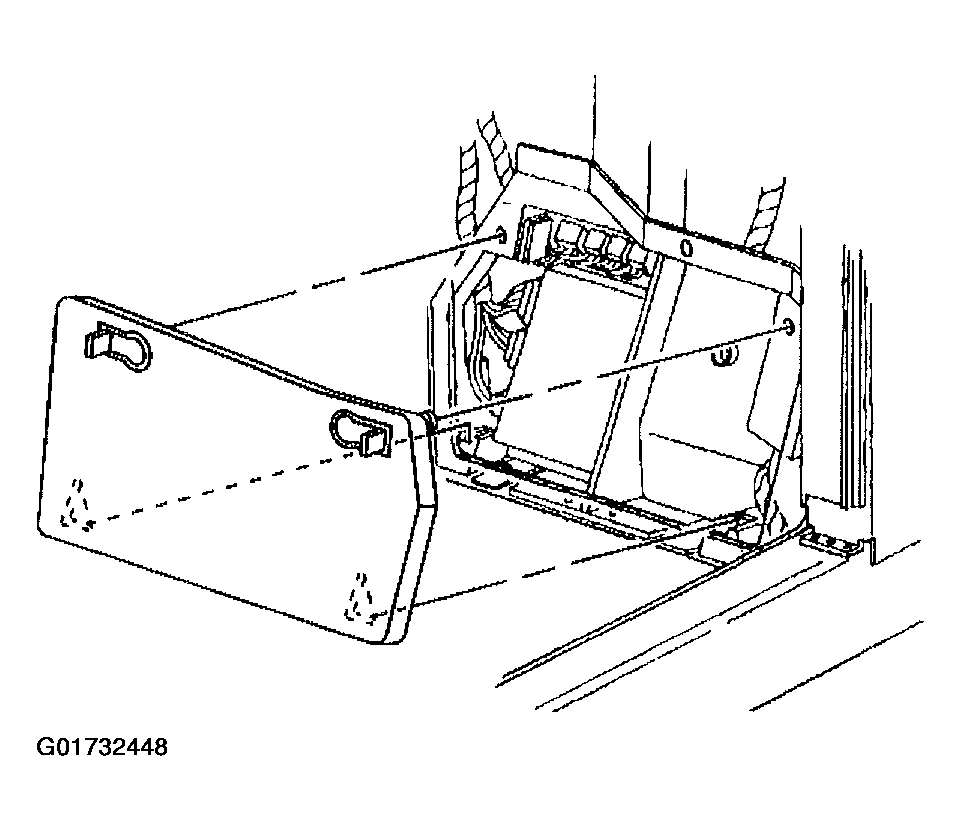

Fig 1: Removing Kick Up Panel
Courtesy of GENERAL MOTORS CORP.
Remove the headlamp circuit breaker from the IP electrical center.
Open the hood.

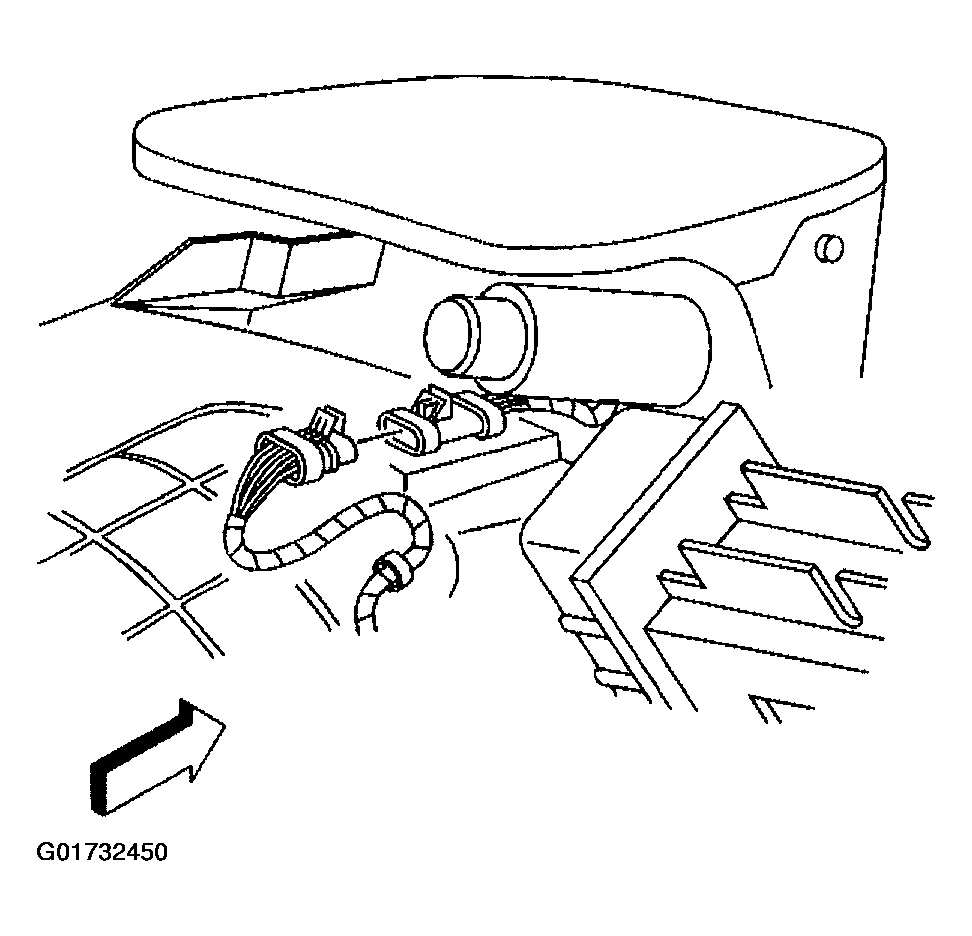

Fig 2: Identifying Headlamp Circuit Breaker
Courtesy of GENERAL MOTORS CORP.
Raise the RH headlamp manually.
Turn the headlamp motor/actuator manual control knob counterclockwise to raise the headlamp
Disconnect the RH headlamp wiring harness electrical connector from the forward lamp wiring harness.

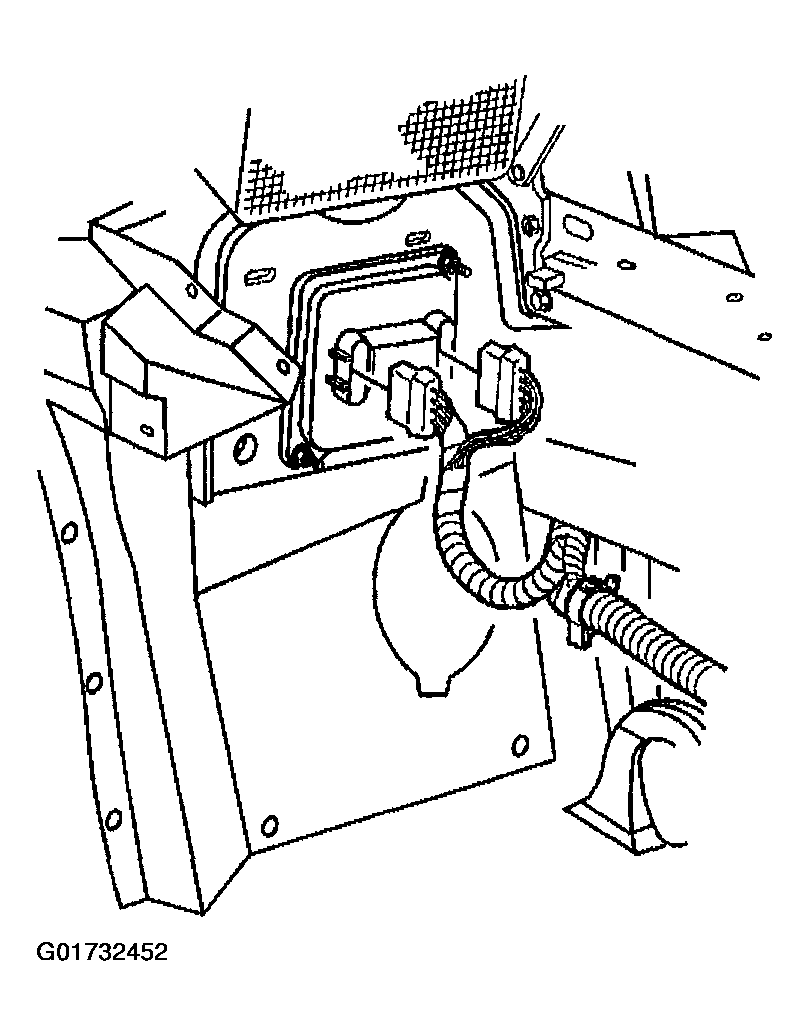

Fig 3: Disconnecting Headlamp Wiring Harness Connector
Courtesy of GENERAL MOTORS CORP.
Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the front fascia lower closeout panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER .
Release the brake caliper cooling duct from the front fascia and reposition the duct.

Fig 4: Removing Brake Caliper Cooling Duct
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the headlamp control module.

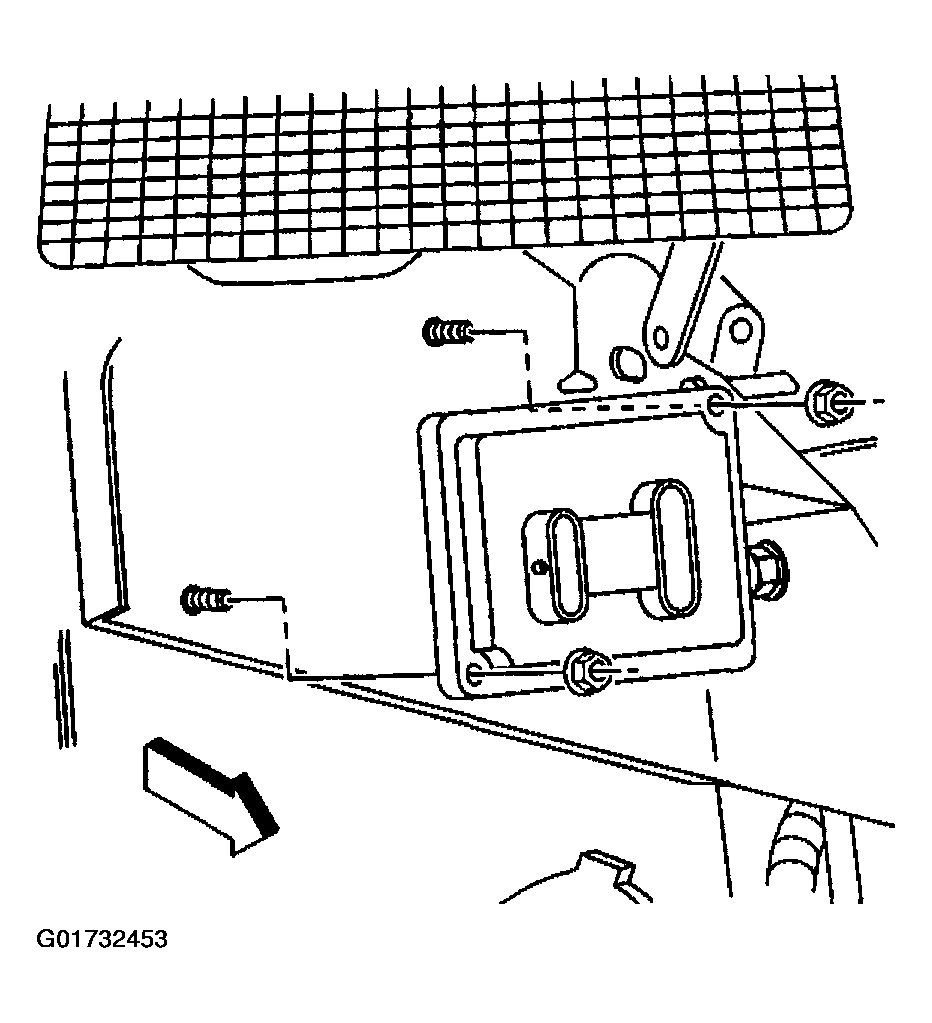

Fig 5: Disconnecting Headlamp Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Remove the nuts mounting the module to the headlamp bracket.
Remove the module from the vehicle.

Fig 6: Removing Headlamp Bracket Nuts
Courtesy of GENERAL MOTORS CORP.
