FOG LP Relay and ALC PRK LP Relay

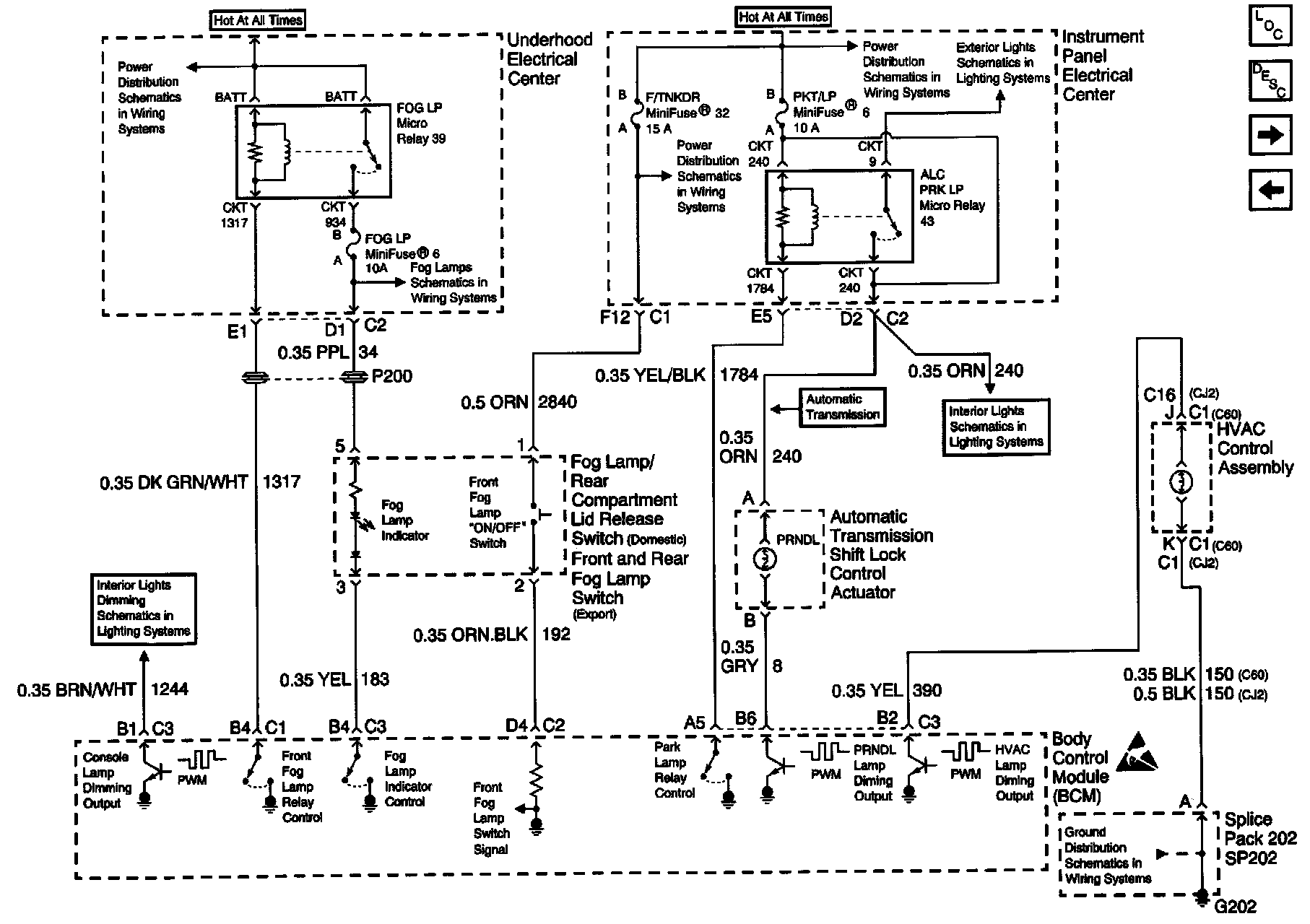

Body Control Module Schematics: FOG LP Relay And ALC PRK LP Relay:
