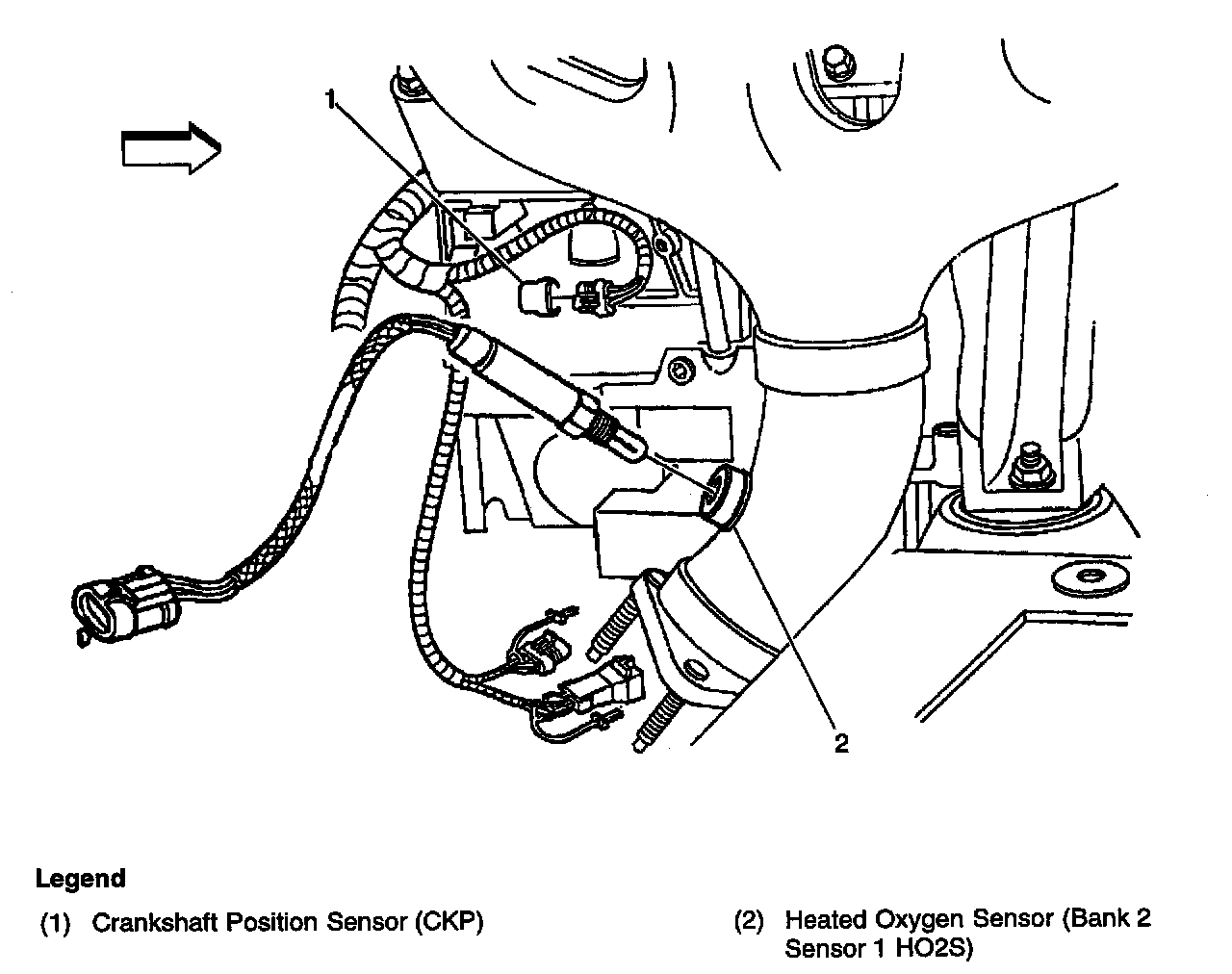

Crankshaft Position Sensor: Locations
Locations View:
Lower RH side of the engine, behind the starter
