Lighting Systems Component Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Lighting Systems Component Views

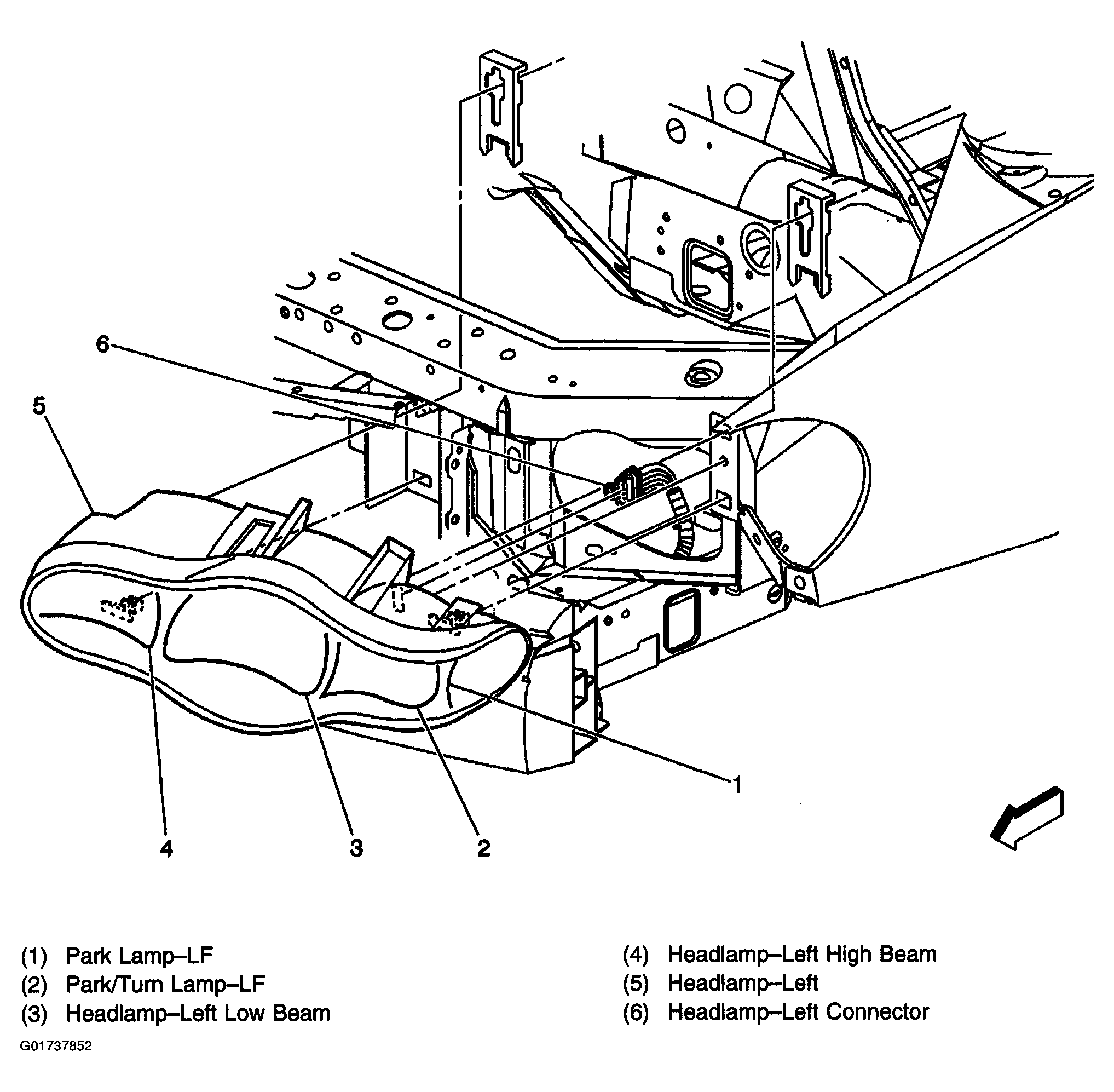

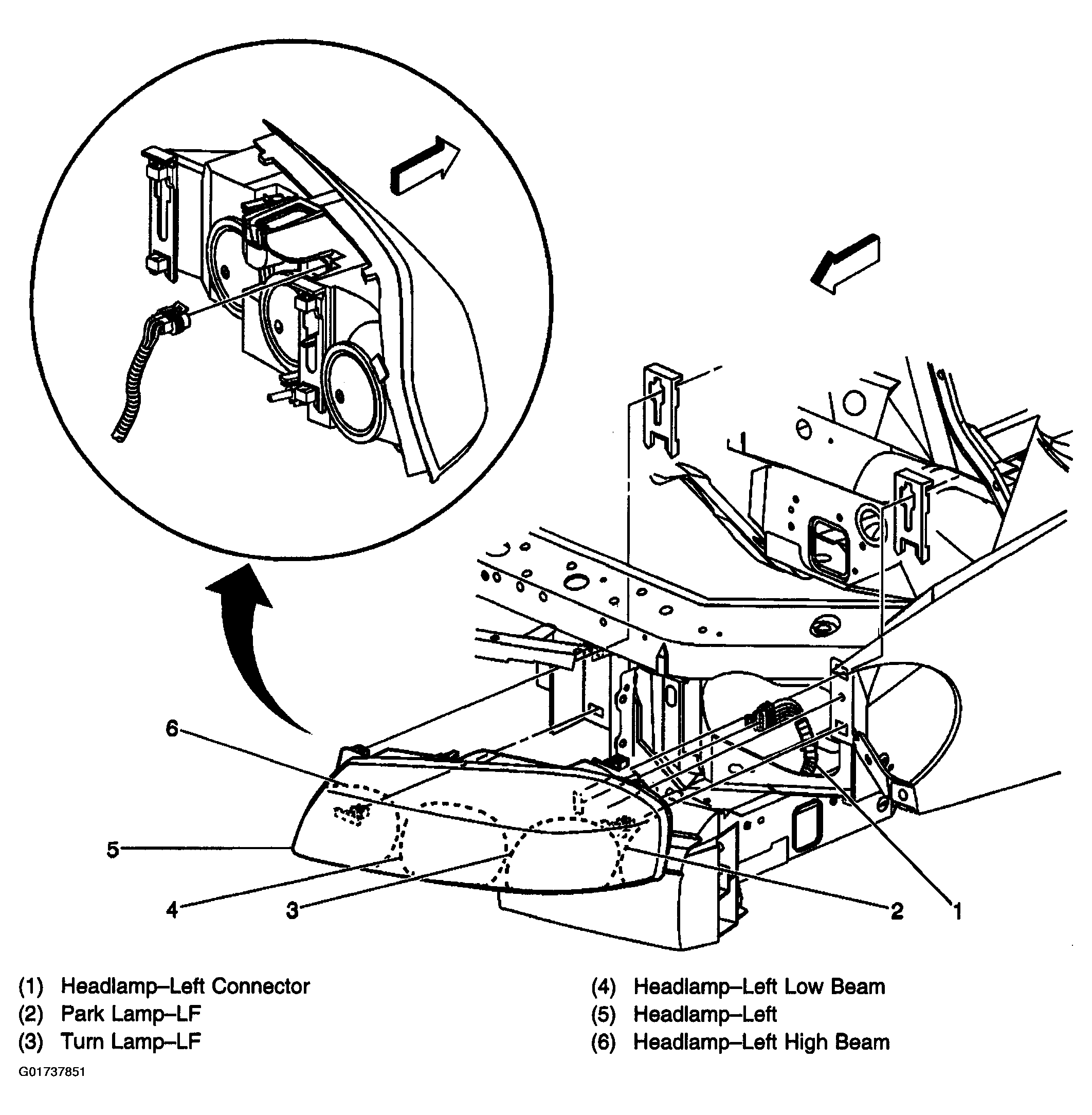

Fig 1: Left Front Lights; Right Front Similar (Impala)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Front Lights; Right Front Similar (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

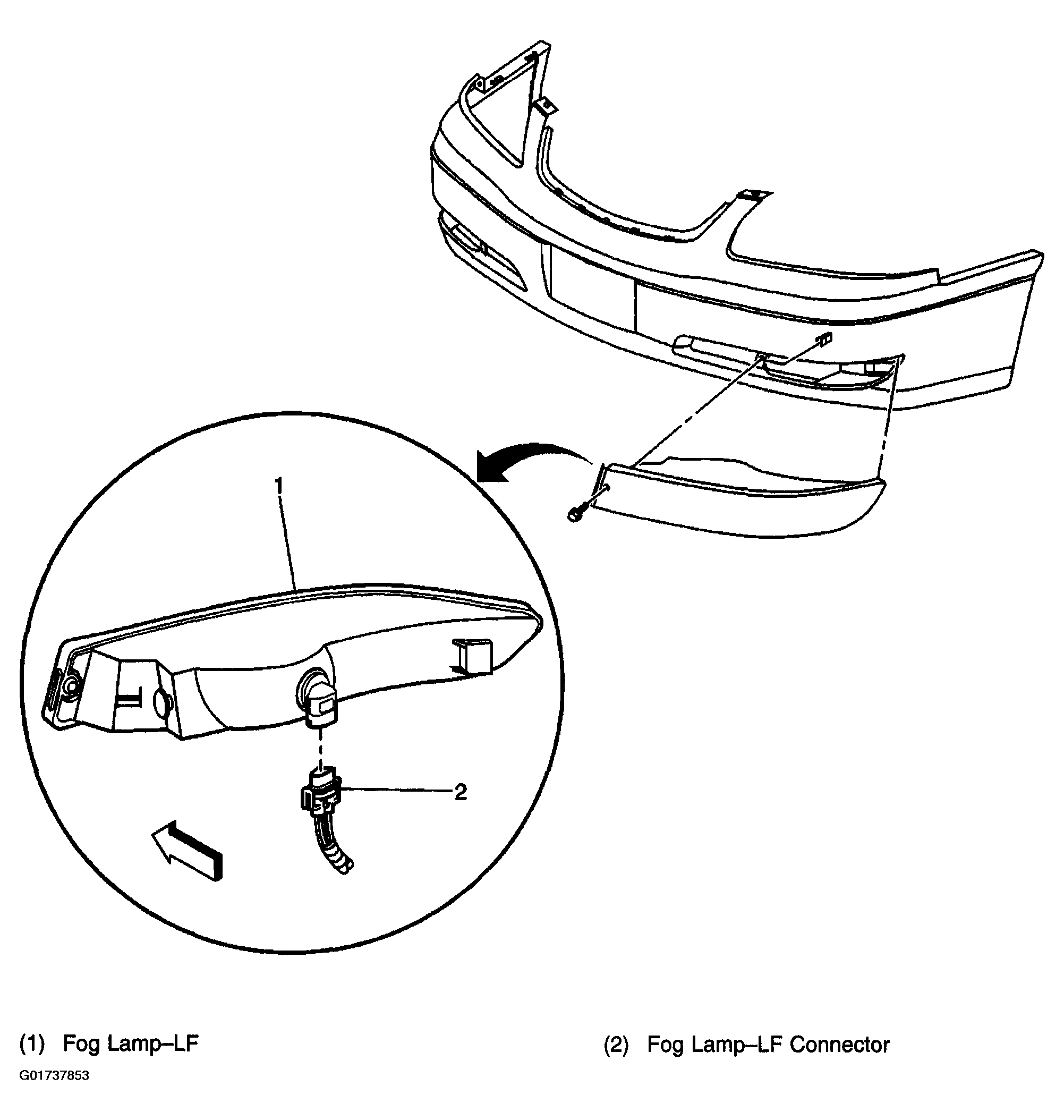

Fig 3: Left Front Foglight; Right Front Similar
Courtesy of GENERAL MOTORS CORP.

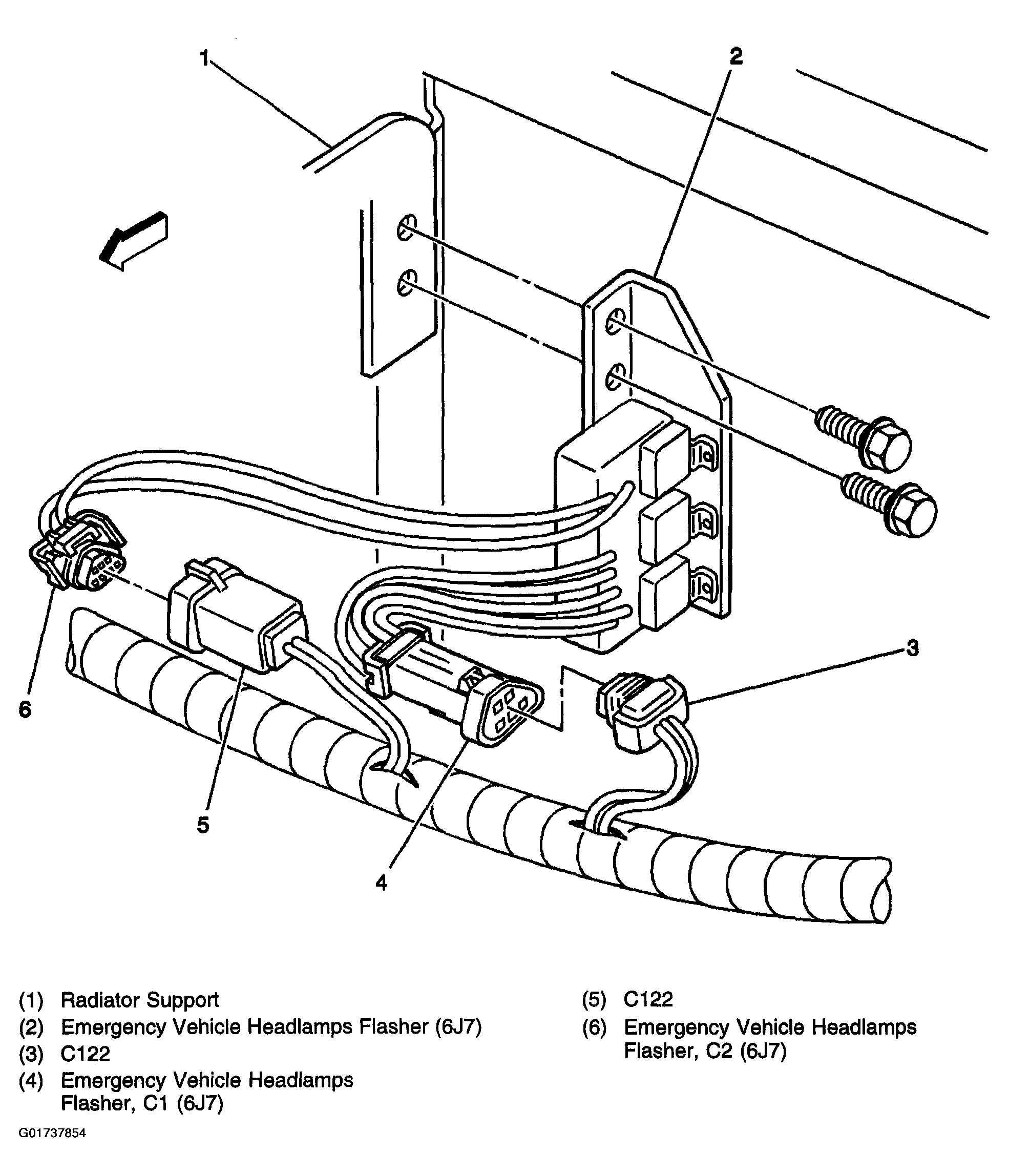

Fig 4: Locating Emergency Vehicle Headlight Flashers
Courtesy of GENERAL MOTORS CORP.

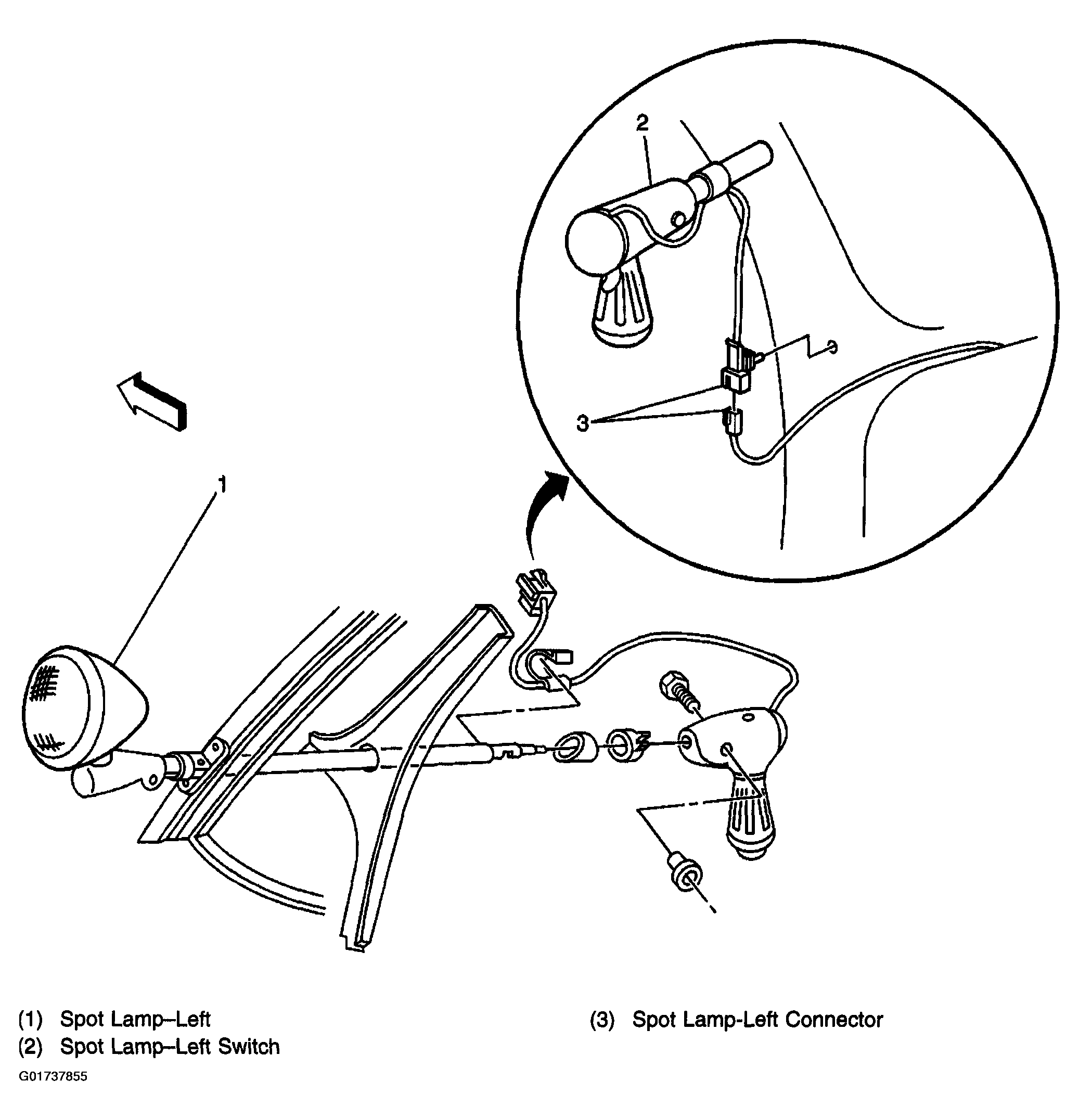

Fig 5: Locating Spot Lamp & Switch (Driver A-Pillar; Passenger A-Pillar Similar)
Courtesy of GENERAL MOTORS CORP.

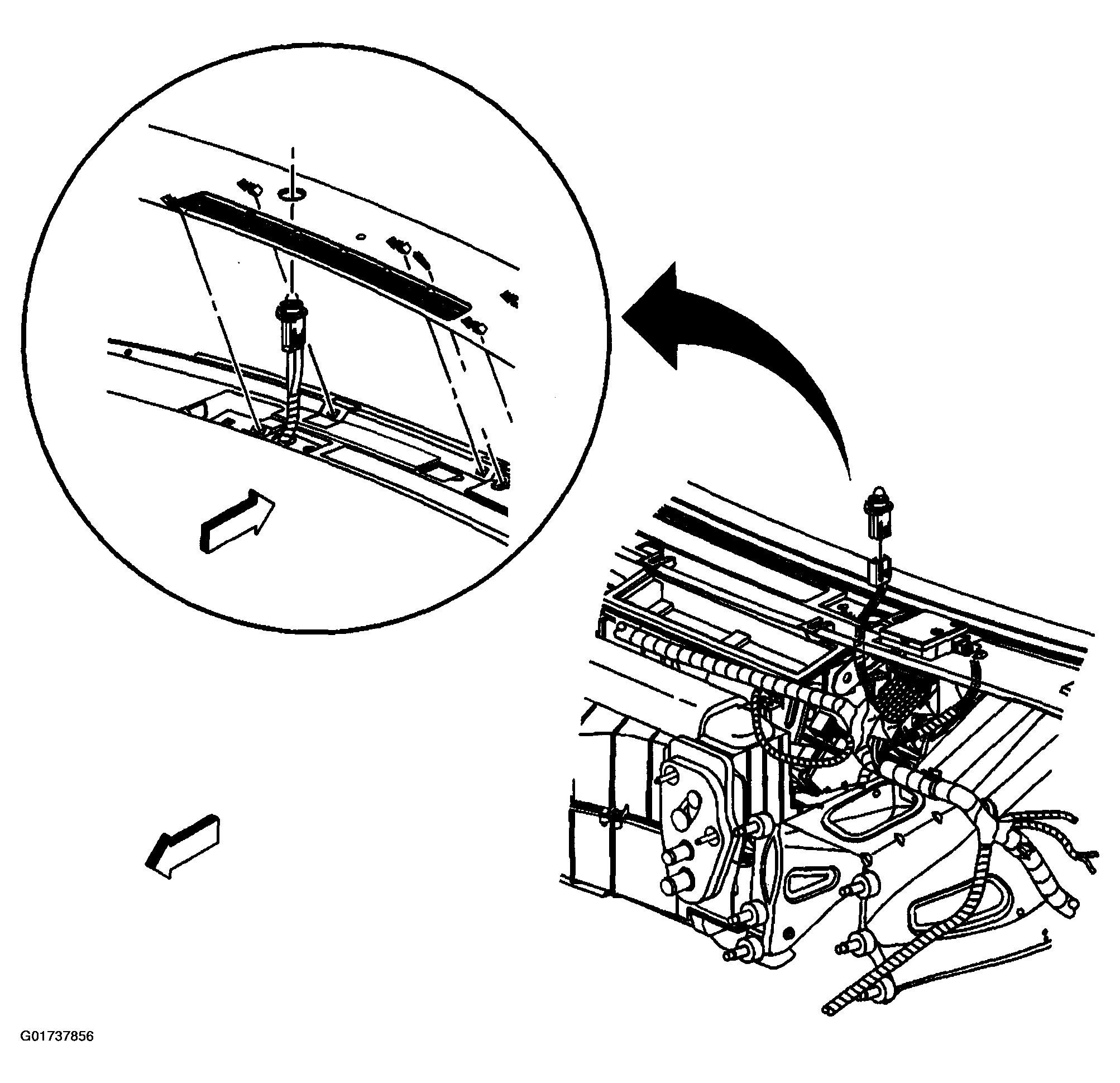

Fig 6: Locating Ambient Light Sensor (Top of Instrument Panel)
Courtesy of GENERAL MOTORS CORP.

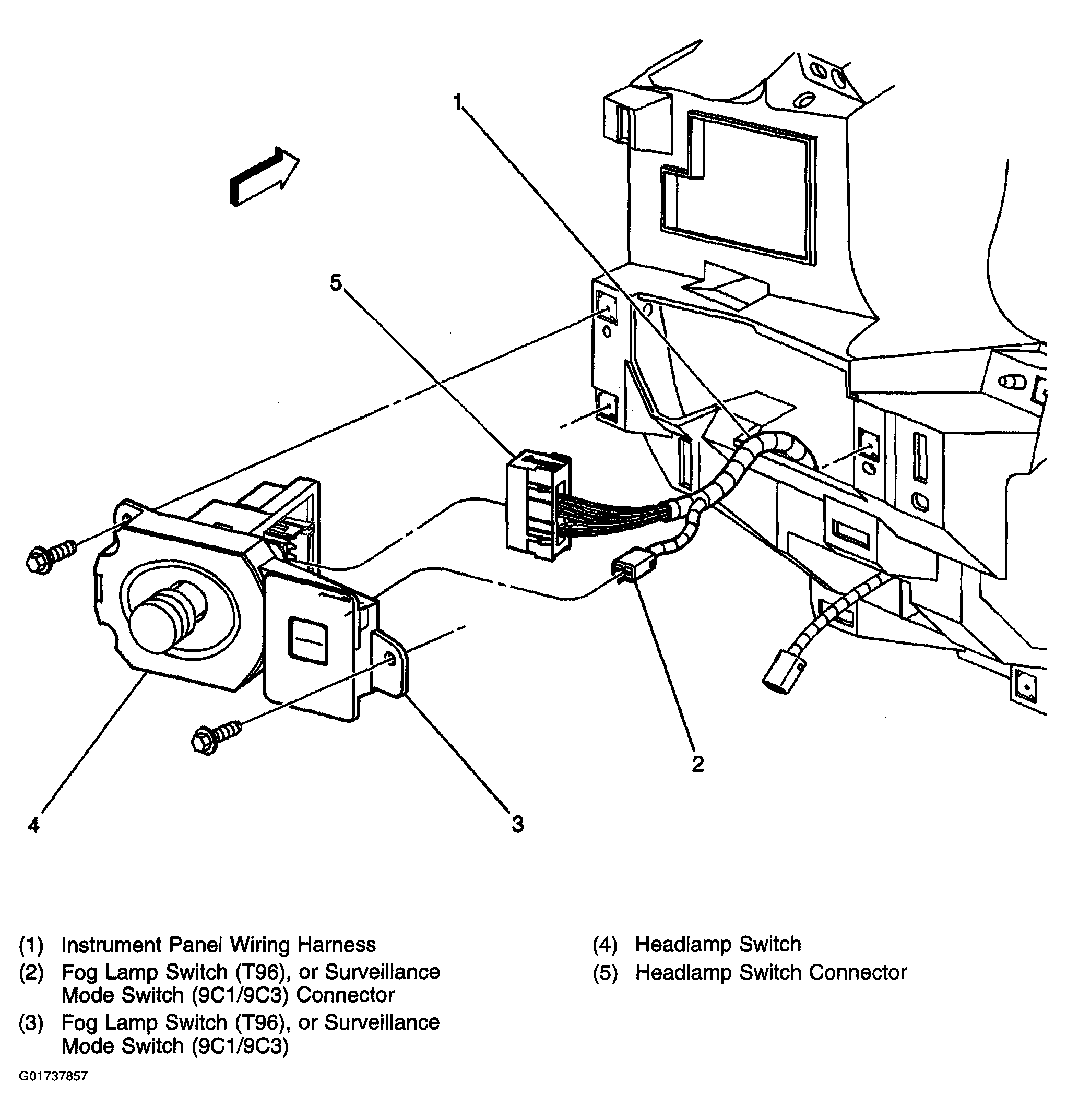

Fig 7: Locating Fog Light Switch & Connectors (Left Front Of Instrument Panel)
Courtesy of GENERAL MOTORS CORP.

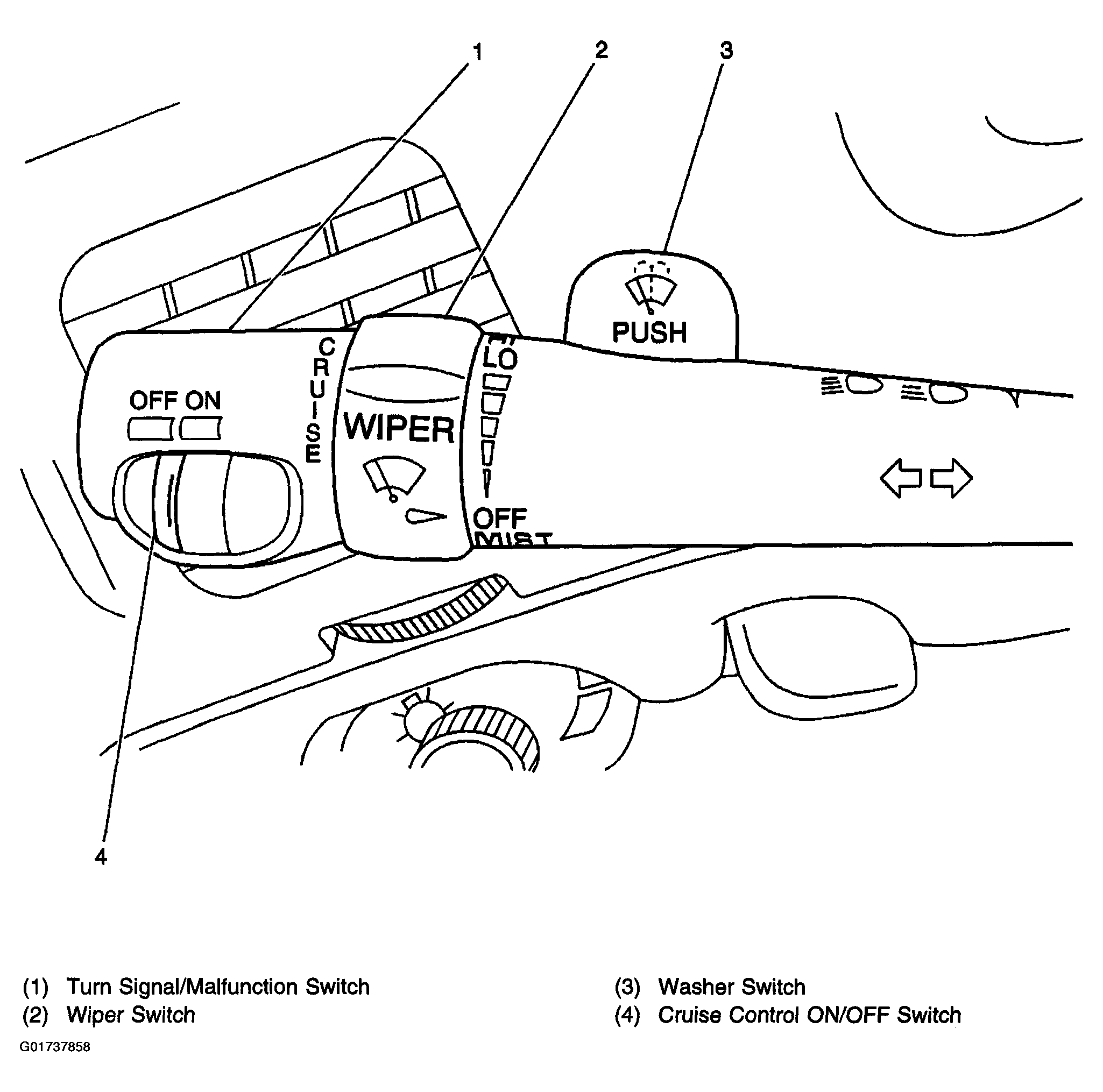

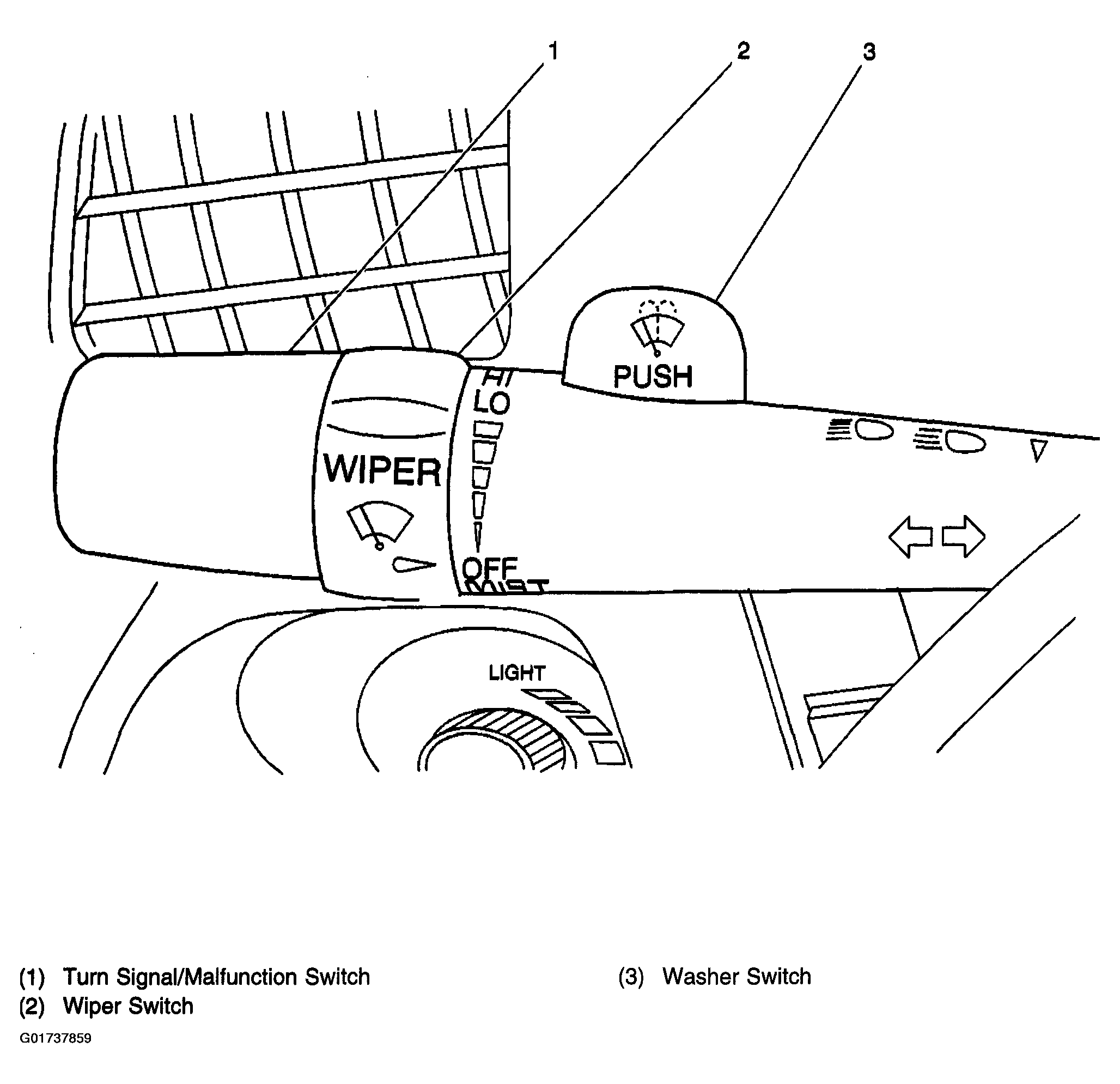

Fig 8: Locating Turn Signal/Multifunction Switch (Impala)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Locating Turn Signal/Multifunction Switch (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

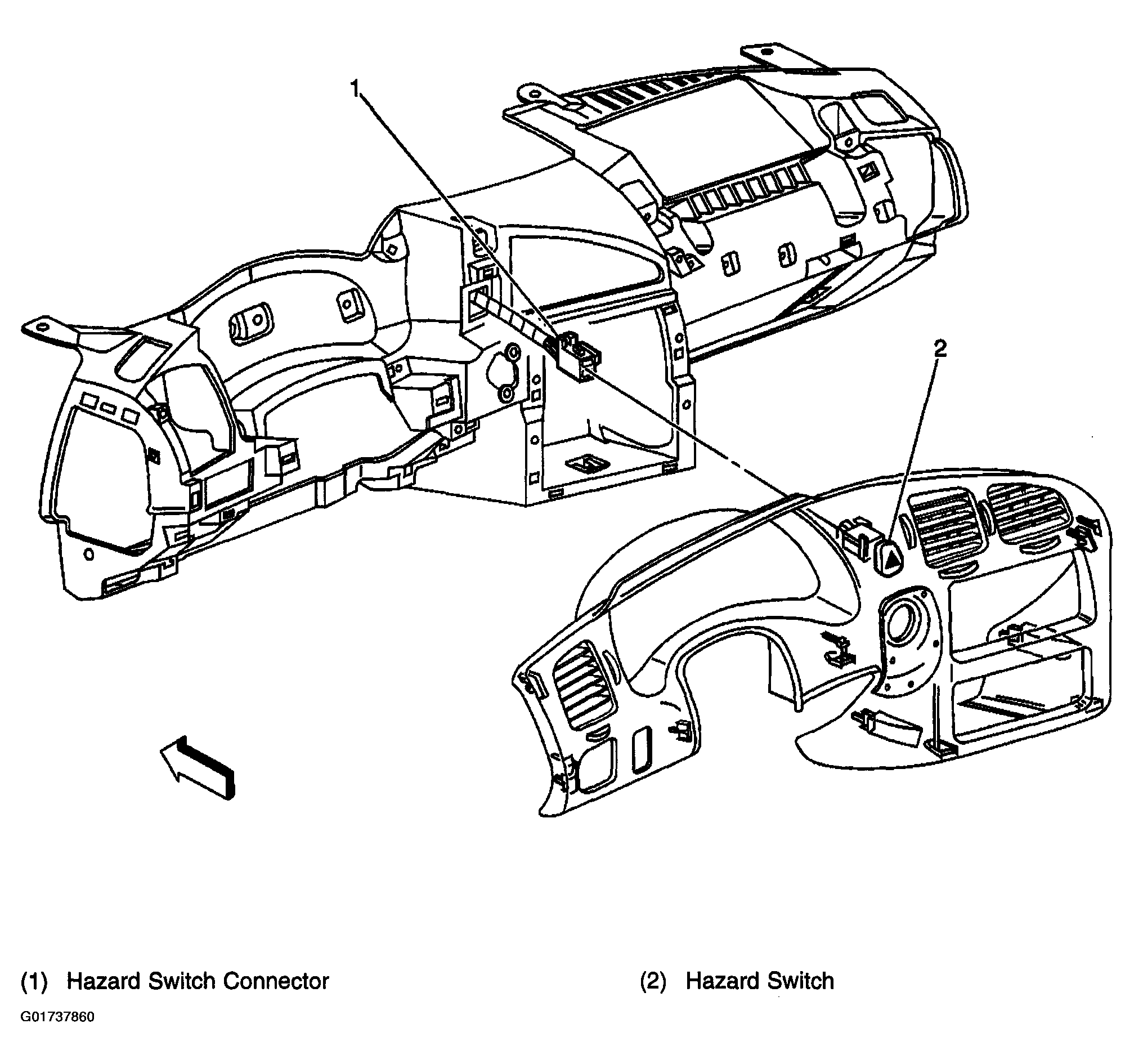

Fig 10: Locating Hazard Switch & Connector (Left Center Of Instrument Panel)
Courtesy of GENERAL MOTORS CORP.

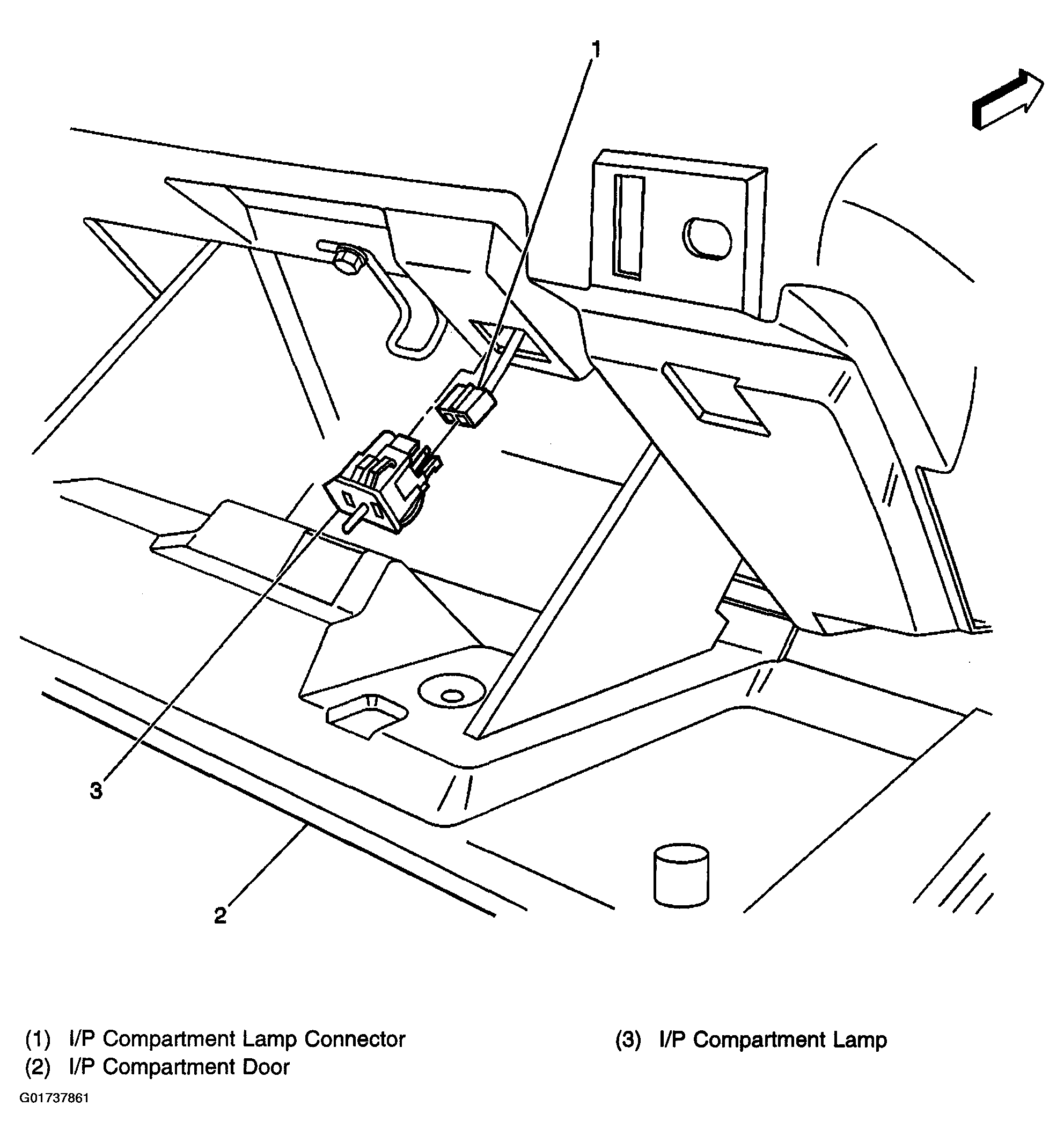

Fig 11: Locating Glove Compartment Lamp
Courtesy of GENERAL MOTORS CORP.

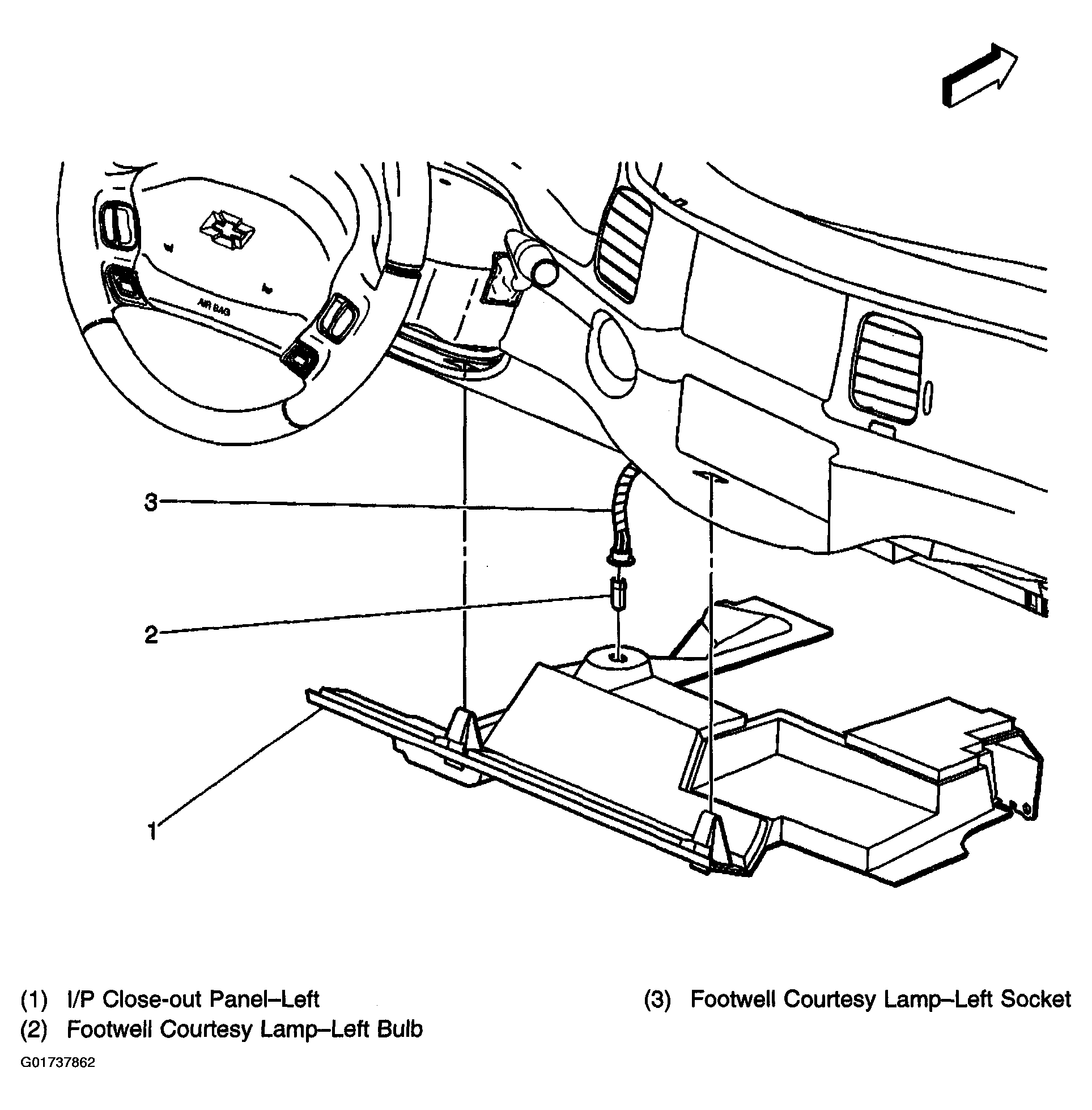

Fig 12: Locating Left Footwell Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

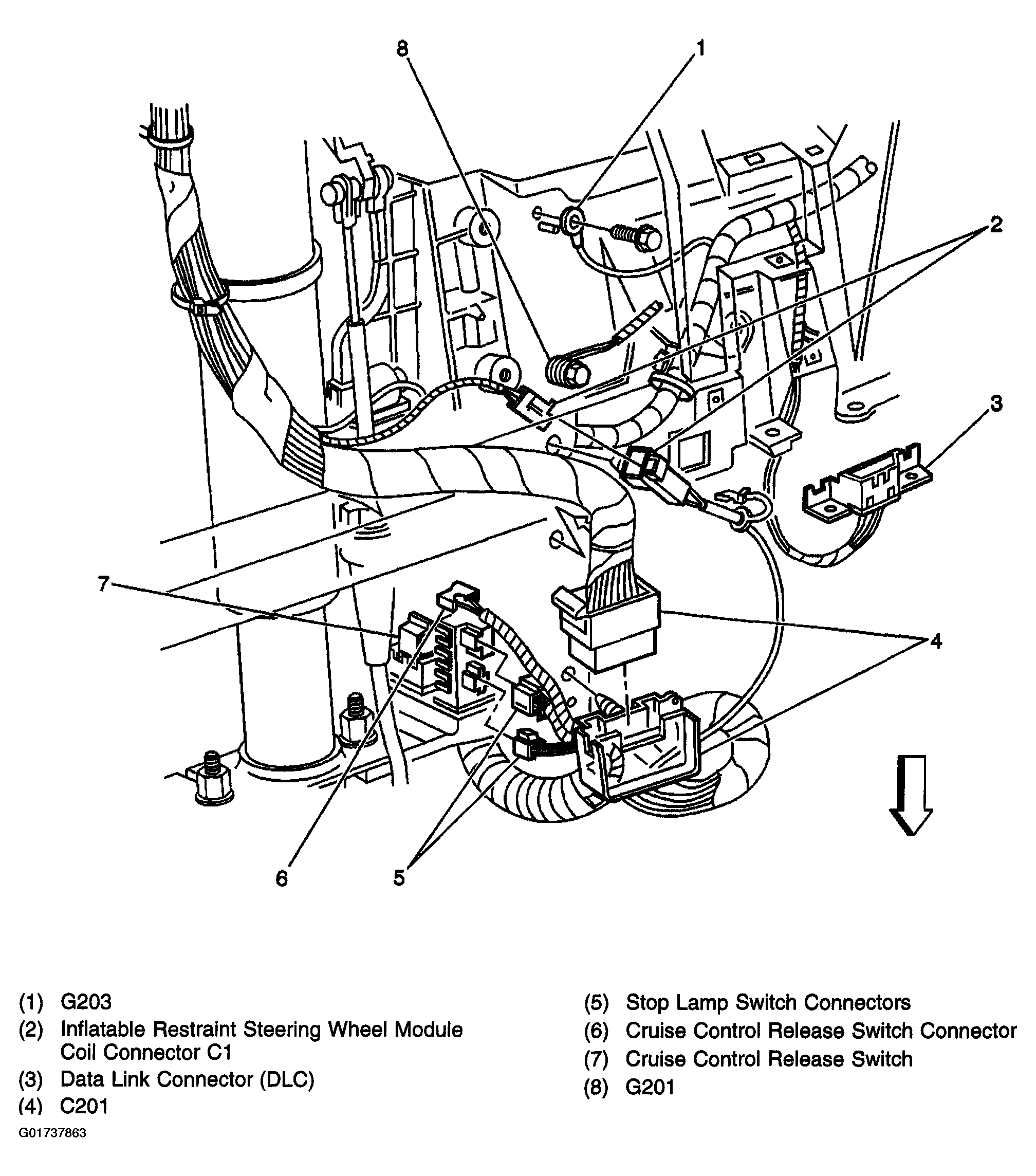

Fig 13: Locating DLC
Courtesy of GENERAL MOTORS CORP.

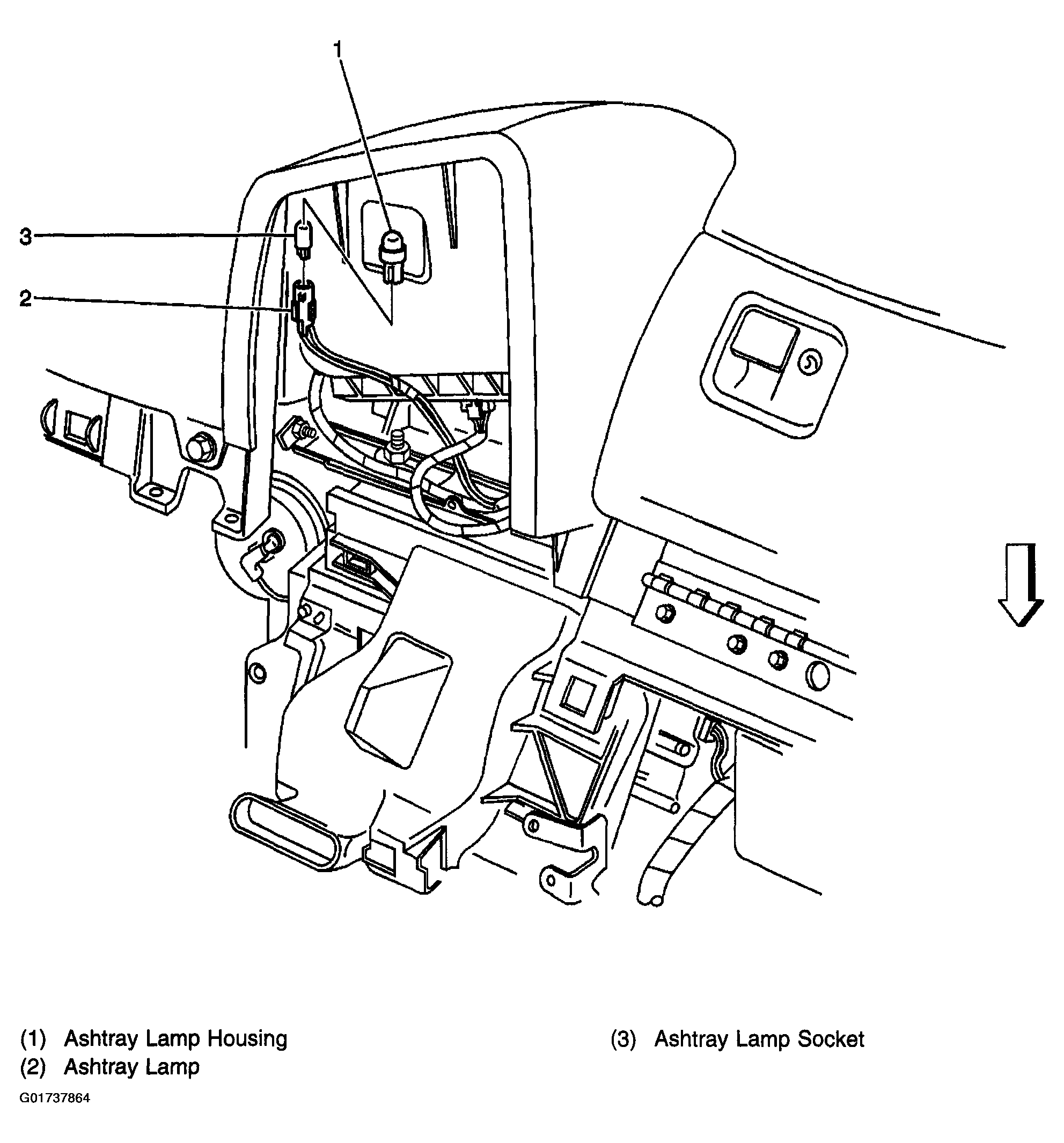

Fig 14: Locating Ashtray Light
Courtesy of GENERAL MOTORS CORP.

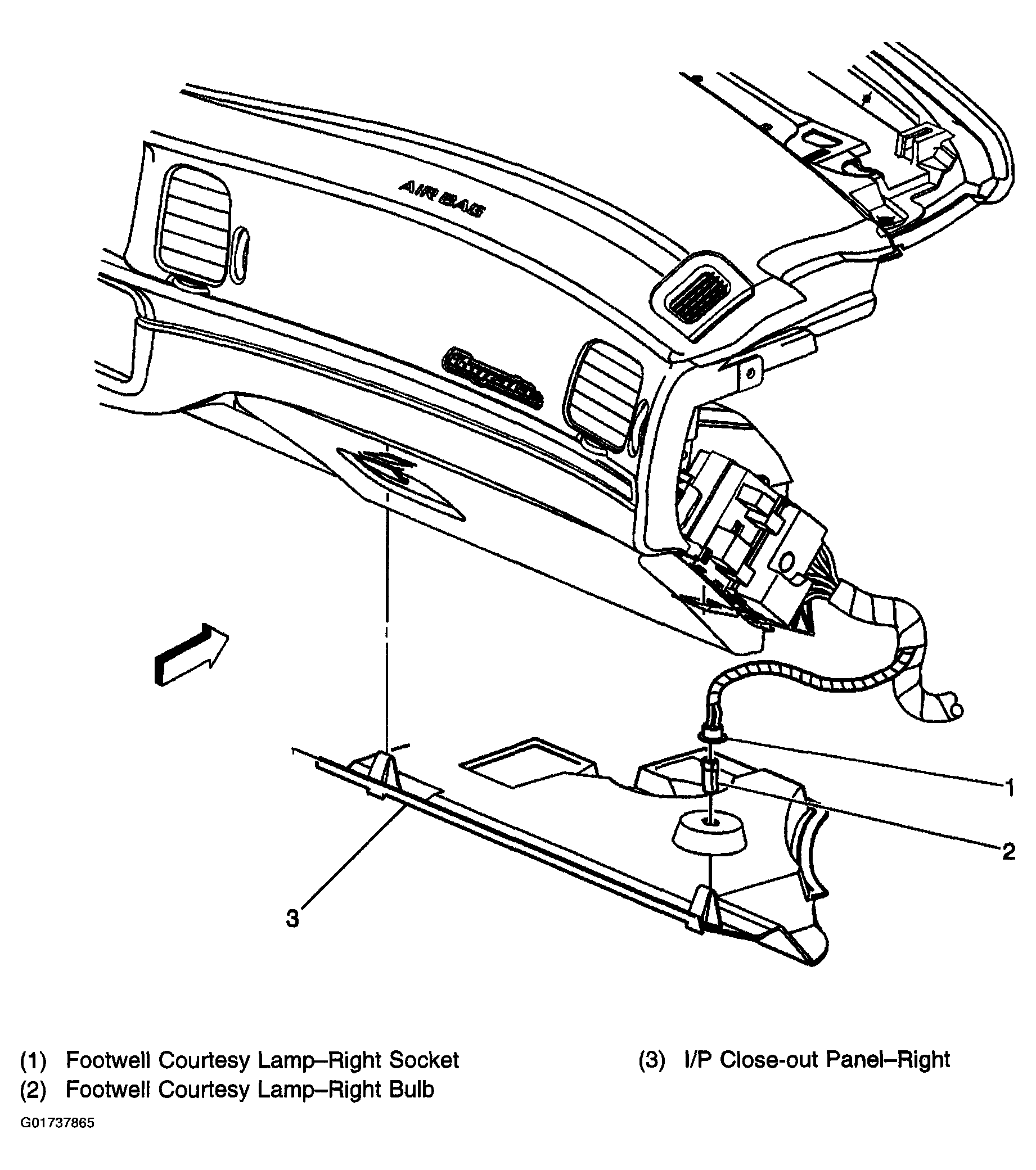

Fig 15: Locating Right Footwell Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

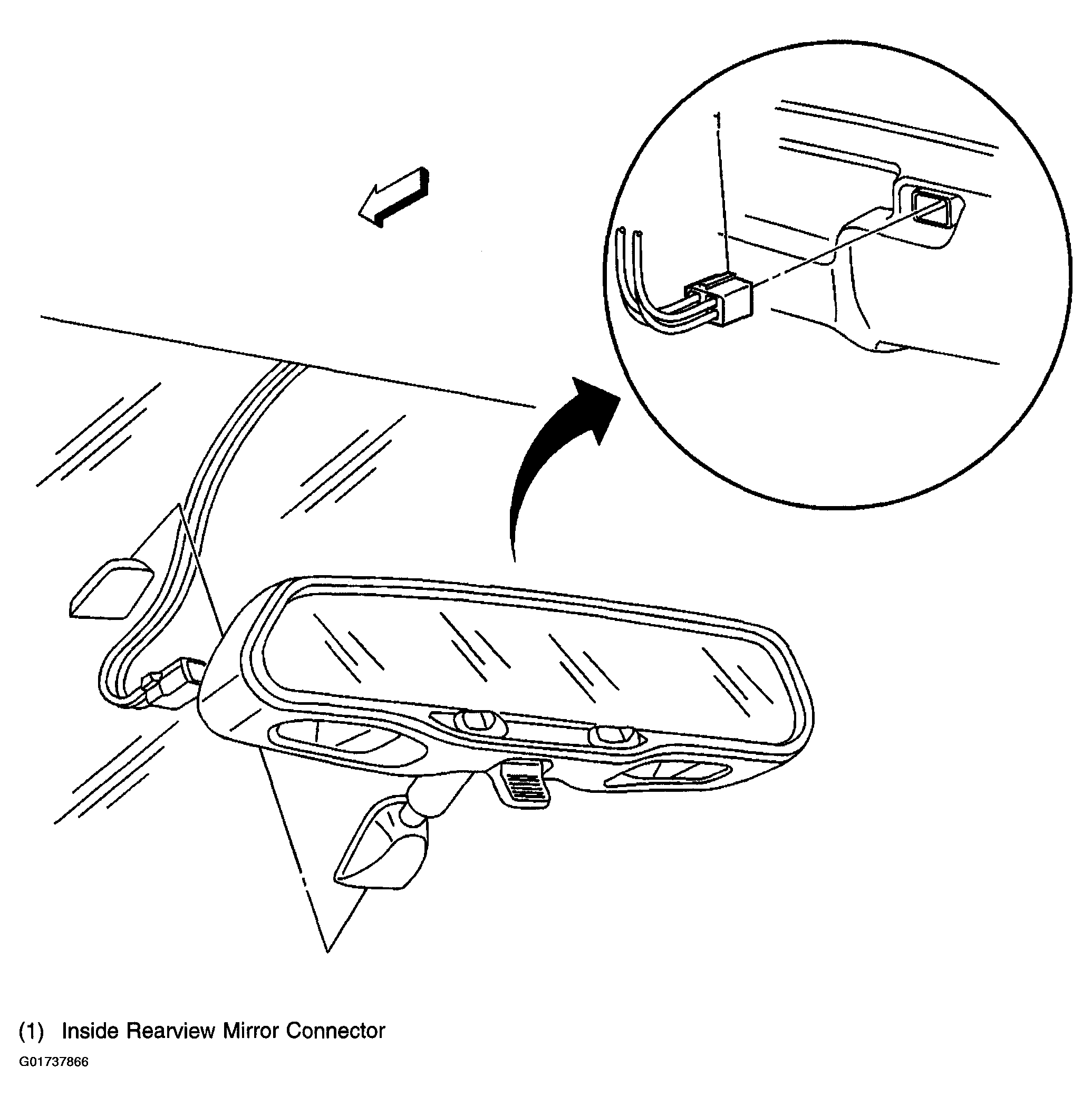

Fig 16: Locating Rear View Mirror & Connector
Courtesy of GENERAL MOTORS CORP.

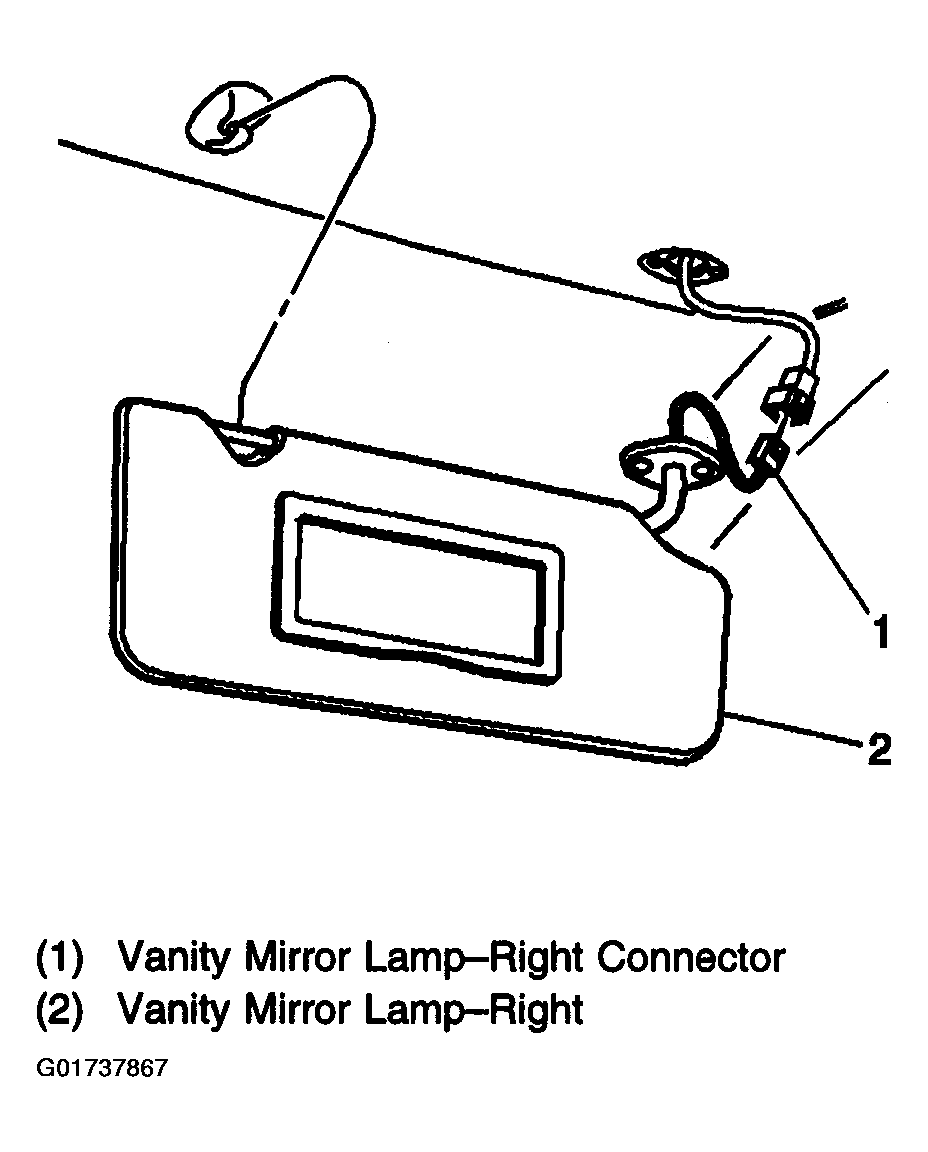

Fig 17: Locating Right Vanity Mirror & Connector
Courtesy of GENERAL MOTORS CORP.

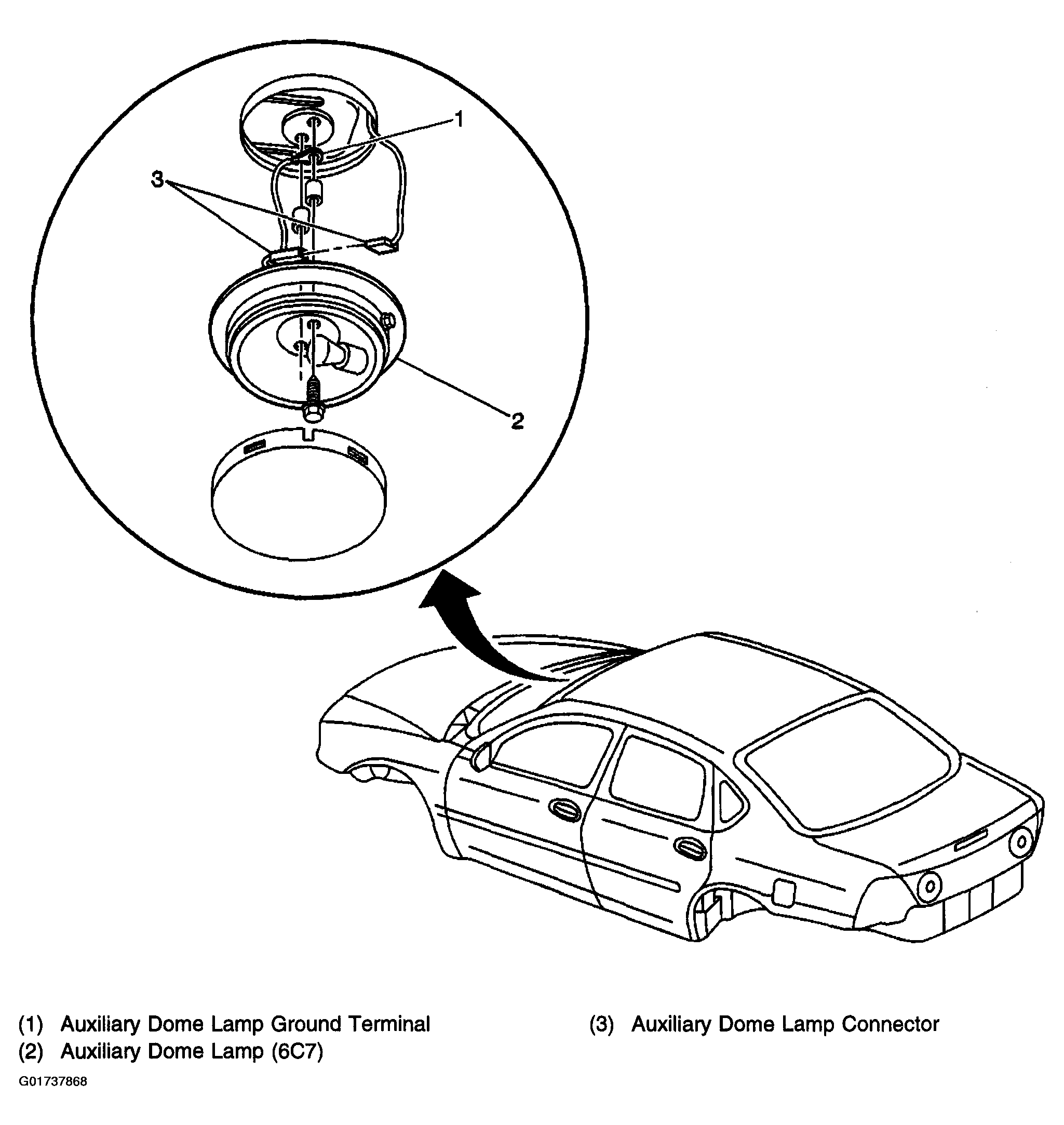

Fig 18: Locating Dome Light & Connector
Courtesy of GENERAL MOTORS CORP.

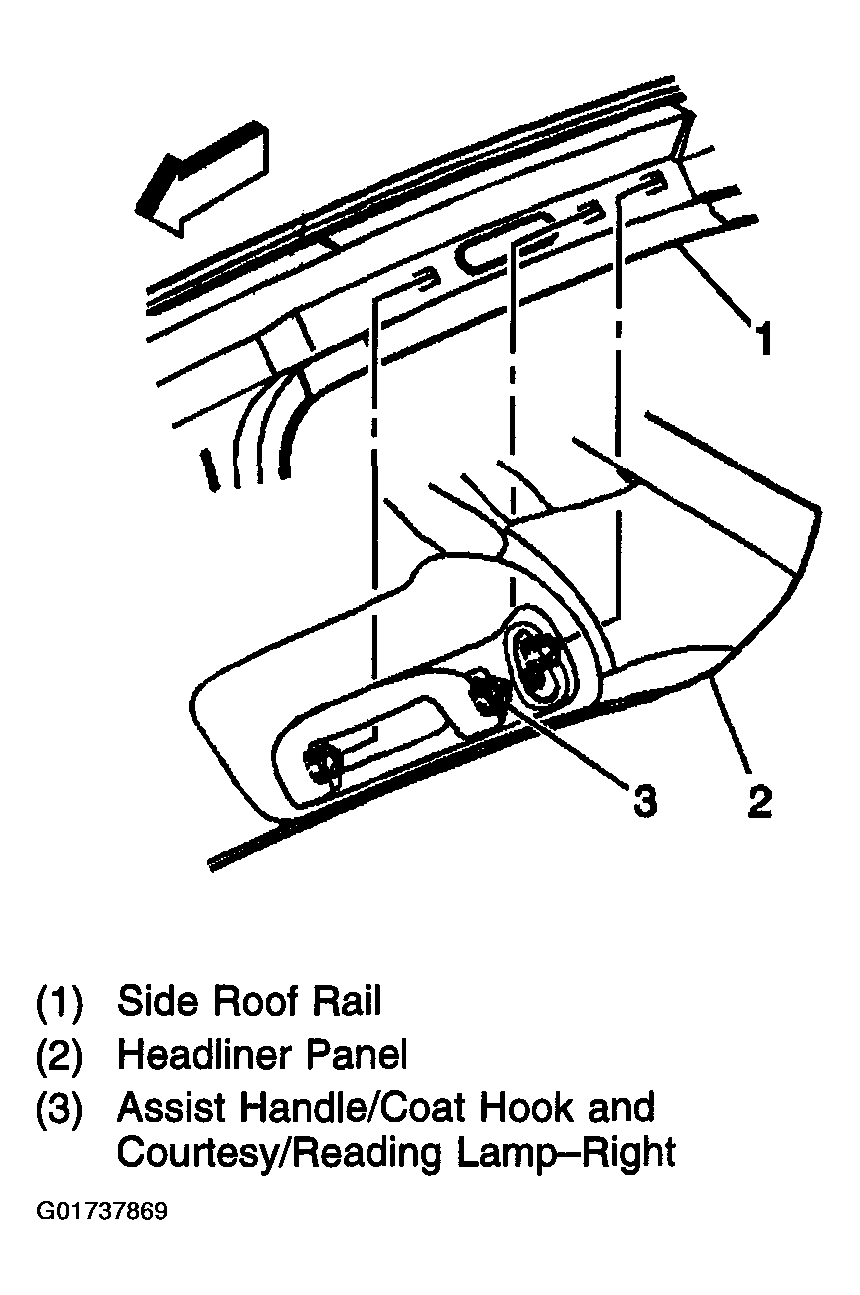

Fig 19: Locating Right Assist Handle Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

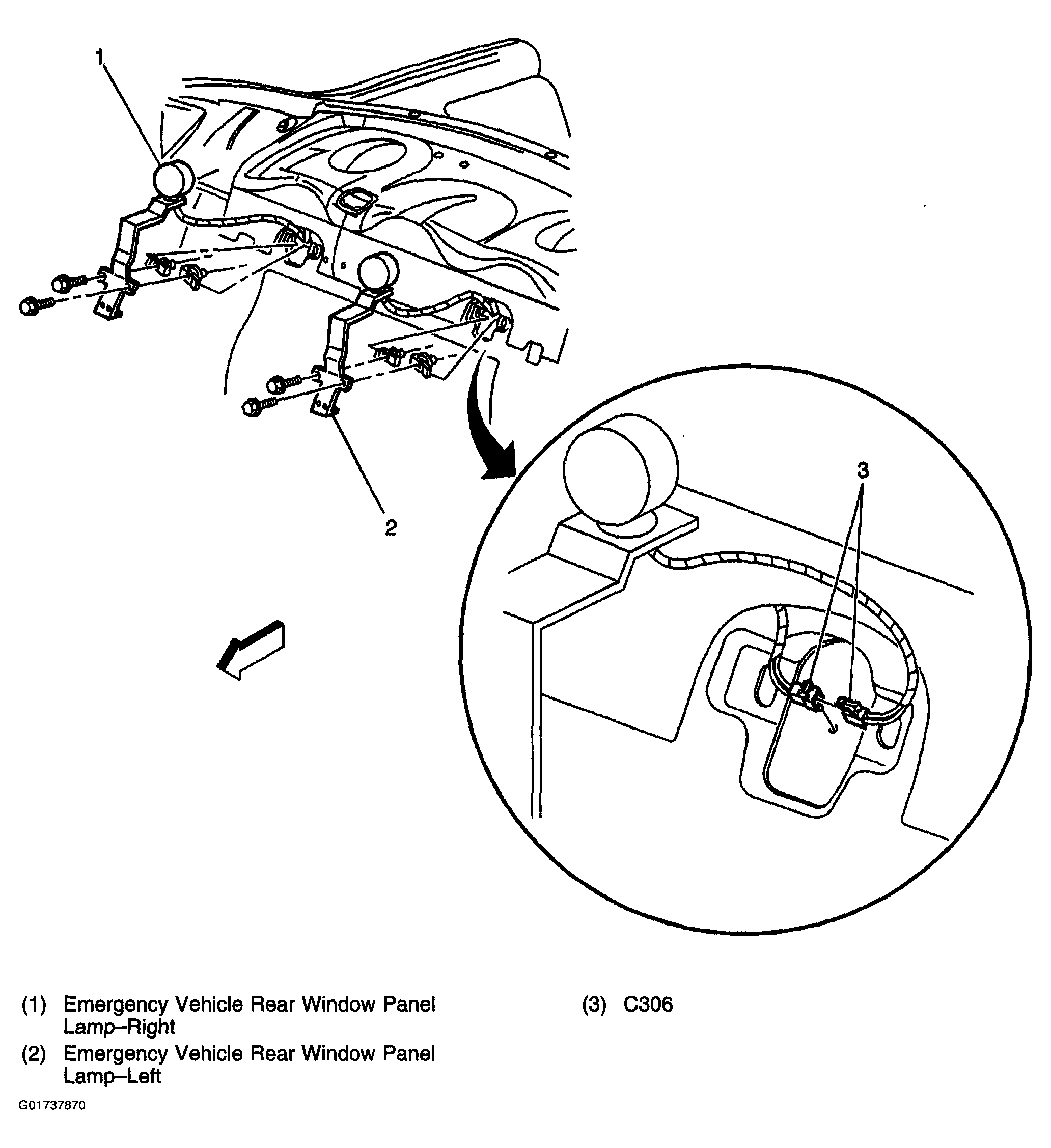

Fig 20: Locating Emergency Vehicle Rear Lamp
Courtesy of GENERAL MOTORS CORP.

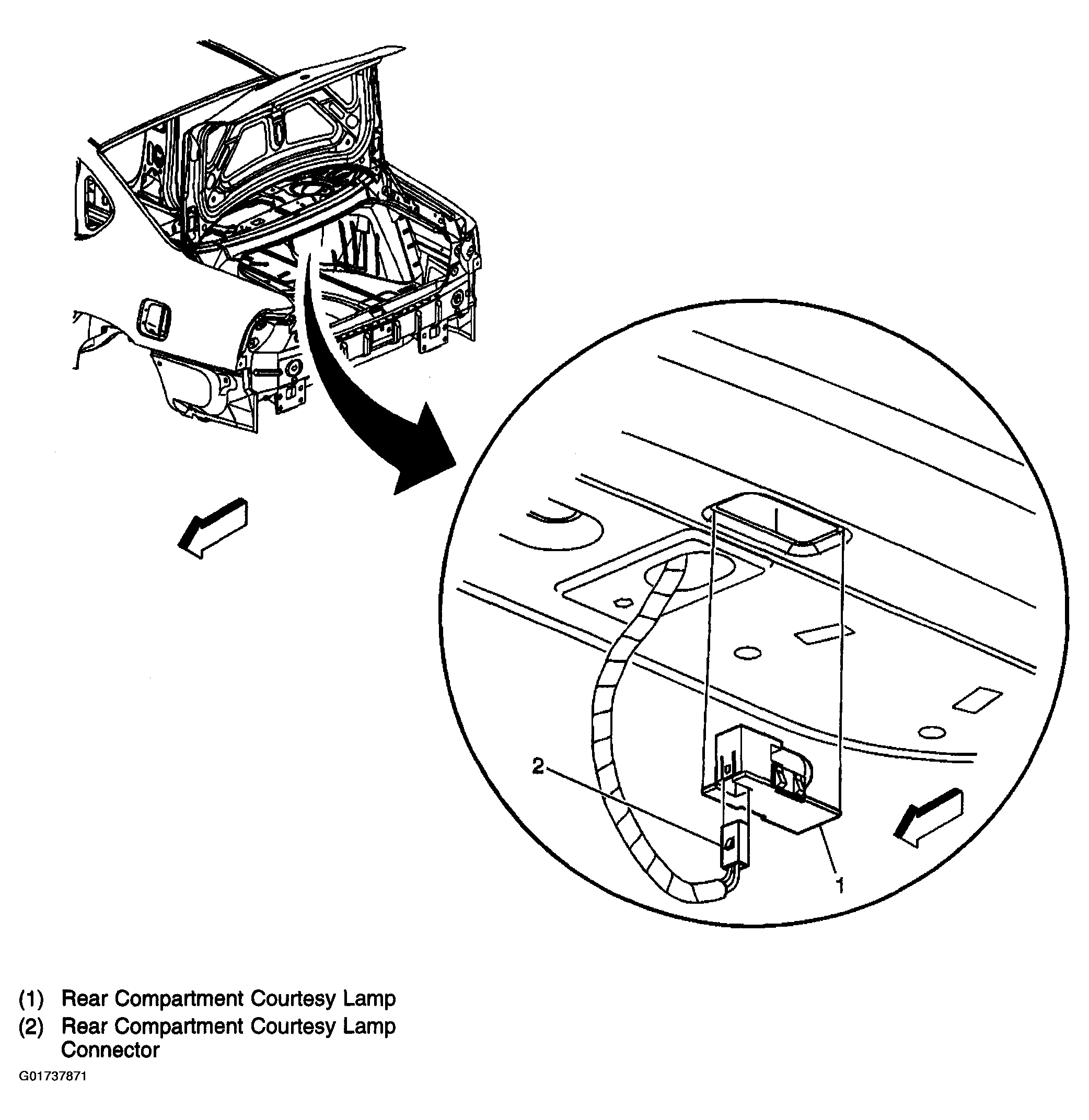

Fig 21: Locating Rear Compartment Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

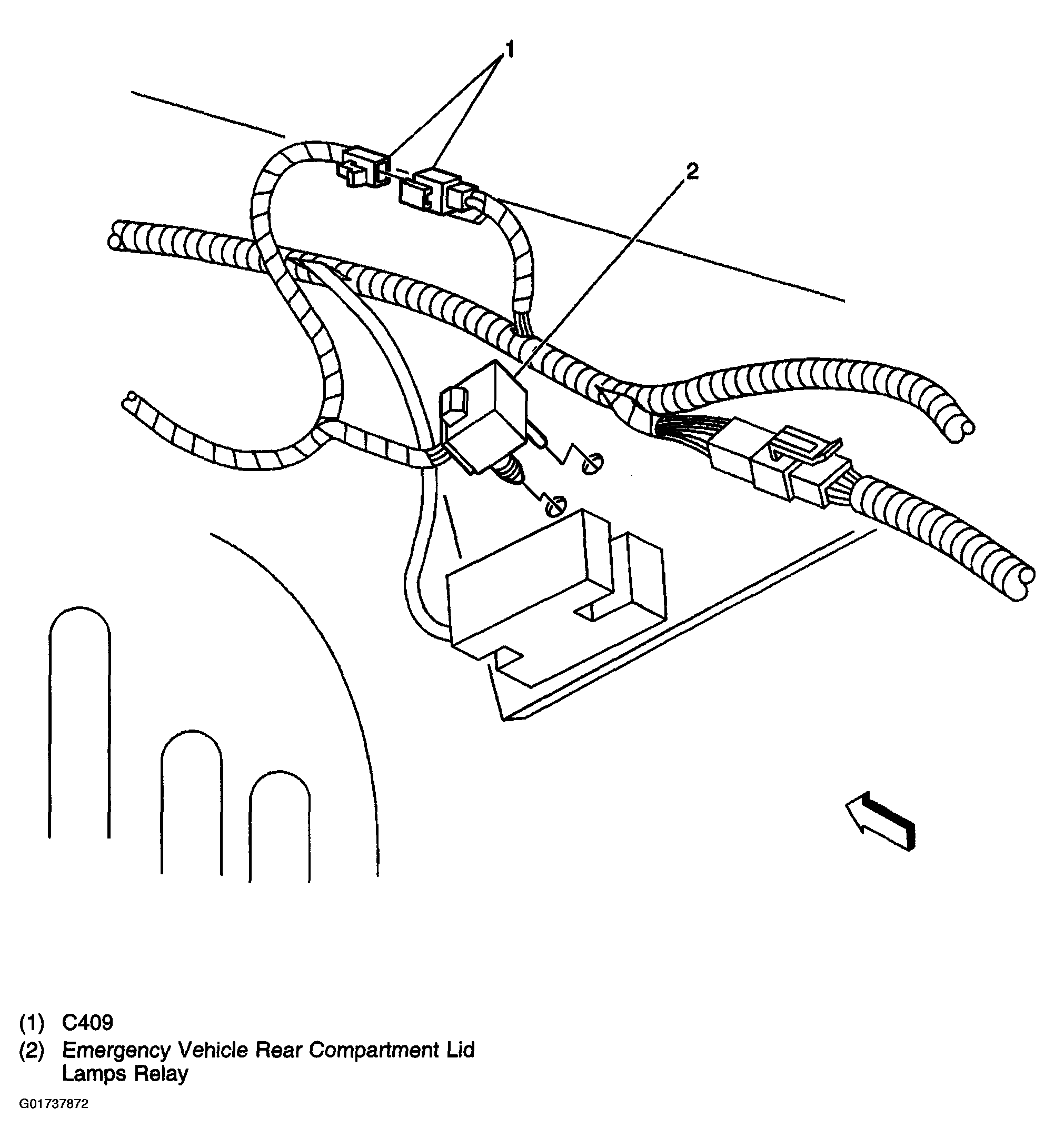

Fig 22: Locating Emergency Vehicle Rear Lamp Relay
Courtesy of GENERAL MOTORS CORP.

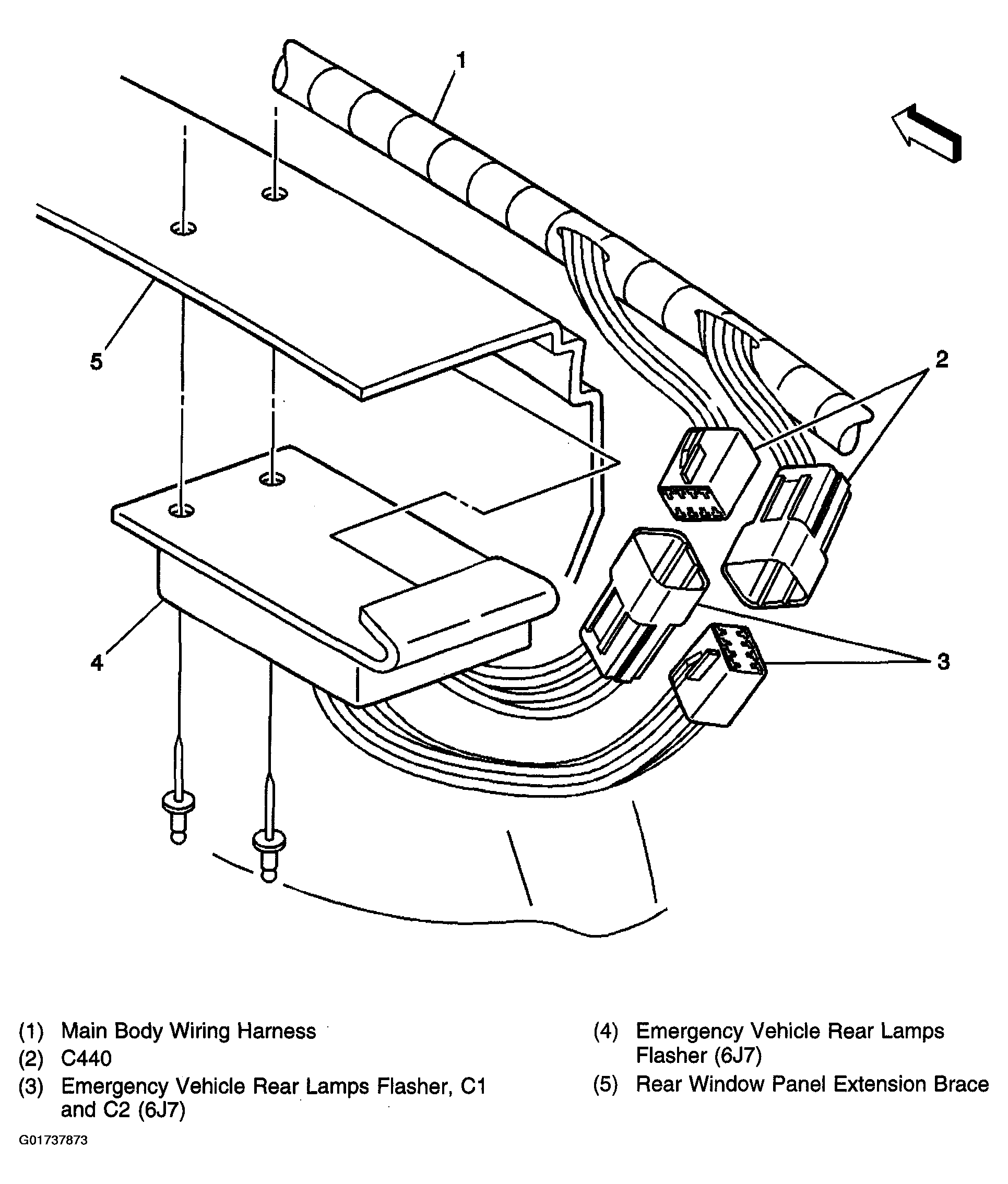

Fig 23: Locating Emergency Vehicle Rear Lamp Flasher
Courtesy of GENERAL MOTORS CORP.

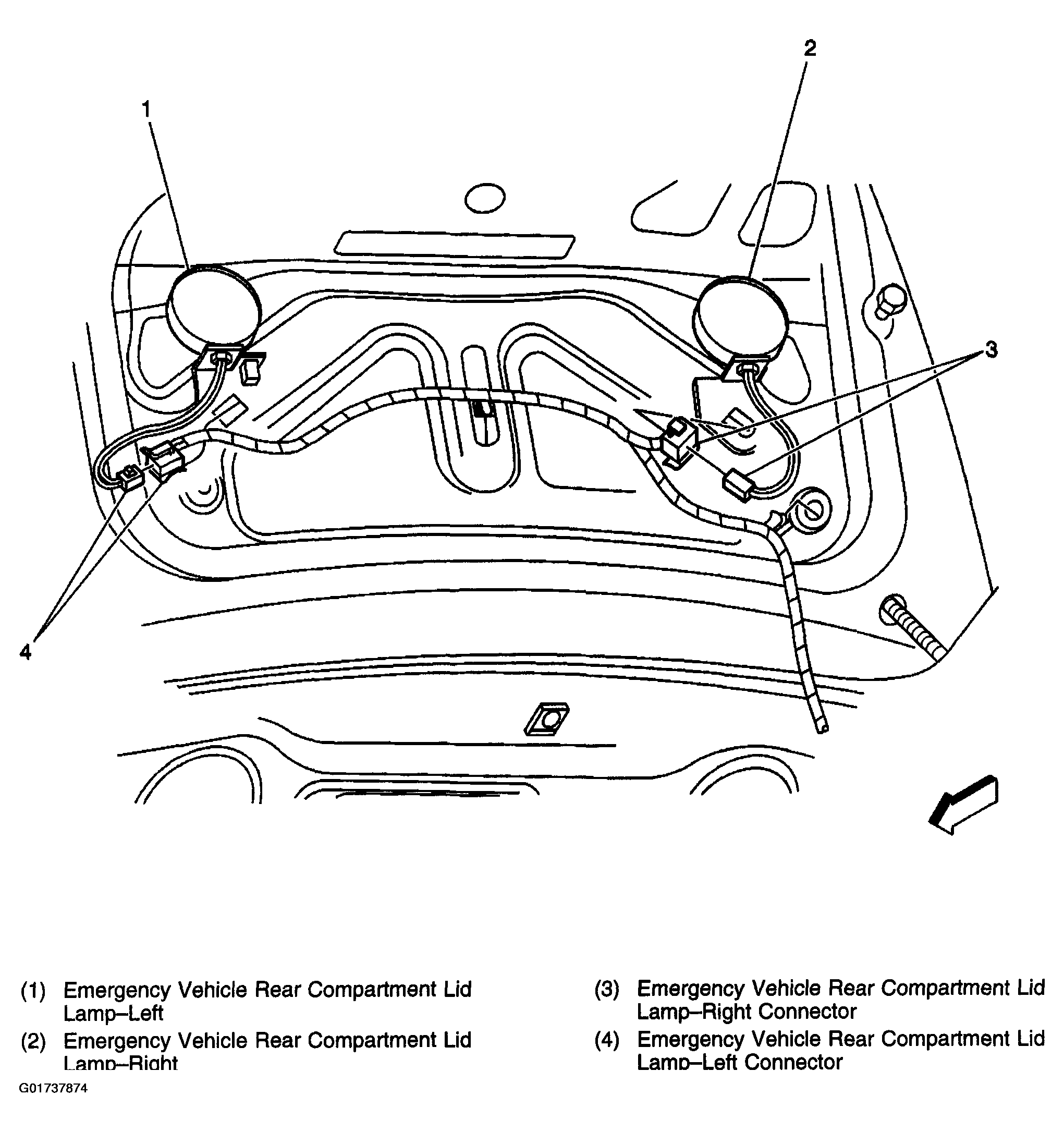

Fig 24: Locating Emergency Vehicle Rear Lid Lamps
Courtesy of GENERAL MOTORS CORP.

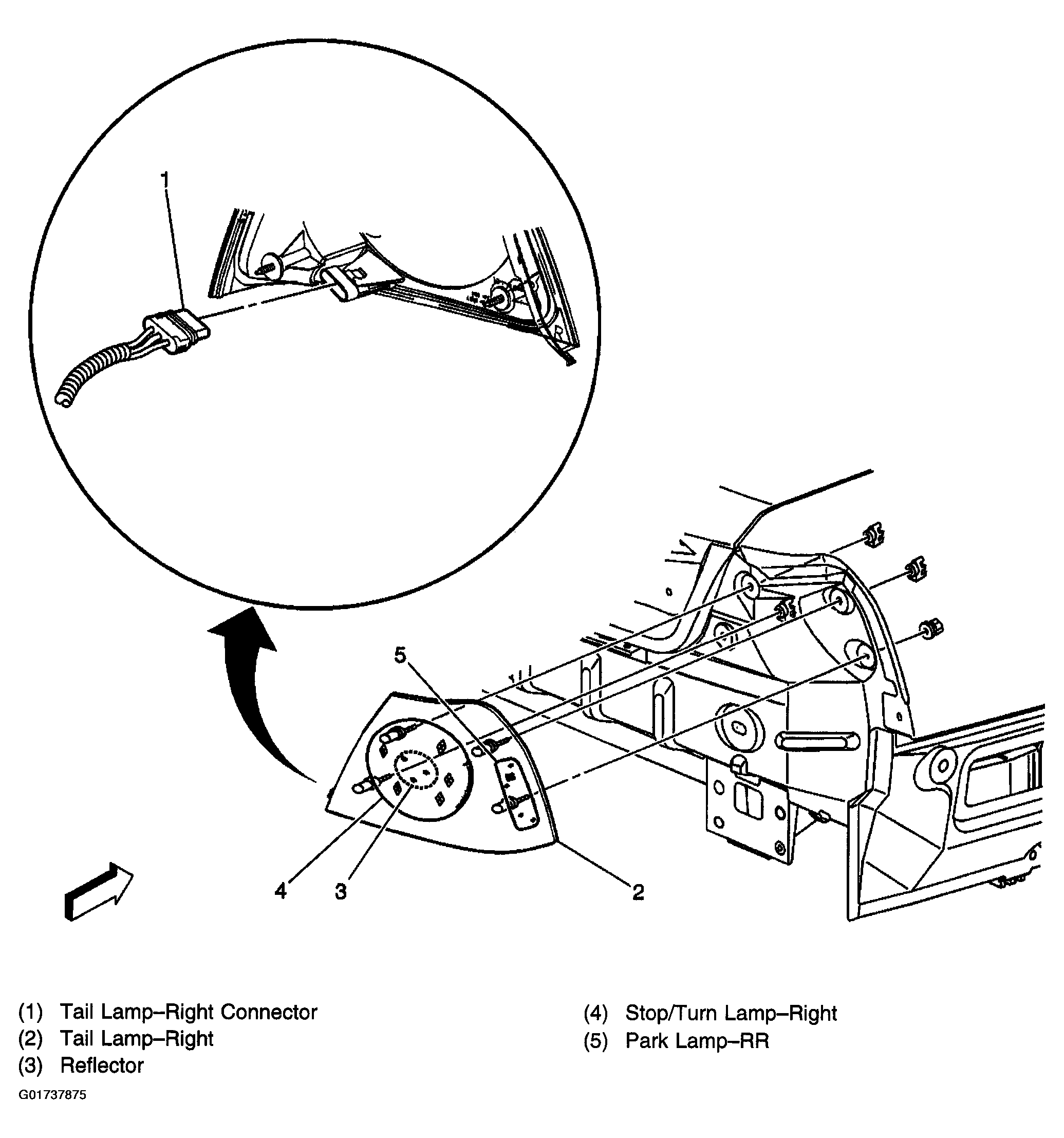

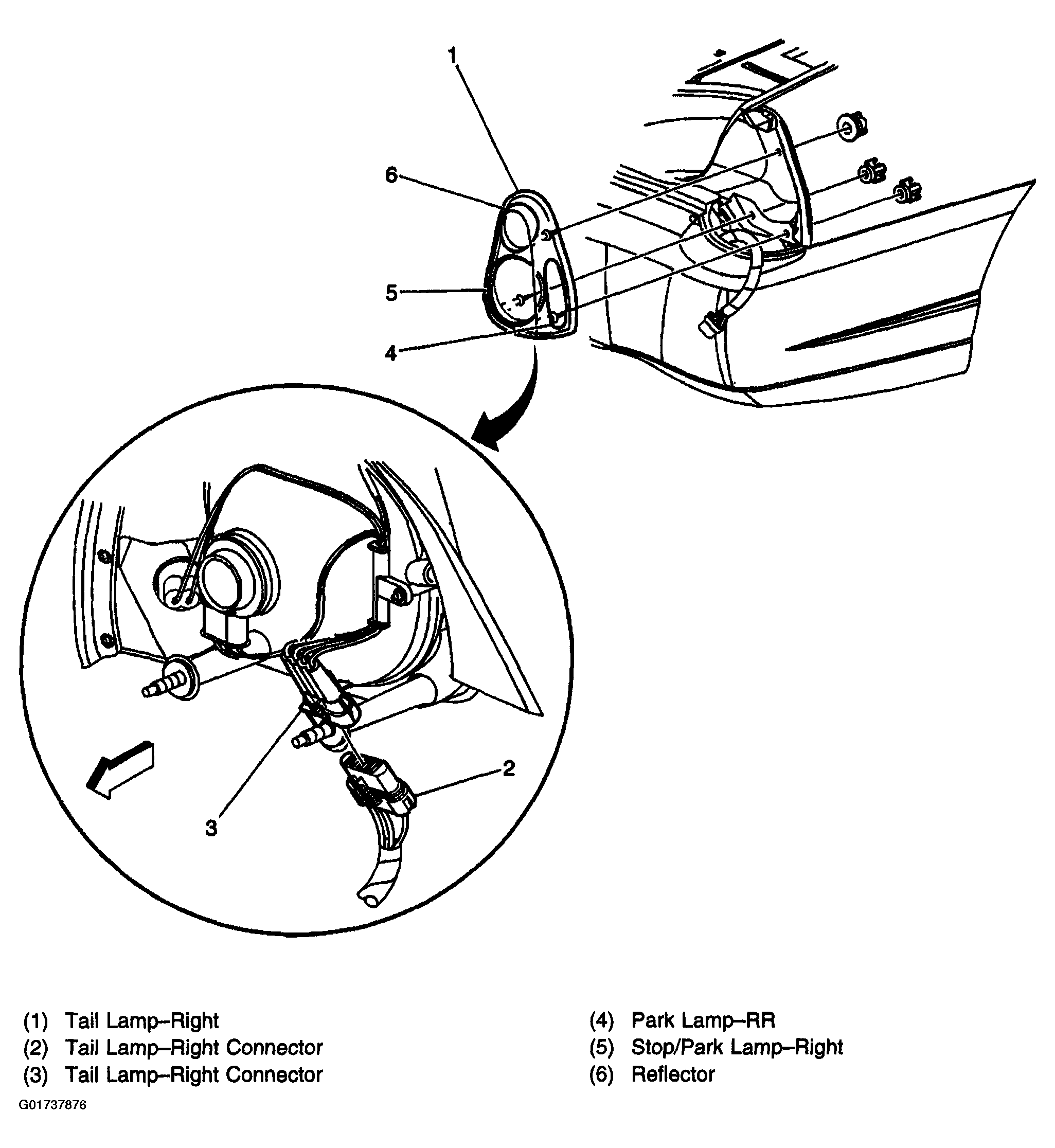

Fig 25: Right Rear Tail Lamp; Left Rear Similar (Impala)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Rear Tail Lamp; Left Rear Similar (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

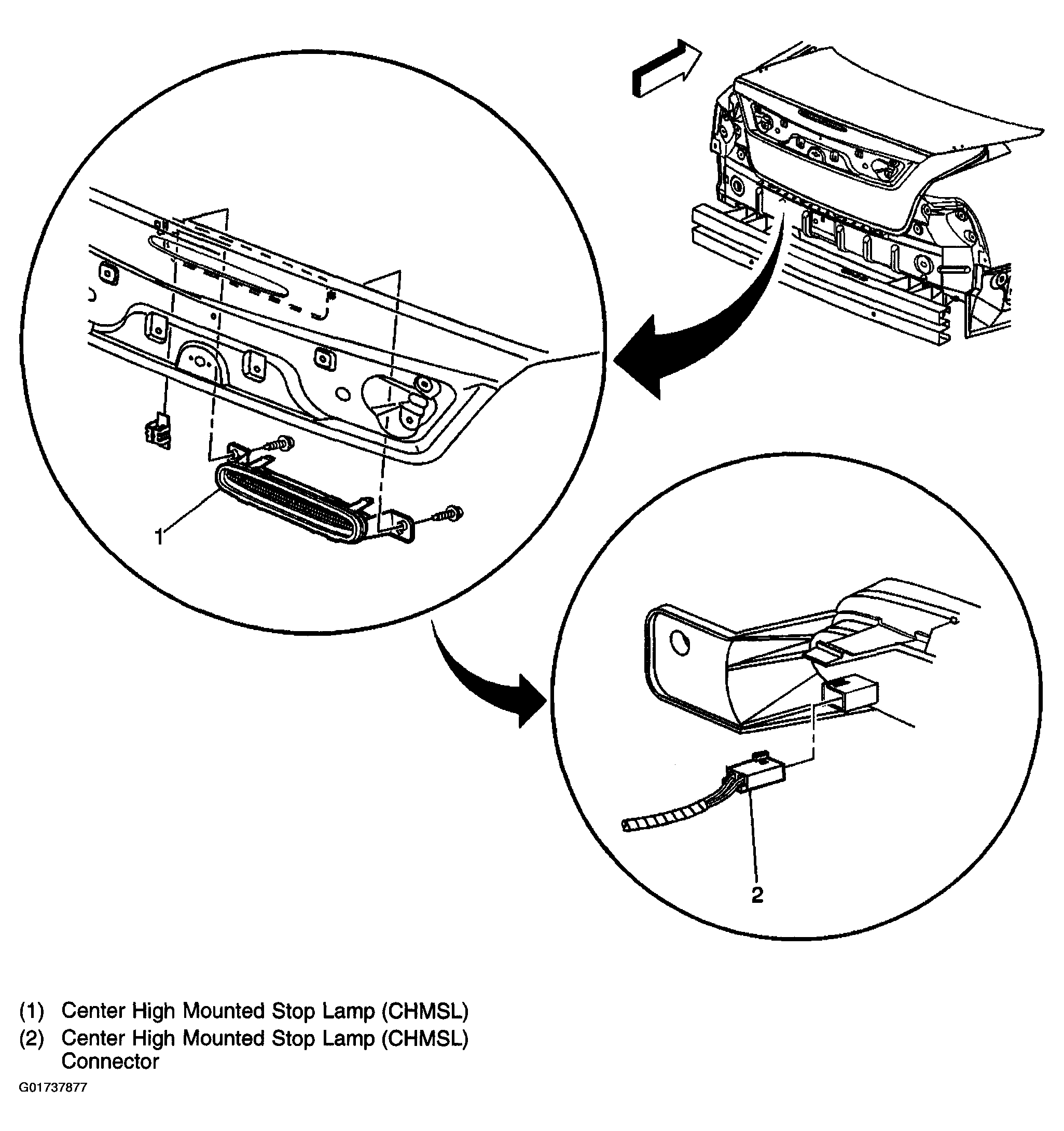

Fig 27: Locating Center High Mounted Stop Lamp
Courtesy of GENERAL MOTORS CORP.

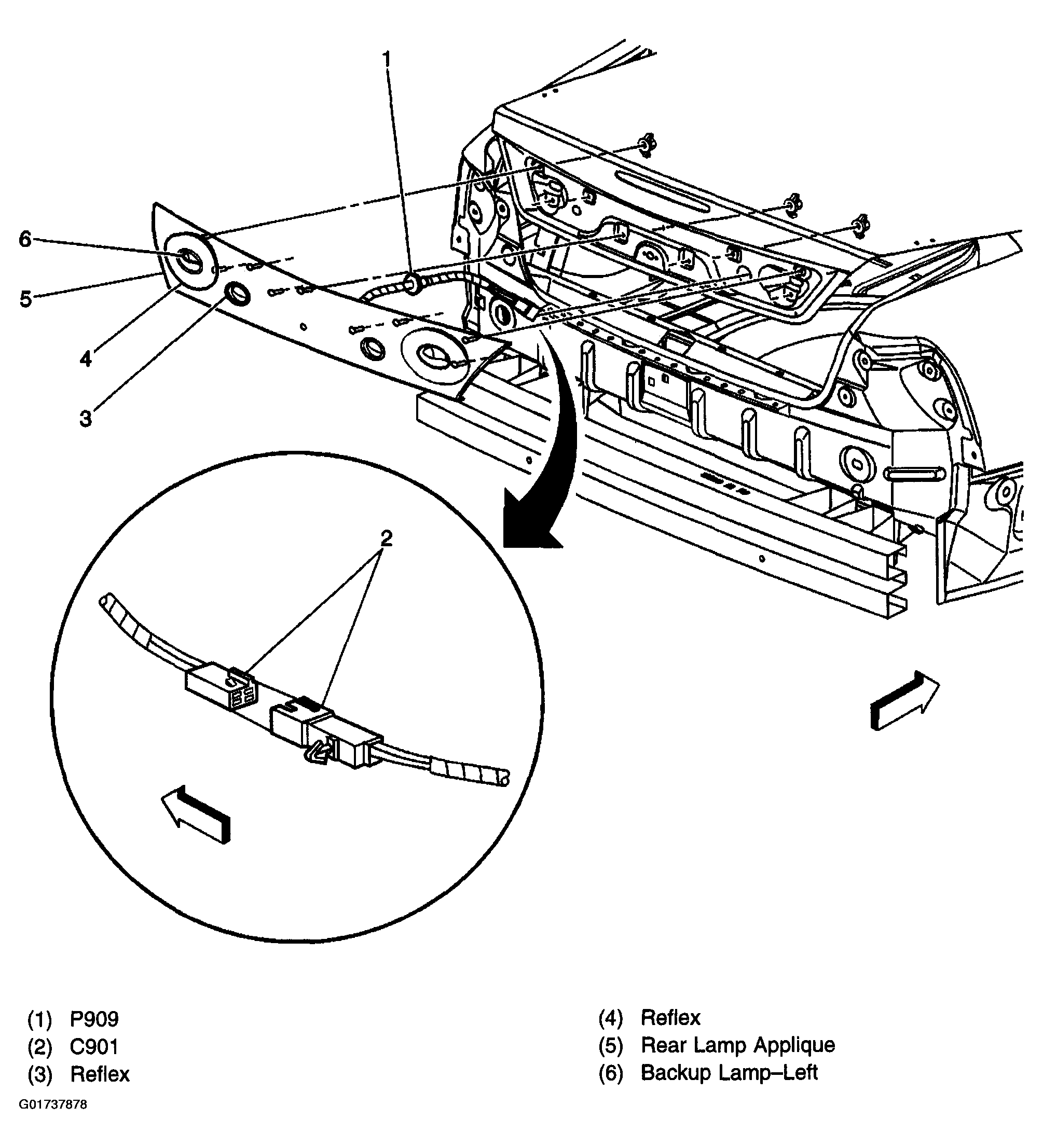

Fig 28: Locating Rear Applique Lamp (Impala)
Courtesy of GENERAL MOTORS CORP.

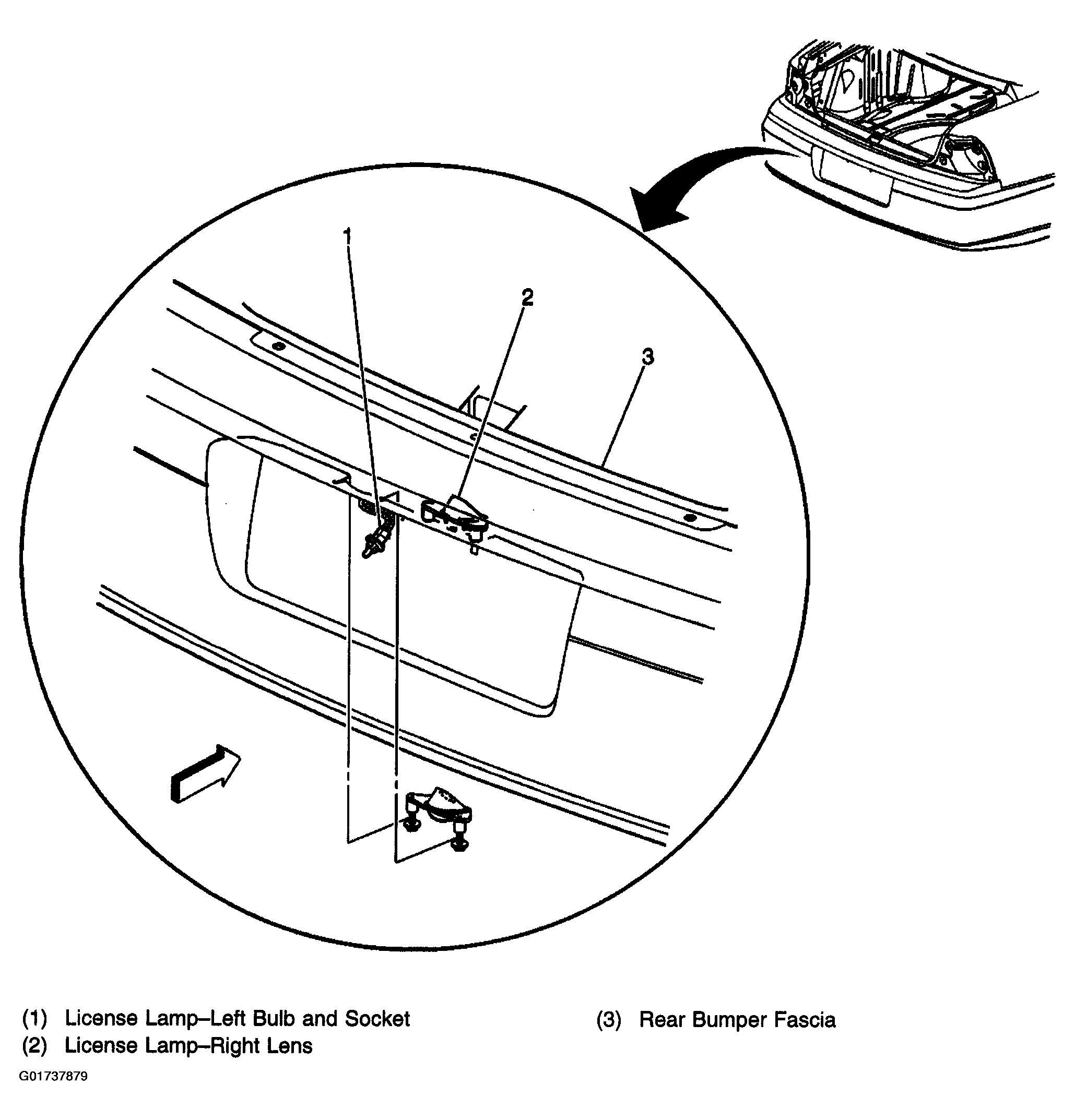

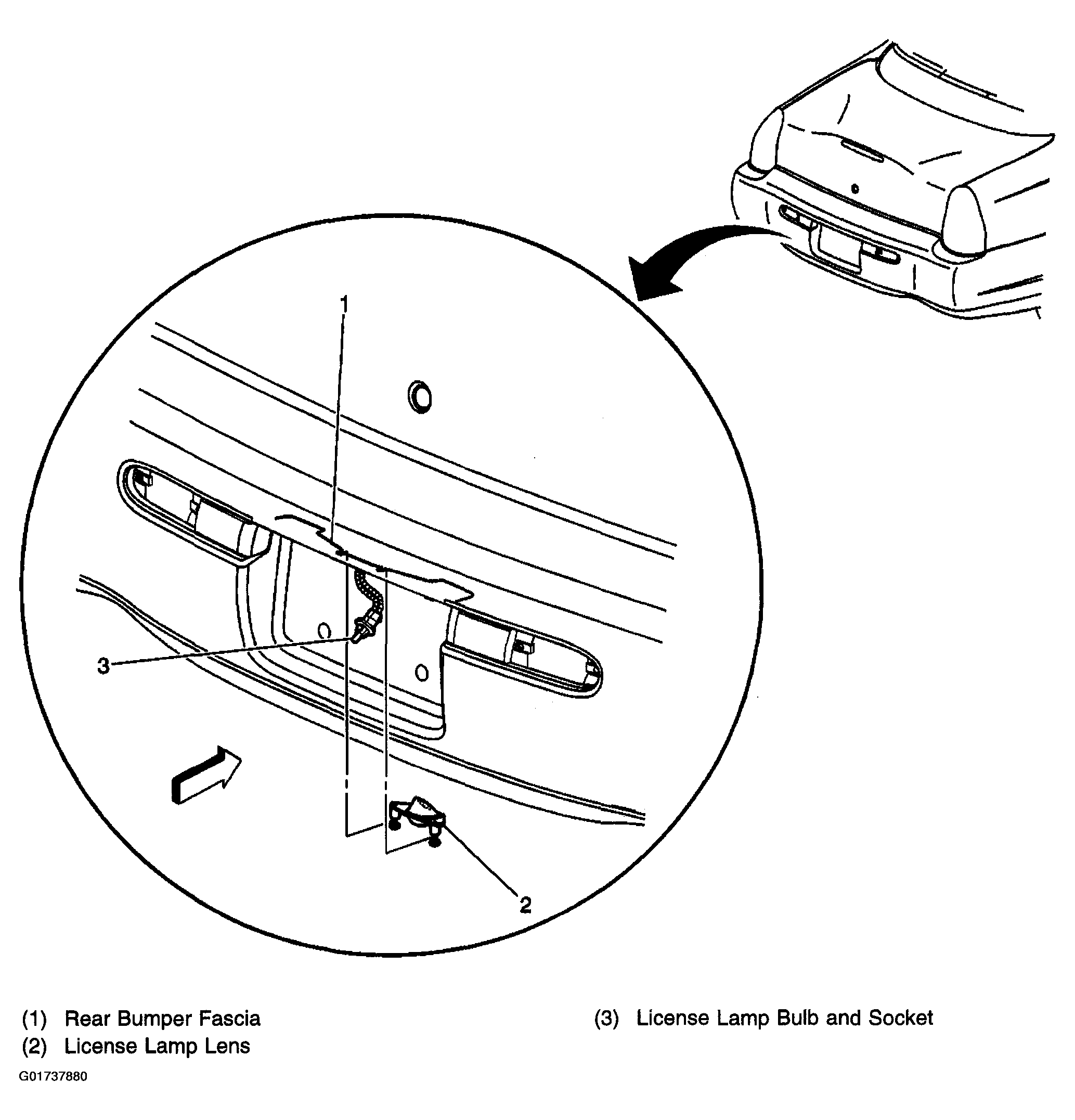

Fig 29: Locating License Plate Lamps (Impala)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Locating License Plate Lamps (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

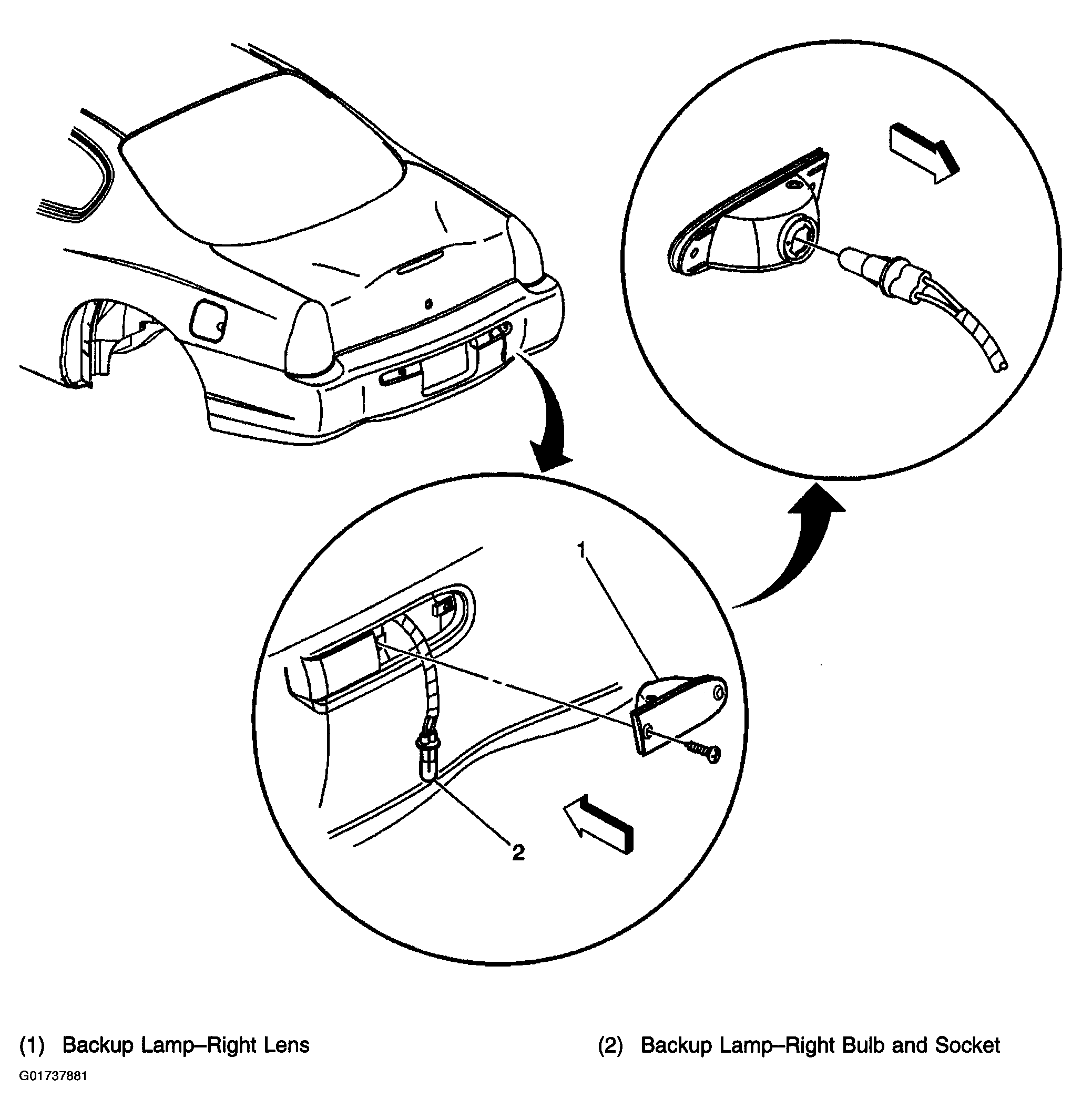

Fig 31: Locating Backup Lamps (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.
