Lighting Systems Connector End Views
Fig 1: Identifying Ambient Light Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Auxiliary Dome Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

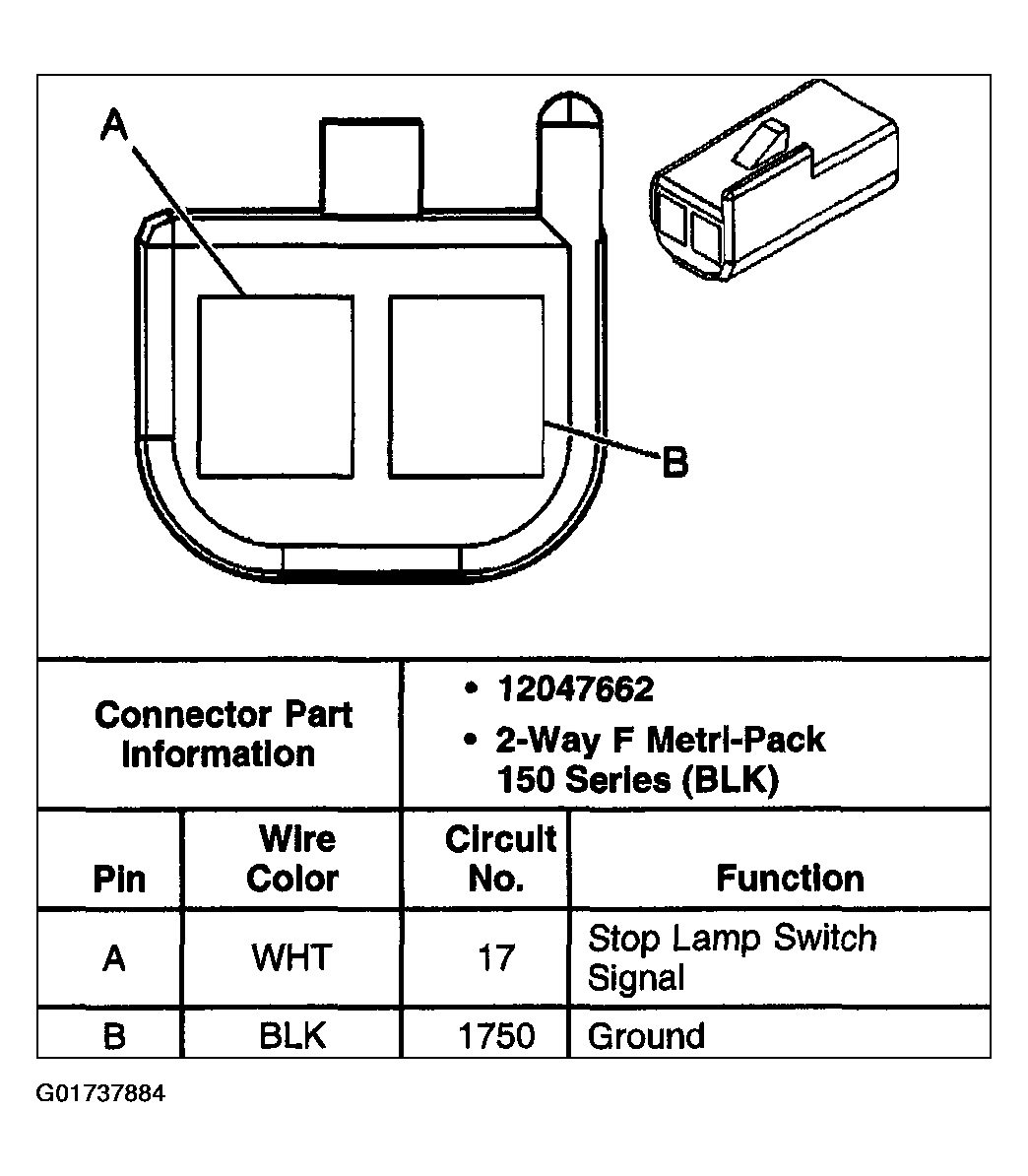

Fig 3: Identifying Center High Mounted Stop Lamp (CHMSL) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

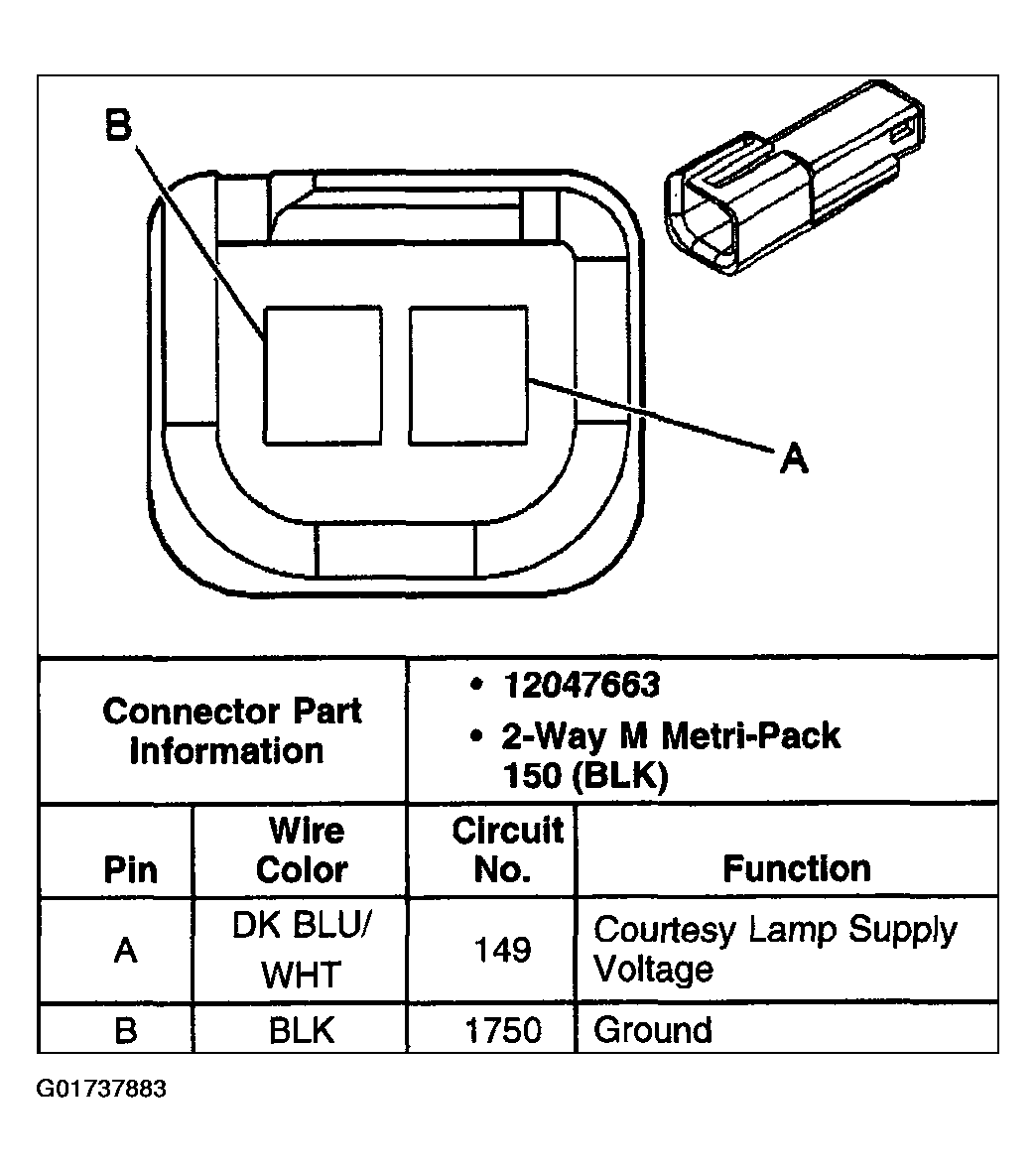

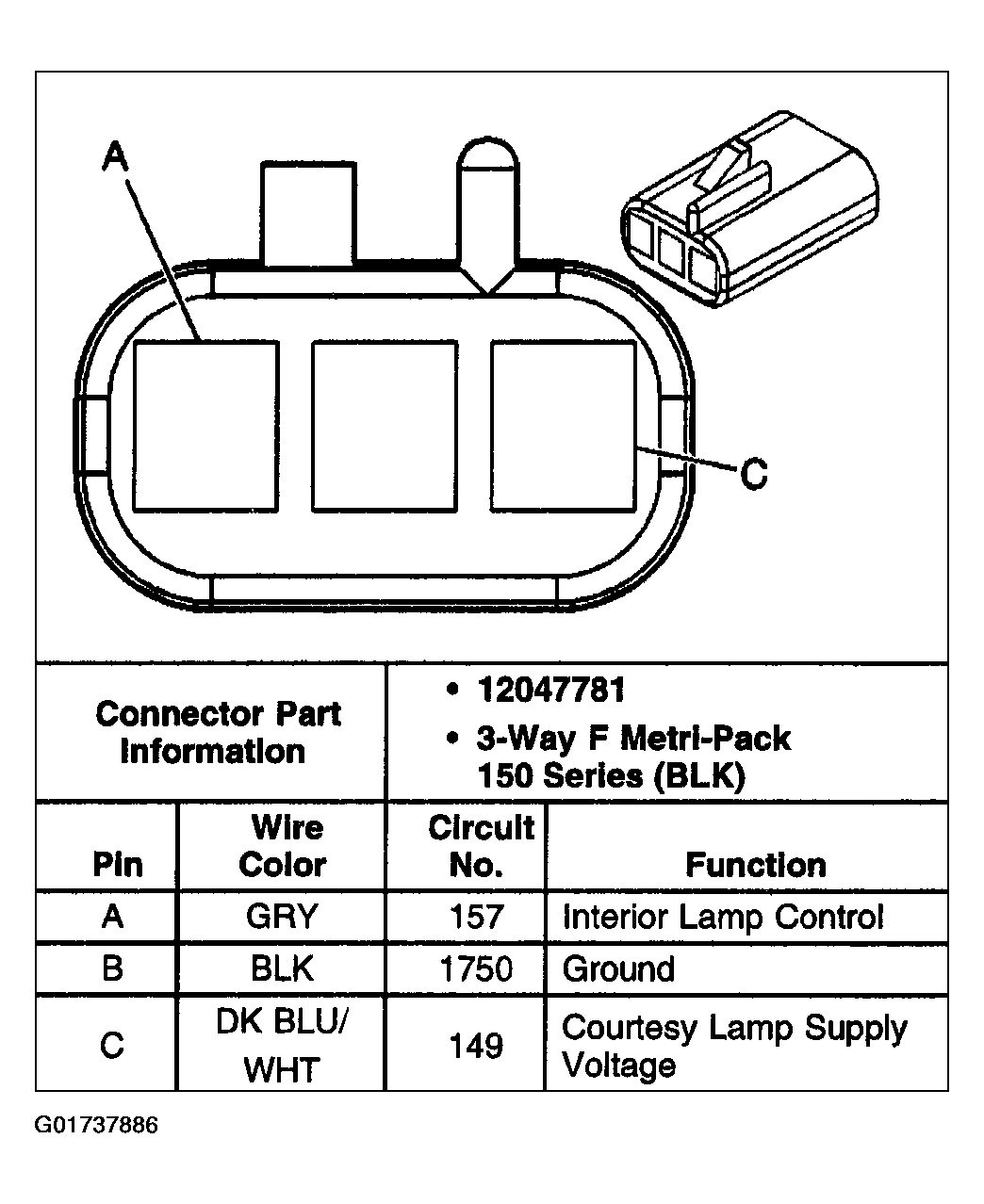

Fig 4: Identifying Courtesy/Reading Lamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

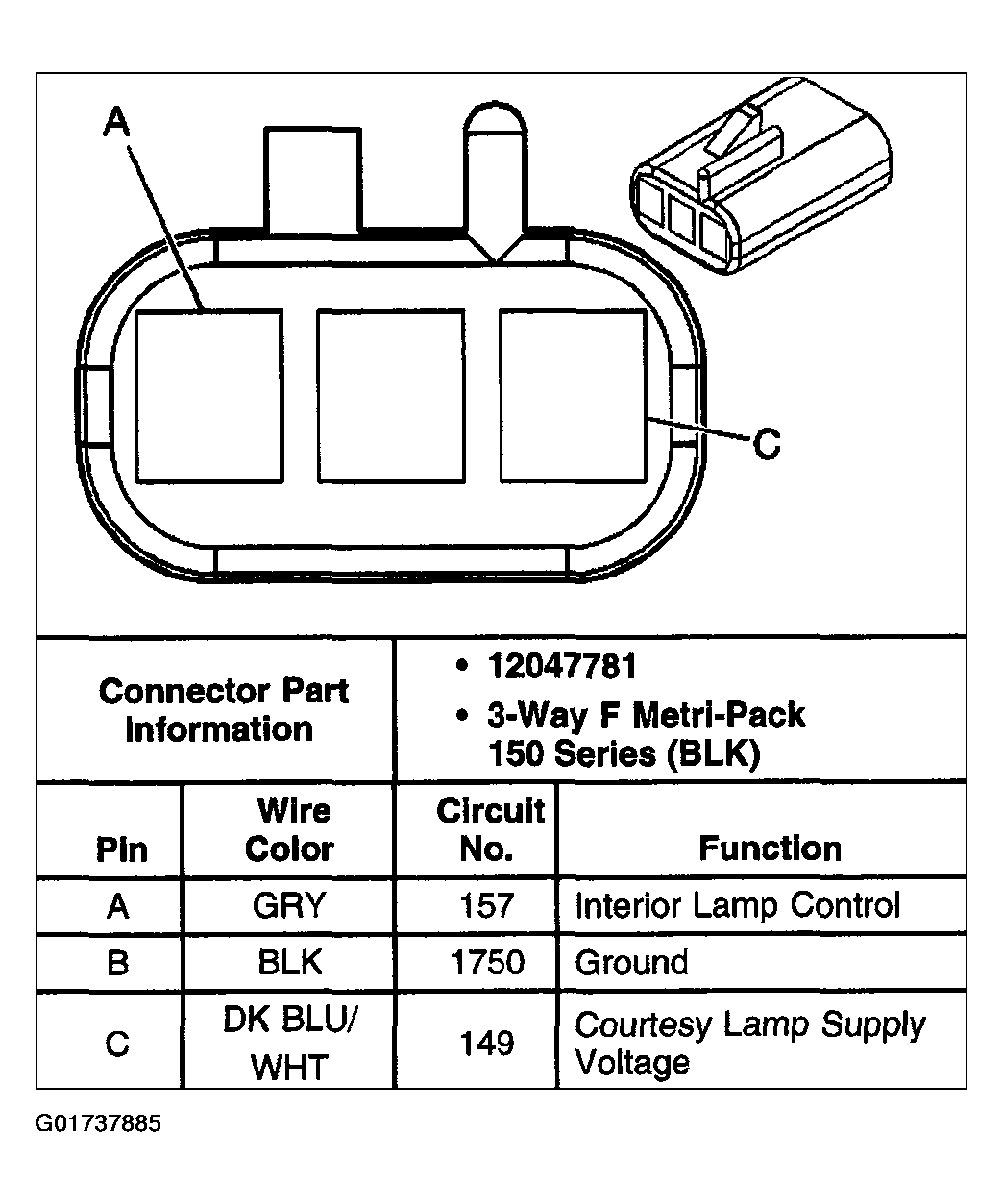

Fig 5: Identifying Courtesy/Reading Lamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

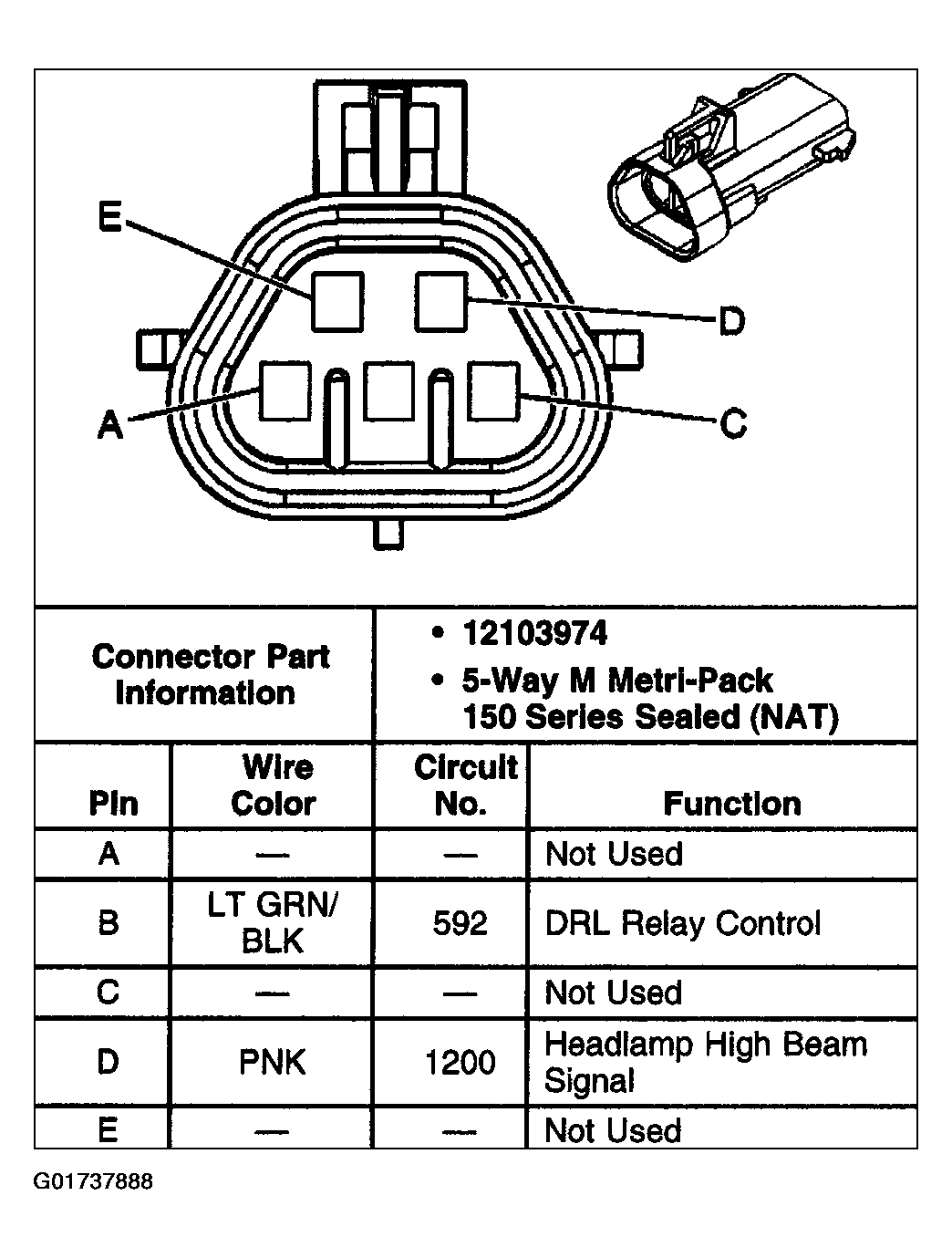

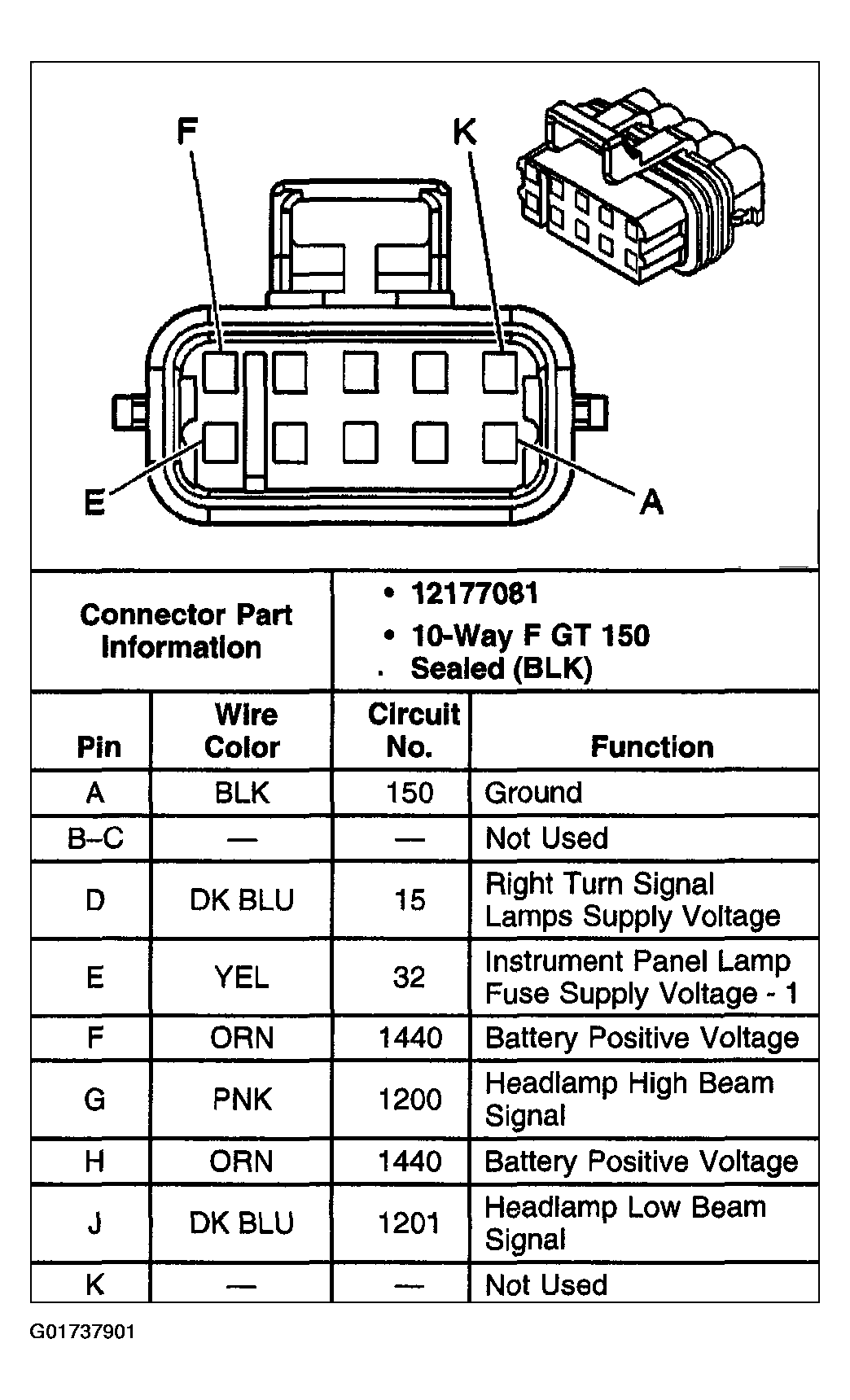

Fig 6: Identifying Emergency Vehicle Headlamp Flasher, C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

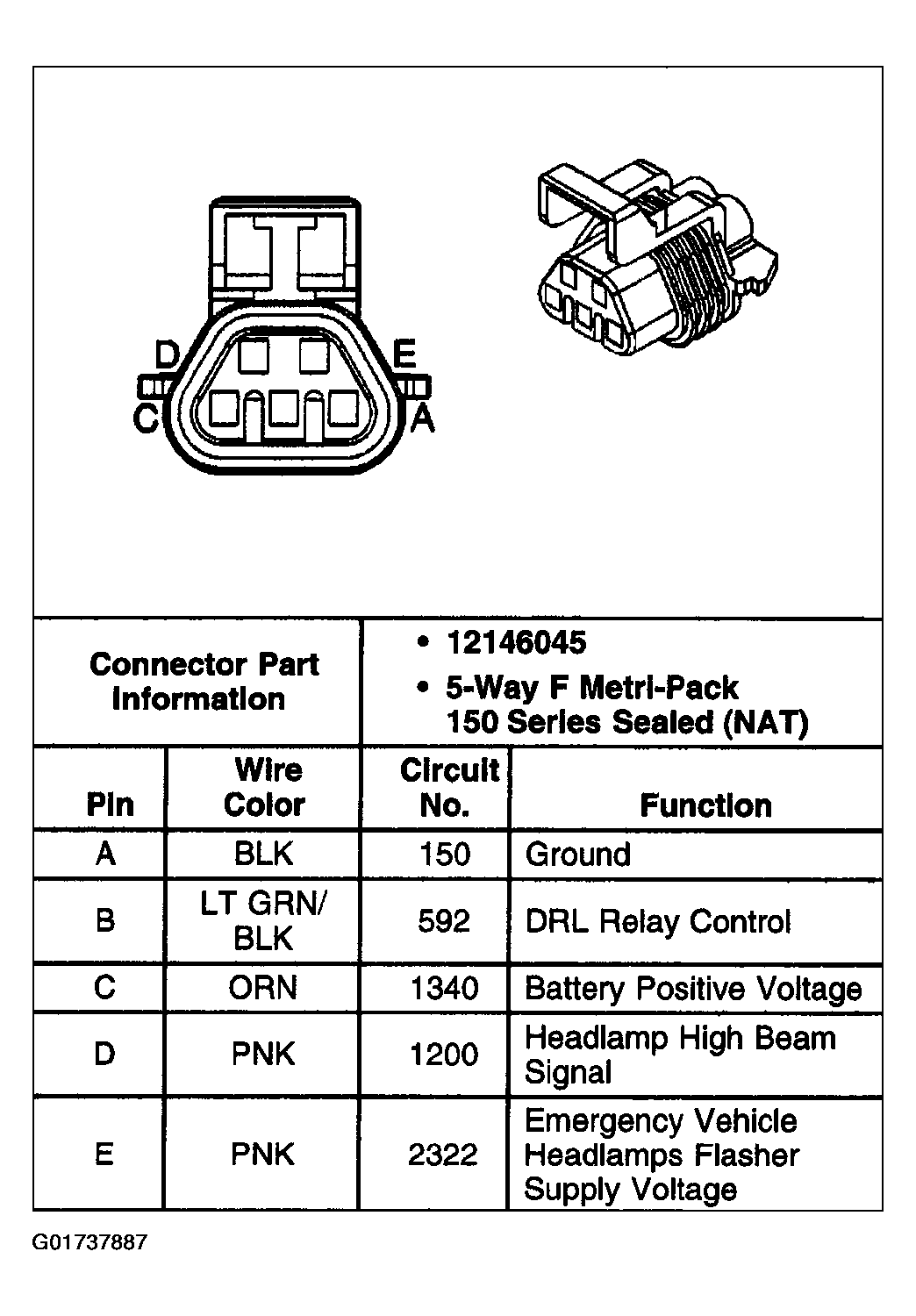

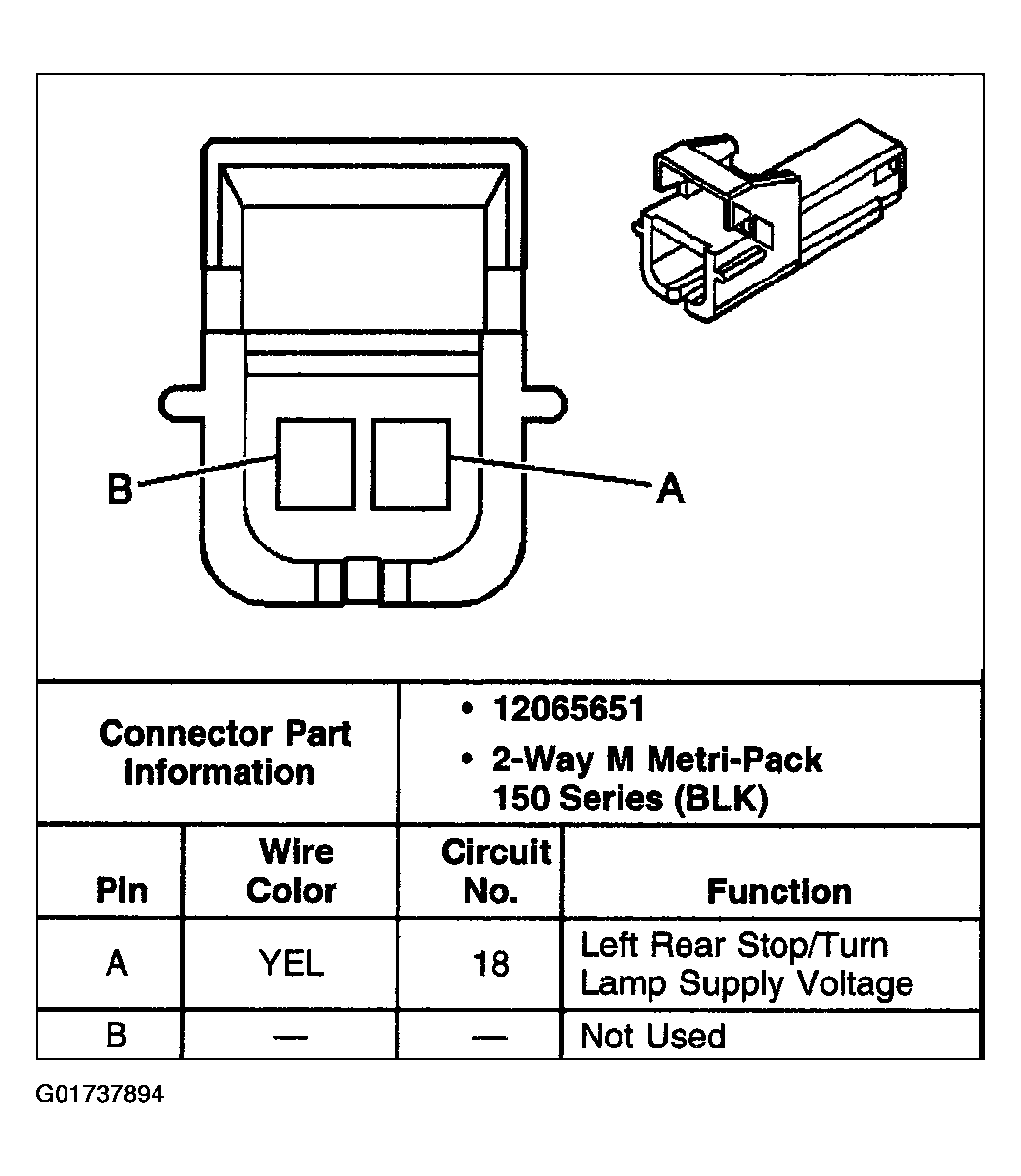

Fig 7: Identifying Emergency Vehicle Headlamp Flasher, C2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

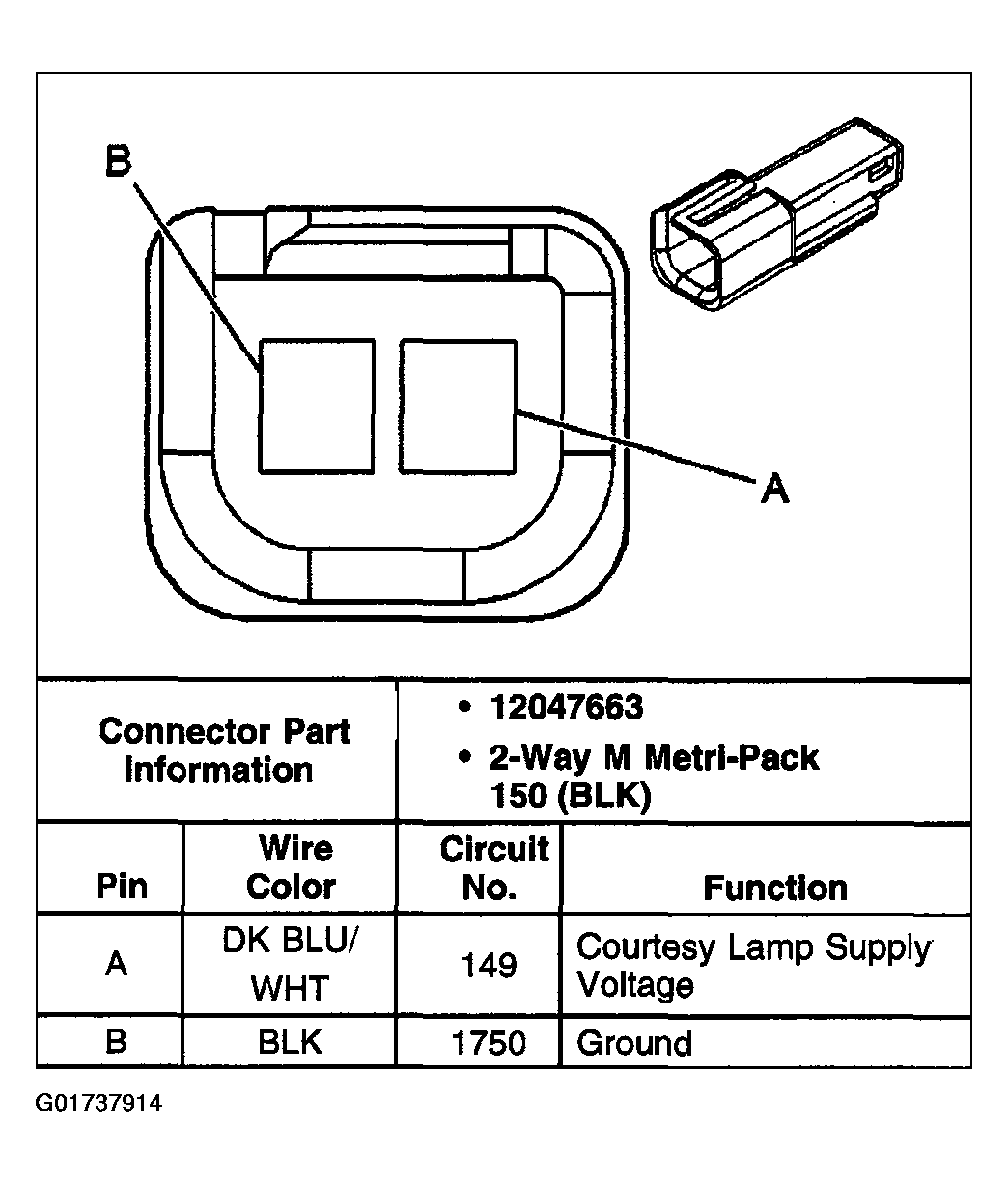

Fig 8: Identifying Emergency Vehicle Rear Compartment Lid Lamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

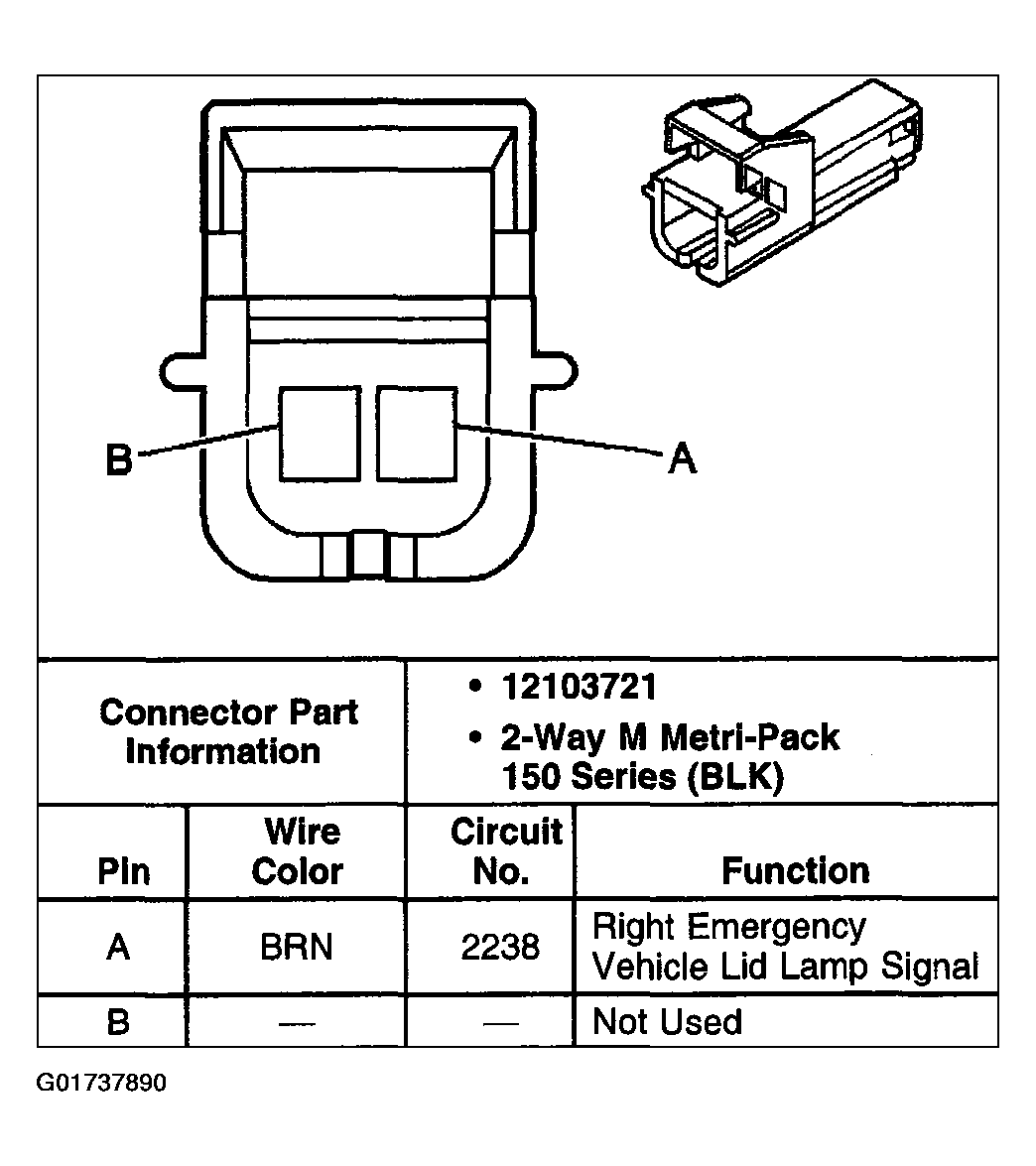

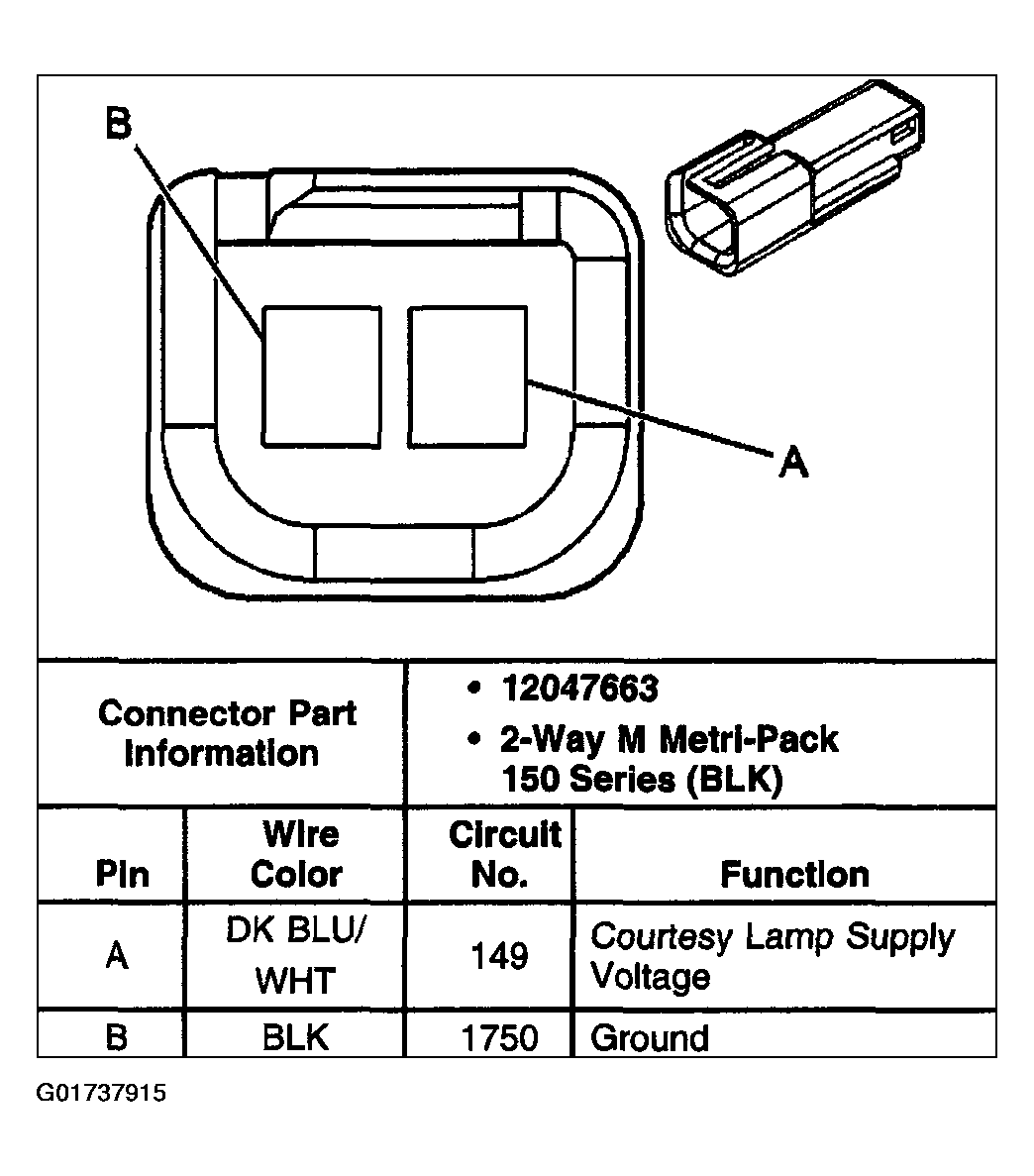

Fig 9: Identifying Emergency Vehicle Rear Compartment Lid Lamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

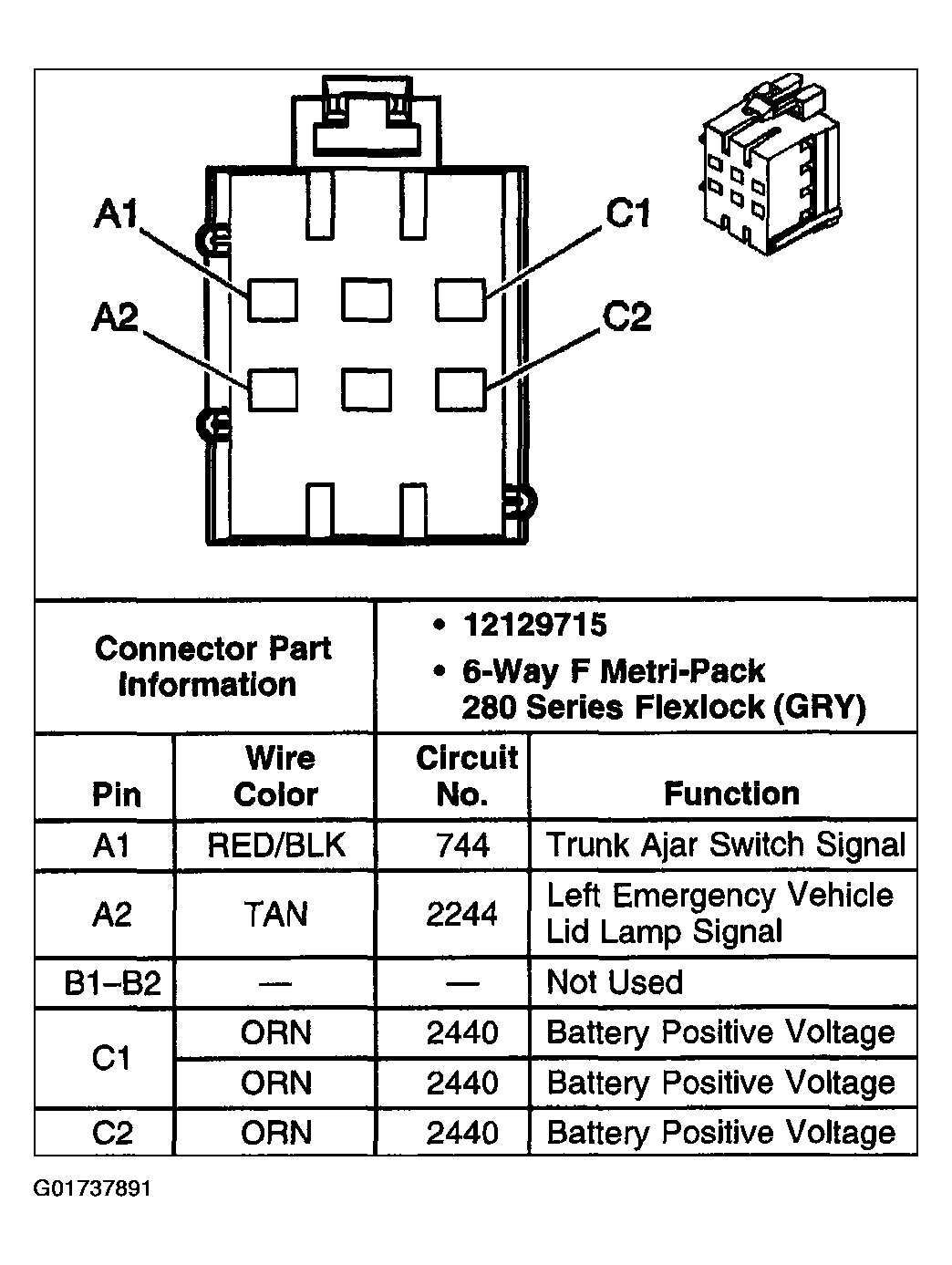

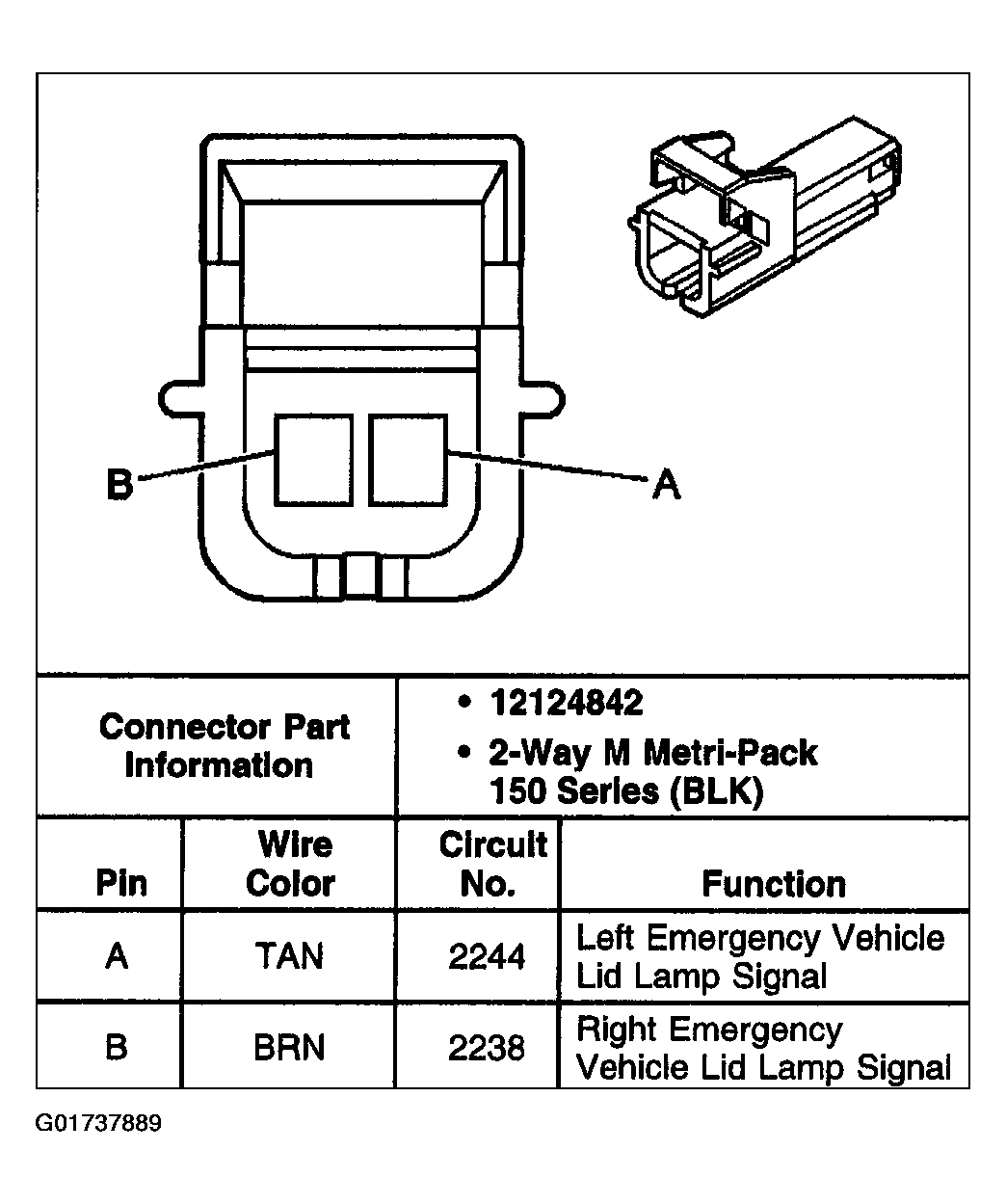

Fig 10: Identifying Emergency Vehicle Rear Compartment Lid Lamps Relay Connector Terminals
Courtesy of GENERAL MOTORS CORP.

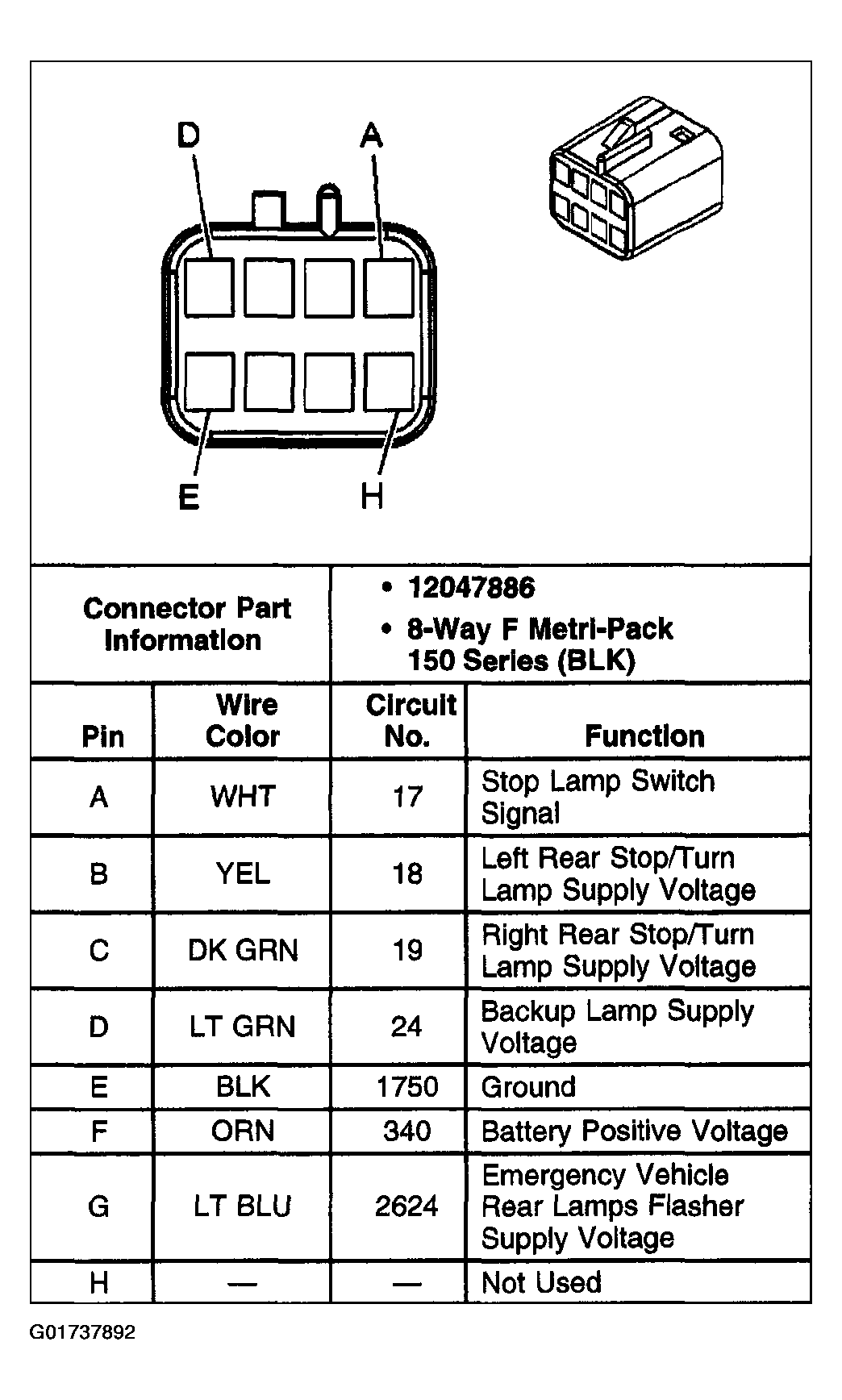

Fig 11: Identifying Emergency Vehicle Rear Lamps Flasher, C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

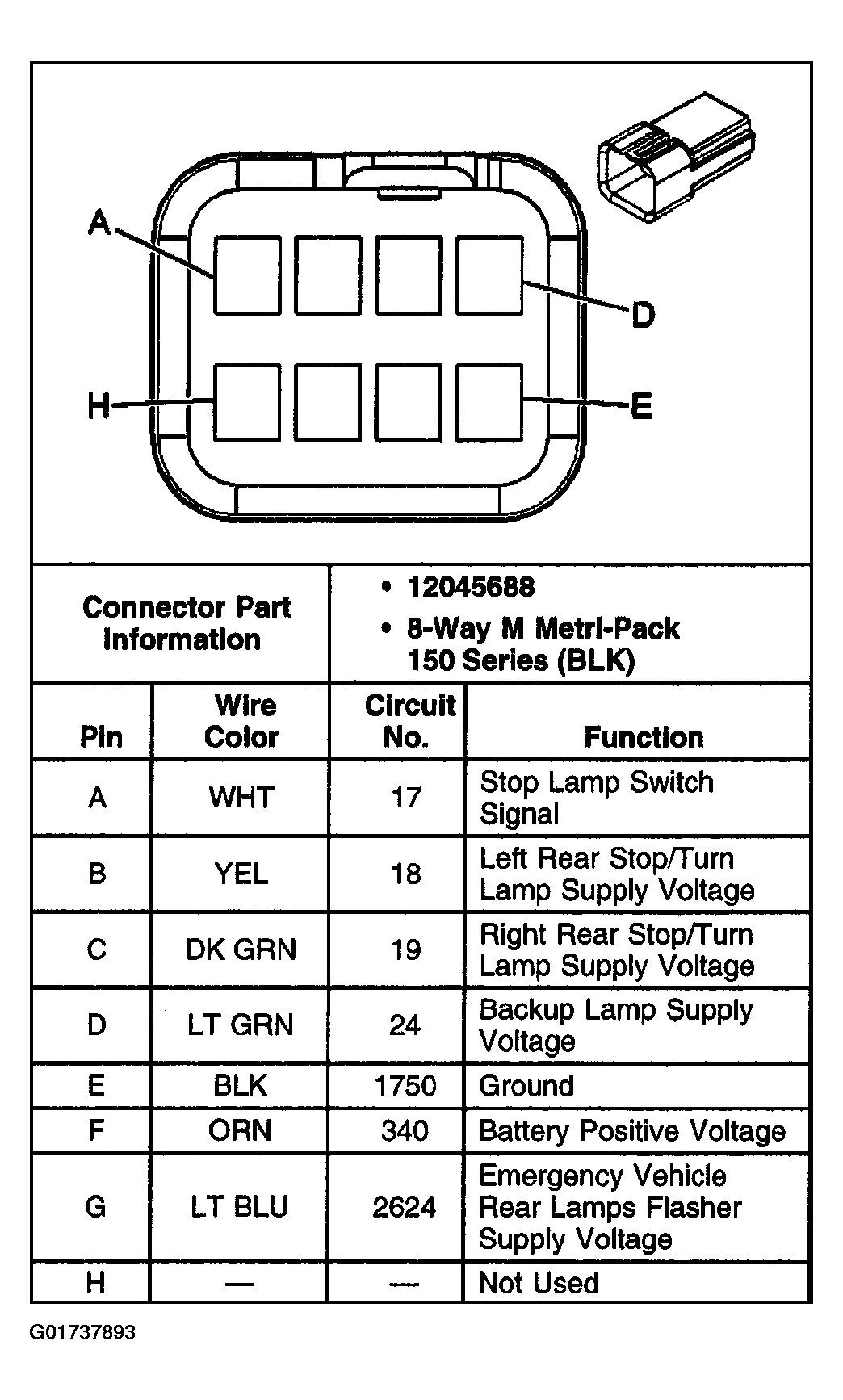

Fig 12: Identifying Emergency Vehicle Rear Lamps Flasher, C2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Emergency Vehicle Rear Window Panel Lamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Emergency Vehicle Rear Window Panel Lamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

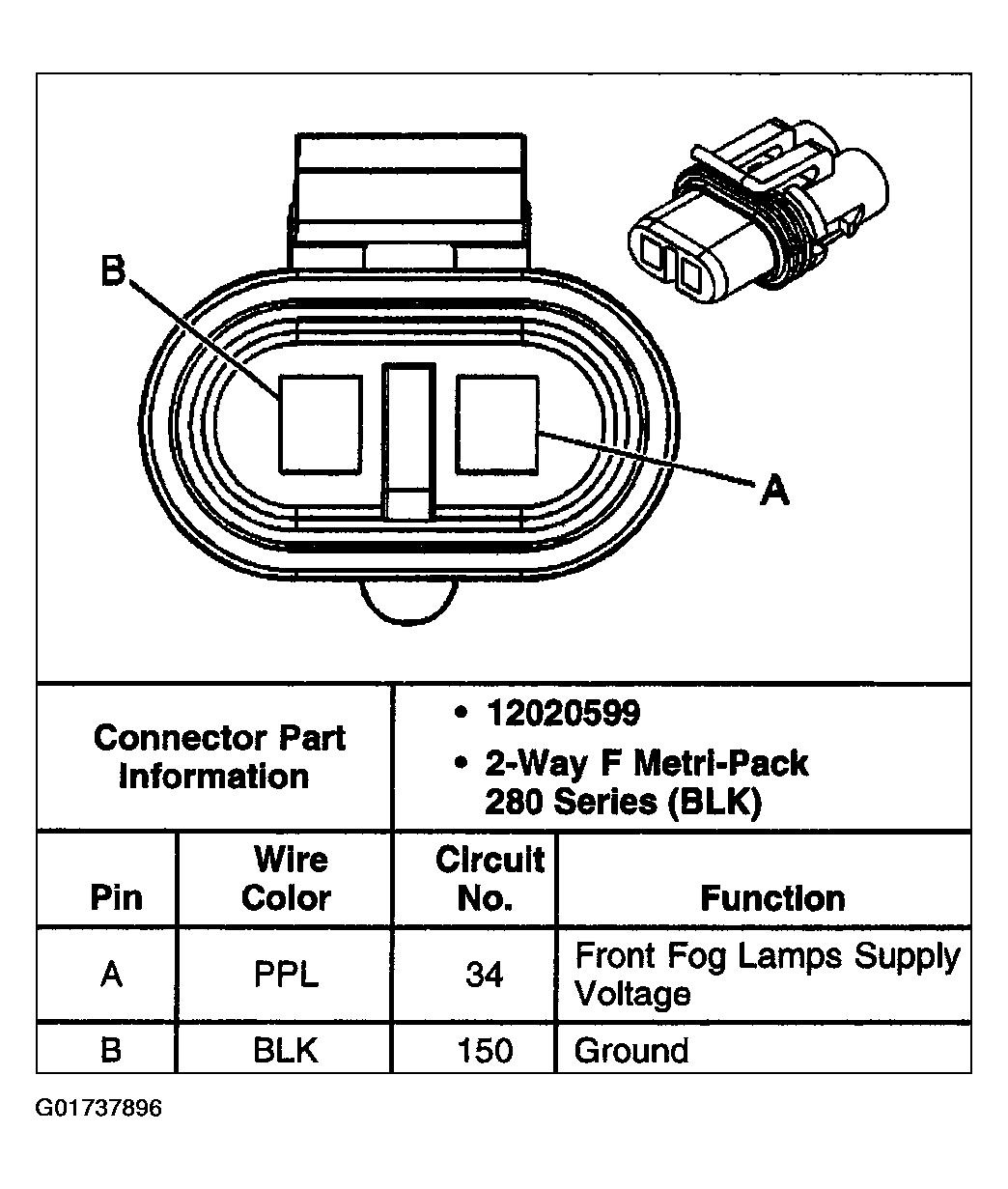

Fig 15: Identifying Fog Lamp - LF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Fog Lamp - RF Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Fog Lamp Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Hazard Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Headlamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Headlamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

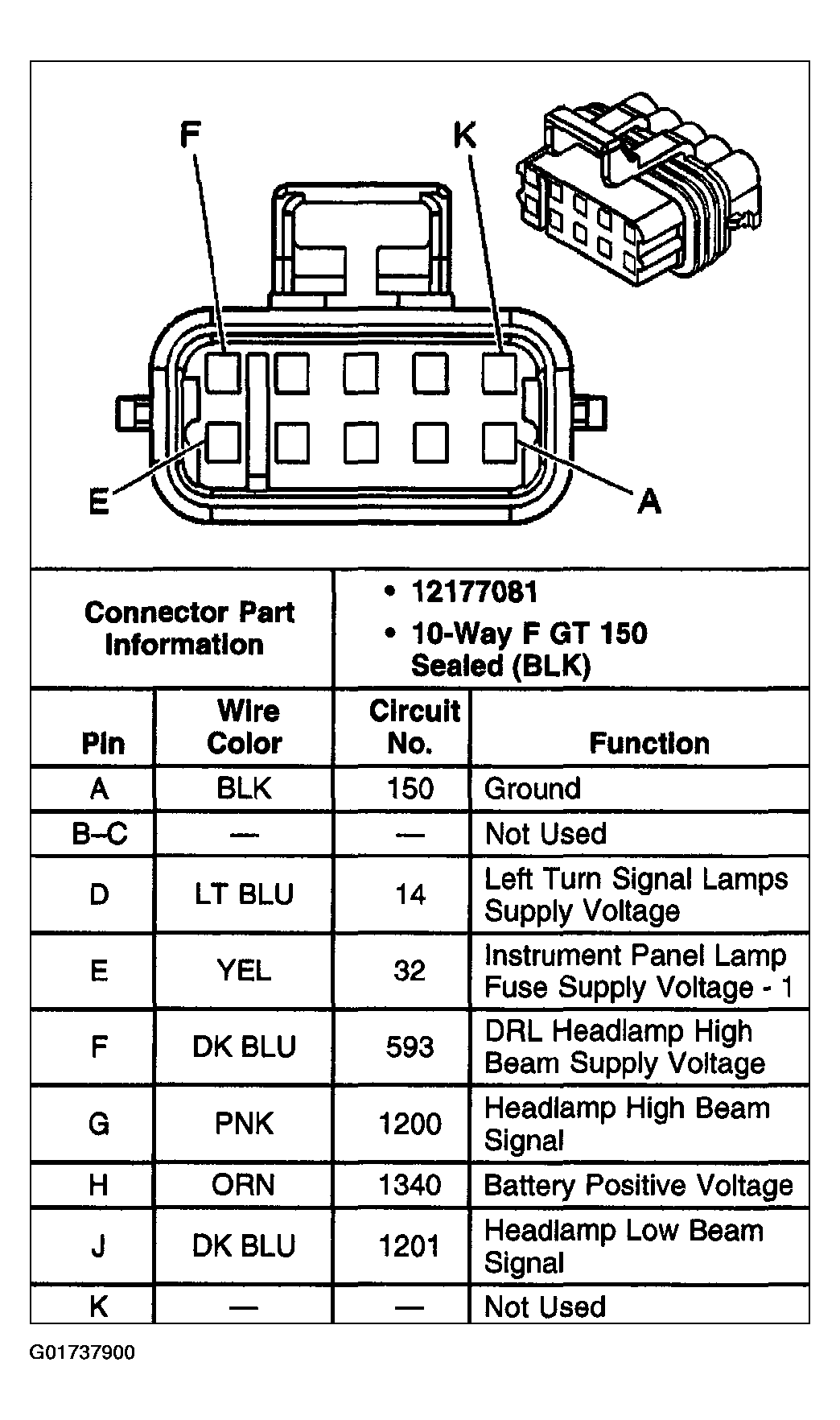

Fig 21: Identifying Headlamp Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying I/P Compartment Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

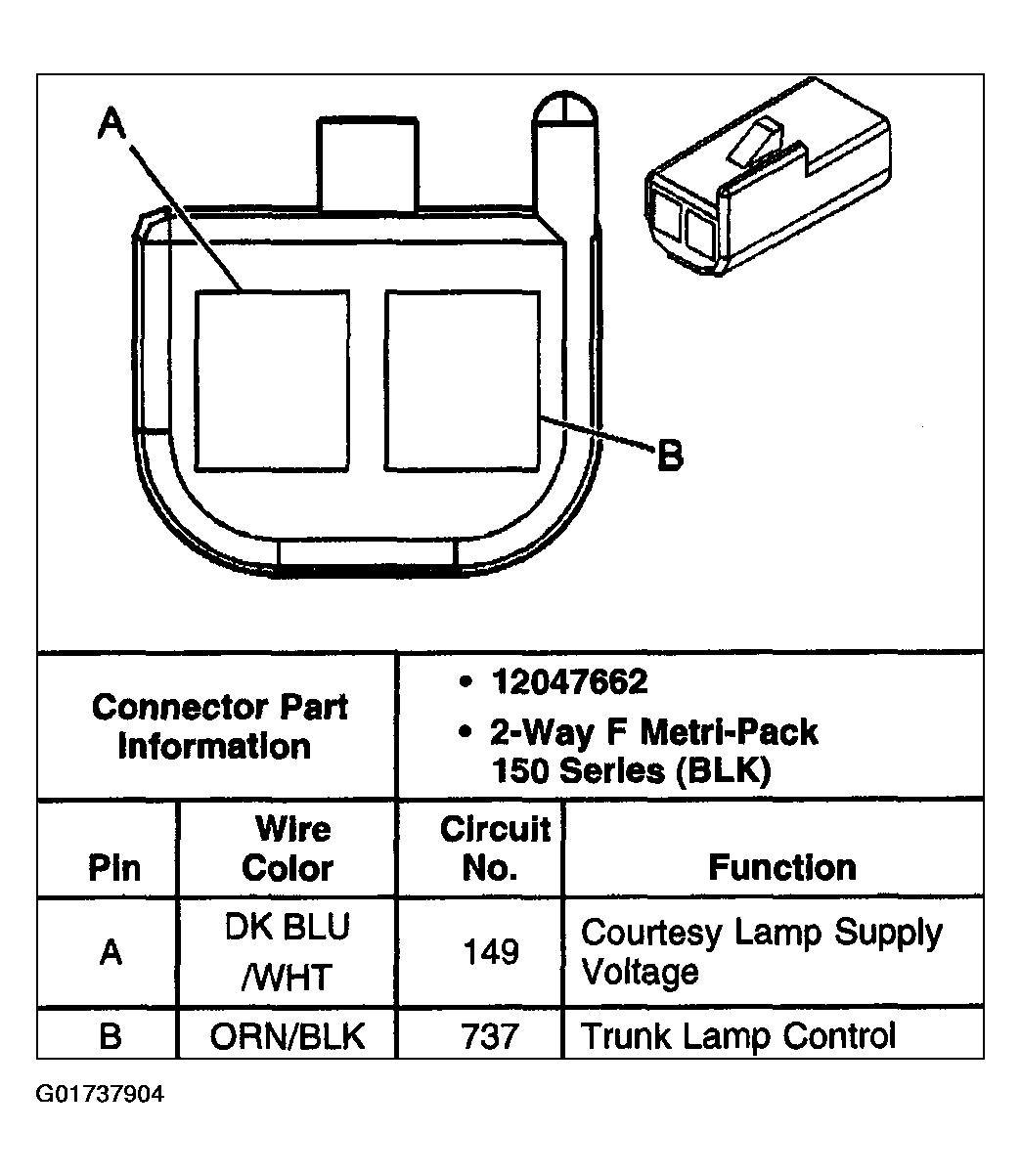

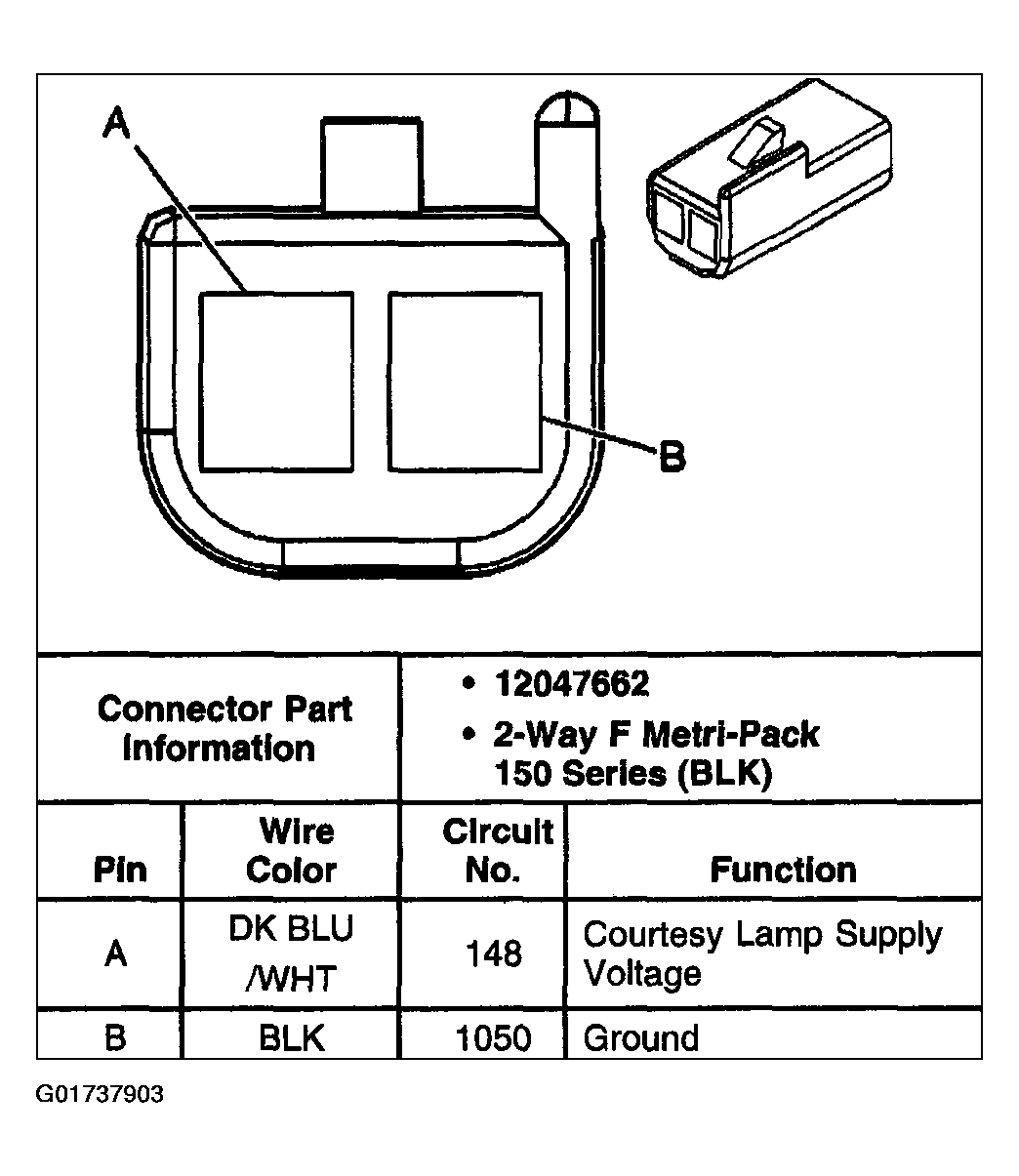

Fig 23: Identifying Rear Compartment Courtesy Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

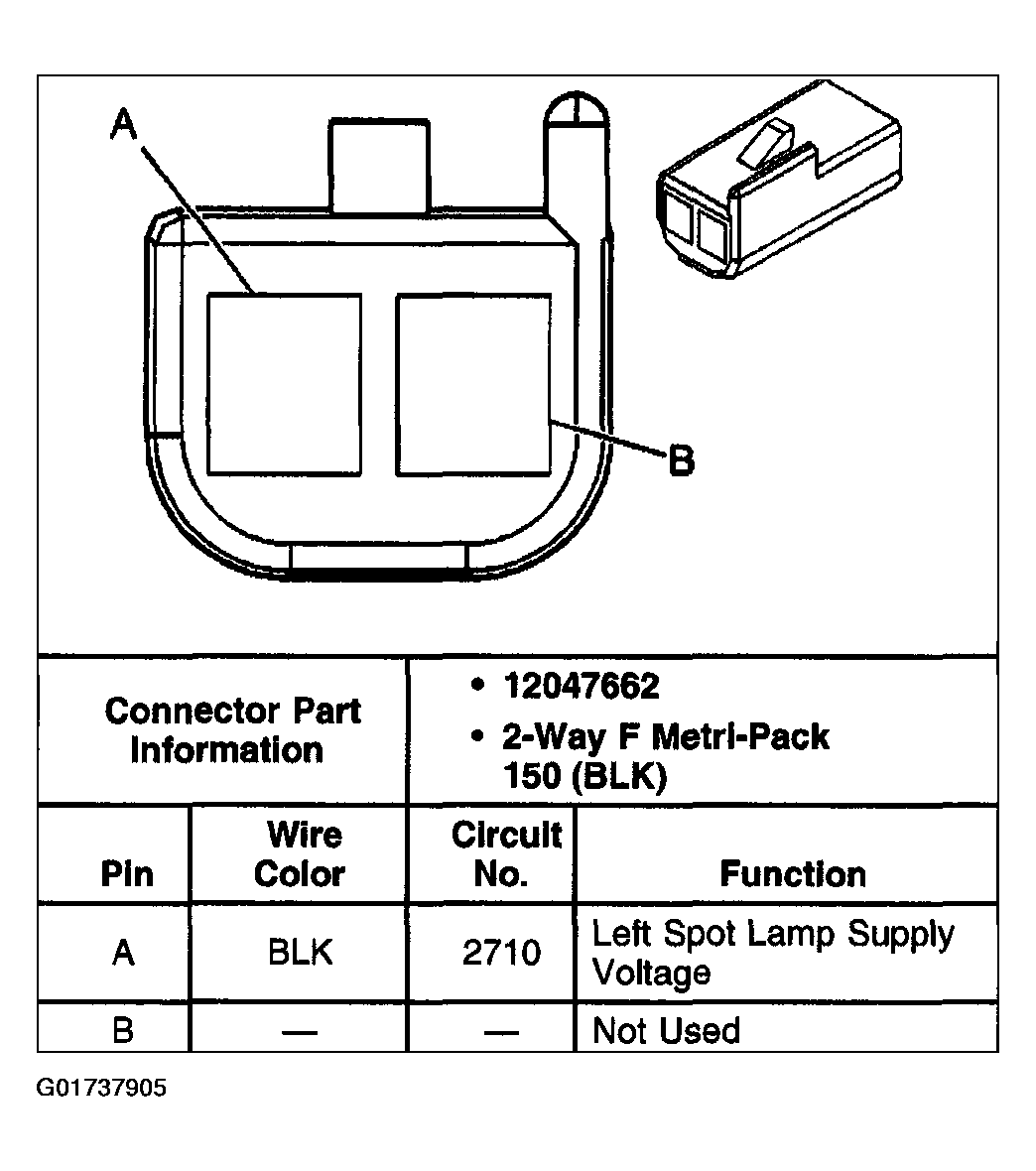

Fig 24: Identifying Spot Lamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

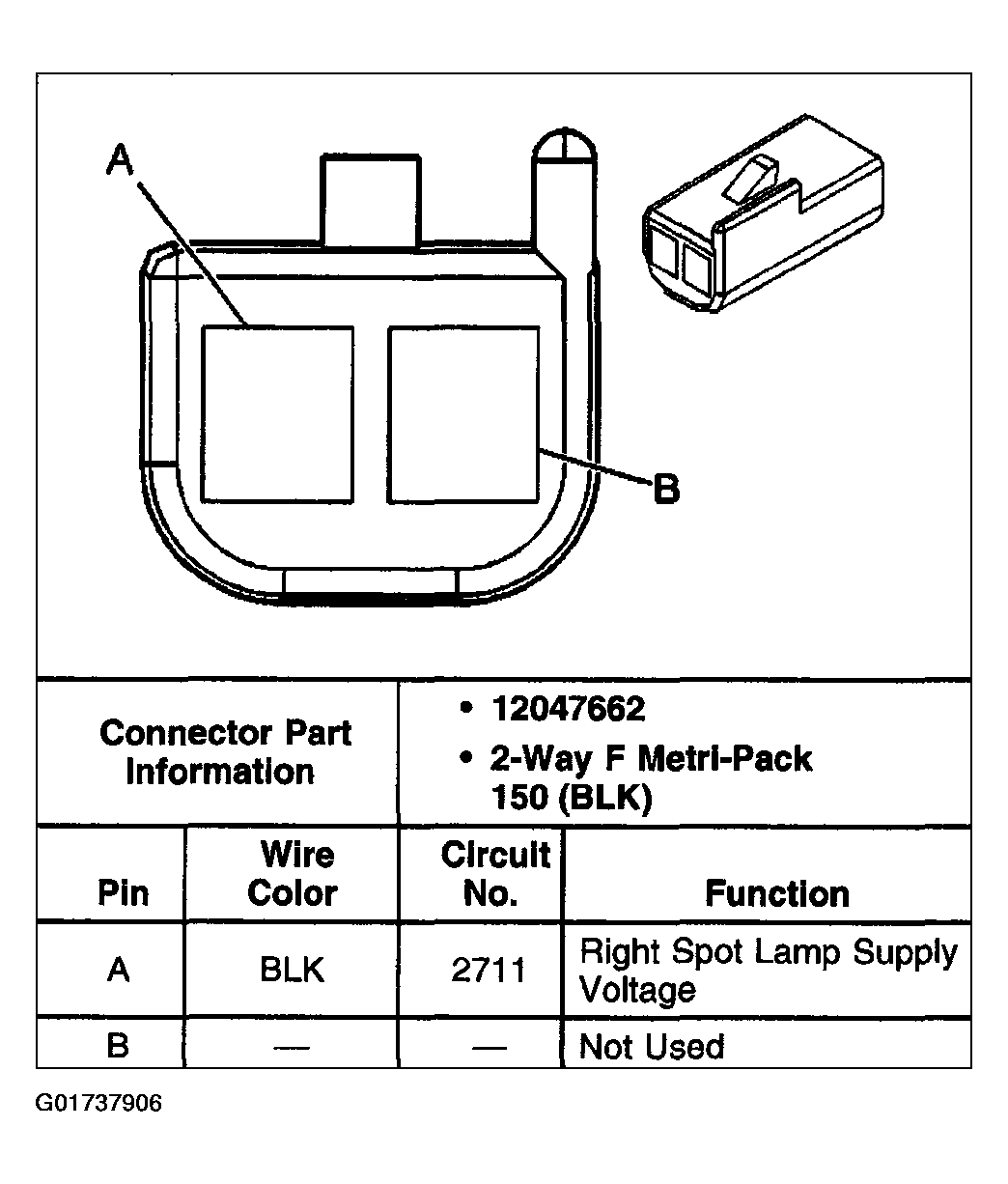

Fig 25: Identifying Spot Lamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

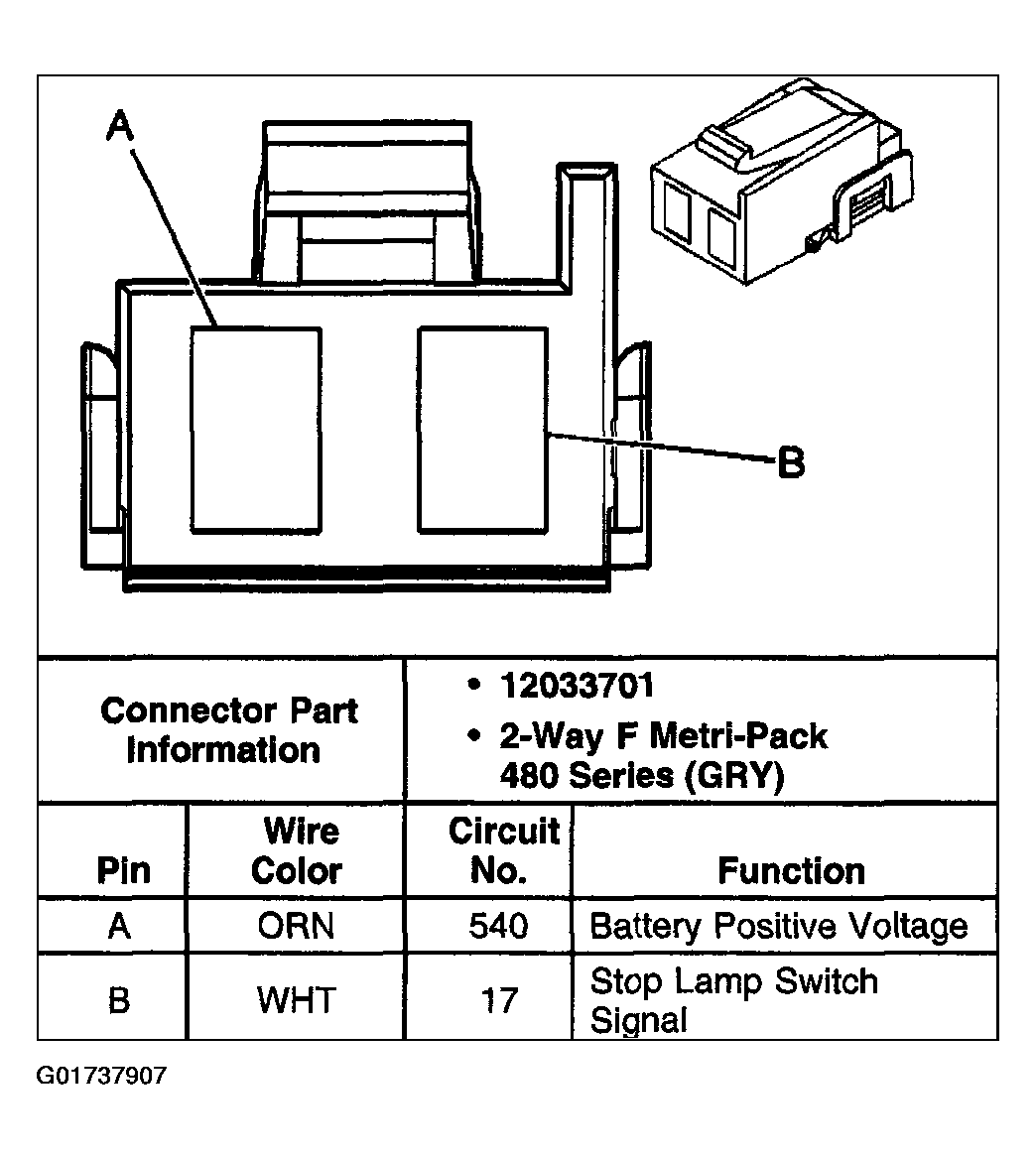

Fig 26: Identifying Stop Lamp Switch, C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying Stop Lamp Switch, C2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Surveillance Mode Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

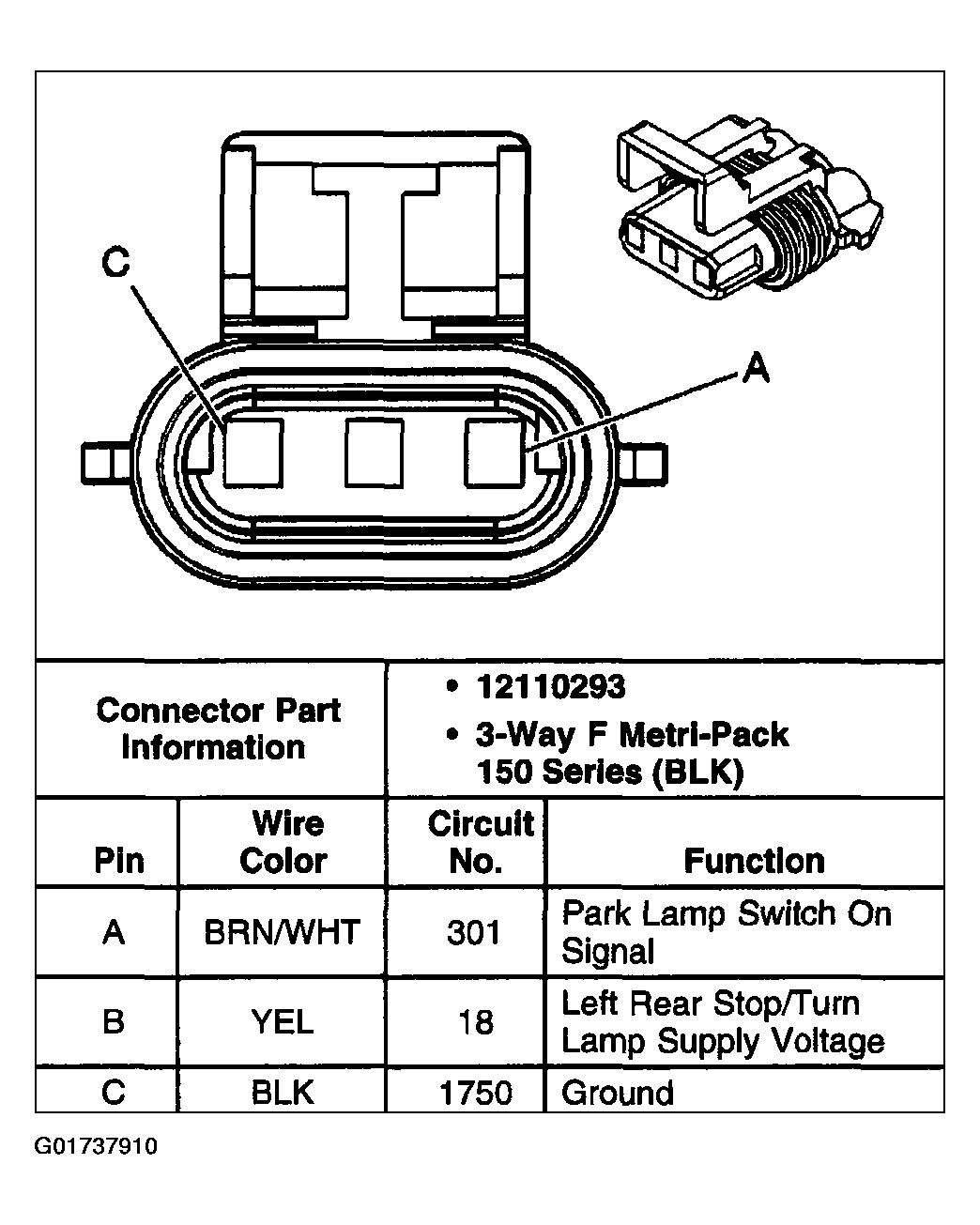

Fig 29: Identifying Tail Lamp (Left) Connector Terminals (Impala)
Courtesy of GENERAL MOTORS CORP.

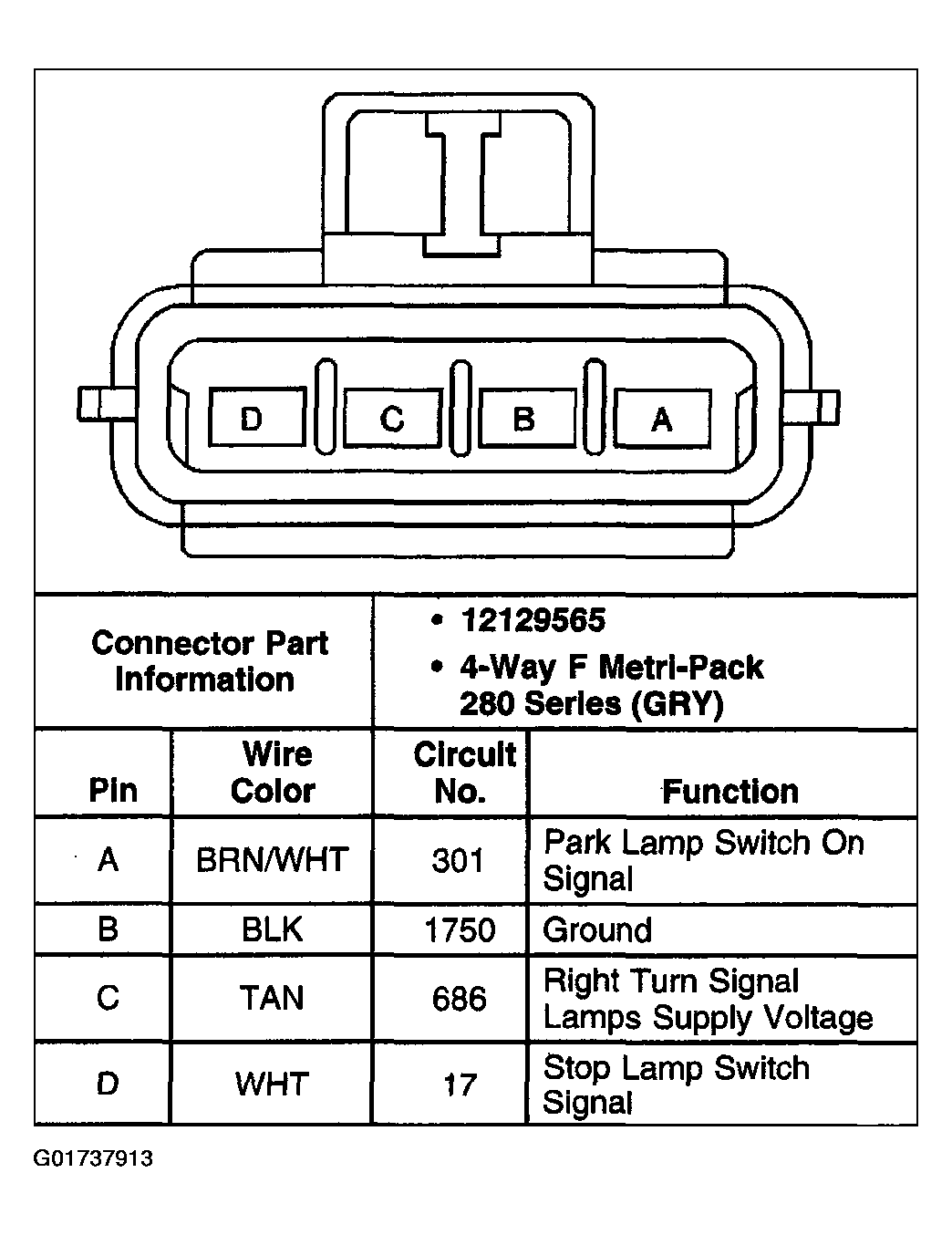

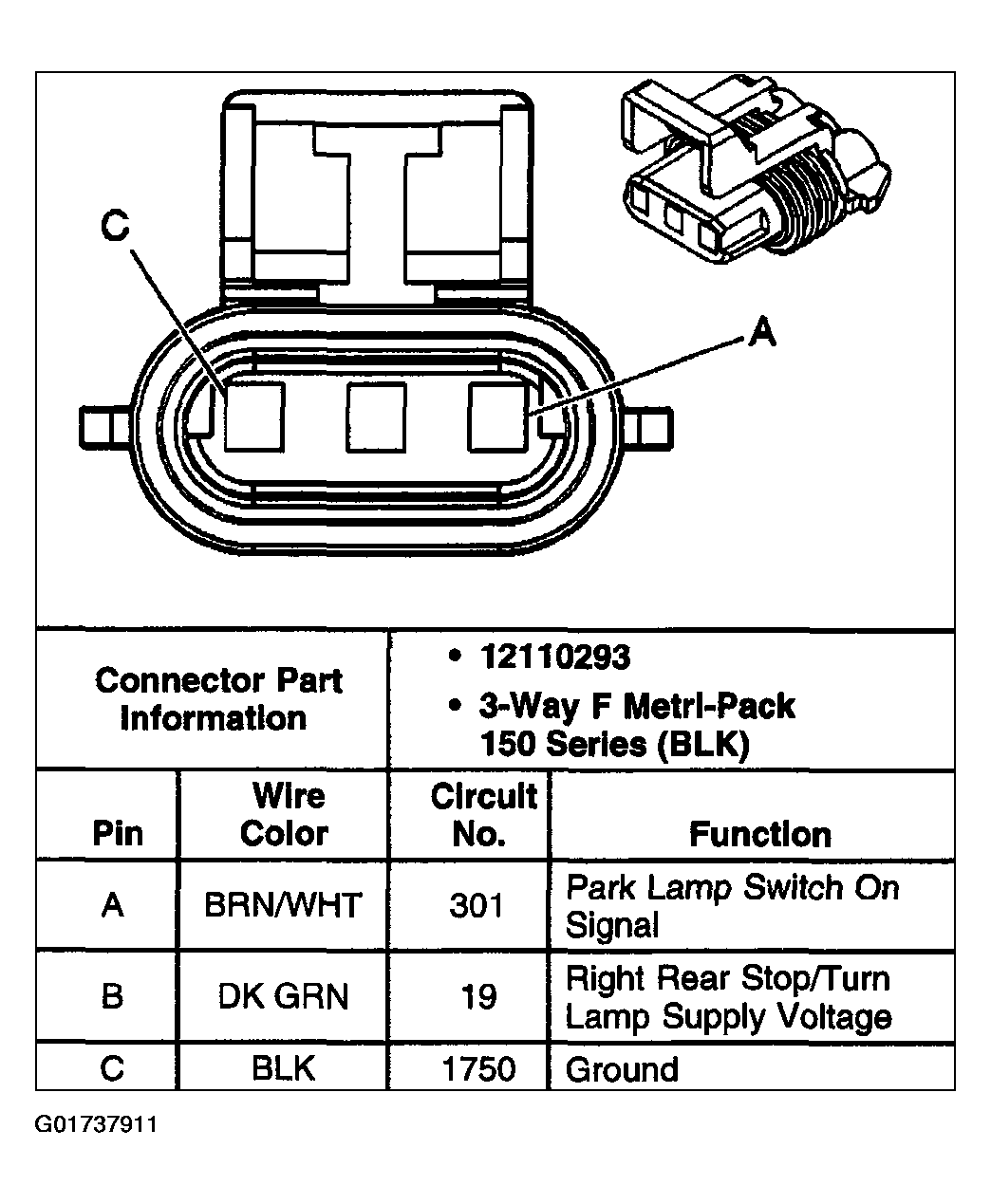

Fig 30: Identifying Tail Lamp (Right) Connector Terminals (Impala)
Courtesy of GENERAL MOTORS CORP.

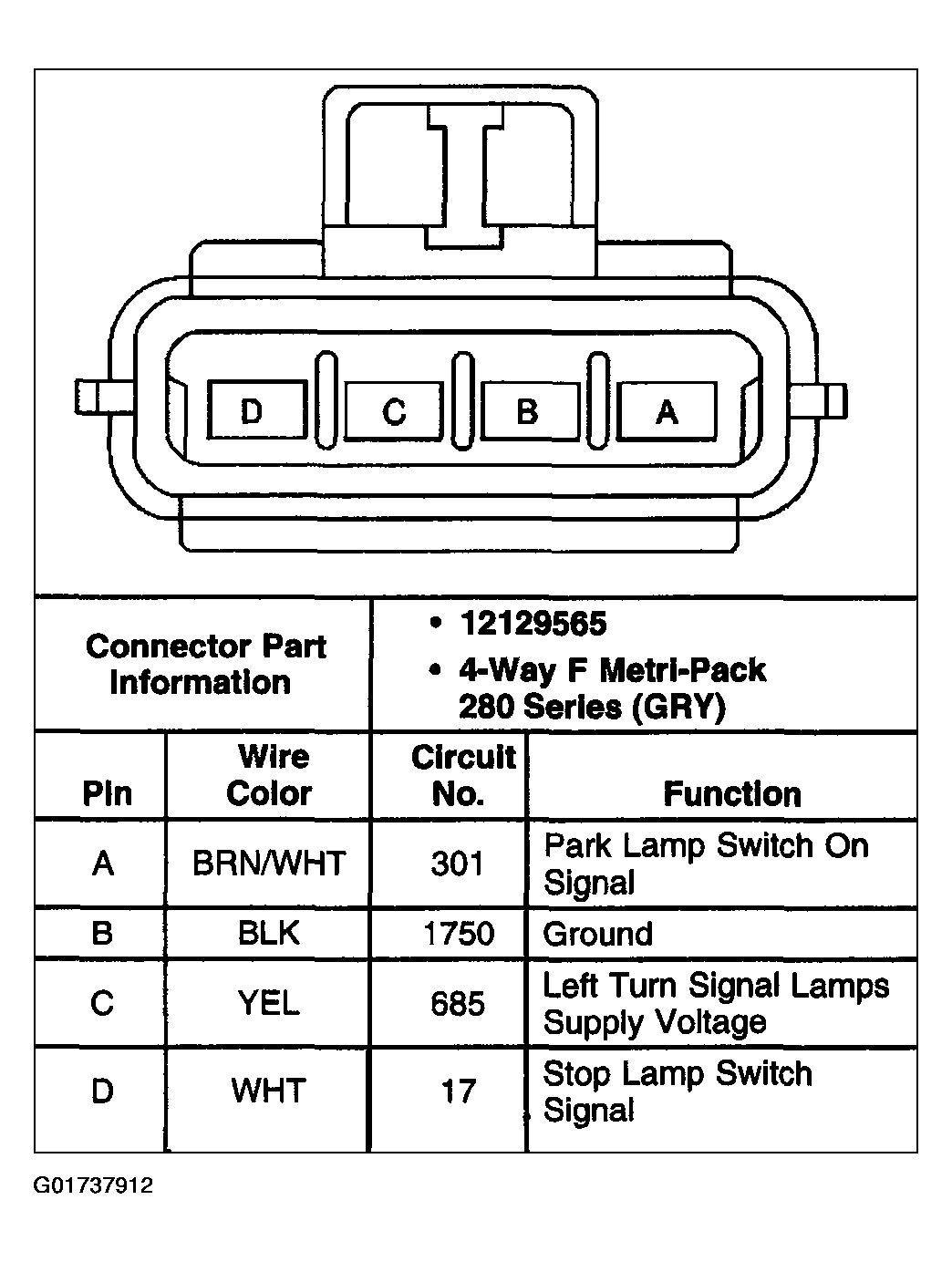

Fig 31: Identifying Tail Lamp (Left) Connector Terminals (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.

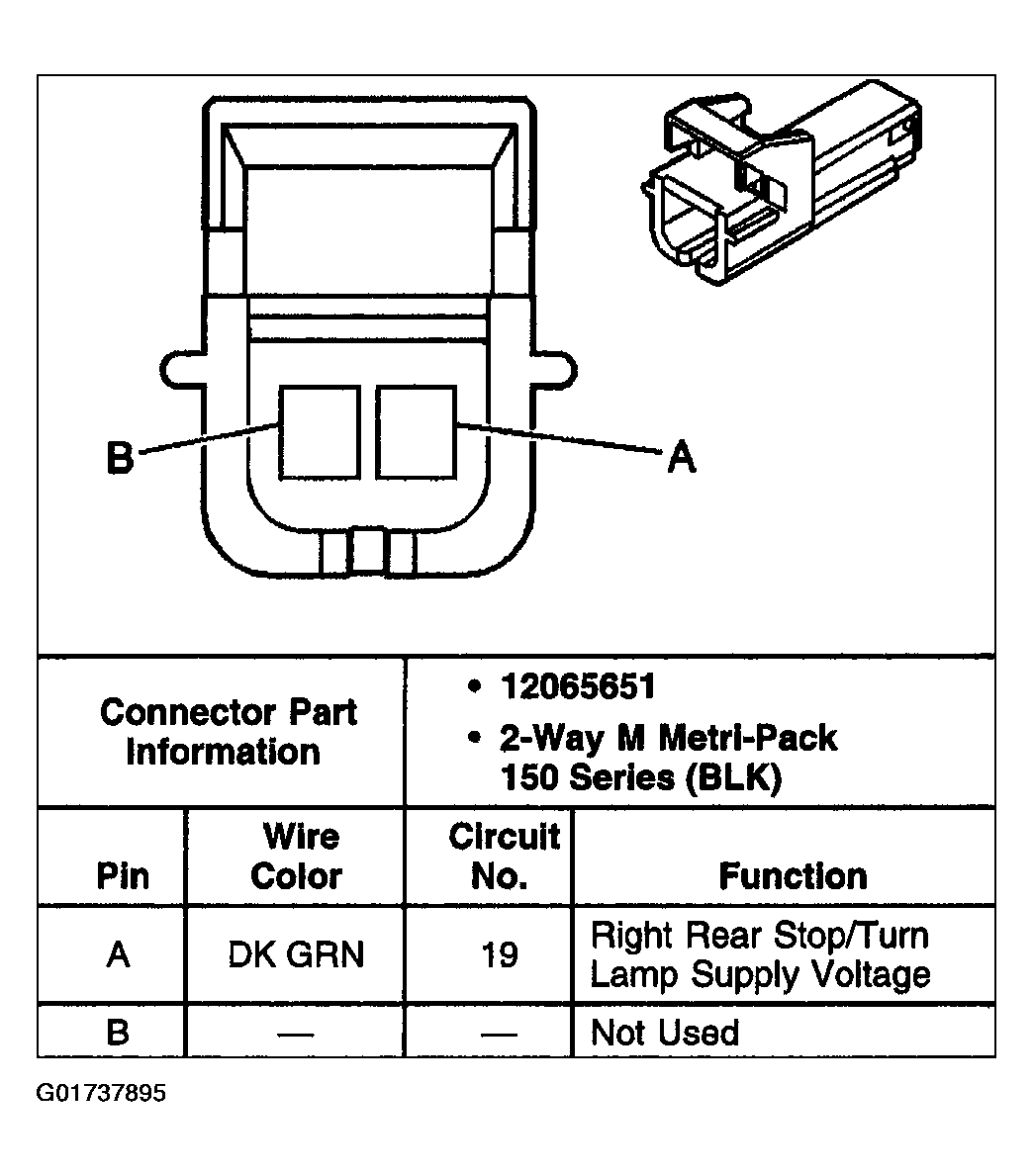

Fig 32: Identifying Tail Lamp (Right) Connector Terminals (Monte Carlo)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Vanity Mirror Lamp (Left) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying Vanity Mirror Lamp (Right) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
