Left Instrument Panel Fuse Block

NOTE: Left instrument panel fuse block is located on driver's side end of instrument panel. See Fig 1 .

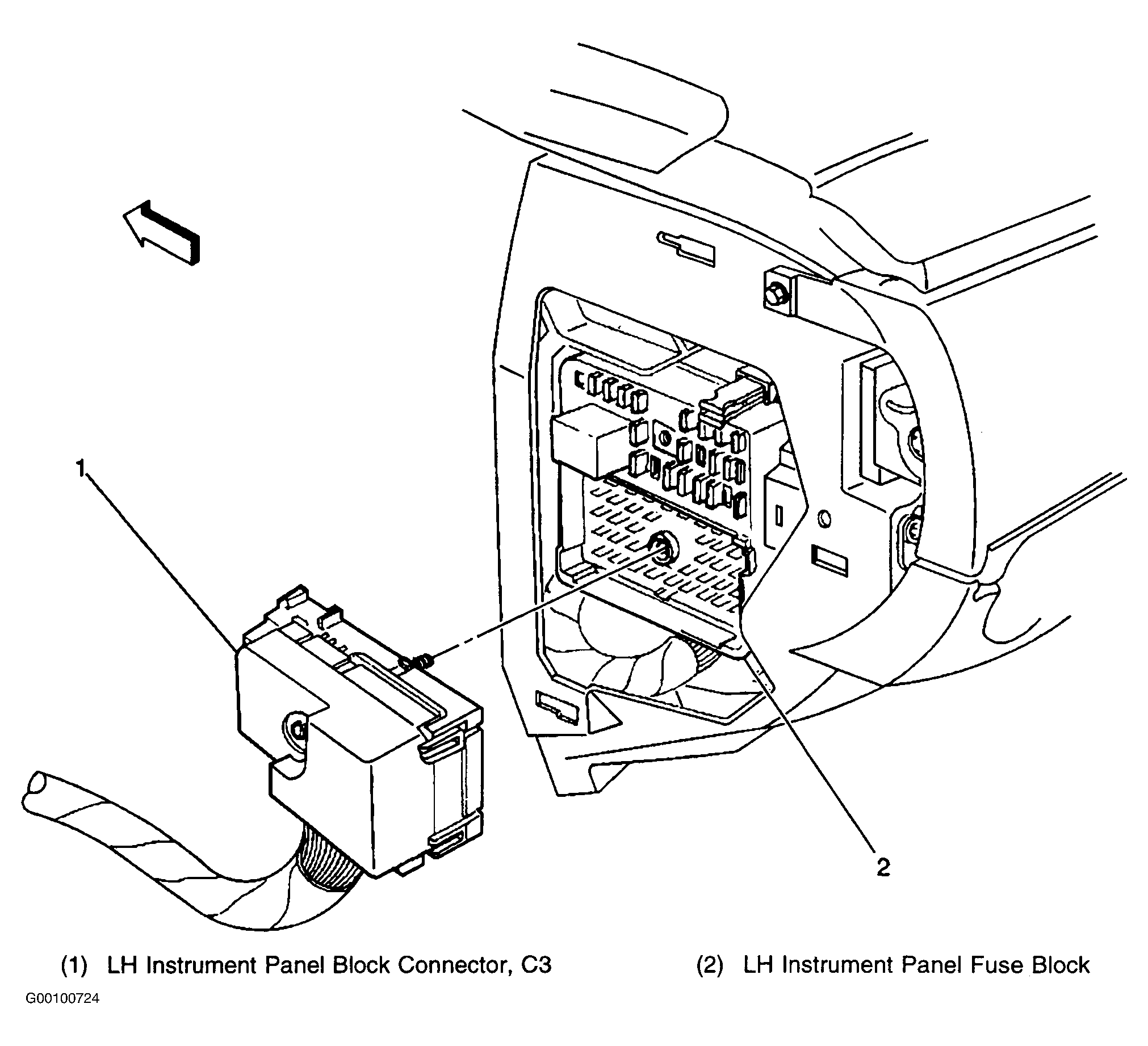

Fig 1: Locating Left Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Left Instrument Panel Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

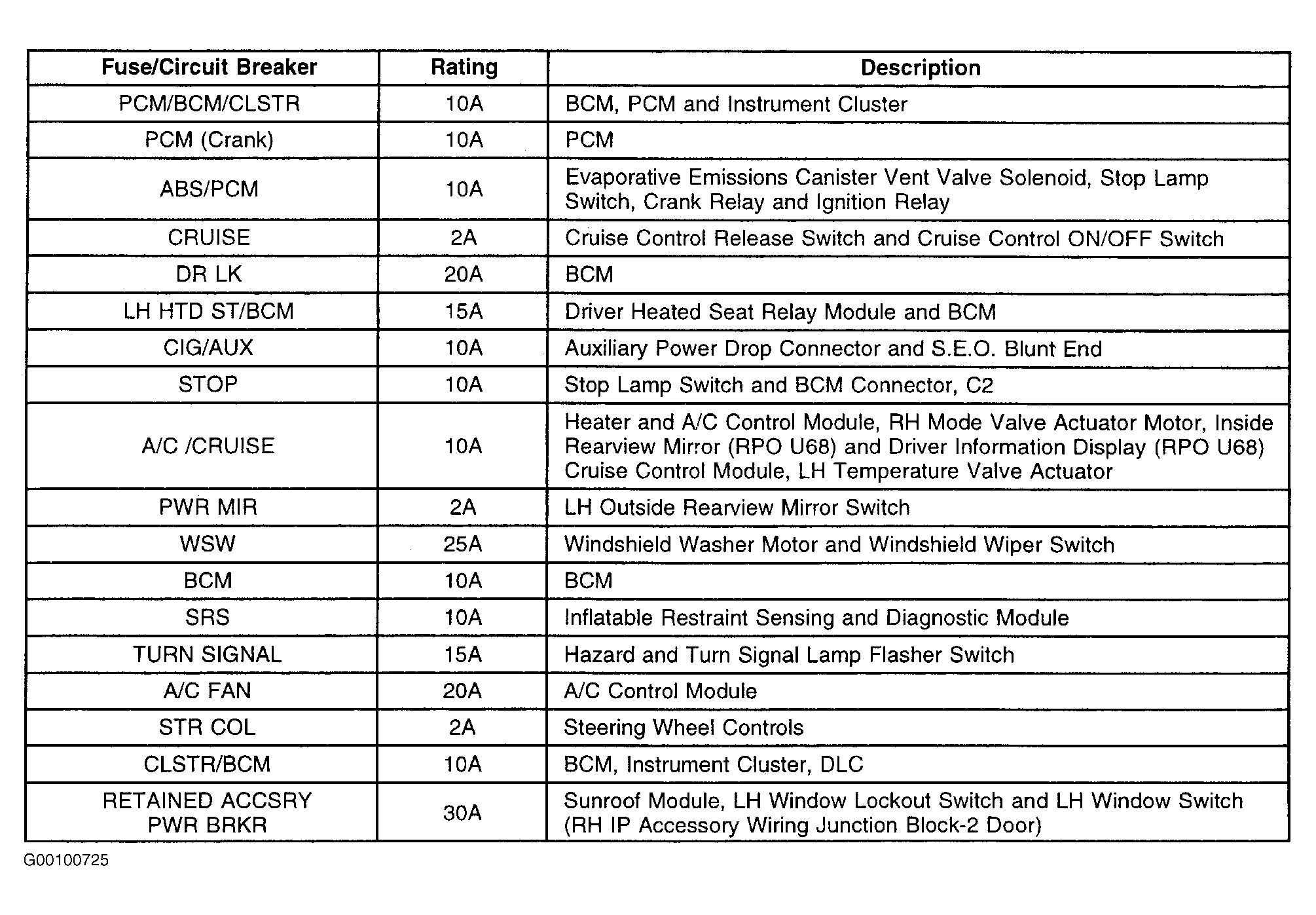

Fig 3: Left Instrument Panel Fuse Block Legend

Courtesy of GENERAL MOTORS CORP.
