COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|
| Door Control Module (DCM) | Bottom Front Of Respective Door | ||

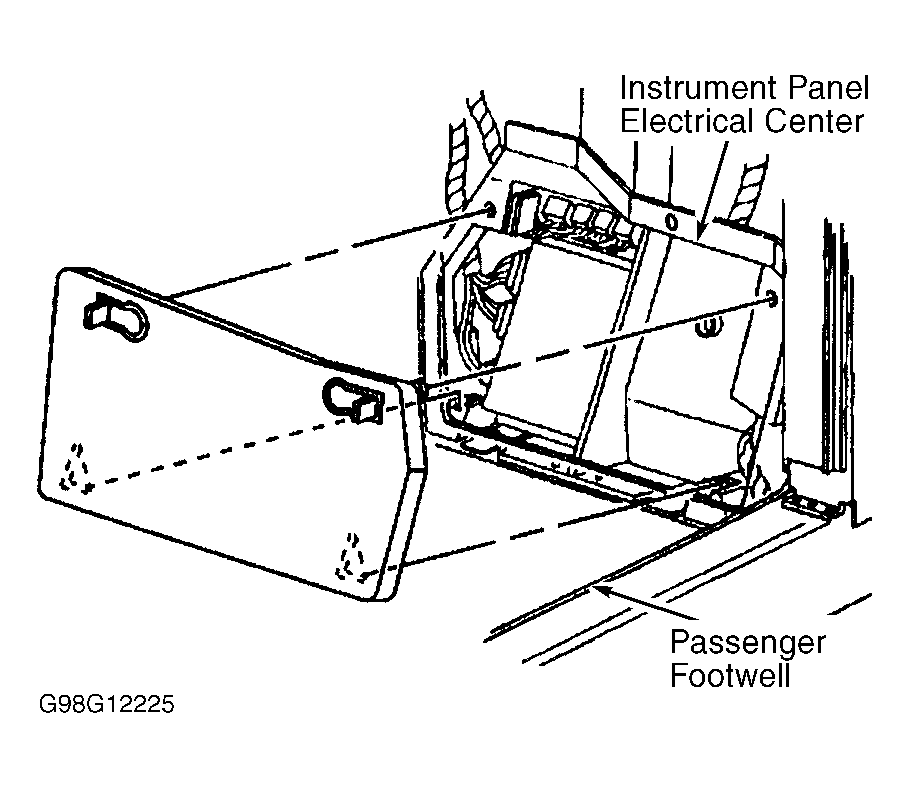

| Instrument Panel Electrical Center | (1) Top Of Passenger's Footwell, Behind Carpet | ||
| Seat Lower & Upper Motors | Under Respective Front Seat | ||
| Seat Control Module (SCM) | Under Driver's Seat | ||
| Seat Relay Center | Under Respective Front Seat | ||
|
|||
