Cooling System Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue, 2001 Oldsmobile Intrigue, and 2000 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

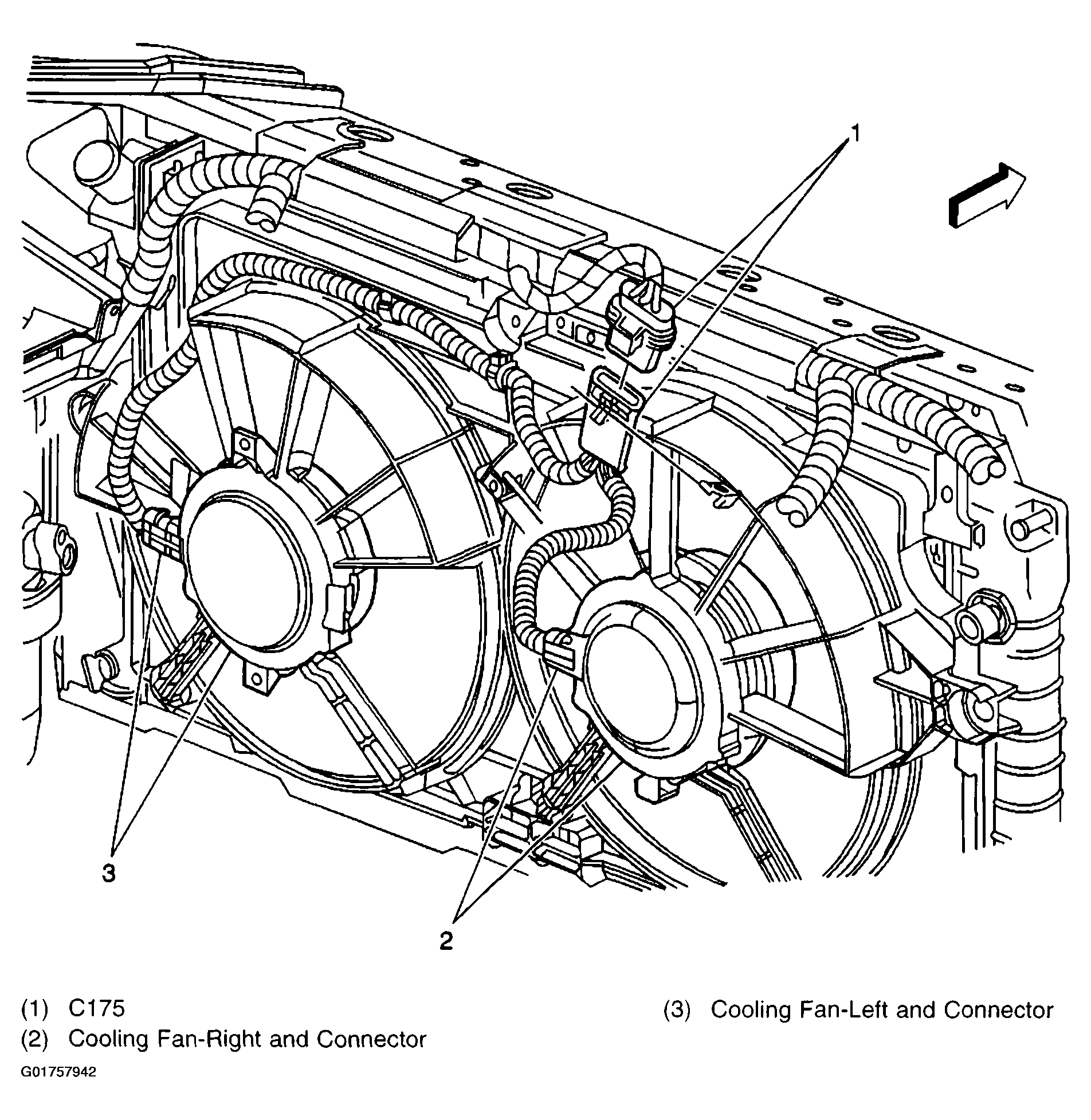

Fig 1: Front of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

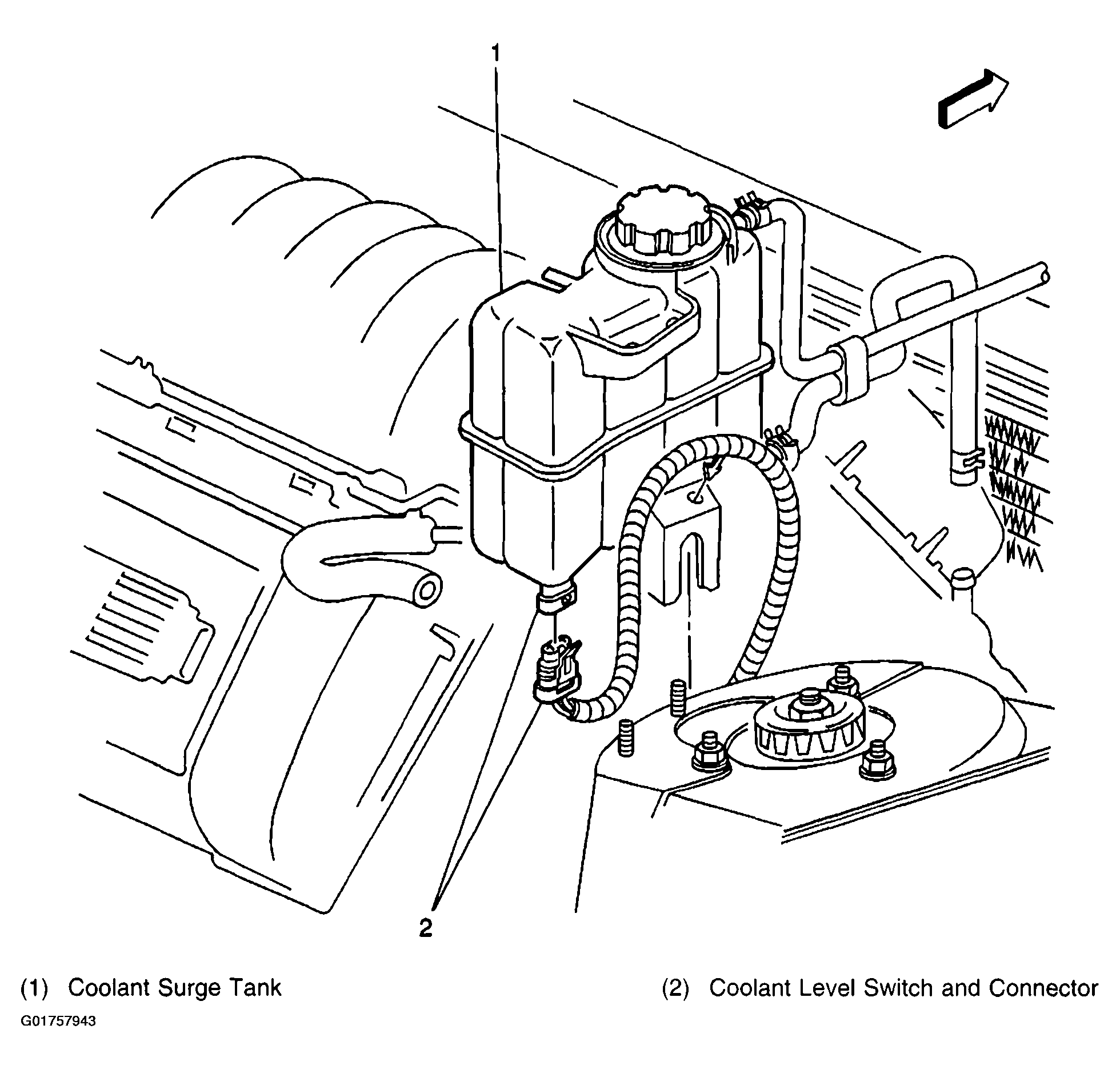

Fig 2: Right Center of Engine Compartment

Courtesy of GENERAL MOTORS CORP.
