Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the strut.
NOTE: FASTENER NOTICE
Install the strut upper nuts.
Tighten

Tighten the strut upper nuts to 33 N.m (24 lb ft).

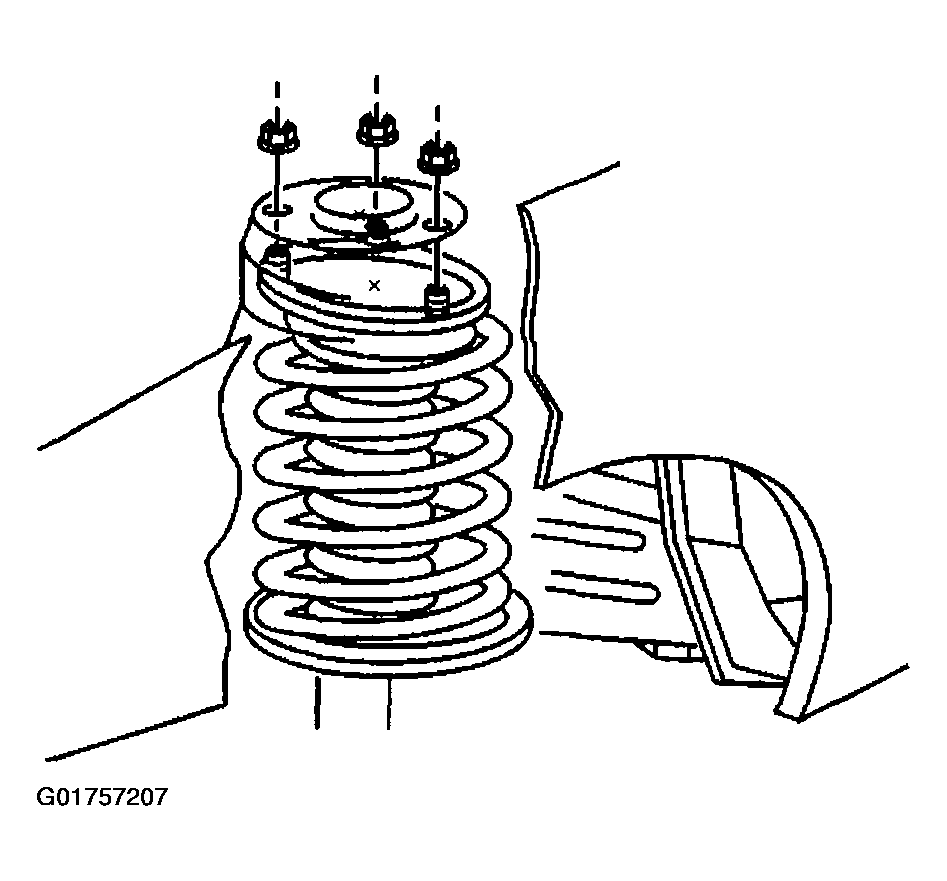

Fig 1: Installing Strut Upper Nuts
Courtesy of GENERAL MOTORS CORP.
Install the strut lower bolts and nuts.
Important: This is a prevailing torque type fastener. This fastener may be reused ONLY if:
- The fastener and its counterpart are clean and free from rust.
- The fastener develops 3 N.m (27 lb in) of torque/drag against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.
Align the strut to the mark on the knuckle.
Tighten

Tighten the strut lower nuts to 122 N.m (90 lb ft).
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.
Align the front wheels.

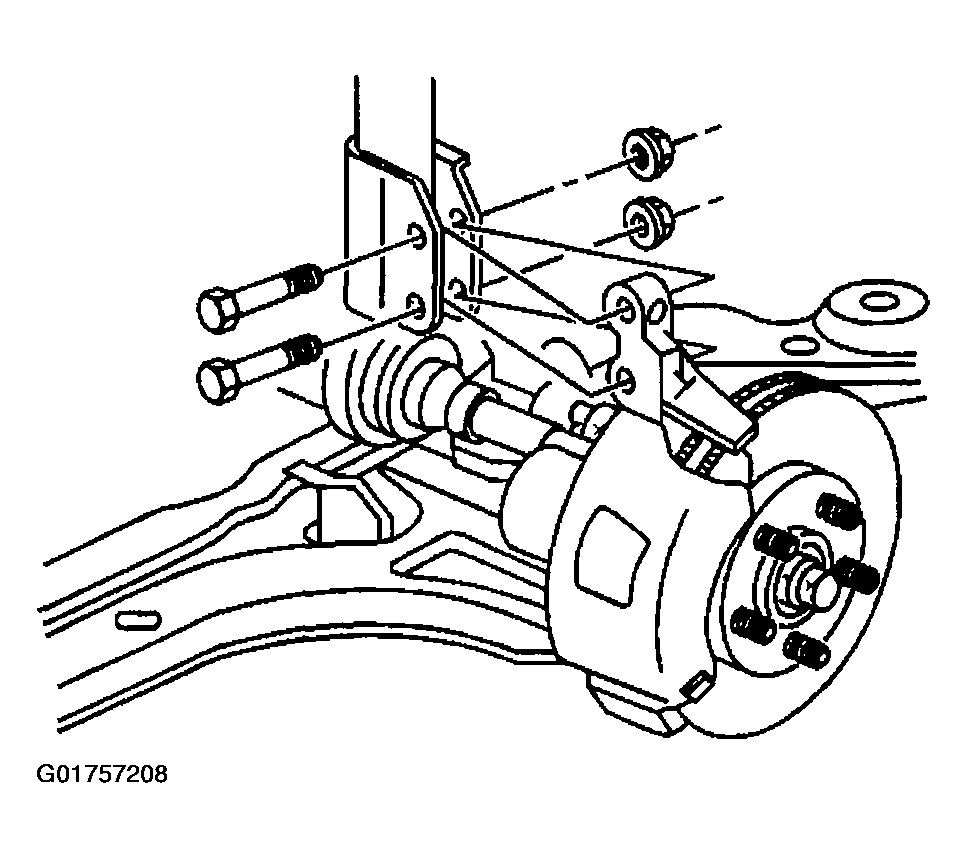

Fig 2: Installing Strut Lower Nuts
Courtesy of GENERAL MOTORS CORP.
