Disassembly Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut from the vehicle. Refer to STRUT ASSEMBLY REPLACEMENT
  2. Install the strut (1) in the J 34013-B  using adapters J 34013-971, J-34013-972  and the J 3289-20.
  3. Turn the compressor forcing screw (3) until the spring compresses slightly.

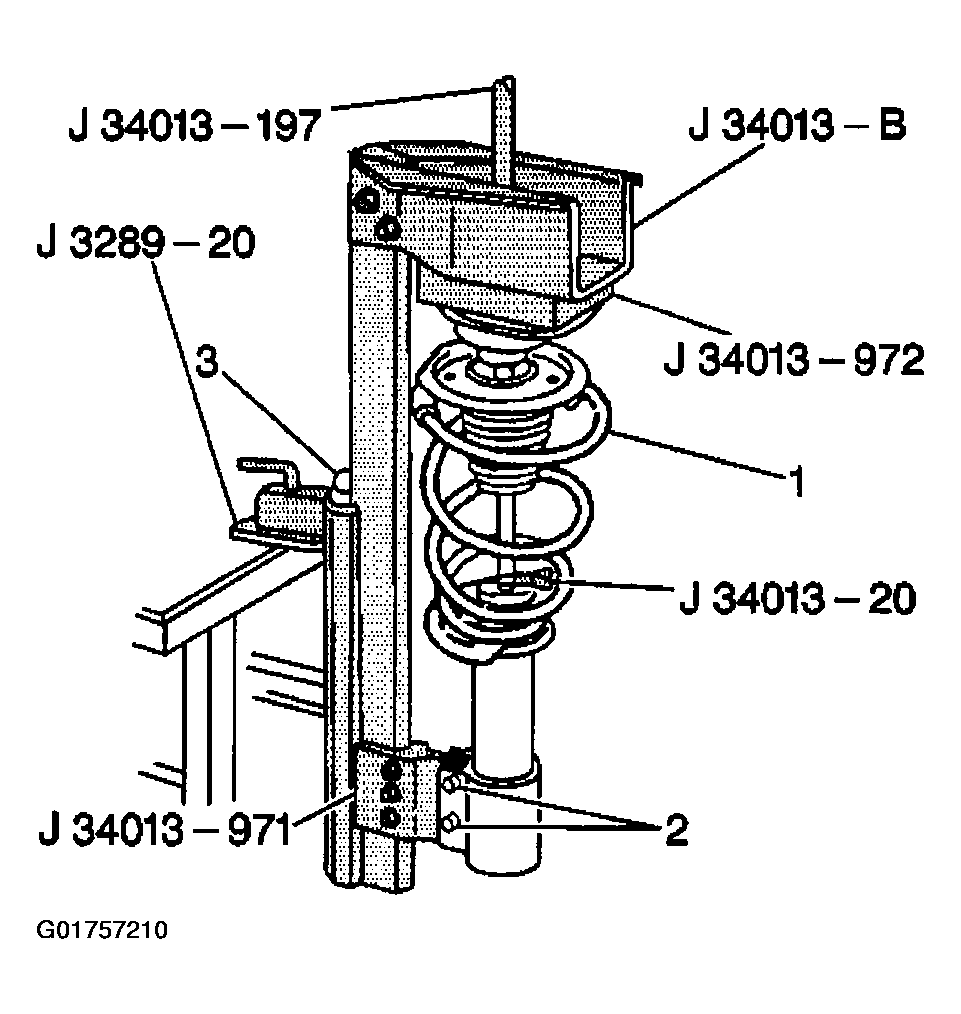

    Fig 1: Installing Strut In J 34013-B Using J 34013-971, J-34013-972 And J 3289-20
    G01757210Courtesy of GENERAL MOTORS CORP.
  4. Use a 45 TORX® socket in order to hold the strut shaft. Remove the strut mount nut by turning with J 42991.
  5. Install the J 34013-197  to help guide the strut shaft out of the strut upper mount.
  6. Loosen the compressor screw while guiding the strut shaft out of the strut upper mount. Continue loosening the compressor forcing screw until you can remove the strut and the spring.

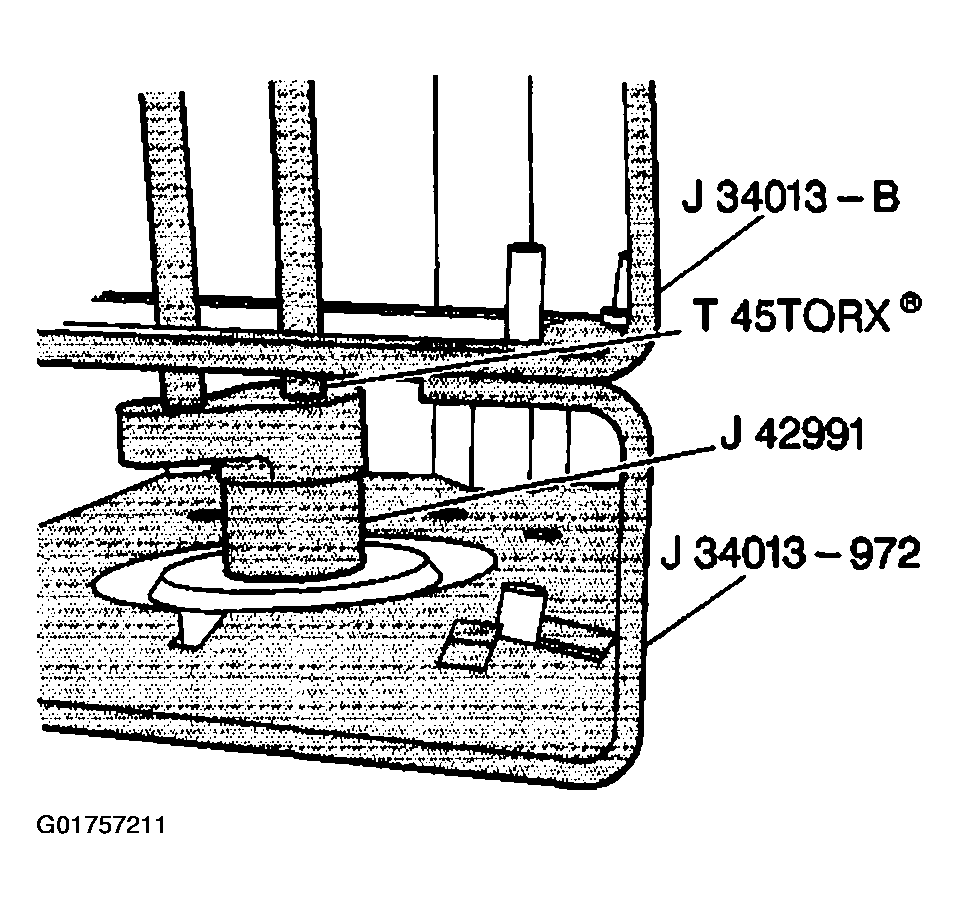

    Fig 2: TORX® Socket, J 42991 And J 34013-197
    G01757211Courtesy of GENERAL MOTORS CORP.
