Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray bolts.

    Tighten

    Tighten the battery tray bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to BATTERY REPLACEMENT .

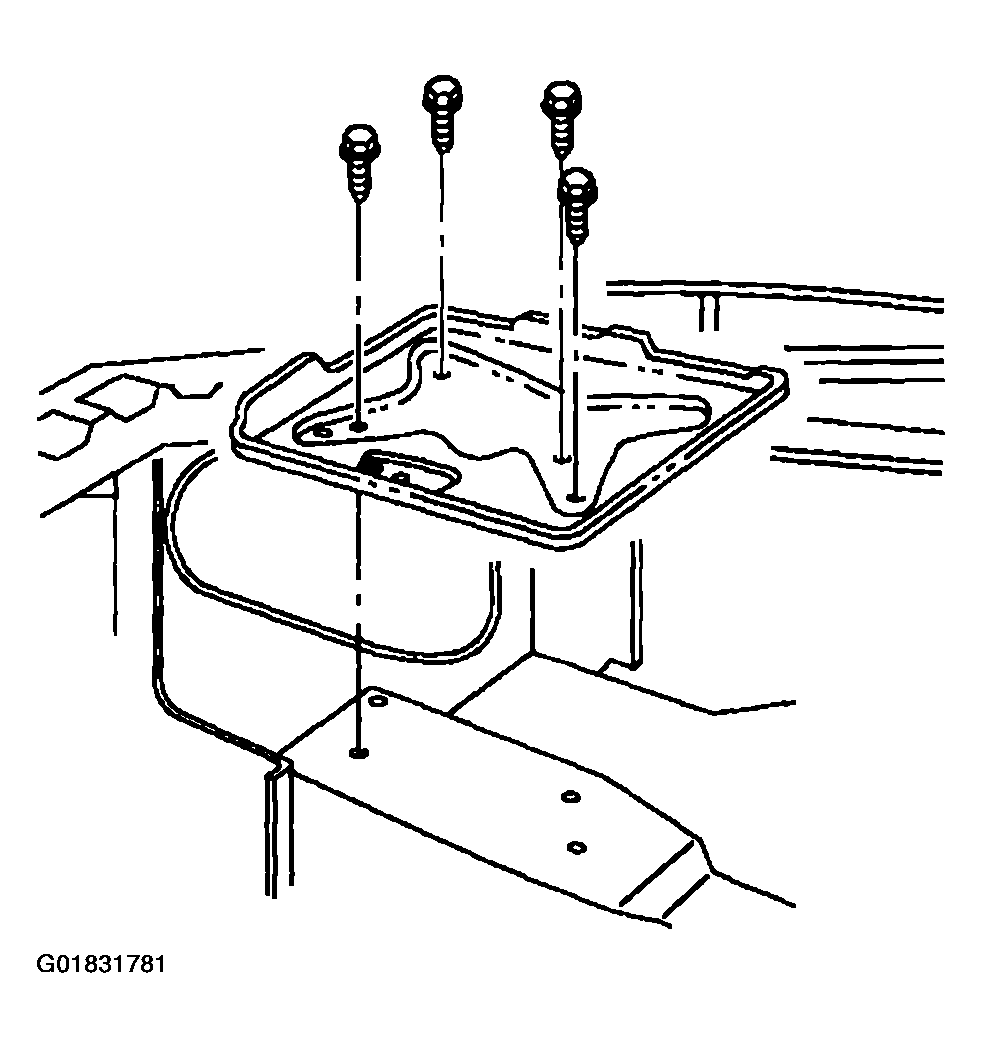

    Fig 1: Installing Battery Tray & Bolts
    G01831781Courtesy of GENERAL MOTORS CORP.
