Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the fender on the vehicle
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the fender to front compartment side rail bolts.
Tighten

Tighten the bolts to 6 N.m (53 lb in).

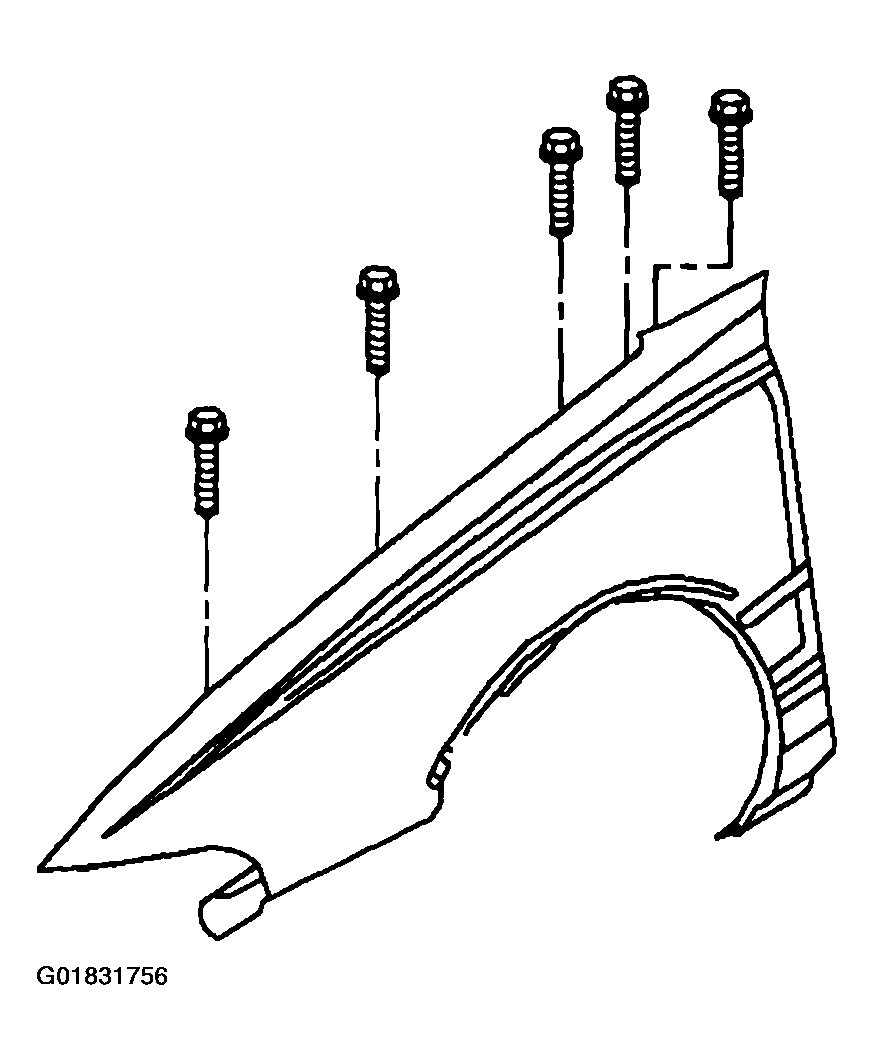

Fig 1: Installing Fender To Front Compartment Side Rail Bolts
Courtesy of GENERAL MOTORS CORP.
Install the fender to rocker panel bolts.
Tighten

Tighten the bolts to 6 N.m (53 lb in).

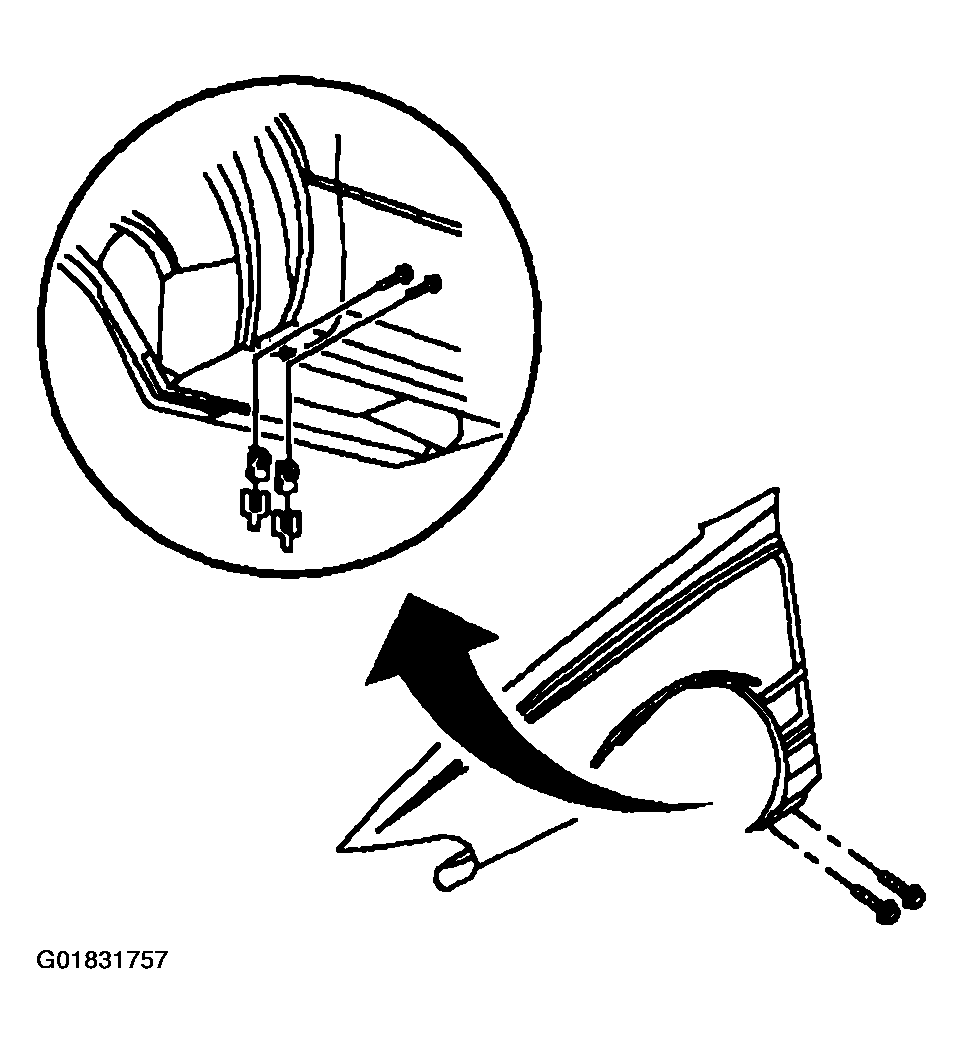

Fig 2: Installing Fender To Rocker Panel Bolts
Courtesy of GENERAL MOTORS CORP.
Install the fender to door hinge pillar bolts.
Tighten

Tighten the bolts to 10 N.m (89 lb in).

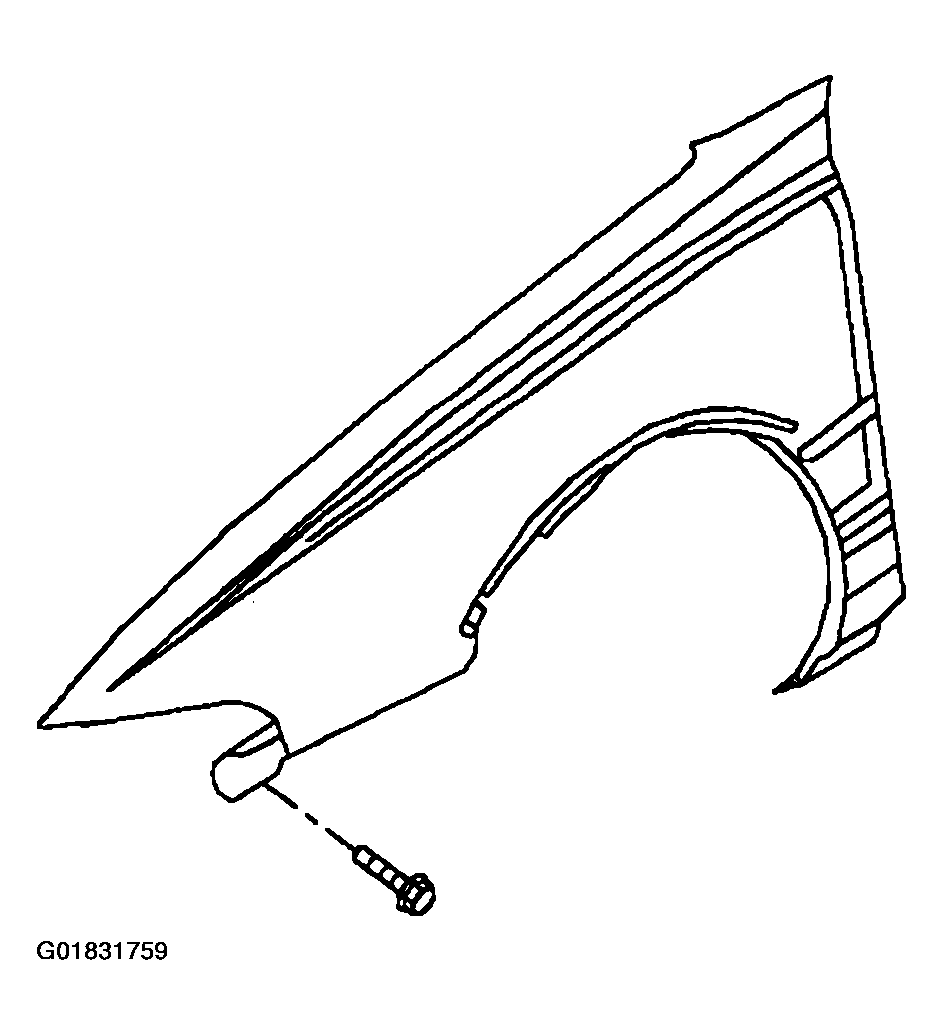

Fig 3: Installing Fender To Door Hinge Pillar Bolts
Courtesy of GENERAL MOTORS CORP.
Install the fender to engine compartment side rail bolts.
Tighten

Tighten the bolts to 8 N.m (70 lb in).
Install the washer solvent container to the right fender. Refer to WASHER SOLVENT CONTAINER REPLACEMENT in Wipers/Washer Systems.
Install the front fender liner. Refer to Front Fender Liner Replacement .
Install the hood hinge. Refer to Hood Hinge Replacement .
Install the hood. Refer to Hood Replacement .
Install the rocker finish panel. Refer to MOLDING REPLACEMENT - ROCKER PANEL in Exterior Trim.
Remove the tape from the fender and adjacent surfaces.

Fig 4: Installing Fender To Engine Compartment Side Rail Bolts
Courtesy of GENERAL MOTORS CORP.
