Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender liner to the wheelhouse opening over the stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front fender liner stud nut.

    Tighten

    Tighten the nut to 3 N.m (27 lb in).

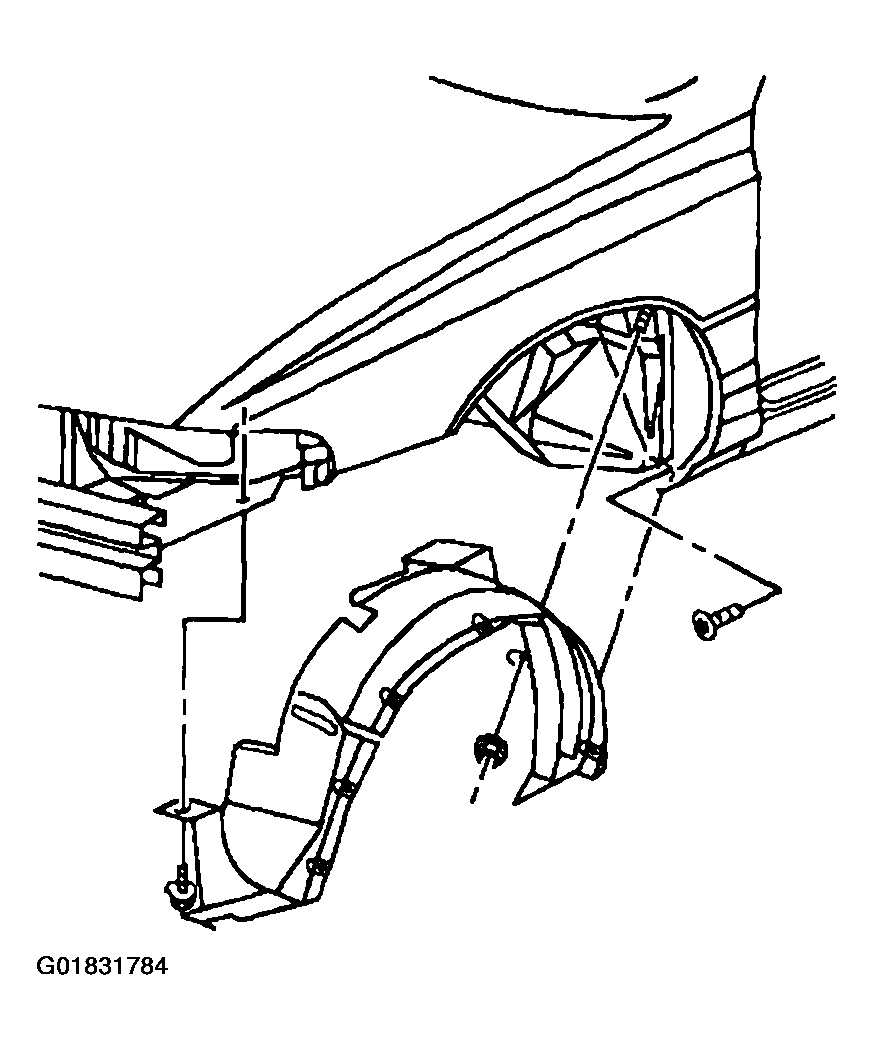

    Fig 1: Installing Front Fender Liner To Wheelhouse Opening
    G01831784Courtesy of GENERAL MOTORS CORP.
  3. Install the front fender to front liner bumper fascia bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

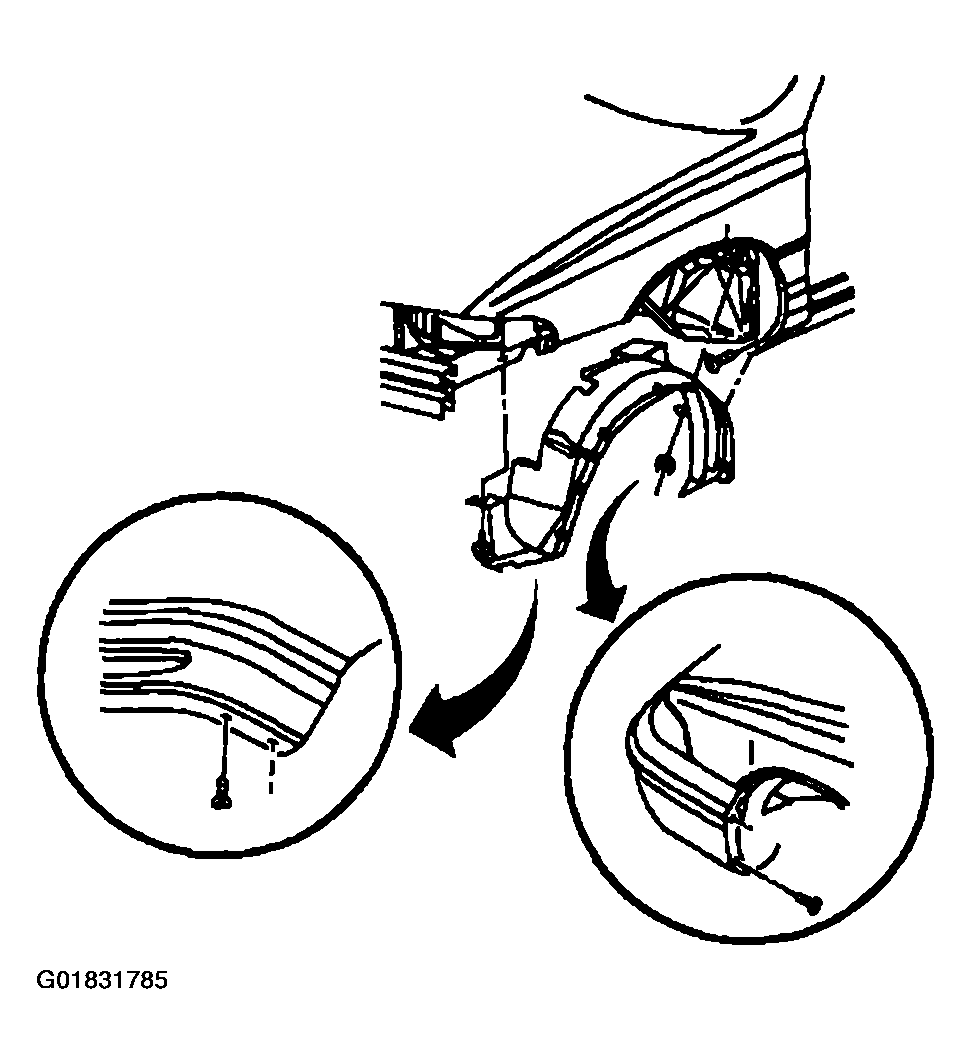

    Fig 2: Installing Front Fender To Front Liner Bumper Fascia Bolts
    G01831785Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts to the front fender liner at the rear of fender.

    Tighten

    Tighten the screws to 7 N.m (61 lb in).

  5. Install the bolt to the front tab of the front fender liner at the lower engine compartment side rail.

    Tighten

    Tighten the bolts to 7 N.m (61 lb in).

  6. Install the front fender liner screws.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

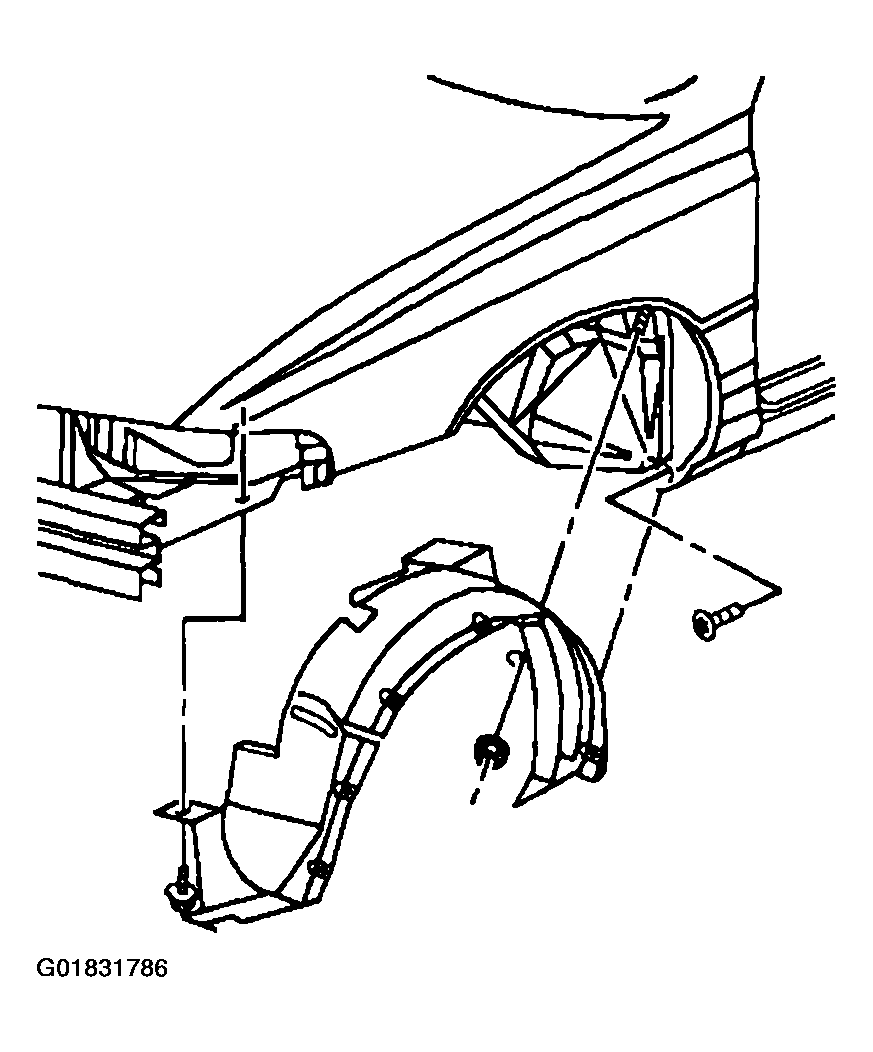

    Fig 3: Installing Bolts To Front Fender Liner
    G01831786Courtesy of GENERAL MOTORS CORP.
