Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the latch support to the upper and lower tie bars.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hood latch support to upper tie bar bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood latch support to the lower tie bar nut.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  4. Install the upper fascia support bracket to latch support. Refer to FASCIA SUPPORT REPLACEMENT - FRONT BUMPER UPPER in Bumpers.
  5. Install the hood latch to hood latch support. Refer to Hood Latch Replacement .

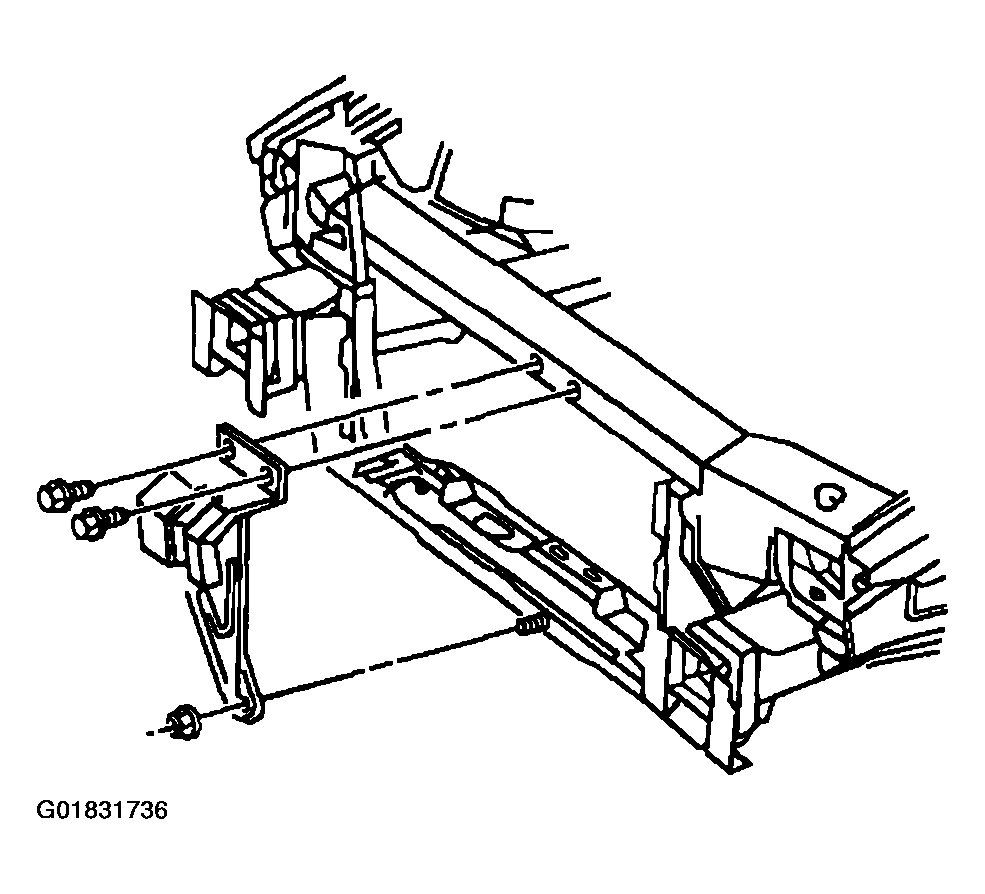

    Fig 1: Installing Bolts To Hood Latch Support
    G01831736Courtesy of GENERAL MOTORS CORP.
