Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the plenum chamber deflector to the flange.
  2. Install the plenum chamber deflector to the flange.

    Start at the passenger side corner and with a pressing motion work toward the center of the car.

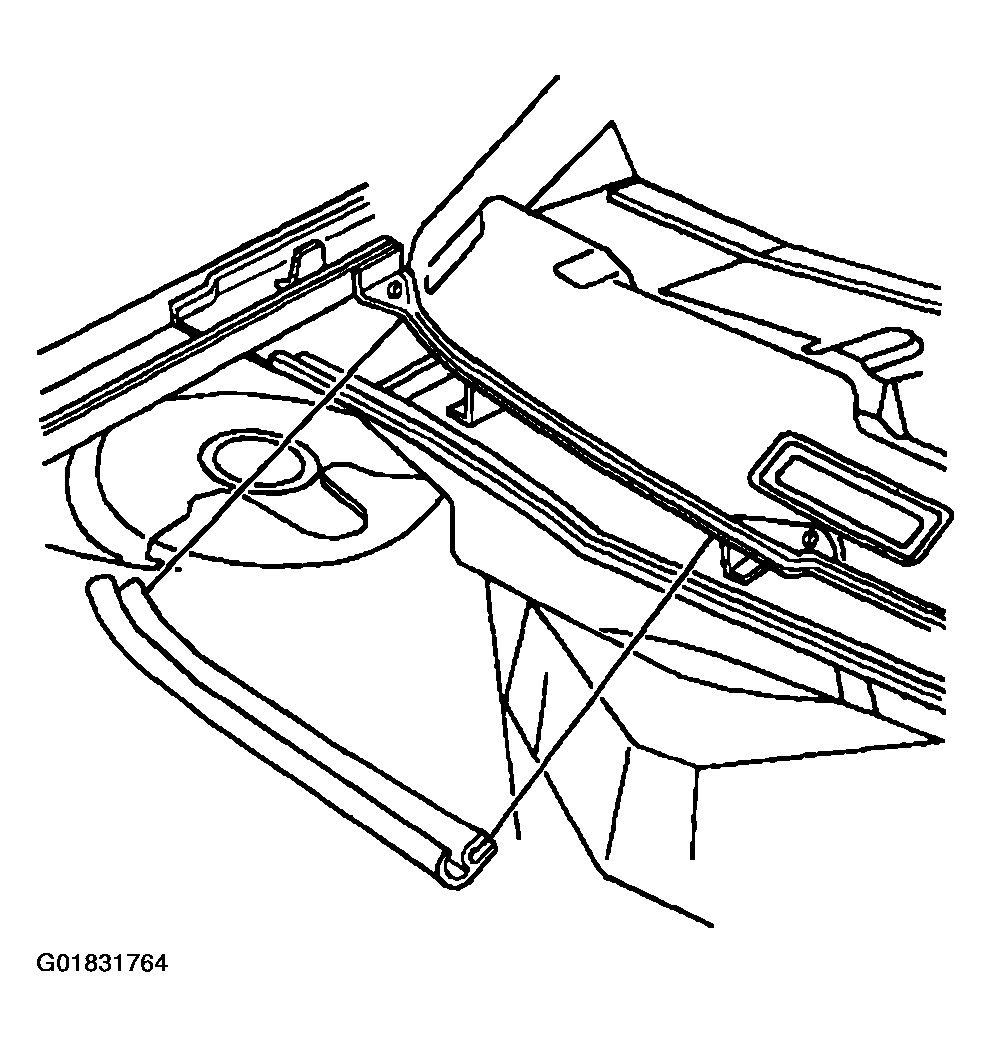

    Fig 1: Installing Plenum Chamber Deflector To Flange
    G01831764Courtesy of GENERAL MOTORS CORP.
  3. Insert the tabs of the plenum chamber deflector extension to the flange of plenum chamber and press down until fully seated.
  4. Install the right side of air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  5. Close the hood.

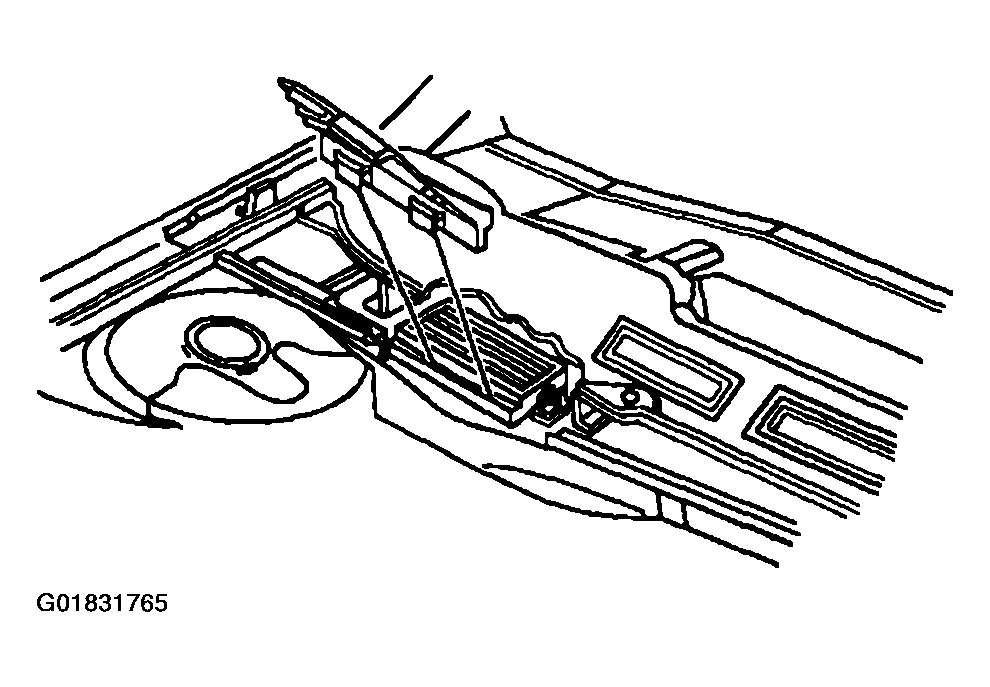

    Fig 2: Installing Plenum Chamber Deflector Extension
    G01831765Courtesy of GENERAL MOTORS CORP.
