Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Use J 38778 to remove the push-in retainers holding the ABS lead to the engine splash shield.
Use J 38778 to remove the push-in retainers from the engine splash shield.
Remove the engine splash shield from the lower flange of the engine compartment side rail.

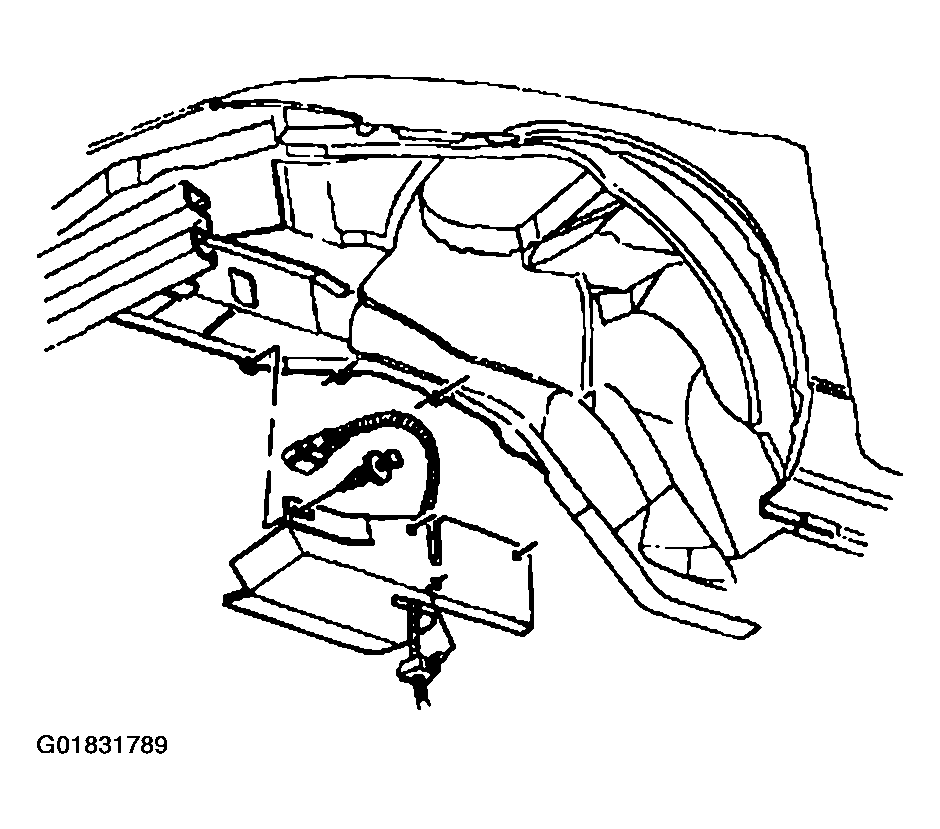

Fig 1: Removing Push - In Retainers From Engine Splash Shield
Courtesy of GENERAL MOTORS CORP.
