Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the audio amplifier.
  2. Install the tabs of the audio amplifier to the slots in the rear window panel.
  3. Position the audio amplifier bolts to the openings in the rear window panel, as shown. Slide the audio amplifier forward.
  4. Close the rear compartment.
    NOTE: Refer to FASTENER NOTICE .
  5. Tighten the audio amplifier bolts.

    Tighten

    Tighten audio amplifier bolts to 6 N.m (53 lb in).

  6. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

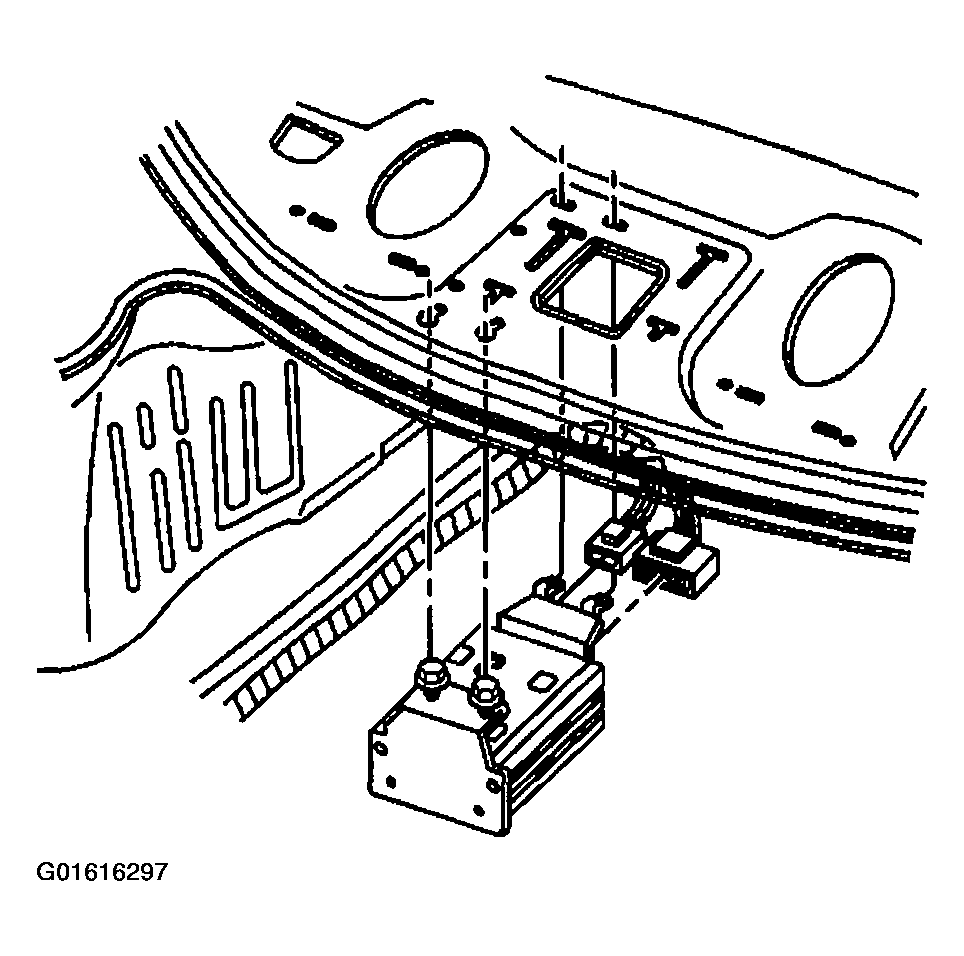

    Fig 1: Audio Amplifier & Bolts
    G01616297Courtesy of GENERAL MOTORS CORP.
