Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cruise control cable to the vehicle.
  2. Install the cruise control cable to the cruise control module.
  3. Connect the cruise control cable adjuster lock. Rotate the cruise control cable clockwise.
    Fig 1: Install Cruise Control Cable & Cruise Control Adjuster Lock
    G01831005Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable to the retainer on the cruise control module bracket.
    Fig 2: Install Cruise Control Cable To Retainer
    G01831006Courtesy of GENERAL MOTORS CORP.
  5. Install the cruise control cable to the cruise control cable throttle bracket.

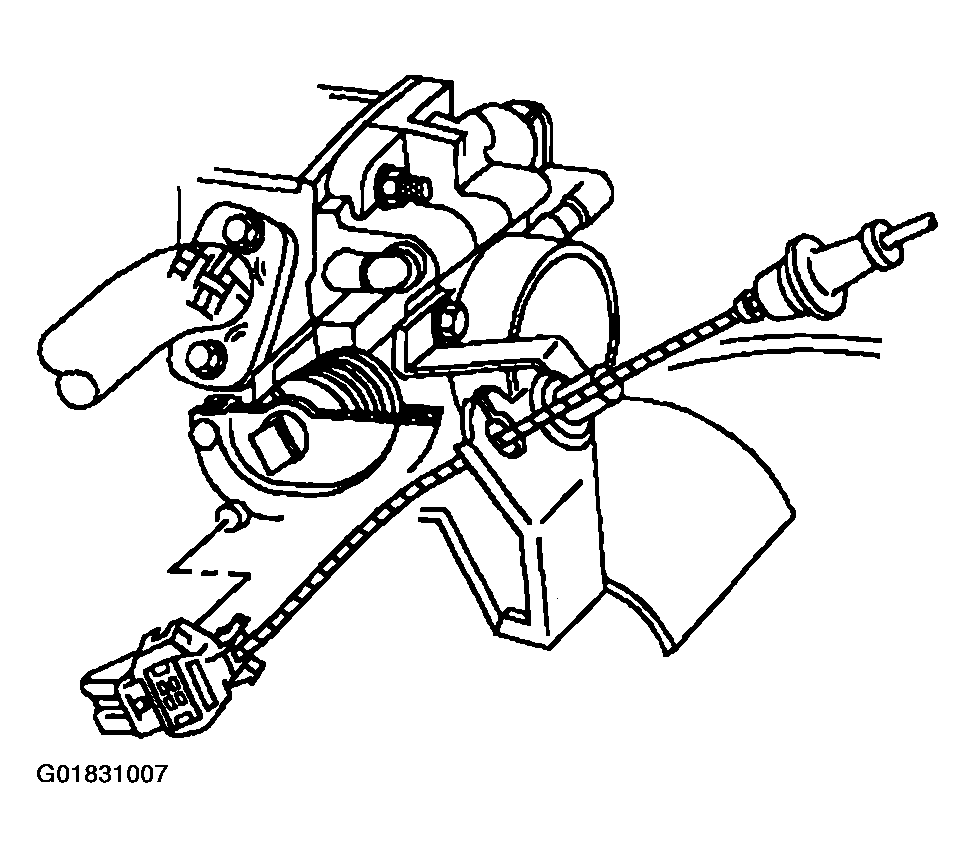

    Fig 3: Install Cruise Control Cable To Cruise Control Cable Throttle Bracket
    G01831007Courtesy of GENERAL MOTORS CORP.
  6. Install the cruise control cable to the cam pin.
    IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.
  7. Adjust the cruise control cable at the cam pin with the throttle lever closed and pushing down on the clip to lock. The mechanism is spring loaded which will take up the slack automatically.
    Fig 4: Install Cruise Control Cable To Cam Pin
    G01831008Courtesy of GENERAL MOTORS CORP.
