Engine

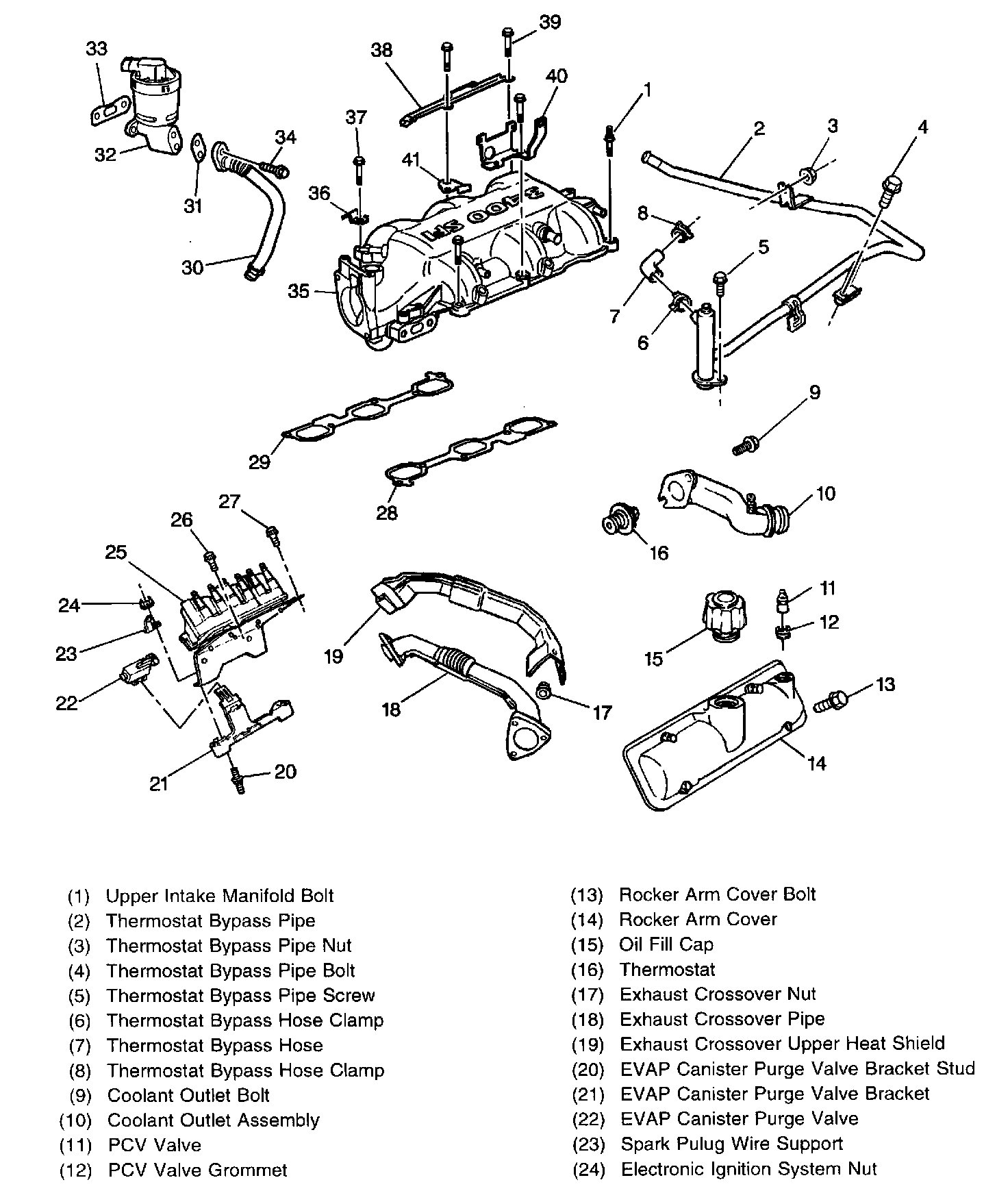

Upper Intake Manifold and Components

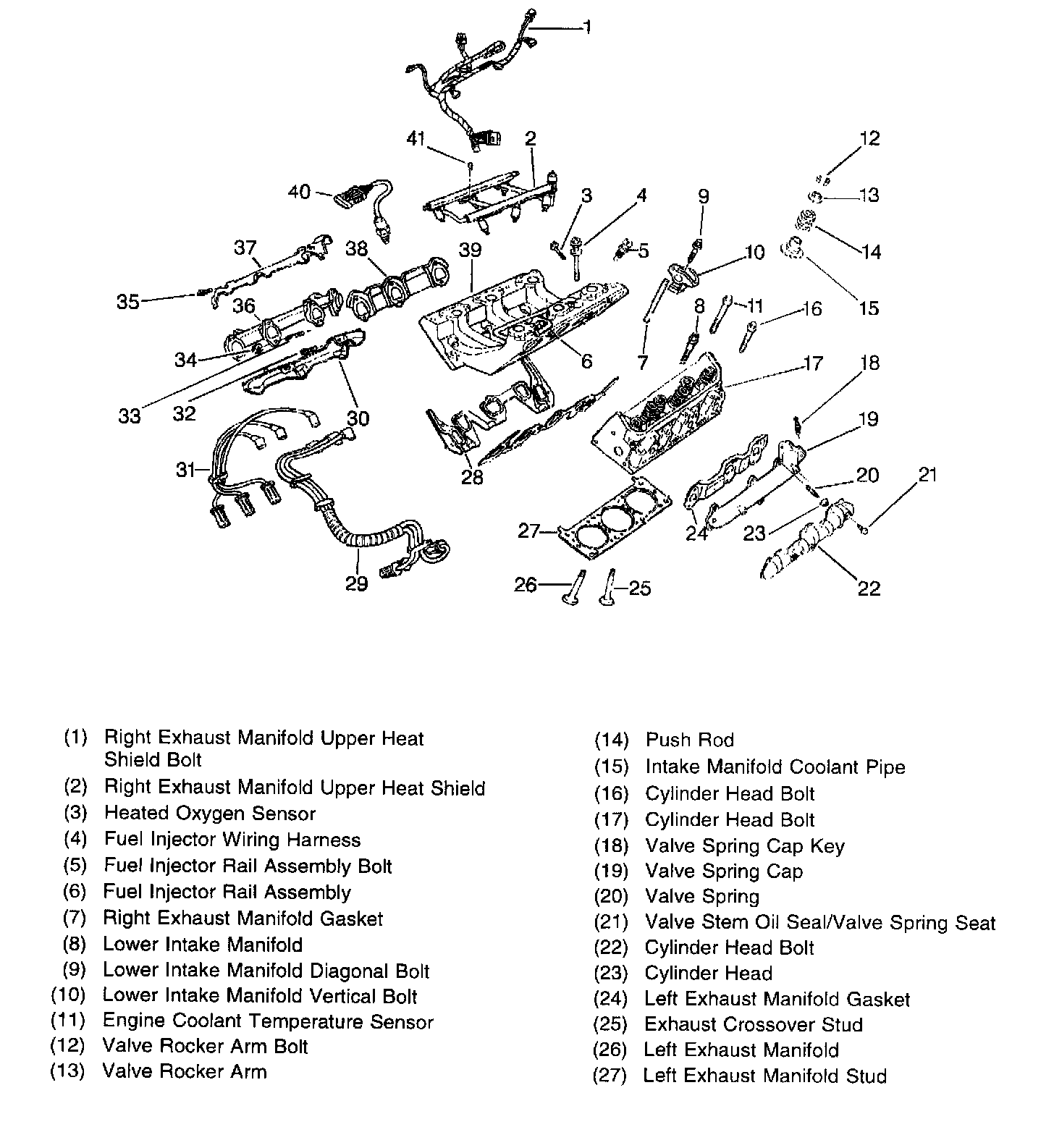

Lower Intake Manifold, Cylinder Head, and Components

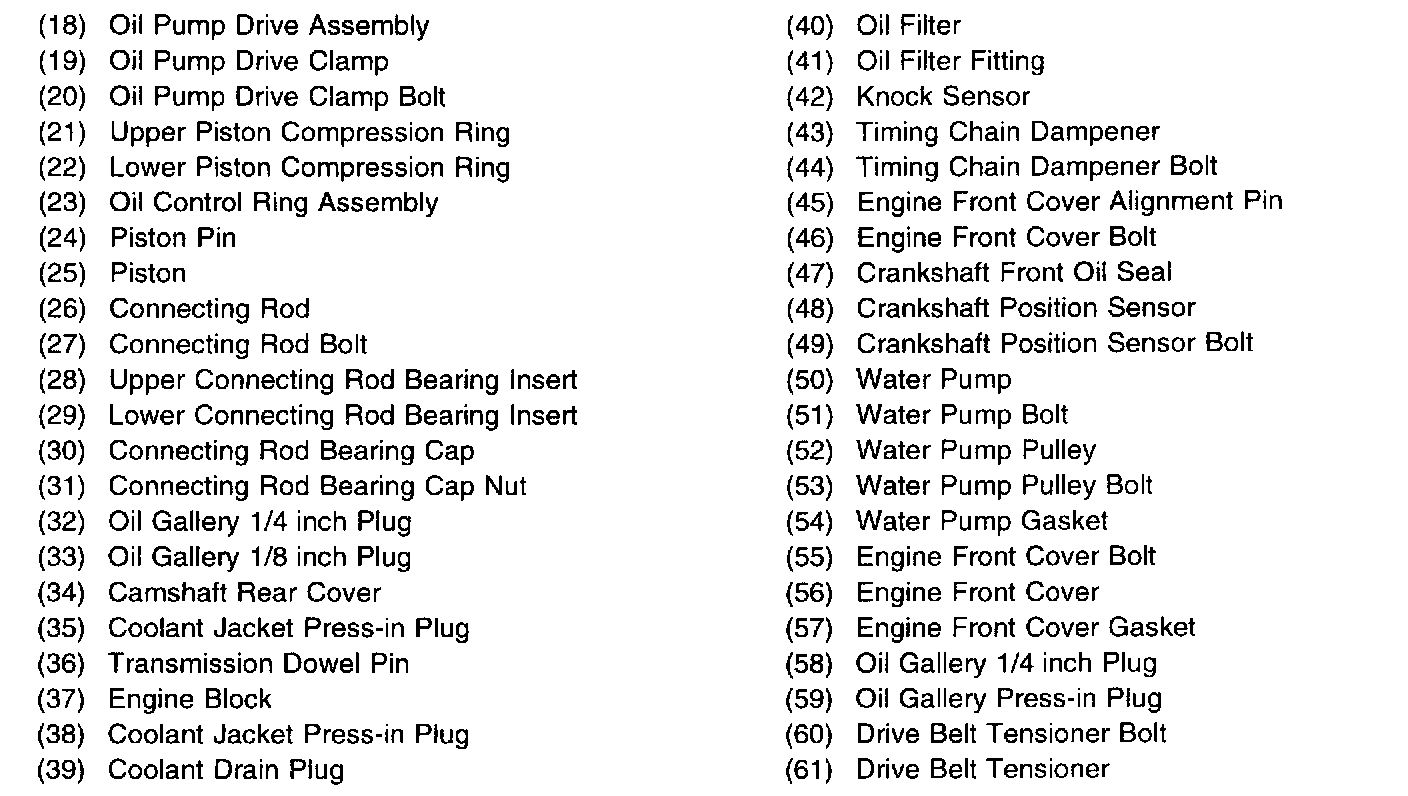

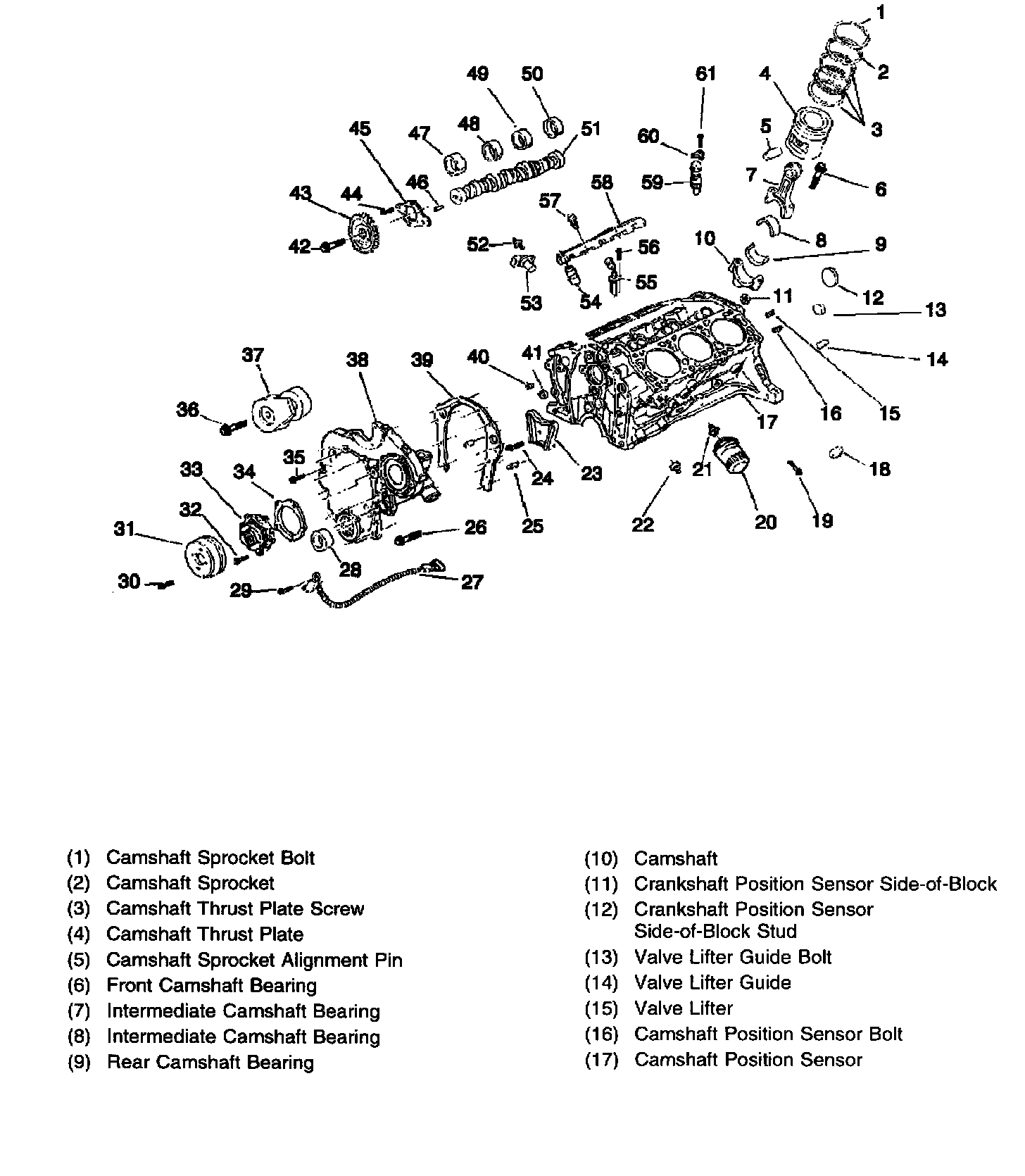

Engine Block and Components

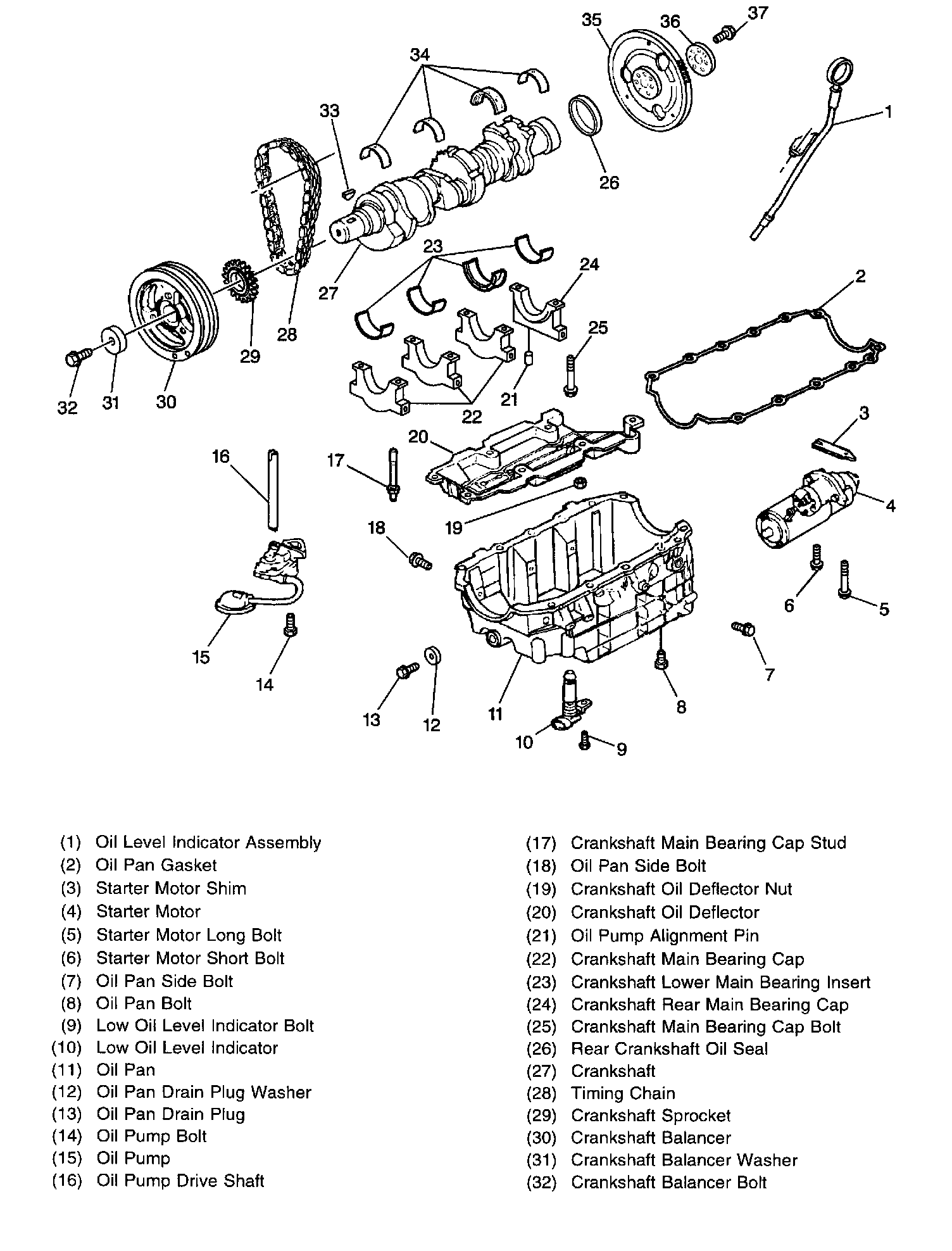

Crankshaft and Components
