Door Lock Switches, LH Front Door Lock Assembly

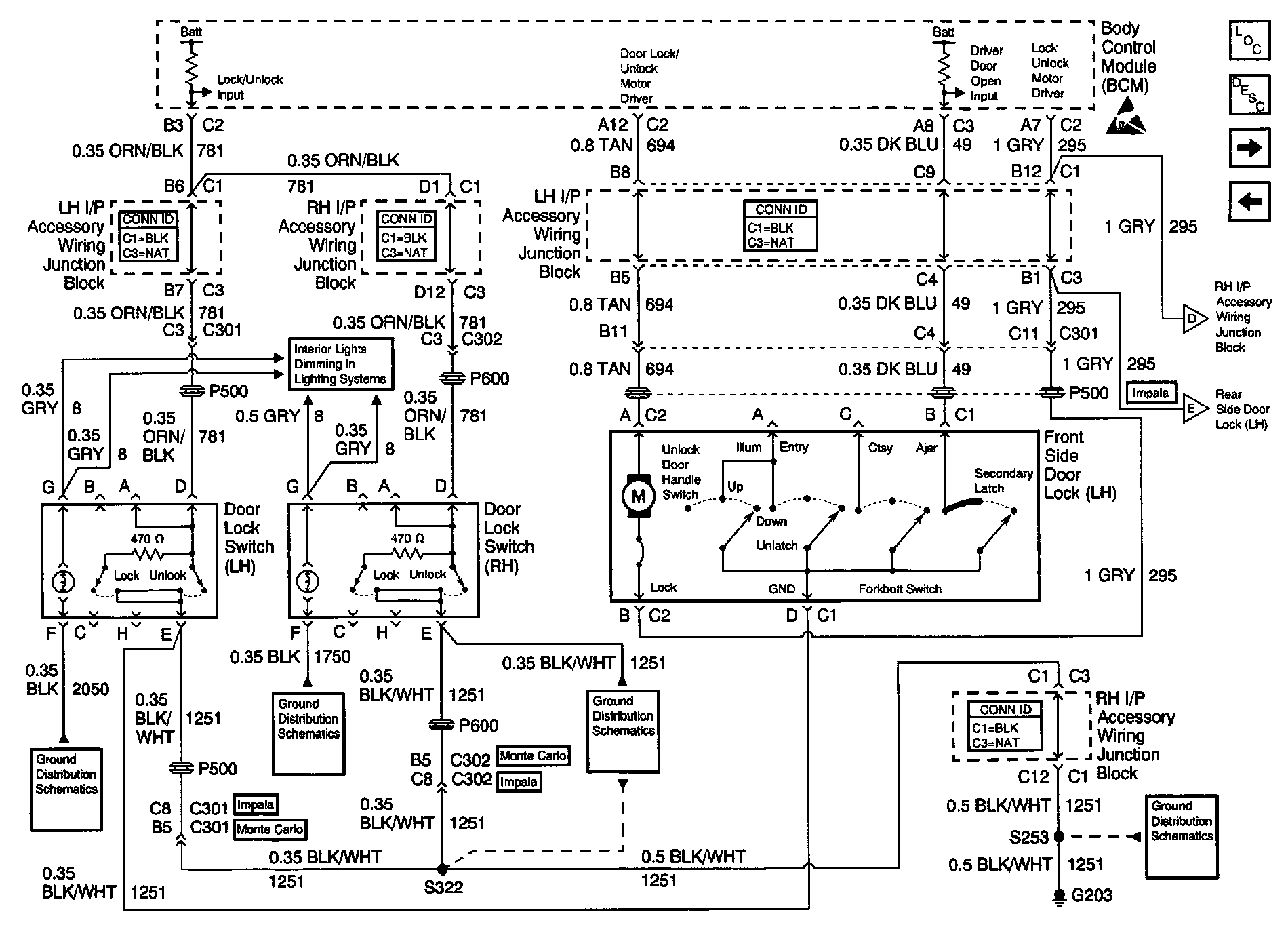

Body Control Module Schematics: Door Lock Switches, LH Front Door Lock Assembly:
