DRL Relay, Backup Relay And Ambient Light Sensor

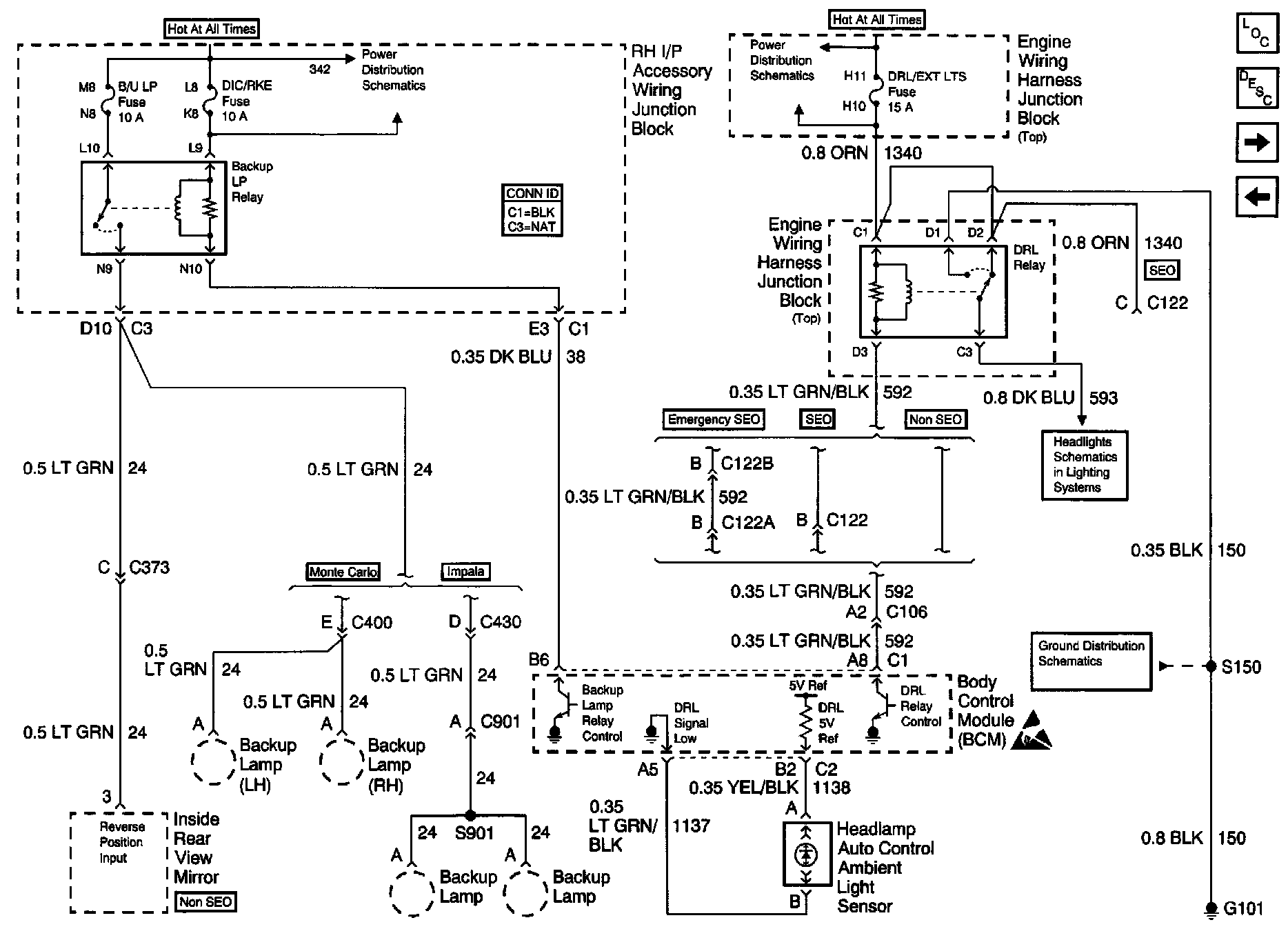

Body Control Module Schematics: DRL Relay, Backup Relay And Ambient Light Sensor:
