Relay Box

NOTE: Relay box is located on driver's side of engine compartment. See Figure.

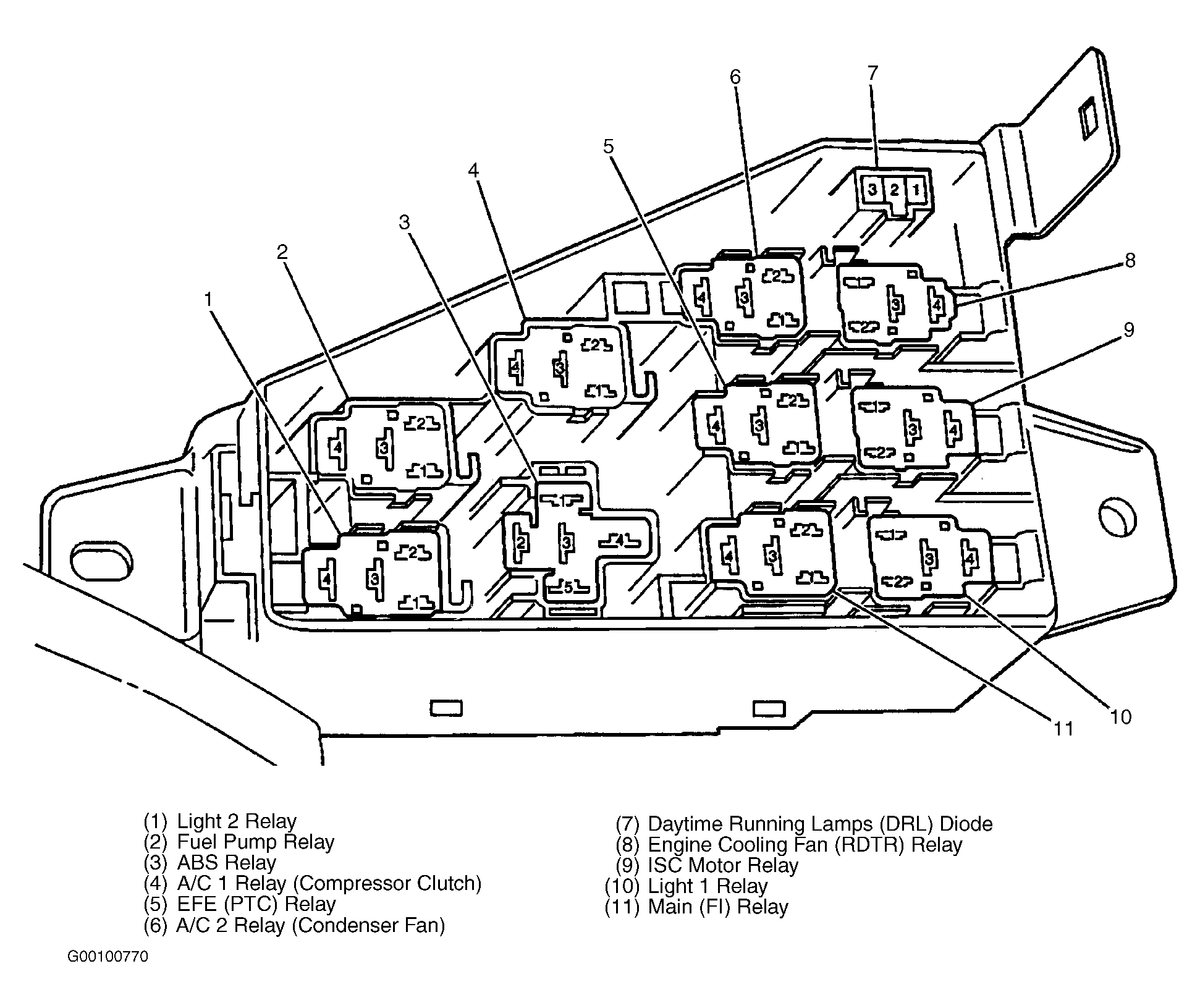

Fig 1: Identifying Relay Box Components
G00100770Courtesy of GENERAL MOTORS CORP.
