Automatic Transmission Preference Switch

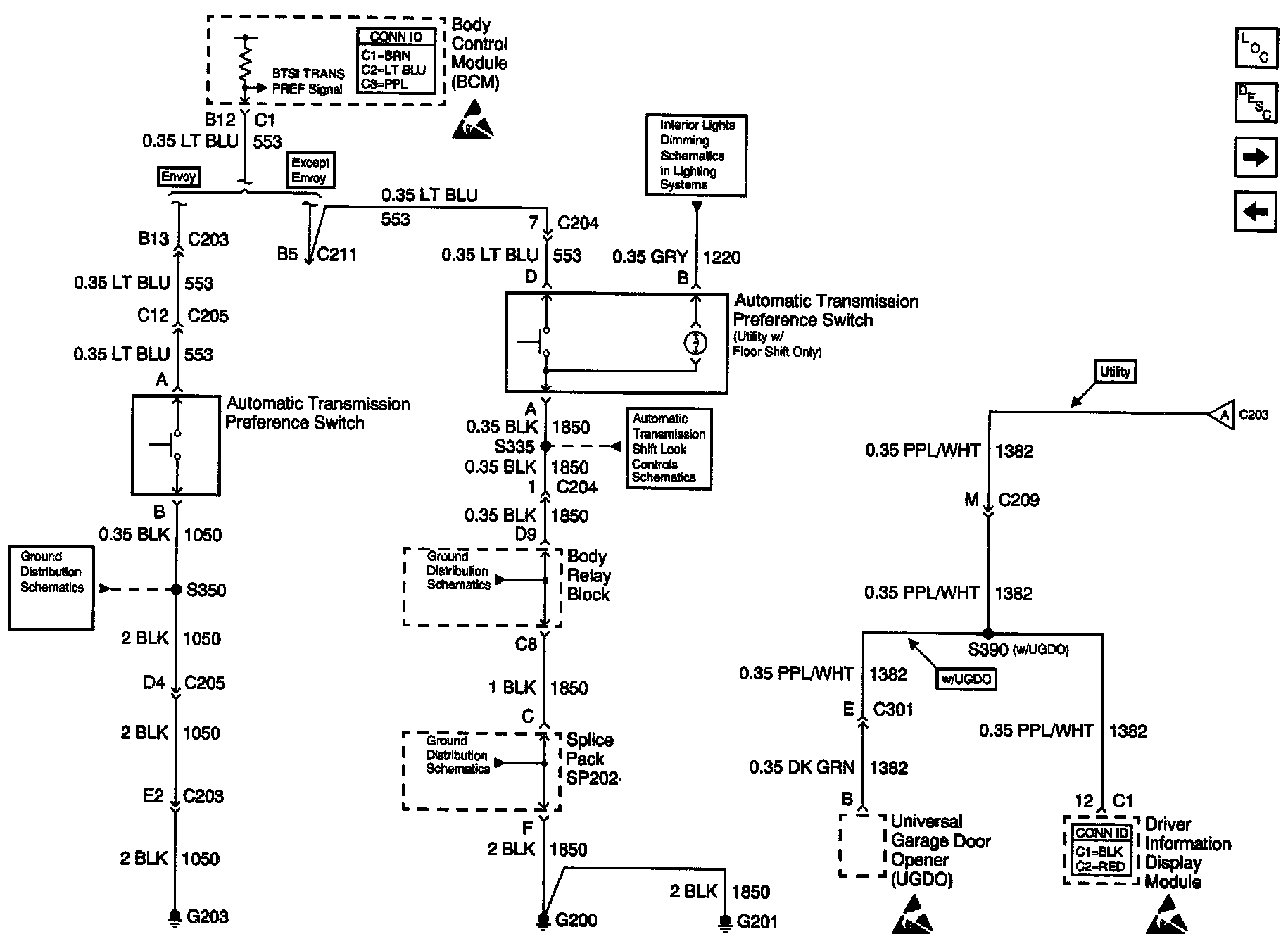

Body Control Module Schematics: Automatic Transmission Preference Switch:
